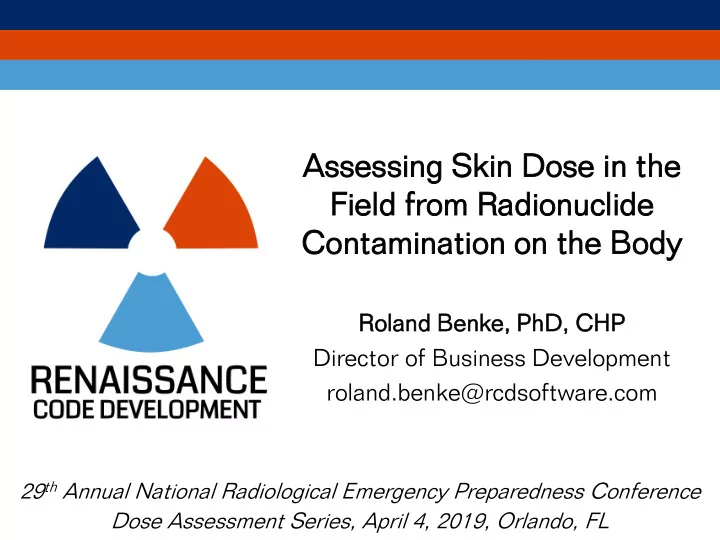

Ass ssessi essing ng Sk Skin in Dose se in th the Field eld from m Ra Radionuclide dionuclide Cont ntaminatio amination n on th the Bo Body

Rolan and d Benk nke, PhD, , CHP Director of Business Development roland.benke@rcdsoftware.com

29th Annual National Radiological Emergency Preparedness Conference Dose Assessment Series, April 4, 2019, Orlando, FL

CORVALLIS AUSTIN SEATTLE

Radiological Contamination Screening

• Labor intensive
• Common to many

incidents

2

• Significant concern to
• Public
• Emergency workers
• Medical care providers
• Important to incident response

CORVALLIS AUSTIN SEATTLE

Overarching Questions & Motivation

• Handling high activity sources without shielding

is dangerous, but what’s the potential for skin damage from intentional or uncontrolled radioactive material dispersal into the atmosphere?

• What count rates from contamination are a

medical concern for skin damage?

• What new software features would provide the

greatest benefits to responders in the field? 3

?

CORVALLIS AUSTIN SEATTLE

Potential: Rapid assessment software for contaminated skin, clothing, & wounds

Potential to Fill Current Gap

• Contamination surveys yield
• instrument count rate*
• not dose rate
• VARSKIN computer code
• calculates skin dose
• 30 years of U.S. NRC development
• Dose rate much better for
• triage
• justifying medical treatment

4

*Convertible to radionuclide activity per unit area if radionuclide identity & radionuclide-specific instrument calibration are known in the field

CORVALLIS AUSTIN SEATTLE

Potential: Rapid assessment software for contaminated skin, clothing, & wounds

RCD―Leader in Skin Dosimetry

• Experts in software development
• C, C++, C#, FORTRAN
• Python, Java, JavaScript, JSON
• HTML, CSS, React, React Native, PHP
• MATLAB, LabView, Unix shell, VHDL

5

• VARSKIN computer code
• developed by Dr. Hamby’s group over the last 10 years
• maintained by Renaissance Code Development (RCD)
• Potential fieldable smart phone app for skin dose

CORVALLIS AUSTIN SEATTLE

Technical Objective: Skin Dose Rate

Conversion for Instrument Count Rate 6

• Necessary to quantify off-axis

detection efficiency because larger contaminated areas imply greater off-axis contributions to instrument count rate

• RCD demonstrates the solution by
• developing survey meter efficiencies for large contaminated areas from

point measurements of instrument count rate

• calculating skin doses with VARSKIN

CORVALLIS AUSTIN SEATTLE

VARSKIN Background

• Developed for hot particles and contamination on or near skin
• Shallow dose equivalent for highest contiguous 10 cm2 or other areas
• Electron (beta) and photon (gamma) dose modeling
• Select source geometry as point, disk, cylinder, sphere, or slab
• Air gap and multiple cover layers above skin allowed
• Planar disk source selected to address varying areas of

contamination in this assessment (i.e., skin curvature not modeled)

7

CORVALLIS AUSTIN SEATTLE

8

90Sr/90Y source

Method Summary & Example Measurement Data

• Calculated detection efficiency over

center of uniformly contaminated area from radial point measurements

• 90Sr/90Y areal detection efficiency
• 24% for 1 cm2 source
• 18% for 10 cm2 source
• 4.4% for 100 cm2 source
• 0.45% for 1000 cm2 source
• Applied planar disk source geometry
• Merged (1) VARSKIN skin doses per

unit areal contamination and (2) contamination concentration necessary to induce a meter reading

• f 100,000 cpm
• Compared skin dose rates

for various scenarios

CORVALLIS AUSTIN SEATTLE

9 5

• Same radionuclide plotted,

different encapsulation, very different efficiency

• Source encapsulation significantly

attenuates electrons (beta particles)

• Vertical air gap of 1.3 cm
• Investigation continued with thin foil

sources for better representation of contamination on skin and clothing

Important to Include Electrons

CORVALLIS AUSTIN SEATTLE

Investigated Contamination Size

10

Point-like 1 cm2 Medium 100 cm2 Small 10 cm2 Large 1000 cm2

• Factor of 2 to 3 influence on skin dose rate from contamination

size for same instrument count rate

• Skin dose rate for highest contiguous 10 cm2 exposed

CORVALLIS AUSTIN SEATTLE

• Emission characteristics influenced skin dose rate by factor of 3 to 6

for same instrument count rate

• Strontium-90/Yttrium-90 (90Sr/90Y), electron
• n (beta)

a) emissions

• Cesium-137/Barium-137m (137Cs/137mBa), phot
• tons
• ns (gamma

mma) ) & electrons

• ns (beta)

a)

• Priority given to Radiological Dispersal Device (RDD) threats
• Point-like, small, medium, and large contamination sizes considered

Investigated Two Radionuclides

11

RDD threat sources

CORVALLIS AUSTIN SEATTLE

Investigated Contamination on Clothing versus Skin Deposition

12

• Cotton clothing reduced skin

dose rate by factor of 2 to 4 for same count rate

• 0.4 mm cotton (0.036 g cm-2)
• Point-like, small, medium, and

large contamination sizes considered

Above each point the instrument reads 100,000 cpm. Will skin dose be a concern … for both, for one, for neither?

CORVALLIS AUSTIN SEATTLE

Conclusions of this Preliminary Assessment

13

• Emergency guidance suggests 100,000 cpm* as a screening threshold for

further medical evaluation (CRCPD Handbook)

• Conversion factor for skin dose rate at the screening threshold
• Less than 0.009

009 Gy Gy h-1 per r 100,0 0,000 00 cpm

• Not more than 0.002

002 Gy Gy h-1 per r 100,0 0,000 00 cpm for most scenarios

• Deterministic effects to unbroken skin expected at skin doses of 2 − 3 Gy
• Sufficient time exists for self-decontamination or monitored decontamination

at community reception centers to prevent skin damage

• Irradiation damage to unbroken skin appears less critical for medical

intervention at this screening threshold

• Potential radionuclide uptake & internal doses justify further evaluation

*Much lower levels are recommended for broken skin and contaminated wounds

CORVALLIS AUSTIN SEATTLE

Is there interest in field software to convert survey count rates from contamination on the body to skin dose rate

• r effective dose rate?

VARSKIN Status & Prospects

• VARSKIN currently calculates skin dose rate from

radionuclide activity and geometric inputs

• We show how VARSKIN could be modified to produce

skin dose rates from survey count rates in the field

• Recall upper value 0.009 Gy h-1 to skin per 100,000 cpm*
• Factor varied by more than an order of magnitude in this study
• Single value could be useful for triage

14

*Screening threshold for electrons (beta) & photons (gamma); lower levels apply to alpha particles

?

Feedback requested:

CORVALLIS AUSTIN SEATTLE

Potential: Rapid assessment software for contaminated skin, clothing, & wounds

What features are most wanted?

• Current survey equipment does not provide

dose rates from contamination on the body

• Psychosomatic issues cannot be ignored,

despite ruling out serious skin damage

• Dose rates can be calculated, but is it better

to emphasize GM pancake probes or other survey instruments during initial screening?

• Contaminated wounds require much less

radioactivity to become medically significant

• REAC/TS implements contaminated

wound modeling per NCRP Report 156

• What field software features

do you want?

15
