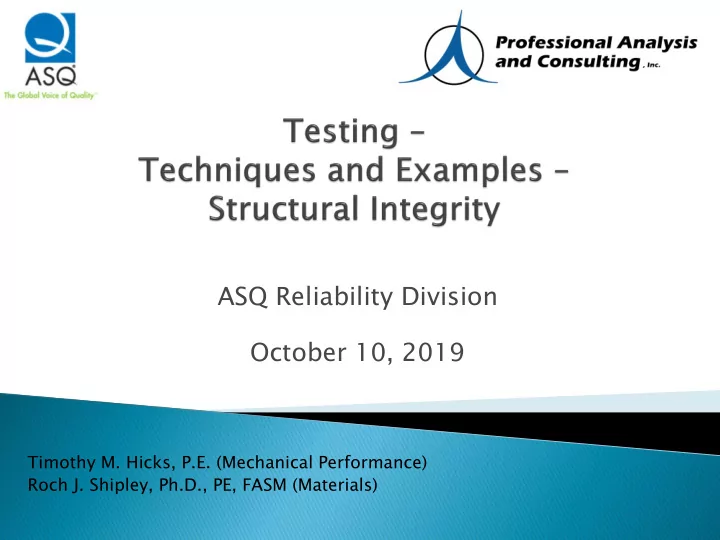

SLIDE 1

ASQ Reliability Division October 10, 2019

Timothy M. Hicks, P.E. (Mechanical Performance) Roch J. Shipley, Ph.D., PE, FASM (Materials)

slide-2
SLIDE 2

 Structural integrity is ensured in the design phase by a thorough

review of a product’s intended use and foreseeable misuse

  • Testing is performed for verification
  • Materials of construction are reviewed
  • Manufacturing process controls ensure that the design intent is met
  • Documentation addresses operation, maintenance, and inspection, with

warnings

 The testing methods utilized for design verification and

validation are also critical when it comes to analyzing failures

 Today’s focus will be to:

  • Discuss some different aspects of structural integrity testing
  • Provide an overview of processes utilized to ensure a successful and safe

design

  • Provide guidance to get it right the first time, avoiding any need for failure

analysis

slide-3
SLIDE 3

 Timothy M. Hicks, PE (Tim)

  • Mechanical Engineer

▪ BS - Michigan Technological University ▪ MS – Rensselaer Polytechnic Institute

  • Industry – 36 years experience

▪ 27 years in design, testing, and manufacturing ▪ 9 years in engineering consulting

slide-4
SLIDE 4

 Roch J. Shipley, PhD, PE, FASM

  • Materials Engineer

▪ BS and PhD – Illinois Institute of Technology

  • Industry – 39 years experience

▪ 10 years in manufacturing and corporate research ▪ 29 years in engineering consulting

slide-5
SLIDE 5

 General overview

  • Wide variety of companies and industries on call

 Please ask questions during or after presentation  Broad overview of topics  Don’t hesitate to seek out more information from

  • colleagues
  • suppliers
  • industry groups
  • technical societies
  • additional experts
  • follow-up with us afterwards (contact info at the end)
slide-6
SLIDE 6

 Requirements  Design concept  Detailed design  Failure Mode Effects Analysis (FMEA)

  • So issues are recognized and avoided to the fullest

extent possible

 Assess, test, and validate

  • Software modelling
  • Full scale prototypes
  • Materials samples

 Goal is to be both efficient AND complete

slide-7
SLIDE 7

 Design still in concept phase – Low  Manufacturing in progress – Medium  Products in distribution chain – High  Products in the field – Even higher  Failures have occurred in the field - Highest  Therefore, test early and often!

slide-8
SLIDE 8

 Thousands of recalls per year  Recalls.Gov combines

  • CPSC (Consumer Product Safety Commission)
  • NHTSA

SA (National Highway Traffic Safety Admin)

 914 recalls of 29 million motor vehicles in 2018

  • USCG (United States Coast Guard)
  • EPA

EPA (Environmental Protection Agency)

  • USDA (United States Department of Agriculture)
  • FDA (Food and Drug Administration)

 Compilations on sites such as

  • https://www.statista.com/topics/3798/product-recalls-

in-the-united-states/

  • Again, test early and often!
slide-9
SLIDE 9

 Dimensional  Appearance  Load → Stress

  • Specification
  • Reasonably foreseeable

 Usage / Wear  Maintenance, inspections, service

  • Consequences of deviations
slide-10
SLIDE 10

 Temperature

  • Operation
  • Shipment, storage, etc.
  • Washing, sterilization (medical devices)

 Chemical

  • Operation
  • Biocompatibility
  • Washing, including adjacent components, sterilization, etc.

 UV

  • Natural
  • Sterilization

 Radiation

  • Sterilization
  • Again, specified vs. reasonably foreseeable
  • Nuclear – another whole area
slide-11
SLIDE 11

 Metal  Plastic / Polymers  Ceramic  Composite material

  • Concrete
  • Wood

 Concepts apply to all materials, details differ

slide-12
SLIDE 12

 Casting  Forging  Molding  Welding  Machining

  • Surface finish
  • Stress concentrators
  • Might remove beneficial grain flow in formed parts
  • Residual stress

 Heat treatment  Stamping  Additive (3D printing)

slide-13
SLIDE 13

 Evaluates all possible failure modes for

manufacturing processes and product useage

 Critical dimensions, surface finish, etc.  Materials / components themselves do not

fail

  • Respond to environment – predictable ways

(engineer’s responsibility)

 Load / stress – including complex stress states, residual stress  Chemical / Corrosion  Temperature  Wear

slide-14
SLIDE 14

 Testing to address potential materials “failures”  Mechanical loads → stress

  • Processing → may introduce residual stress

 Residual stress – heating – thermal expansion etc.  Shot peening (beneficial)

 Again, verify

  • Deformation

 Elastic  Plastic (permanent)

  • Buckling
  • Fracture

 Chemical environment  Wear

slide-15
SLIDE 15

 Temperature – high or low

  • Thermal expansion and stress

 Varies with material

  • Change in mechanical properties
  • Change in lubricant performance
  • Enable or accelerate chemical reactions

 E.g. Oxidation, changes in material

slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18

 TESTING ESTABLISHES

ABLISHES & QUANTI NTIFIES FIES

  • Feasibility
  • Product specifications

 TESTING VA

VALIDAT DATES ES

  • Product concepts - prototypes
  • Product specifications
  • Product performance
  • Manufacturing processes
  • Aging/wear-out mechanisms
  • Failure modes

 TESTING MONITORS

ITORS

  • Manufacturing processes
  • Product aging / wear
  • Product performance
slide-19
SLIDE 19

 Standard properties and test methods

  • Publicly available
  • Or company standards
  • Clear communication all along the supply chain

 Not handbook and similar “typical” or average

properties.

 Not supplier typicals

  • What happens when supplier changes?
slide-20
SLIDE 20

 ASTM (American Society for Testing and

Materials) – 12,500+ documents

 ANSI (American National Standards Institute)

9,500+ documents

 SAE (Society for Automotive Engineers)

10,000+ documents

 IEEE (Institute of Electrical and Electronics

Engineers) – 1,100+ documents

slide-21
SLIDE 21

 ISO (International Organization for

Standardization) – 22,600+ documents

 International Electrotechnical Commission

(IEC) – 9,000+ documents

 International Telecommunications Union (ITU)

4,000+ documents

slide-22
SLIDE 22

 Chemical composition

  • Plastics less standardized than metals
  • Plasticizers, additives for UV exposure

 Mechanical properties  Heat treatment  Microstructural requirements  Non-destructive examination  Manufacturing processes

  • Including personnel, e.g. welding certifications

 Surface finish, coatings, friction  Corrosion and wear resistance  At temperatures of interest  And more  Control with test program

slide-23
SLIDE 23

 Materials  Test procedures

  • Match functional requirements

 Accredited laboratory  Supplier certification with every order, if

feasible

  • Protect yourself and your company
  • Avoid misunderstandings
  • Keep on file
slide-24
SLIDE 24

 Component  Sub-system  System  Full product  Cyclic or peak load  Accelerated durability  Field performance  Dormant state shelf life (e.g. airbags, oxygen

system on aircraft, fire detection systems)

slide-25
SLIDE 25

 Functional testing  Performance testing  Reliability testing  Environmental testing  Mechanical testing  Mean time between failures (MTBF) prediction

  • Many product lives follow Weibull distribution
  • Important for setting warranty terms

 Conformance testing  Safety certification

  • Determine useful life and factor of safety
slide-26
SLIDE 26

 Product Testing (Mechanical Lab/Field)

  • Functional Testing
  • Stress Testing
  • Performance Testing
  • Environmental Testing

 Materials Characterization (Analytical Lab)

  • Analytical Chemistry
  • Chemical composition and microstructure
  • Microscopy
  • Surface Analysis
  • Mechanical Property Testing
slide-27
SLIDE 27

 Finite Element Analysis/Modeling (FEA)  Experimental Stress Analysis

  • Strain gages
  • Various coatings

 Component Testing

  • Prototype
  • Early production

 System Testing

  • Prototype
  • Early production
  • Audit
slide-28
SLIDE 28

 Powerful tool to evaluate design

alternatives

 Inputs must match real world

 Material properties, grid size, boundary conditions, temperature, etc.

 Validate model with physical test to

  • btain correlation
slide-29
SLIDE 29

 Do the materials of construction

  • Meet specification?
  • Appropriate for the application?
  • Behave as expected?

 Much can often be learned through

examination of failed test specimens

  • Loads
  • Temperature
  • Chemical environment
  • Weld process
  • Contact/witness marks, wear, etc.
  • Assembly
slide-30
SLIDE 30

 Scientific Method – hypothesis testing

  • Has anything changed?

 Many tests are destructive, so statistical

analysis is necessary

  • Integrate with Statistical Process Control (SPC), etc.
slide-31
SLIDE 31

 Yield

  • Affected by temperature, strain rate

 Ultimate

  • Affected by temperature

 In aggressive environment

  • Stronger is not always better!

 Fatigue

  • Affected by corrosion
slide-32
SLIDE 32

From Instron, one supplier of testing machines

*

Force/Area Change / Original Length

slide-33
SLIDE 33

 Location is part of specification  Separately manufactured test bars

  • Castings, forgings, etc.
  • Avoid misinterpretation – properties may vary

 Directionality may be important  Hardness correlated with tensile strength

  • Considered non-destructive
slide-34
SLIDE 34

 Goal – reproducible results – material

property

 Specimen geometries (proportional)  Test as received or after environmental

exposure

slide-35
SLIDE 35

 Strain rate (applied force)  Stress rate (change in length)  Temperature

  • ASTM E21 if elevated temperature

 Report as desired

  • Engineering stress strain – based on initial

dimensions

  • True stress strain –

 account for decreasing area  show strain hardening

slide-36
SLIDE 36
slide-37
SLIDE 37

 Ductile, micro void coalescence, dimpled

rupture

 Brittle

  • Cleavage, transgranular
  • Intergranular
  • Can result from both material and environmental

conditions

slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41

 Ultimate stress – overload  Progressive (time dependent)

  • Constant stress

 Stress corrosion cracking  Hydrogen embrittlement  Metal embrittlement  Creep, stress rupture

  • Cyclic stress - fatigue

 Mean, alternating,  R.R. Moore – mean is 0, fully reversed

slide-42
SLIDE 42

Environment surrounds the specimen

slide-43
SLIDE 43
slide-44
SLIDE 44
slide-45
SLIDE 45
slide-46
SLIDE 46
slide-47
SLIDE 47
slide-48
SLIDE 48

Reference: ASM Handbook of Failure Analysis and Prevention, (Volume 11), ASM International, 2002.

slide-49
SLIDE 49
slide-50
SLIDE 50
slide-51
SLIDE 51

 Measure energy to fracture, e.g. Charpy  Applicable to metals and non-metals

  • Steels exhibit ductile – brittle transition with temp.

 Test as received or after env. exposure

slide-52
SLIDE 52
slide-53
SLIDE 53

 Plane strain fracture toughness  A material property  Measure of material resistance to crack

propagation

 Used in damage tolerant design

  • For highly stressed parts in which cracks are likely

to develop

  • How often should the component be inspected so

that a crack will be detected before it grows to critical length

slide-54
SLIDE 54

 Because materials and properties may vary

throughout a component

 State of stress may also vary  Full scale component/systems tests are often

performed

CETestGroup.Com

slide-55
SLIDE 55

Ride de the e Duc ucks ks – Seattle attle Acc cciden ident 2015 015

  • WWII vintage single use combat vehicles
  • Vehicles stretched repurposed for tourism including front axles being

rebuilt but were not verified for application or repetitive loading / usage

  • After initial front axle fractures during use, no analysis was performed
  • Implemented repair that was insufficient and poorly executed, and

covered up ability to visually inspect for cracks

  • Catastrophic front axle failure resulted in loss of vehicle control, causing

a head on collision, with multiple fatalities and injuries

slide-56
SLIDE 56

Ride e the Ducks ks – Seattle ttle Accid ciden ent 2015 15 con’t:

Options available to avoid failure and accident:

  • Design analysis at beginning would have shown the axles had an inherent

crack initiation point – groove cut to improve turning radius performance

  • Materials and stress analysis for developing field repair
  • Ultrasonic, magnaflux, or X-ray testing during inspections would have

detected cracking before fracture

“Trust but verify…”

slide-57
SLIDE 57
