SMI ENGINEERING WELCOME ASQ SERIES TOOL ASQ - 0.75 and ASQ - 1.0 ASQ -60 WITH 60KN.m Torque ASQ SERIES ASQ Model No . ASQ 1 ASQ 2 ASQ 3 ASQ 6 ASQ 7 ASQ 11 ASQ-15 ASQ 20 ASQ 27 ASQ 60 0.75 3/4 3/4 3/4 1 1.1/2

slide-1
SLIDE 1

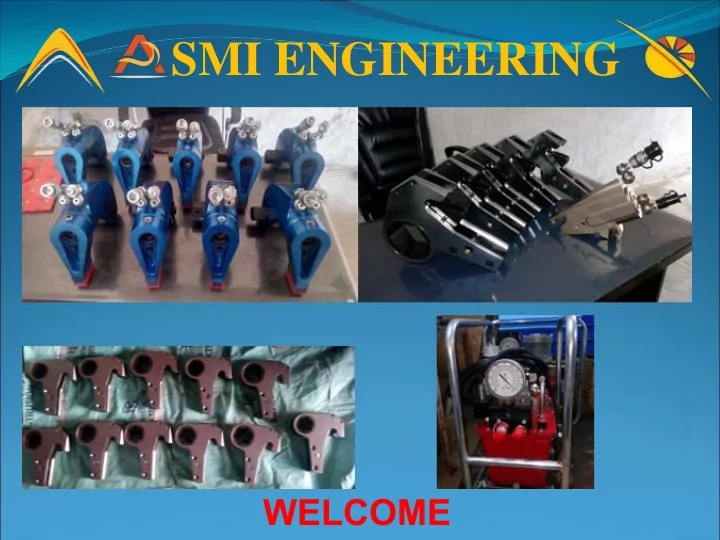

WELCOME

SMI ENGINEERING

slide-2
SLIDE 2

ASQ SERIES TOOL

slide-3
SLIDE 3

ASQ - 0.75 and ASQ - 1.0

slide-4
SLIDE 4

ASQ -60 WITH 60KN.m Torque

slide-5
SLIDE 5

ASQ SERIES

Model No. ASQ 0.75 ASQ 1 ASQ 2 ASQ 3 ASQ 6 ASQ 7 ASQ 11 ASQ-15 ASQ 20 ASQ 27 ASQ 60

Square Drive

3/4 ” 3/4 ” 3/4 ” 1” 1.1/2” 1.1/2” 1.1/2” 2.1/2” 2.1/2” 2.1/2” 2.1/2” Non Push Thru Non Push Thru Non Push Thru Non Push Thru Non Push Thru Non Push Thru Non Push Thru Non Push Thru Non Push Thru Non Push Thru Non Push Thru

  • Min. Torque N-

m

99 128 168 445 770 1006 1500 2013 2634 3700 7913

(ft/lbs)

77 91 127 330 565 740 1100 1485 1940 2720 5800

  • Max. Torque N-

m

1046 1243 1727 4539 7637 10064 14997 20128 28139 37118 79129

(ft/lbs)

770 914 1270 3330 5600 7400 11000 14845 20625 27200 58000

Output Accuracy

+/-3% +/-3% +/-3% +/-3% +/-3% +/-3% +/-3% +/-3% +/-3% +/-3% +/-3%

Repeatability

100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%

Duty Cycle

100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%

Tool Weight Kg / Lbs

1.0 /(2.20) 1.25 /(2.75) 2.50 /(5.80) 4.20 / (9.30) 8.40 / (18.60) 8.90 / (19.60) 13.6 / (30.00) 22.0 / (48.5) 28.5 / (62.7) 32.7 / (72) 60.8 / (133.7)

slide-6
SLIDE 6

6

ASQ SERIES ACCESSORIES

slide-7
SLIDE 7

ASQ WITH EXTERNAL SPLINE

slide-8
SLIDE 8

ASQ EXT SERIES

Technical Data Model No. EXT 2 EXT 3 EXT 6 EXT 7 EXT 11 Square Drive 3 / 4” 1” 1.1/2” 1.1/2” 1.1/2”

  • Min. Torque N-m

(ft/lbs) 170(127) 445(330) 770(565) 1006(740) 1500(1100)

  • Max. Torque N-m

(ft/lbs) 1725(1270) 4540(3330) 7630(5600) 10064(7400) 14500(1100) Output Accuracy +/-3% +/-3% +/-3% +/-3% +/-3% Repeatability 100% 100% 100% 100% 100% Duty Cycle 100% 100% 100% 100% 100% Tool Weight Kg / Lbs 2.64 /(5.82) 5.00 / (11.02) 8.4 / (18.60) 12.7 / (28.00) 15.8 / (34.80)

slide-9
SLIDE 9

ASQ IRM SERIES

slide-10
SLIDE 10

ASQ IRM

Model No. IRM 2 IRM 3 IRM 5 IRM 7 IRM 11 Square Drive 3/4” 1” 1.1/2” 1.1/2” 1.1/2”

  • Min. Torque N-m

(ft/lbs) 170(127) 445(330) 770(565) 1006(740) 1500(1100)

  • Max. Torque N-m

(ft/lbs) 1725(1270) 4540(3330) 7630(5600) 10064(7400) 14500(1100) Output Accuracy +/-3% +/-3% +/-3% +/-3% +/-3% Repeatability 100% 100% 100% 100% 100% Duty Cycle 100% 100% 100% 100% 100% Tool Weight Kg / Lbs 1.77 /(3.90) 4.09 / (9.00) 8.85/(19.5) 13.5 / (29.6) 16.8/(37.1)

slide-11
SLIDE 11

ASQ IRM WITH LOAD DISK NUT ASSEMBLY

slide-12
SLIDE 12

AHX SERIES TOOL

slide-13
SLIDE 13

AHX SERIES

Technical Data

Model No.

AHX-0.75 AHX-1 AHX-1.5 AHX-2 AHX-4 AHX-8 AHX-16 AHX-32 AHX-45

Tool Hex mm / inch

From 13 / 1/2 13/ 1/2 19/ 3/4 19 / 3/4 25 / 1 50 / 1.7/8 65 / 2.5/8 80 / 3.1/8 80 / 3.1/8 To 41/ 1.5/8 41/ 1.5/8 46/ 1.5/8 60 / 2.3/8 80 / 3.1/8 105 / 4 115 / 4.5/8 155 / 6.1/8 155 / 6.1/8

Min Torque N-m (ft/lbs)

55.58(41) 61(45) 135(100) 260(192) 540 (395) 1125 (830) 2115 (1560) 4365(3220) 6600(4865)

MAHX Torque N-m (ft/lbs)

665 (490) 760 (560) 1350 (995) 2614 (1928) 5355 (3950) 11700 (8630) 22506 (16600) 48335 (35650) 65595 (47380)

Output Accuracy

+/-3% +/-3% +/-3% +/-3% +/-3% +/-3% +/-3% +/-3% +/-3%

Repeatability

100% 100% 100% 100% 100% 100% 100% 100% 100%

Duty Cycle

100% 100% 100% 100% 100% 100% 100% 100% 100%

Corrosion Protection

Standard

Cylinder Weight Kg / Lbs

0.38/ (0.84) 0.50/ (1.1) 0.55/ (1.2) 1.59/ (3.50) 2.73 / (6.00) 5.32 / (11.70) 7.27/ (16.00) 11.82 / (26.00) 13.7/ (30.2)

Link Weight Kg / Lbs

From 0.47/ (1) 0.50/ (1) 0.60/ (1.3) 1.09/ (2.40) 2.45 / (5.40) 5.41 / (11.90) 9.55/ (21.00) 13.18 / (29.00) 13.18 / (29.00) To 0.47/ (1) 0.50/ (1) 0.90/ (2.0) 1.59/ (3.50) 3.45 / (7.60) 6.59 / (14.50) 12.73/ (2.00) 17.95 / (39.50) 17.95 / (39.50)

slide-14
SLIDE 14

SLIM LINK DEVELOPMENT FOR AHX-2,4,8

slide-15
SLIDE 15

AHX -0.75 and AHX 1.0

slide-16
SLIDE 16

16

AHX SERIES ACCESSORIES

slide-17
SLIDE 17

ASQ AND AHX WITH UNI SWIVEL ASSEMBLY

slide-18
SLIDE 18

ASQ UNS SWIVEL SERIES

Model No. UNS 2 UNS 3 UNS 5 UNS 7 UNS 11 Square Drive 3/4” 1” 1.1/2” 1.1/2” 1.1/2”

  • Min. Torque N-m

(ft/lbs) 170(127) 445(330) 770(565) 1006(740) 1500(1100)

  • Max. Torque N-m

(ft/lbs) 1725(1270) 4540(3330) 7630(5600) 10064(7400) 14500(1100) Output Accuracy +/-3% +/-3% +/-3% +/-3% +/-3% Repeatability 100% 100% 100% 100% 100% Duty Cycle 100% 100% 100% 100% 100% Tool Weight Kg / Lbs 1.77 /(3.90) 4.09 / (9.00) 8.85/(19.5) 13.5 / (29.6) 16.8/(37.1)

slide-19
SLIDE 19

AHX UNX SWIVEL SERIES

Technical Data Model No. UNX-1 UNX-2 UNX-4 UNX-8 UNX-16 UNX-32 UNX-45 Tool Hex mm / inch from 13/1/2 19 / 3 /4 “ 25 /1 50 /1.7/8 65 / 2.5/8 80 / 3.1/8 80 / 3.1/8 To 41/ 1.5/8 60 / 2.3/8 80 / 3.1/8 105 / 4 115 / 4.5/8 155 / 6.1/8 155 / 6.1/8 Min Torque N-m (ft/lbs)

61 (45) 260 (192) 540 (395) 1125 (830) 4365 (3220) 1125 (830) 4365 (3220)

MPXD Torque N-m (ft/lbs)

760 (560) 2614 (1928) 5355 (3950) 11700 (8630) 48335 (35650) 11700 (8630) 48335 (35650)

Output Accuracy +/-3% +/-3% +/-3% +/-3% +/-3% +/-3% +/-3% Repeatability 100% 100% 100% 100% 100% 100% 100% Duty Cycle 100% 100% 100% 100% 100% 100% 100% Corrosion Protection Standard Cylinder Weight Kg / Lbs 0.50/ (1) 1.59 / (3.50) 2.73 / (6.00) 5.32 / (11.70) 7.27/ (16.00) 11.82 / (26.00) 13.7/ (30.2) Link Weight Kg / Lbs From 0.50/ (1) 1.09 / (2.40) 2.45 / (5.40) 5.41 / (11.90) 9.55 /(21.00) 13.18 / (29.00) 13.18 / (29.00) to 0.50/ (1) 1.59 / (3.50) 3.45 / (7.60) 6.59 / (14.50) 12.73 /(2.00) 17.95 / (39.50) 17.95 / (39.50)

slide-20
SLIDE 20

OPEN JAW SPANNER AS PER CUSTOMER REQUIREMENT

slide-21
SLIDE 21

ASQ AHX HYDRAULIC FITTING SWIVEL & COUPLER

slide-22
SLIDE 22

PNEUMATIC /ELECTRIC AGNI SESRIS

slide-23
SLIDE 23

FACING MACHINES

1625 3000 8000

slide-24
SLIDE 24

FLANGE SPREADER AHVW-10

slide-25
SLIDE 25

FLANGE SPREADER AHSW-10

slide-26
SLIDE 26

TORQUE MULTIPLIER

slide-27
SLIDE 27

TORQUE MULTIPLIER

MODELTORQUENO#MULTIPLIERS ABTM-1 ABTM-2 ABTM-2/25 ABTM-5 ABTM-5/25 ABTM-6 ABTM-6/25 ABTM-7/25ABTM-7 (FITTED WITH AWUR) ABTM-9/25ABTM- 9/125(FITTED(FITTEDWITHWITHAWUR)AWUR) ABTM-11/125ABTM-11/25 (FITTED(FITTEDWITHWITHAWUR)AWUR) ABTM-13/125 (FITTED WITH AWUR) SLIM SERIES TORQUE MULTIPLIERS ASTM-1 ASTM-2 ASTM-3 ANANO SERIES TORQUE MULTIPLIERS ANANO-13 ANANO-17ANANO-28

slide-28
SLIDE 28

BACKUP WRENCHES

slide-29
SLIDE 29

BACKUP WRENCHES SERIES

MODEL NUMBER SIZE MODEL NUMBER SIZE ABC-012 3/4" ABC-19M 19MM ABC-014 7/8" ABC-22M 22MM ABC-100 1" ABC-24M 24MM ABC-102 1 1/8" ABC-27M 27MM ABC-104 1 1/4" ABC-30M 30MM ABC-107 1 7/16" ABC-32M 32MM ABC-110 1 5/8" ABC-36M 36MM ABC-113 1 13/16" ABC-41M 41MM ABC-114 1 7/8" ABC-46M 46MM ABC-200 2" ABC-50M 50MM ABC-203 2 3/16" ABC-55M 55MM ABC-206 2 3/8" ABC-60M 60MM ABC-209 2 9/16" ABC-65M 65MM ABC-212 2 3/4" ABC-70M 70MM ABC-215 2 15/16" ABC-75M 75MM ABC-302 3 ABC-80M 80MM

slide-30
SLIDE 30

MANUAL TORQUE WRENCHES

slide-31
SLIDE 31

MANUAL TORQUE WRENCHES

MODEL NO# 1/4" & 3/8" SQ. DRIVE TORQUE WRENCHES AVT-100A AVTR-100 AVT-300A AVTR-300 AVT-600A AVTR-600 3/8" SQ. DRIVE PRODUCTION TORQUE WRENCHES AFT-100 AFTR-100 AFT-300 AFTR-300 AFT-600 AFTR-600 1/2" SQ. DRIVE TORQUE WRENCHES AVT-600A AVTR-600 AVT-1200A AVTR-1200 AVT-2000A AVTR-2000 AVT-3000A AVTR-3000 1/2" SQ. DRIVE PRODUCTION TORQUE WRENCHES AFT-720 AFTR-720 AFT-1200 AFTR-1200 MODEL NO# AFT-2000 AFTR-2000 AFT-3000 AFTR-3000 3/4" & 1" SQ. DRIVE TORQUE WRENCHES AVT-5000 AVTR-5000 AVT-7200 AVTR-7200 AVT-8400 AVTR-8400 AVT-12300 AVTR-12300 TQW-10 TQW-R-10 TQW-11 TQW-R-11 LIGHT WEIGHT TORQUE WRENCHES LTW-75 LTW-100 LTW-200 LTW-300 TORQUE SCREWDRIVERS PTS-15 PTS-50 PTD-10

slide-32
SLIDE 32

THANK YOU

SMI ENGINEERING
