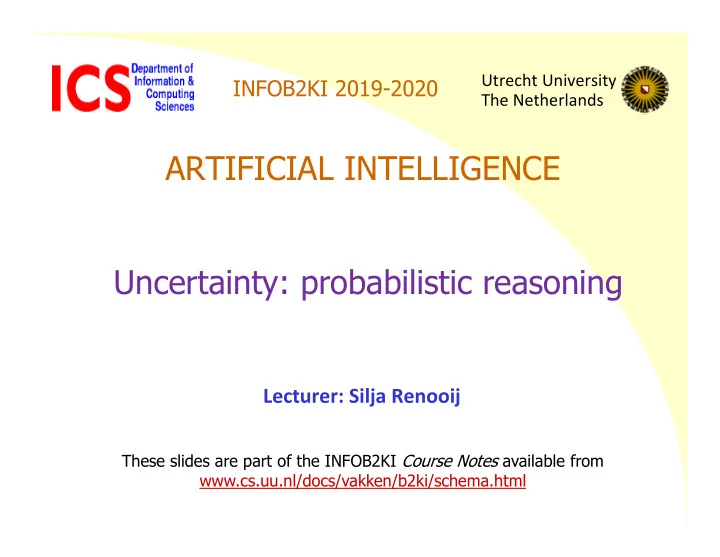

ARTIFICIAL INTELLIGENCE

Lecturer: Silja Renooij

Uncertainty: probabilistic reasoning

Utrecht University The Netherlands

These slides are part of the INFOB2KI Course Notes available from www.cs.uu.nl/docs/vakken/b2ki/schema.html

INFOB2KI 2019-2020

Outline

• Reasoning under uncertainty
• Probabilities
• Bayes’ rule & Bayesian Networks
• Bayesian skill rating

Uncertainty

Let action At = “leave for airport t minutes before flight” Will At get me there on time? Problems:

1. partial observability (road state, other drivers' plans, etc.) 2. noisy sensors (traffic reports) 3. uncertainty in action outcomes (flat tire, etc.) 4. immense complexity of modeling and predicting traffic

Hence a purely logical approach either

1. risks falsehood: “A125 will get me there on time”, or 2. leads to conclusions that are too weak for decision making:

“A125 will get me there on time if there's no accident on the bridge and it doesn't rain and my tires remain intact etc etc.” (A1440 might reasonably be said to get me there on time but I'd have to stay

• vernight in the airport …)

How do we deal with uncertainty?

• Implicit:

– Ignore what you are uncertain of, when you can – Build procedures that are robust to uncertainty

• Explicit:

– Build a model of the world that describes uncertainty about its state, dynamics, and

• bservations

– Reason about the effect of actions given the model

Methods for handling uncertainty

• Default or nonmonotonic logic:

– e.g. assume my car does not have a flat tire – e.g. assume A125 works unless contradicted by evidence

• Issues: What assumptions are reasonable? How to handle contradiction?
• Rules with fudge factors:

– e.g. A125 |→0.3 get there on time; – e.g. Sprinkler |→ 0.99 WetGrass; WetGrass |→ 0.7 Rain

• Issues: Problems with combination, e.g., Sprinkler implies Rain??
• Fuzzy Logic

– e.g. The road is “busy” – e.g. At the airport 120 minutes before departure is “more than in time” – e.g. IF road(busy) and A125 THEN at_airport (just‐in‐time)

• Probability

Model agent's degree of belief, given the available evidence – e.g. A25 will get me there on time with probability 0.04

Probability

• A well‐known and well‐understood framework for

uncertainty

• Probabilistic assertions summarize effects of

– laziness: failure to enumerate exceptions, qualifications, etc. – ignorance: lack of relevant facts, initial conditions, etc. – …

• Clear semantics (mathematically correct)
• Provides principled answers for:

– Combining evidence – Predictive & Diagnostic reasoning – Incorporation of new evidence

• Intuitive (at some level) to human experts
• Can be assessed from data

Axioms of probability

• For any propositions A, B

– 0 ≤ P(A) ≤ 1 – P(True) = 1 and P(False) = 0 – P(A  B) = P(A) + P(B) ‐ P(A  B)

Note: P(AvA) = P(A)+P(A)‐P(A A) P(True) = P(A)+P(A)‐P(False) 1 = P(A) + P(A) So: P(A) = 1 ‐ P(A)

Frequency Interpretation

• Draw a ball from an urn containing n balls of the same size,

r red and s yellow.

• The probability that the proposition A = “the ball is red” is

true corresponds to the relative frequency with which we expect to draw a red ball  P(A) = ?

• I.e. to the frequentist, probability lies objectively in the

external world.

Subjective Interpretation

There are many situations in which there is no objective frequency interpretation:

– On a windy day, just before paragliding from the top of El Capitan, you say “there is a probability of 0.05 that I am going to die” – You have worked hard on your AI class and you believe that the probability that you will pass is 0.9

 Bayesian Viewpoint

– probability is "degree‐of‐belief", or "degree‐of‐uncertainty". – To the Bayesian, probability lies subjectively in the mind, and can be different for people with different information – e.g., the probability that Wayne will get rich from selling his kidney.

Bayesian probability updating

• 1. You have a prior (or unconditional) assessment of the

probability of an event

• 2. You subsequently receive additional information or evidence
• 3. Your posterior assessment is now your previous assessment,

updated with this new info

Images from Moserware.com

1. 2. 3.

Random variables

• A proposition that takes the value True with

probability p and False with probability 1‐p is a random variable with distribution <p,1‐p>

• If an urn contains balls having 3 possible colors –

red, yellow, and blue – the color of a ball picked at random from the bag is a random variable with 3 possible values

• The (probability) distribution of a random variable

X with n values x1, x2, …, xn is: <p1, p2, …, pn> with P(X=xi) = pi and pi

• = 1

Joint Distribution

• Consider k random variables X1, …, Xk
• joint distribution on these variables: a table where

each entry gives the probability of one combination

• f values of X1, …, Xk
• Example: two‐valued variables Cavity and Toothache

P(cavitytoothache) P(cavitytoothache)

P(C T)

toothache

• toothache

cavity 0.04 0.06

• cavity

0.01 0.89 Shorthand notation for propositions: Cavity = yes and Cavity = no

Joint Distribution Says It All

• P(toothache) = P((toothache  cavity) v (toothache  cavity))

= P(toothache  cavity) + P(toothache  cavity)

= 0.04 + 0.01 = 0.05

• P(toothache v cavity)

= P((toothache  cavity) v (toothache  cavity) v (toothache  cavity)) = 0.04 + 0.01 + 0.06 = 0.11

P(C T)

toothache

• toothache

cavity 0.04 0.06

• cavity

0.01 0.89

! use P(a v b) = P(a) + P(b) – P(a  b)

• r P(a) = P(a  b) + P(a   b)

(Marginalisation)

Conditional Probability

• Definition:

P(A|B) =P(A  B) / P(B) (assumes P(B) > 0 !)

• Read P(A|B): probability of A given B, i.e. the

‘context’ B is assumed to be known with certainty

• can also write this as:

P(A  B) = P(A|B) P(B) which is called the product rule

Note: P(A  B) is often written as P(A,B)

Example

• P(cavity|toothache) =

= P(cavity  toothache) / P(toothache) – P(cavity  toothache) = ? – P(toothache) = ? – P(cavity|toothache) = 0.04/0.05 = 0.8

P(C T)

toothache

• toothache

cavity 0.04 0.06

• cavity

0.01 0.89

Normalization

Denominator can be viewed as a normalization constant α P(cavity | toothache) = α P(cavity, toothache) = α 0.04 P( cavity | toothache) = α P( cavity, toothache) = α 0.01

 1 = α 0.04 + α 0.01 = α 0.05  α = 20

P(C T)

toothache

• toothache

cavity 0.04 0.06

• cavity

0.01 0.89

Bayes’ Rule

From the product rule: P(A  B) = P(A|B) P(B) = P(B|A) P(A)

 Bayes’ rule:

P(B|A) = P(A|B) P(B) P(A)

Useful for assessing diagnostic from causal probability:

– P(Cause|Effect) = P(Effect|Cause) P(Cause) / P(Effect) – E.g., let M be meningitis, S be stiff neck: P(m|s) = P(s|m) P(m) / P(s) = 0.8 × 0.0001 / 0.1 = 0.0008 – Note: posterior probability of meningitis still very small!

Generalizations

• P(A  B  C) = P(A  B|C) P(C)

= P(A|B  C) P(B|C) P(C)

• P(A  B  C) = P(A  B|C) P(C)

= P(B|A  C) P(A|C) P(C) 

P(B|A,C) = P(A|B,C) P(B|C) P(A|C)

chain rule Marginalisation rule: P(X) = P(X  Y=y)

Representing Probability

• Naïve representations of probability run into

problems.

• Example: Patients in hospital are described by

several attributes (variables):

• Background: age, gender, history of diseases, …
• Symptoms: fever, blood pressure, headache, …
• Diseases: pneumonia, heart attack, …
• A probability distribution needs to assign a number

to each combination of values of these variables

– 20 binary variables already require 210 ~106 numbers – Real examples usually involve hundreds of attributes

Practical Representation

• Key idea ‐‐ exploit regularities
• Here we focus on exploiting

(conditional) independence properties

Independent Random Variables

• Two variables X and Y are independent if

– P(X = x|Y = y) = P(X = x) for all values x,y – That is, learning the values of Y does not change prediction of X

• If X and Y are independent then

– P(X,Y) = P(X|Y)P(Y) = P(X)P(Y)

• In general, if X1,…,Xn are independent, then

– P(X1,…,Xn)= P(X1)...P(Xn) – Requires O(n) parameters

Independence: example

P(Toothache, Catch, Cavity, Weather) = P(Toothache, Catch, Cavity) P(Weather) 32 entries reduced to 12 (4 for Weather and 8 for Toothache & Catch & Cavity);

• Absolute independence: powerful but rare
• Dentistry is a large field with hundreds of variables, none of which

are independent. What to do?

Conditional Independence

• A more suitable notion is that of conditional

independence

• Two variables X and Y are conditionally

independent given Z if

– P(X = x|Y = y,Z=z) = P(X = x|Z=z) for all values x,y,z – That is, learning the values of Y does not change prediction of X once we know the value of Z

Examples

• If I have a cavity, the probability that the probe catches in it

doesn't depend on whether I have a toothache:

(1) P(catch | toothache, cavity) = P(catch | cavity)

• The same independence holds if I haven't got a cavity:

(2) P(catch | toothache, cavity) = P(catch | cavity)

•  Variable Catch is conditionally independent of

variable Toothache given variable Cavity:

P(Catch | Toothache,Cavity) = P(Catch | Cavity)

• Equivalent statements:

P(Toothache | Catch, Cavity) = P(Toothache | Cavity) P(Toothache, Catch | Cavity) = P(Toothache | Cavity) P(Catch | Cavity)

Conditional independence contd.

Write out full joint distribution using chain rule: P(Toothache, Catch, Cavity)

= P(Toothache | Catch, Cavity) P(Catch, Cavity) = P(Toothache | Catch, Cavity) P(Catch | Cavity) P(Cavity) = P(Toothache | Cavity) P(Catch | Cavity) P(Cavity)

I.e., 2 + 2 + 1 = 5 independent numbers

• In most cases, the use of conditional independence reduces

the size of the representation of the joint distribution from exponential in the number of variables n to linear in n.

• Conditional independence is our most basic and robust

form of knowledge about uncertain environments.

A Bayesian Network

A Bayesian network is made up of:

A P(A) false 0.6 true 0.4

A B C D

A B P(B|A) false false 0.01 false true 0.99 true false 0.7 true true 0.3 B C P(C|B) false false 0.4 false true 0.6 true false 0.9 true true 0.1 B D P(D|B) false false 0.02 false true 0.98 true false 0.05 true true 0.95

• 1. A Directed Acyclic Graph (DAG):

language for representing (conditional) independences

• 2. A set of tables for each node in the graph,

representing (conditional) probability distributions

A Directed Acyclic Graph A B C D

Each node in the graph is a random variable A node X is a parent of another node Y if there is an arrow from node X to node Y e.g. A is a parent of B Informally, an arrow from node X to node Y means X has a direct influence on Y; not necessarily causal! Formally, chains of arrows ‘only’ capture the independence relation between the variables (by means of d‐separation)  we can reason in any direction!!

A Set of Tables for Each Node

Each node Xi has a conditional probability distribution P(Xi | Parents(Xi)) that quantifies the effect of the parents on the node The parameters are the probabilities in these CPTs (conditional probability tables)

A P(A) false 0.6 true 0.4 A B P(B|A) false false 0.01 false True 0.99 true false 0.7 true true 0.3 B C P(C|B) false false 0.4 false true 0.6 true false 0.9 true true 0.1 B D P(D|B) false false 0.02 false true 0.98 true false 0.05 true true 0.95

A B C D

A Set of Tables for Each Node

Conditional Probability Distributions for C given B If you have a Boolean variable with k Boolean parents, this table has 2k+1 probabilities (but only 2k need to be stored)

B C P(C|B) false false 0.4 false true 0.6 true false 0.9 true true 0.1

For a given combination of conditioning values (for parents), the entries for P(C=true | B) and P(C=false | B) must add to 1, e.g. P(C=true | B=false) + P(C=false |B=false)=1

Bayesian Networks

Important properties:

• 1. Encodes the conditional independence

relationships between the variables in the graph structure

• 2. Is a compact representation of the joint

probability distribution over the variables

• 3. Allows for computing any probability of

interest over a subset of its variables.

Conditional Independence

The Markov condition: given its parents (P1, P2), a node (X ) is conditionally independent of its non‐ descendants (ND1, ND2,….)

X P1 P2 C1 C2 ND2 ND1

The Joint Probability Distribution

Due to the Markov condition, we can compute the joint probability distribution

• ver all the variables X1, …, Xn in the Bayesian

net using the formula:





   

n i i i i n n

X Parents x X P x X x X P

1 1 1

)) ( | ( ) ,..., (

Where Parents(Xi) means the values of the parents of the node Xi with respect to the graph  The joint distribution defined by a BN factorizes into parameters from all its CPTs.

Computing a joint probability:

example

Using the network in the example, suppose you want to calculate: P(A = true, B = true, C = true, D = true) = P(A = true) * P(B = true | A = true) * P(C = true | B = true) P( D = true | B = true) = (0.4)*(0.3)*(0.1)*(0.95) = 0.0114

A B C D

product determined by graph structure These numbers are from the specified conditional probability tables (CPTs)

Inference

• Inference: the process of computing probabilistic

queries from a Bayesian network

• In general, inference involves queries of the form:

P( X | E ) = P(X ⋀ E)/P(E) = α P(X ⋀ E)  compute P(X=x ⋀ E=e) from joint; compute P(E=e) = P(X=x ⋀ E=e) + P(X= x ⋀ E=e) = 1/ α

X = The query variable(s): in standard inference only 1 E = the observed evidence variable(s)

Computing a query:

example of posterior

Using the network in the example we want to calculate: P(C = true | A = false)

• 1. Use definition of conditional probability

P(C = true | A = false) = P(C= true ⋀ A = false)/ P(A=false)

• 2. Use marginalization on numerator to obtain joint probabilities

P(C= true ⋀ A = false) = P(C = true ⋀ A=false ⋀ B = true) + P( C = true ⋀ A=false ⋀ B = false)

• 3. Repeat step 2 for other value of query variable for benefit of

denominator In this example not necessary to compute P(C=false ⋀ A=false) since P(A=false) = 0.6 directly available from CPT

A B C D

Computing a query:

example of posterior

Still computing P(C = true | A = false) …..

• 4. Factorize each joint into CPT parameters

P(C = true ⋀ A=false ⋀ B = true) = P(C = true | B = true) * P(B= true | A = false) * P(A = false) = 0.1 * 0.99 * 0.6 = 0.0594 P( C = true ⋀ A=false ⋀ B = false) = P(C = true | B = false) * P(B= false | A = false) * P(A = false) = 0.6 * 0.01 * 0.6 = 0.0036

• 5. Combine results

P(C = true | A = false) = (0.0594 + 0.0036)/0.6 = 0.105

A B C D

What about P(A = false | C = true)?

Inference: possible queries

• Queries are not affected by direction of arcs

A valid query would be: P( HasAnthrax = true | HasFever = true, HasCough = true)

• Queries need not involve all variables

even though variables HasDifficultyBreathing and HasWideMediastinum are in the network and are observable, they are not part of above query  they are treated as unobserved

HasAnthrax HasCough HasFever HasDifficultyBreathing HasWideMediastinum

BN with naïve Bayes assumption

Assume all observable variables are independent given query variable P(Cavity | Toothache  Catch)

= αP(Toothache  Catch | Cavity) P(Cavity) = αP(Toothache | Cavity) P(Catch | Cavity) P(Cavity)

• Then the BN captures the naïve Bayes model:

P(Cause, Effect1, … ,Effectn) = P(Cause) ∏iP(Effecti|Cause)

• Total number of parameters is linear in n

Complexity

• Exact inference is NP‐hard:

– Exact inference is feasible in small to medium‐ sized networks – Exact inference in large, dense networks takes a very long time

• Approximate inference techniques exist

– are much faster – give pretty good results (but no guarantees)

How to build BNs

There are two options (or combinations thereof):

• Handcrafting with the help of an expert in

the domain of application

• Machine learning it from data

A real application: TrueSkill

Algorithm used in Xbox live for ranking and matching players How do you determine your game skills? Idea: skill is related to probability of winning: s1 > s2 P(player 1 wins) > P(player 2 wins) Who is a suitable opponent? Idea: someone you beat with 50% chance.

TrueSkill material: thanks to Ralf Herbrich and Thore Graepel, Microsoft Research Cambridge

Leaderboard

TrueSkill: what is your true skill?

• each player has a skill‐distribution: N(μ, σ2)
• each player has a TrueSkill:

s = μ−3σ

• a novice player starts with

μ0 = 25 σ0 = (25/3) yielding a TrueSkill of 0.

Moserware.com

The TrueSkill parameters are updated given the outcome of a game.

TrueSkill: updating

10 20 30 40 50

Skill-level ‘Confidence’ in skill-level

1ste place 2de place 3rde place Game outcome:

TrueSkill: how updating works

• utcome

perf1 perf2 skill1 skill2

Bayesian network (continuous)

• consider two players, each with own

skill‐distribution

• given their skill, players will deliver a certain

performance with a certain probability

• upon which one of the two will win (or draw)

We can compute: P(1 beats 2 | skill1 and skill2) But also: P(skill1 | 1 beats 2 and skill2)

matching skill‐updating

Does it work? An experiment…

Data Sets: Halo 2 Beta, Halo 3 Public Beta 3 game modes: ‘Free-for-All’ Two Teams 1-on-1 Thousands of players, 10-thousands of

• utcomes

10 15 20 25 30 35 40

Skill‐Level

100 200 300 400

Number of games played

char (Halo 2 rank) SQLWildman (Halo 2 rank) char (TrueSkill™) SQLWildman (TrueSkill™)

Convergence-speed

After how many games is your true skill determined?

Who is better: char, or SQLWildman ?

5

100 200 300 400 500 0% 20% 40% 60% 80% 100%

Number of games played Winning percentage

5/8 games won by char

SQLWildman wins char wins draw

Tw o players com pared

Who is better: char, or SQLWildman ?

Matching players

• Halo 3 Public Beta; Team Slayer Hopper

After 1 game …10 games … 30 games After 100 games Most players have ≈50% chance of winning, independent of skill level! Most players have ≈50% chance of winning, independent of skill level!

Applications of BN

Also: Bayesian medical kiosk (http://vimeo.com/64474130)
