ARTIFICIAL INTELLIGENCE Classical planning (goal-directed) - - PowerPoint PPT Presentation

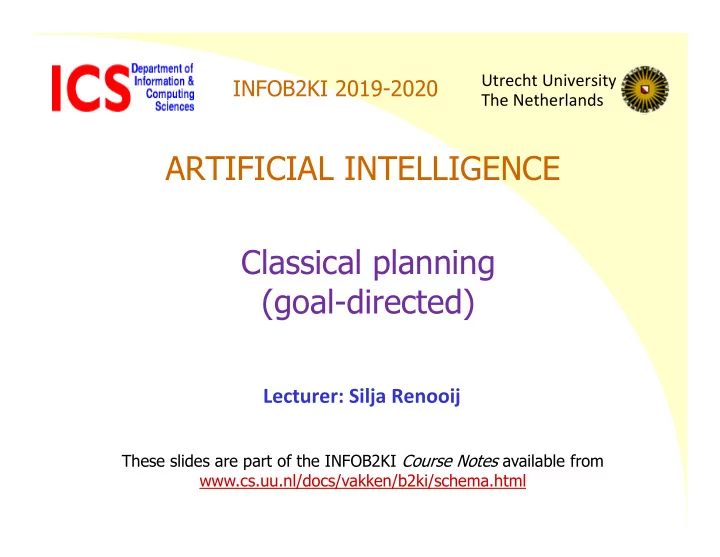

ARTIFICIAL INTELLIGENCE

Lecturer: Silja Renooij

Classical planning (goal-directed)

Utrecht University The Netherlands

These slides are part of the INFOB2KI Course Notes available from www.cs.uu.nl/docs/vakken/b2ki/schema.html

INFOB2KI 2019-2020

Outline

We consider single‐agent, goal‐directed planning and assume the environment to be static and deterministic Planning languages/architectures:

• STRIPS (1971)
• Goal Oriented Action Planning (GOAP)
• Hierarchical planning: NOAH/HTN

2

Applications

• Mobile robots

– An initial motivator, and still being developed

• Simulated environments

– Goal‐directed agents for training or games

• Web and grid environments

– Composing queries or services – Workflows on a computational grid

• Managing crisis situations

– E.g. oil‐spill, forest fires, urban evacuation, in factories, …

• And many more

– Factory automation, flying autonomous spacecraft, …

3

Shakey (1966-1972)

Shakey is a robot which plans moving from one location to another, turning the light switches

• n and off, opening and closing the

doors, climbing up and down from rigid objects, and pushing movable

• bjects around using…?

a) STRIPS b) GOAP c) HTN d) SHOP

4

Goal Oriented Behavior

• Agent has one or more (internal) goals
• Goals are used as specific targets to plan

actions for

• Goals are explicit and can be updated,

reasoned about, etc.

• There can be a separate level of behavior

to manage the goals

– e.g. preferences, importance…

5

Generating plans

• Given (similar to before):

– A way to describe the world – An initial state of the world – A goal description – A set of possible actions to change the world

• Find:

– A prescription for actions that are guaranteed to change the initial state into one that satisfies the goal(s)

• Difference with before: we’re not optimizing an

evaluation function  How to choose actions ??

6

Actions

E.g. Precondition: in(house,fire) Action: extinguish_fire Postcondition: not in(house,fire)

7

Contain domain knowledge, not simply mapping state  state

Actions & change

• Actions change the world, but only partly
• Upon considering/comparing possible actions,

we want to:

– know how an action will alter the world – keep track of the history of world states (have we been here before?) – answer questions about potential world states (what would happen if..?)

8

Planning sequences of actions: a search problem (?)

• Use e.g. IDA* (Iterative Deepening A*) to

create all possible sequences of actions for a single goal

• Heuristic should capture how far a sequence
• f actions is from achieving the goal
• Quite cumbersome: we do not use (available)

information about the actions, their effects and their relations

9

Classical Planning

• Simplest possible planning problem
• Determined by:

– a unique known initial state – durationless actions – deterministic actions – actions are taken one at a time – single agent

• World states are typically complex: what do we

need to represent, and how?

10

Frame problem

How can we efficiently represent everything that has not changed? (“frame of reference”) Example: I go from home to the store, creating a new world state S’. In S’:

– My friend is still at home – The store still sells chips – My age is still the same – Los Angeles is still the largest city in California…

• Why didn’t this problem occur with path planning?

(complete state info, rather than persistent domain knowledge)

11

Ramification problem

Do we want to represent every change to the world in an action definition, even indirect effects? (= ramifications)

Example: I go from home to the store, creating a new situation S’. In S’:

– I am now in Marina del Rey – The number of people in the store went up by 1 – The contents of my pockets are now in the store..

12

Linear planning

13

Linear planning

A linear planner is a classical planner that assumes: ‐ no distinction between importance of goals ‐ all (sub)goals are assumed to be independent  (sub) goals can be achieved in arbitrary order As a result, plans that achieve subgoals are combined by placing all steps of one subplan before or after all steps of the others (=non‐interleaved) .

14

STRIPS (Fikes and Nilsson 71)

A non‐hierarchical, linear planner Idea:

• State (or world model) represents a large number of

facts and relations

• Use formulas in first‐order predicate logic
• Use theorem‐proving within states, for action

preconditions and goal tests

• Use goal stack planning for going through state space

More recent:

• PDDL (just the language; includes a.o. negations)
• Alternatives backward chaining algorithm for

searching through the state space & planning graphs

(not discussed)

15

(generalised) STRIPS

Problem space:

• Initial world model: set of well‐formed

formulas (wffs: conjunction of literals)

• Set of actions, each represented with

– Preconditions (list of predicates that should hold) – Delete list (list of predicates that will become invalid) – Add list (list of predicates that will become valid) Actions thus allow variables

(we consider a proposition to be a special case of a predicate without variables)

• A goal condition: stated as wff

16

Example problem:

Initial state: at(home), ¬ have(beer) Goal: have(beer), at(home) Actions:

Buy(X): Pre: at(store) Add: have(X) Go (X, Y): Pre: at(X) Del: at(X) Add: at(Y)

17

Planning with STRIPS: example S

have(beer) at(home) go(store,home)

S-1

have(beer) at(store)

S-2

at(store)

S-3

at(home) go(home,store) buy(beer)

18

Start from goal and reason backwards

Goal stack planning with STRIPS

Search strategy idea:

• Identify differences between present world model and

the goal

• Identify actions that are relevant for reducing the

differences

• Satisfy preconditions: turn preconditions of relevant

actions into new subgoals; solve subproblems

• Use a stack to push (and pop) preconditions and

actions

19

20

21

22

23

24

25

26

27

28

STRIPS & frame problem

How can we efficiently represent everything that hasn’t changed?

Example: I go from home to the store, creating a new situation S’. In S’:

– The store still sells chips – My age is still the same – Los Angeles is still the largest city in California…

STRIPS solution for simple actions:

• every satisfied formula not explicitly deleted by

an operator continues to hold after the operator is executed

29

STRIPS & ramification problem

Do we want to represent every change to the world in an action definition?

Example: I go from home to the store, creating a new situation S’. In S’:

– I am now in Marina del Rey – The number of people in the store went up by 1 – The contents of my pockets are now in the store..

STRIPS solution:

• some facts are inferred within a world state

– e.g. the number of people in the store

• ‘inferred’ facts are not carried over and must be re‐inferred

– Avoids making mistakes, perhaps inefficient.

30

More questions about STRIPS

• What if the order of goals at(home), have(beer) was

reversed?  Would require re‐planning a goal that already seemed fulfilled;

is that guaranteed?

• Is STRIPS complete (always finds a plan if there is one)?

No; (Sometimes fixable through conjunction of goals, but computationally inefficient)

• When STRIPS returns a plan, is it sound (always

correct)? And is the plan returned efficient?

 It is sound, but ‘detours’ (unnecessary series of ops) possible

31

Example: blocks world

State I: (on‐table A) (on C A) (on‐table B) (clear B) (clear C) Goal: (on A B) (on B C)

Sussman anomaly: problem with non‐interleaved planning

A B C A B C Initial: Goal:

32

Action: (put‐on X Y) Pre: (clear X) (clear Y) Add: (on X Y) Del: (clear Y)

Example: blocks world (Sussman anomaly)

Goal: (on A B) (on B C) First pursue sub goal (on A B)

A B C Initial: A B C

This accomplishes the sub goal, but the agent cannot now pursue sub goal (on B C) without undoing (on A B)

33

Example: blocks world (Sussman anomaly)

Goal: (on A B) (on B C) First pursue second sub goal (on B C)

A B C Initial: C A B

Again, the planner cannot pursue sub goal (on A B) without undoing sub goal (on B C)

34

Planning in Games

35

Goal oriented action planning

GOAP:

• simplified STRIPS‐like planning architecture
• specifically designed for real‐time control of

autonomous character behavior in games

• used in FPSs since ~2005
• Goals (a.k.a. motives):

– Have different levels of importance (insistence) – High insistence affects behavior more – Character tries to fulfill goals, by reducing insistence

36

GOAP

• Goals can be seen as motives for taking action.

Example goals: Eat, Sleep, Kill

• Priority for fulfilling goals is given by insistence I

Example: goal g = Eat I(g) = 4 (I  {0,…,5}, 5 highest)

• Actions specify to which goal they contribute and how

they affect insistence Example: Action: get‐food: I(Eat)  I(Eat) − 3

• Different action‐selection methods possible

37

Action selection: most pressing

What action to choose? Goals of Agent X (with current insistence I):

Goal: Eat (I=4) Goal: Sleep (I=3)

Actions available to Agent X:

Action: get‐food (Eat; I  I − 3) Action: get‐snack (Eat; I  I − 2) Action: sleep‐in‐bed (Sleep; I  I − 4) Action: sleep‐on‐sofa (Sleep; I  I − 2)

38

Utility-based action selection

Discontentment = Goal: Eat (I=4) Goal: Bathroom (I=3) Action: drink‐soda (Eat I  I – 2; Bathroom I  I + 2) new State where I(Eat) = 2, I(Bathroom)=5 so discontentment of state = 29 Action: visit‐bathroom (Bathroom I  I – 4) new State where I(Eat) = 4, I(Bathroom)=0 so discontentment of state = 16

39

Time-based action selection

GOAP does not assume actions to be durationless! Possibilities for including time:

• Incorporate time directly in utility (discontentment)
• Prefer short actions
• Take consequence of extra time into account by

changing goal insistences

(affects only instances of goals not addressed by the action!!)

40

Utility- and time-based action selection

Goal: Eat (I=4; increases +4/hour) Goal: Bathroom (I=3; increases +2/hour) Action: eat‐snack (I(Eat) I − 2) .25 hours State where I(Eat)=2, I(Bathroom)=3.5,discontentment=16.25 Action: eat‐meal (I(Eat) I − 4) 1 hour State where I(Eat)=0, I(Bathroom)=5,discontentment=25 Action: visit‐bathroom (I(Bathroom) I − 4) .25 hours State where I(Eat)=5, I(Bathroom)=0,discontentment=25

41

Dependencies between actions

Greedily choosing the best action each step doesn’t necessarily give the best sequence of actions!

• 1. An action may use a resource needed by other

actions

E.g. buy snack now and have no money left for meal later  Local optimal action prevents later actions  Solution: introduce more goals

• 2. An action is only useful if followed by another

action later on

E.g. buy food now to eat later  Solution: consider sequences of actions (as before)

42

Hierarchical planning

43

• Net of action hierarchies (NOAH)
• Hierarchical Task Networks (HTN)
• SHOP

Hierarchical Planning Brief History

• Originally developed in the late 1970s

– NOAH [Sacerdoti, IJCAI 1977] – NONLIN [Tate, IJCAI 1977]

• Knowledge‐based  Scalable

– Task Hierarchy is a form of domain‐specific knowledge

• Practical, applied to real world problems
• Lack of theoretical understanding until early 1990’s

[Erol et al, 1994] [Yang 1990] [Kambhampati 1992]

– Formal semantics, sound/complete algorithm, complexity analysis [Erol et al, 1994]

44

NOAH (Sacerdoti 75)

• Consultant system that advises a human amateur

in a repair task

• Non‐linear planner (i.e. interleaved)
• Explicitly views plans as a partial order of steps.

Add ordering into the plan as needed to guarantee it will succeed.

• Avoids the problem in STRIPS, that focusing on
• ne sub‐goal forces the actions that resolve that

goal to be contiguous.

45

Nets Of Action Hierarchies

• n(a, b)
• n(b, c)

S J puton(a, b) puton(b, c) S J clear(a) clear(b) S J clear(b) clear(c) S J refine (Blocksworld example)

Split into sub goals, which should be Joined

46

NOAH: identify conflicts

• n(a, b)
• n(b, c)

S J puton(a, b) puton(b, c) S J clear(a) clear(b) S J clear(b) clear(c) S J

‘critic’ identifies conflicts

47

NOAH: resolve conflicts

puton(a, b) puton(b, c) S J clear(a) clear(b) S J clear(b) clear(c) S J puton(a, b) puton(b, c) S J clear(a) clear(b) S J clear(b) clear(c) S J

48

NOAH: simplify

puton(a, b) puton(b, c) S J clear(a) clear(b) S J clear(b) clear(c) S J puton(a, b) puton(b, c) S clear(a) J clear(b) clear(c) S J

49

NOAH continued

puton(a, b) puton(b, c) S clear(a) J clear(b) clear(c) S J puton(a, b) puton(b, c) S J clear(b) clear(c) S J puton(c, X) clear(c) refine

50

NB X = anything; use for table

Final plan

puton(a, b) puton(b, c) S clear(b) J puton(c, X) clear(c)

A B C A B C A B C A B C

51

Planning with Hierarchical Task Networks

• Capture hierarchical structure of the

planning domain

• Planning domain contains non‐primitive

actions (tasks) and schemas for reducing them

• Reduction schemas:

– given by the designer – express preferred ways to accomplish a task

52

Hierarchical Task Networks: hierarchical decomposition

53

HTNs: Task Reduction

54

HTN Planning Algorithm

(intuition)

Problem reduction:

• Decompose tasks into subtasks
• Handle constraints (binding, ordering,…)
• Resolve interactions
• If necessary, backtrack and try other

decompositions

55

Deployed, Practical Planners

• SHOP, SHOP2, JSHOP: ordered task decomposition

(adaptation of HTN with total order on subtasks; decompose left‐to‐right)

• Applications:

– Logistics

• Military operations planning: Air campaign planning, Non‐

Combatant Evacuation Operations

• Crisis Response: Oil Spill Response

– Production line scheduling – Construction planning: Space platform building, house

construction

– Space applications: mission sequencing, satellite control – Software Development: Web Service Composition

56

SHOP (Simple Hierarchical Ordered Planner)

• Domain‐independent algorithm for

Ordered Task Decomposition

– Sound/complete

• Input:

– State: a set of ground atoms – Task List: a linear list of tasks (given at highest level) – Domain: methods, operators, axioms

• Output: one or more plans, it can return:

– the first plan it finds, all possible plans, a least‐cost plan, all least‐cost plans

57

• Initial task list: ((travel home park))
• Initial state:

((at home) (cash 20) (distance home park 8))

• Methods (task, preconditions, subtasks):

– (:method (travel ?x ?y) ((at ?x) (walking‐distance ?x ?y)) ' ((!walk ?x ?y)) 1) – (:method (travel ?x ?y) ((at ?x) (have‐taxi‐fare ?x ?y)) ' ((!call‐taxi ?x) (!ride ?x ?y) (!pay‐driver ?x ?y)) 1)

• Axioms:

– (:‐ (walking‐dist ?x ?y) ((distance ?x ?y ?d) (eval (<= ?d 5)))) – (:‐ (have‐taxi‐fare ?x ?y) ((have‐cash ?c) (distance ?x ?y ?d) (eval (>= ?c (+ 1.50 ?d))))

• Primitive operators (task, delete list, add list)

– (:operator (!walk ?x ?y) ((at ?x)) ((at ?y))) – …

Simple Example

Optional cost; default is 1

58

Precond: Precond: (travel home park) (!walk home park) (!call‐taxi home) (!ride home park) (!pay‐driver home park) Fail (distance > 5) Succeed (we have $20, and the fare is only $9.50) Succeed Succeed (at home) (walking‐distance Home park) (have‐taxi‐fare home park) (at park) (cash 10.50) (distance home park 8)

Simple Example (Continued)

(at home) Initial state: Final state: (at home) (cash 20) (distance home park 8) Initial task:

59

The SHOP Algorithm

procedure SHOP (state S, task-list T, domain D) 1. if T = nil then return nil 2. t1 = the first task in T 3. U = the remaining tasks in T 4. if t is primitive & an operator instance o matches t1 then 5. P = SHOP (o(S), U, D) 6. if P = FAIL then return FAIL 7. return cons(o,P) 8. else if t is non-primitive & a method instance m matches t1 in S & m’s preconditions can be inferred from S then 9. return SHOP (S, append (m(t1), U), D) 10. else 11. return FAIL 12. end if end SHOP

state S; task list T=( t1 ,t2,…)

• perator instance o

state o(S) ; task list T=(t2, …) task list T=( t1 ,t2,…) method instance m task list T=( u1,…,uk ,t2,…) nondeterministic choice among all methods m whose preconditions can be inferred from S

60

Summary

We considered single‐agent, goal‐oriented planning in a static and deterministic environment

• STRIPS

– Linear = non‐interleaved, non‐hierarchical planner – Incomplete, not optimal

• Goal Oriented Action Planning (GOAP)

– Simple + more flexible, STRIPS‐like – Action duration, goal insistence

• NOAH and Hierarchical Task Networks

– Non‐linear planners – Ordered versions with total order on subtasks

61

Shakey (1966-1972)

Shakey is a robot which plans moving from one location to another, turning the light switches

• n and off, opening and closing the

doors, climbing up and down from rigid objects, and pushing movable

• bjects around using…?

a) STRIPS b) GOAP c) HTN d) SHOP

62
