The Belgian 4 th Engineer Battalion, specialized CBRN response to modern warfare. Anglique KUPPENS, Senior Captain Coy Cdr Apr 22, 15 Layout 1. Missions & Principles 2. Organisation chart 3. Sub-capacities & Mat 4. Education 5.

slide-1
SLIDE 1

Apr 22, 15

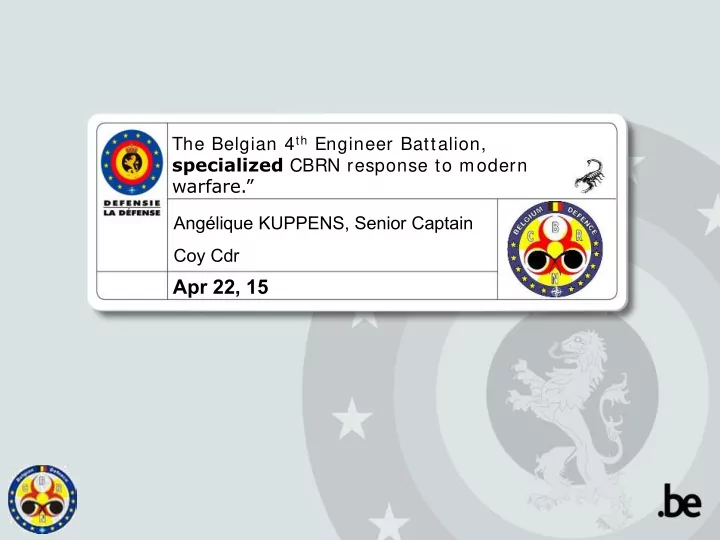

The Belgian 4th Engineer Battalion, specialized CBRN response to modern warfare.” Angélique KUPPENS, Senior Captain Coy Cdr

slide-2
SLIDE 2

Layout

  • 1. Missions & Principles
  • 2. Organisation chart
  • 3. Sub-capacities & Mat
  • 4. Education
  • 5. Trg
  • 6. Missions

3

slide-3
SLIDE 3
slide-4
SLIDE 4

BEL Defense

slide-5
SLIDE 5

3 CBRN Coy

Until Oct 15

6

slide-6
SLIDE 6

3 CBRN Coy

From Oct 15

7

slide-7
SLIDE 7

Layout

  • 1. Missions & Principles
  • 2. Organisation chart
  • 3. Sub-capacities & Mat
  • 4. Education
  • 5. Trg
  • 6. Missions abroad

8

slide-8
SLIDE 8
  • a. Definition: CBRN Def

PREVENT, PROTECT, RESTORE

CBRN Def Fundamentals Detec, Ident, Monitor Info Management Physical Protection Hazard Management Med Countermeasures & Sp

  • 1. Missions & Principles

9

slide-9
SLIDE 9

10

  • a. Definition : Three Pillars

1) 1st PILLAR: CBRN Sub-Cap organic to the Units

(COMOPSLAND, COMOPSAIR, COMOPSNAV, COMOPSMED)

« The All-Arms CBRN Defence »

2) 2nd PILLAR : CBRN Specialised Sub-Cap

(Joint CBRN Coy)

« The CBRN Defence Unit »

3) 3rd PILLAR : CBRN Specific Support

(Defence-wide: DLD, EOD, CBRN Med, Intel, Reach-Back)

« The CBRN support »

  • 1. Missions & Principles
slide-10
SLIDE 10

11

  • 1. Missions & Principles
  • b. Missions

1) Decon of Pers, Veh, Eqt and terrain 2) Treatment of wounded persons in cooperation with the Medical Component (CasDM) 3) Warning & Reporting (Deployable Sub Collection Center) 4) CBRN Recce & assessment (included TIM), light (HSET) or armored 5) CBRN sampling and identification (SIBCRA) 6) COLPRO + BPT Sp Population

slide-11
SLIDE 11

12

  • 1. Missions & Principles
  • c. Principles

1) Joint : provide specialized CBRN support to all component units 2) Modular : assets tailored to the mission 3) Deployed ifo CBRN Threat Level 4) CBRN Pers = specialists 5) Need of Force Protection 6) CBRN missions need TIME

slide-12
SLIDE 12

Layout

  • 1. Missions & Principles
  • 2. Organisation chart
  • 3. Sub-capacities & Mat
  • 4. Education
  • 5. Trg
  • 6. Missions abroad

13

slide-13
SLIDE 13

Comdo CSS Comdt S1 S2 S3 S4 ISC Prev Milieu

S3

Recce & Ln

CBRN

4

4th Engr Btl

14

slide-14
SLIDE 14

SIBCRA SIBCRA SIBCRA SIBCRA SIBCRA Comdt HSE-T SIBCRA DSCC Comdt CIS Maint

Rav/Armt/Cl1

Comdt Staff SIBCRA Comdt

180 (8-48-124)

46 (4-25-17)

Sp CBRN

(0-3-23) (1-1-2) 57 (1-8-48) 57 (1-8-48) (1-3-2) X 2 LC (0-2-1) X 2 AC (1-2-1) (0-3-2) X 4 (1-1-2) (0-3-23) (1-1-2) (2-2-3) (0-4-23) (0-1-1) (0-4-23) 20 (2-7-11) (0-2-2) (0-2-5)

MT

(0-0-0)

3 CBRN Coy

15

SIBCRA

(1 2) X 2

DIM

DSCC

LC (0 1) X 2 AC (1 1)

Info Mgt W&R Advise to Cdr

57 (1 48) 57 (1

Hazard Management

HSE-T

(0 2) X 4

DIM

slide-15
SLIDE 15

Layout

  • 1. Missions & Principles
  • 2. Organisation chart
  • 3. Sub-capacities & Mat
  • 4. Education
  • 5. Trg
  • 6. Missions abroad

16

slide-16
SLIDE 16

17

  • 3. Sub-capacities & Major Mat
  • a. Decontamination Platoons
  • b. Diployable Sub Collection Center (DSCC)
  • c. Sampling and Identification Of BIO, CHIM, RAD Agents

(SIBCRA)

  • d. Hazadous Site Evaluation Team (HSE-T)
slide-17
SLIDE 17

18

  • a. Decontamination Platoons

Perform thorough decontamination via 1) Hy Station 2) Md Station 3) Lt Decon 4) Casualties Decontamination Module (CASDM )

slide-18
SLIDE 18

1) Hy Station

100m 48m³ Water Hy Veh/ Hr: 04EA Lt Veh/ Hr: 15EA Pers/ Hr: 60 Terrain/ Hr: 1000 m² Stable Ground NEEDS: 04 IVECO ALC 02 ASTRA 01 Ug PCCR ONE Hy Station = FOUR Cont = ONE Decon Sec = 75 x 100 m FOUR Hy Stations

19

(0-3-23)

slide-19
SLIDE 19

1) Hy Station

20

slide-20
SLIDE 20

1) Hy Station

21

slide-21
SLIDE 21

1) Hy Station

22

slide-22
SLIDE 22

1) Hy Station

23

slide-23
SLIDE 23

1) Hy Station

24

slide-24
SLIDE 24

1) Hy Station

25

slide-25
SLIDE 25

2) Medium Station

26

ONE Md Station = ONE URO + Trailer = ONE Decon Sec = 50 x 75 m THREE (+ ONE) Md Stations

slide-26
SLIDE 26

3) Medium Station

27

slide-27
SLIDE 27

2) Medium Station

28

slide-28
SLIDE 28

2) Medium Station

29

75m 11m³ Water Hy Veh/ Hr: 02EA Lt Veh/ Hr: 06EA Pers/ Hr: 40 Terrain/ Hr: 1000 m² All roads NEEDS: 01 URO + Rem 02 ASTRA 01 Ug PCCR THREE (+ ONE) Md Stations (0-3-23) ONE Md Station = ONE URO + Trailer = ONE Decon Sec = 50 x 75 m

slide-29
SLIDE 29

3) Lt Decon

a) By Pers of Decon Plt b) TWO options: i. 8 Pers (0-2-6) + 01 Ca URO + 01 Ug Cargo ii. 4 Pers (0-1-3) + 02 Ug Cargo c) In Spt of HSE or SIBCRA teams

30

slide-30
SLIDE 30

4) CASDM

a) 02 EA inside the CBRN Coy b) 01EA / Decon Plt c) Pers (0-1-8) + Med Pers d) i.c.c.w. COMOPSMED e) Still in development

31

slide-31
SLIDE 31
  • b. DSCC

32

NEEDS: 01 Ug PCCR NEEDS for the Manual procedure: Maps + Office Eqt 1) Deployable Sub Collection Center 2) Missions: a) Danger Modeling and Predictions (ATP45) b) Advise to Cdr 3) THREE DSCC a) ONE (1-2-1) b) TWO (0-2-1) 4) Work at Bde level

slide-32
SLIDE 32
  • b. DSCC

33

NEEDS for the Computer Assisted Procedure: NBC-Analysis and HPAC Compatible with ISIS

slide-33
SLIDE 33
  • c. SIBCRA

34

NEEDS: ONE Ug PCCR TWO Ug Cargo 1) Sampling and Identification of Biological Chemical Radiological Agent 2) ONE SIBCRA Team = (1-3-2) + ONE scientist (< DLD) 3) Missions: a) Deploy to a suspected or confirmed contaminated CBRN/ TIM area; b) Search for and take forensic samples (AEP 66); c) Search for and collect all usefull information on the spot. 4) TWO SIBCRA Teams within the CBRN Coy

slide-34
SLIDE 34
  • c. SIBCRA

35

slide-35
SLIDE 35
  • c. SIBCRA

36

slide-36
SLIDE 36
  • c. SIBCRA

37

slide-37
SLIDE 37

38

  • d. HSE-T

1) Hazardous Site Evaluation Team 2) ONE HSE-T = (0-3-2) 3) Missions: a) Recce : route, area, hot spots; b) Survey: Syst Obn iot identify the presence of CBRN dangers; c) Search and take Ops samples. 4) FOUR HSE-T within the CBRN Coy

slide-38
SLIDE 38

Layout

  • 1. Missions & Principles
  • 2. Organisation chart
  • 3. Sub-capacities & Mat
  • 4. Education
  • 5. Trg
  • 6. Missions abroad

39

slide-39
SLIDE 39
  • 4. Education

National International 4Gn 3d CBRN Coy CCLAND Dept Gn CCAir DLD CCNav CCMed FRA DEU (NATO School) CZE (JCBRN Center) SRB Offr & NCO X X X X X X X X X X Troop X X X X X

40

  • a. Long & efficient FRA collaboration
  • b. Education
slide-40
SLIDE 40

Layout

  • 1. Missions & Principles
  • 2. Organisation chart
  • 3. Sub-capacities & Mat
  • 4. Education
  • 5. Trg
  • 6. Missions abroad

42

slide-41
SLIDE 41
  • 5. Trg: FRA, LAT RAD

46

slide-42
SLIDE 42

47

  • 5. Trg: SVK, LAT CHEM
slide-43
SLIDE 43

48

  • 5. Trg: CAN, LAT CBRN
slide-44
SLIDE 44

50

  • 5. Trg: Decon pilote
slide-45
SLIDE 45

51

  • 5. Trg: BEL Decon
slide-46
SLIDE 46

52

  • 5. Trg: BEL Decon
slide-47
SLIDE 47

53

  • 5. Trg: BEL Decon
slide-48
SLIDE 48

54

  • 5. Trg: BEL HSE
slide-49
SLIDE 49
  • 5. Trg

Where What Why Who FRA LAT RAD Live Agent Trg Decon/HSE/SIBCRA SVK LAT CHEM Live Agent Trg Decon/HSE/SIBCRA CAN NATO CBRN LAT Live Agent Trg Decon/HSE/SIBCRA/EOD- CBRN DNK Warning & Reporting Enhance quality of analysis DSCC NLD CBRN Trg CBRN Trg Center Tech Work Decon/HSE/SIBCRA/ EOD-CBRN BEL CBRN Trg Tac &Tech ALL

55

slide-50
SLIDE 50

Layout

  • 1. Missions & Principles
  • 2. Organisation chart
  • 3. Sub-capacities & Mat
  • 4. Education
  • 5. Trg
  • 6. Missions abroad

56

slide-51
SLIDE 51
  • a. Engagement: f (CBRN Threat Evaluation)
  • b. Engagement/Stand By Ops abroad:

1) NRF 3 (Olympic Games 2004), NRF6, NRF12, NRF17/18, EUBG 14 2) CBRN Det ISAF : (1-5-10)

a) Who? ONE HSE-T + ONE Decon Lt on URO b) Why? Desinfection DEU Mat + Decon + Recce c) 14_06: Well done d) 14_10: Well done e) 15_02: On going f) 15_06: PDT g) 15_10: confirmed

57

  • 6. Missions
slide-52
SLIDE 52

59

  • 6. Missions: MeS
slide-53
SLIDE 53

60

  • 6. Missions: MeS
slide-54
SLIDE 54

61

  • 6. Missions:MeS
slide-55
SLIDE 55

62

  • 6. Missions: MeS
slide-56
SLIDE 56

64

  • 6. Missions
  • c. Intervention Homeland: Intervention in Wetteren (May13)

Detection team in support of Firemen and the Civilian Protection

slide-57
SLIDE 57

Sp Wetteren

65

slide-58
SLIDE 58

66

Follow up activities

slide-59
SLIDE 59

Follow up activities

67

slide-60
SLIDE 60

Follow up activities

68

slide-61
SLIDE 61
  • 7. Conclusion

“The Belgian 4th Engineer Battalion, specialized CBRN response to modern warfare.”

  • Adapted stucture;
  • Adapted education and training;
  • Expertise thanks to missions abroad and on

national territory  Our CBRN specialists are ready to counter CBRN incidents

slide-62
SLIDE 62

71
