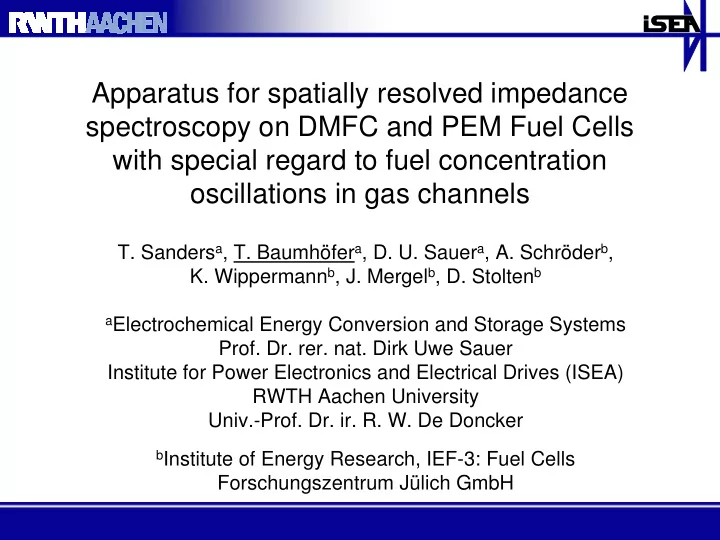

Apparatus for spatially resolved impedance spectroscopy on DMFC and PEM Fuel Cells with special regard to fuel concentration oscillations in gas channels T. Sanders a , T. Baumhöfer a , D. U. Sauer a , A. Schröder b , K. Wippermann b , J. Mergel b , D. Stolten b a Electrochemical Energy Conversion and Storage Systems Prof. Dr. rer. nat. Dirk Uwe Sauer Institute for Power Electronics and Electrical Drives (ISEA) RWTH Aachen University Univ.-Prof. Dr. ir. R. W. De Doncker b Institute of Energy Research, IEF-3: Fuel Cells Forschungszentrum Jülich GmbH

Motivation � “Flipping” effect observed in measurements � Caused by measurement method � Not a consequence of MEA state Source: Oscillations in Gas Channels II. I. A. Schneider et al. Journal of The Electrochemical Society 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 2 T. Baumhöfer

Outline � The cause for the measurement effect � Influence of various factors � Model based � An advanced measurement setup � “EIScell” measurement hardware 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 3 T. Baumhöfer

Commonly used measurement setup � The full cell is excited by one voltage source V AC Z = n � Spatially resolved current measurement I n I 1 V AC Oxygen flow I 2 I 3 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 4 T. Baumhöfer

Influence of concentration oscillations Oxygen flow 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 5 T. Baumhöfer

Influences � Absolute oxygen concentration Spectra: 10 Segments, linear channel dU = RT 1 2 2 2 dI z F q C 1 1 � Frequency � Limited Diffusion � Excitation amplitude � No influence 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 6 T. Baumhöfer

Advanced measurement setup � Single excitation, sequential measurement V � Problem: in-plane resistance n Z = n I + I − + I � Smaller concentration oscillation amplitude n n n + 1 1 � Influence only from neighboring segments V 1 I 1 V 2 I 2 V 3 I 3 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 7 T. Baumhöfer

Comparison Cell excitation Single segment excitation 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 8 T. Baumhöfer

Comparison (Zoom) Cell excitation Single segment excitation 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 9 T. Baumhöfer

EIScell � 54 independent channels � ± 2.5 V, ± 2.5 A per channel � AC response from all I,V � simultaneously � DC measurements � I-V curves � Automated � Integration of test stand control 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 10 T. Baumhöfer

Contacting 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 11 T. Baumhöfer

Shunt Resistors 25 mA 25 mA � Voltage drop across shunt resistors leads to an equalization of measured currents 25 mA 25 mA � For the given test cell resistances below 10m � would be needed � Not suitable for measurement of 25 mA 25 mA small currents V meas = mA ⋅ m Ω = µ V 1 10 10 In-plane Shunt Segments Resistances Resistors 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 12 T. Baumhöfer

Shunt Resistors 32 mA 25 mA � Voltage drop across shunt resistors leads to an equalization V diff of measured currents 36 mA 50 mA � For the given test cell resistances below 10m � would be needed V diff � Not suitable for measurement of 32 mA 25 mA small currents V meas = mA ⋅ m Ω = µ V 1 10 10 In-plane Shunt Segments Resistances Resistors 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 13 T. Baumhöfer

Compensated Shunt Resistor � Measurement signal range can be optimized (variable shunt resistance) V meas = 1 mA ⋅ 1 Ω = 1 mV � No influence by wire resistance (Kelvin connection) � Parallel measurement up to high frequencies 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 14 T. Baumhöfer

First Measurement Results Oxygen flow 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 15 T. Baumhöfer

Summary � “Flipping” in spectra is no result from the MEA state, but a measurement influence caused by concentration oscillations. � By using another measurement setup the effect can be reduced. � Magnitude of improvement dependent on relation between in-plane and segment impedance � A compensated shunt resistor allows for precise spatially resolved current measurement without affecting the current distribution. 6/23/2009 Institute for Power Electronics and Electrical Drives Slide 16 T. Baumhöfer
