APOGEE Wireless System Architecture APOGEE Wireless System - PowerPoint PPT Presentation

Oct 18, 2023 •351 likes •397 views

APOGEE Wireless System Architecture APOGEE Wireless System Architecture Room Temperature Sensor Management 802.15.4 Radio Battery-powered sensor nodes Sensing Only Sensing and Display Sensing, Override, Setpoint, and

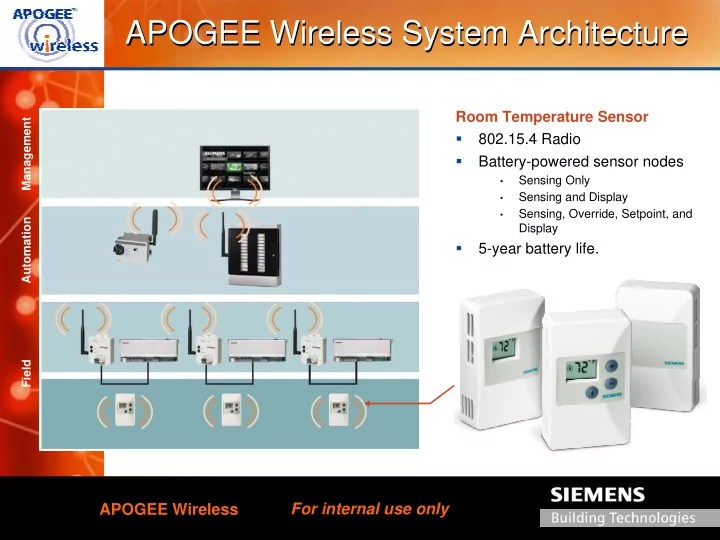

  1. APOGEE Wireless System Architecture APOGEE Wireless System Architecture Room Temperature Sensor Management � 802.15.4 Radio � Battery-powered sensor nodes Sensing Only • Sensing and Display • Sensing, Override, Setpoint, and • Automation Display � 5-year battery life. Field APOGEE Wireless For internal use only

  2. Wireless Field Level Network w/ Sensors Wireless Field Level Network w/ Sensors APOGEE Wireless For internal use only

  3. Nodes on a mesh network Nodes on a mesh network 1. Line-powered Nodes (Controllers) Always on • Route message traffic for self • and neighbors Communicate with multiple • nodes 2. Battery-powered Nodes (Sensors) Sleep most of the time • Only route their own traffic • Only communicate with one • line-powered node at a time PAN coordinator (FPX at Field Panel) Full Function Device (FLNX at TEC) Reduced Function Device (WRTS) APOGEE Wireless For internal use only
