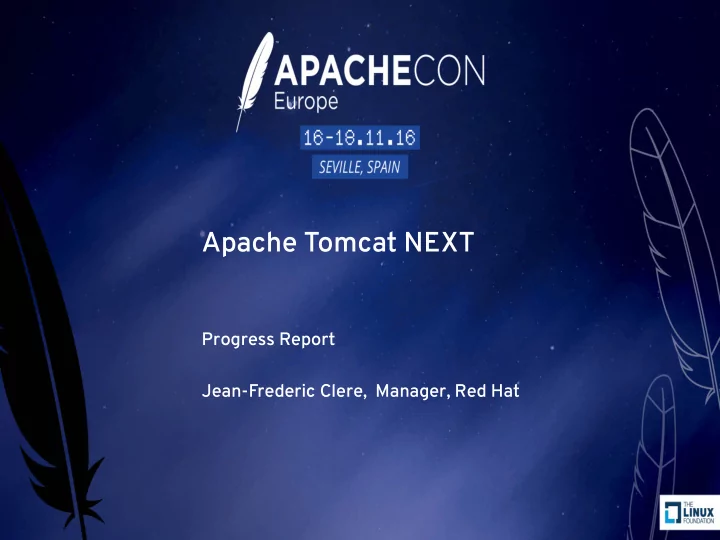

Apache Tomcat NEXT

Progress Report Jean-Frederic Clere, Manager, Red Hat

slide-2
SLIDE 2

2

AGENDA

  • Who I am
  • New features from specifjcations
  • Tomcat specifjc new features
  • Tomcat features removed
  • Internal changes
  • Why Apache Tomcat 8.5?
  • HTTP/2 and ALPN
  • SNI
  • OpenSSLImplementation
  • Migration from 8.0 to 8.5
  • Get involved
  • Questions
slide-3
SLIDE 3

3

Who I am

Jean-Frederic Clere Red Hat Years writing JAVA code and server software Tomcat committer since 2001 Doing OpenSource since 1999 Cyclist/Runner etc Lived 15 years in Spain (Barcelona) Now in Neuchâtel (CH)

slide-4
SLIDE 4

4

Tomcat

slide-5
SLIDE 5

5

Tomcat versions

Tomcat Java EE Minimum Java SE Servlet JSP EL WebSocket JASPIC 1st Stable Release EOL

5.x 4 1.4 2.4 2.0 N/A N/A N/A 08 2004 09 2012 6.x 5 5 2.5 2.1 2.1 N/A N/A 02 2007 12 2016 7.x 6 6 3.0 2.2 2.2 1.1 N/A 01 2011 TBD 8.0.x 7 7 3.1 2.3 3.0 1.1 N/A 02 2014 xx 2016? 8.5.x 7 7 3.1 2.3 3.0 1.1 1.1 06 2016 TBD 9.x 8 8 4.0 2.4? 3.1? 2.0? 1.1? 2017 TBD

xx: was 09 in June ;-) 8.0.38 released 11 October

slide-6
SLIDE 6

6

New features from specifjcations

JavaEE 8

  • Key elements
  • HTTP/2
  • Simplification
  • Better integration for managed beans
  • Better infrastructure for the cloud
slide-7
SLIDE 7

7

Specifjcations

Servlet 4.0

  • HTTP/2
  • Usability improvements
  • HttpFilter, default methods
  • Clarifications
  • Enhancement requests
slide-8
SLIDE 8

8

Specifjcations

HTTP/2

  • HTTP/2 requires some TLS features
  • Server Name Indication (SNI)
  • Application Layer Protocol Negotiation (ALPN)
  • Full support
  • 8.5.3 considered stable. (since June 2016)
  • h2c available (for proxies)
  • h2 requires APR/native/OpenSSL due to ALPN

requirements

  • Server push available
slide-9
SLIDE 9

9

Specifjcations

Servlet 4.0 HTTP/2

  • Java EE 8 must run on Java 8
  • Java EE 8 requires Servlet 4.0
  • Servlet 4.0 requires HTTP/2
  • HTTP/2 requires ALPN
  • Java 8 does not support ALPN
  • ALPN support will be available in Java 9
  • ALPN support will likely be backported to Java 8 at some

point...

slide-10
SLIDE 10

10

Specifjcations

Other

  • WebSocket 1.2 (keep 1.1?)
  • Standard extension for compression/multiplexing?
  • JSP 2.4 (keep 2.3?)
  • Imports to clarify (EL 3.0 related)
  • EL 3.1 (keep 3.0?)
  • Only minor improvements/clarifjcations needed
  • JASPIC 1.1 (New!)
  • Java Authentication Service Provider Interface for
  • Containers. Used to support Oauth (login)
slide-11
SLIDE 11

11

Tomcat New Features

TLS support improvements (1)

  • Major rewrite of TLS support
  • Tomcat 8 supports
  • one TLS virtual host per connector
  • one certificate per virtual host
  • Tomcat 9 supports
  • multiple virtual hosts per connector (SNI)
  • multiple certificates per virtual host
  • TLS configuration has changed to support this
slide-12
SLIDE 12

12

Tomcat New Features

TLS support improvements (2)

  • SNI and multiple certificates supported by all connectors
  • APR/native support via the OpenSSL API
  • JSSE support via parsing the initial handshake
  • ALPN supported by APR/native or OpenSSLImplementation
  • JSSE support is currently TBD
  • Common (where possible) configuration for all connectors
  • Some JSSE / OpenSSL differences remain.
  • OpenSSL engine option of NIO and NIO2 connectors
  • Allows OpenSSL performance with NIO/NIO2 APIs
  • Use automatically when tc-native is installed.
slide-13
SLIDE 13

13

Tomcat Removed Features

Old blocking O/I connectors...

  • BIO HTTP and BIO AJP connectors
  • Websocket and Servlet 3.1 require non-blocking IO
  • Emulation of non-blocking is bad:
  • Complex
  • Not scalable
  • Risky: stuff that might break.
  • Decision remove them.
  • Still 3 connectors:
  • NIO default connector
  • NIO2 introduced in Tomcat 8.0
  • APR/Native still available. (requires tomcat-native libraries)
slide-14
SLIDE 14

14

Tomcat Removed Features

Comet

  • Proprietary interface for asynchronous I/O
  • Users are moving (have moved) to WebSocket
  • Adds complexity to all the connectors
  • Therefore decided to remove it
slide-15
SLIDE 15

15

Internal Changes

Connectors

  • Removed
  • BIO
  • Comet
  • Reduce duplication
  • HTTP upgrade from 12 classes to 3
  • HTTP/1.1 cleanup = removed ~ 50% (~2500 loc)
  • AJP 1.3 cleanup = remove ~ 30%
  • No connector specific HTTP/2 code
  • Implementation specific per connector → Endpoint
  • Implementation specific per connection → SocketWrapper
slide-16
SLIDE 16

16

Internal Changes

Websocket

  • Refactored I/O implementation
  • Direct to Tomcat’s I/O layer
  • Not via Servlet 3.1 non-blocking API
  • Simpler
  • Faster
  • Extension support likely to require further refactoring?
slide-17
SLIDE 17

17

Internal Changes

Other

  • Remove use of system properties for configuration
  • Move to per Context / Host / Server / Connector
  • keep the system property as a default
  • Made RFC 6265 CookieProcessor the default
  • Note UTF-8 extension
slide-18
SLIDE 18

18

Why Tomcat 8.5?

EE8 late...

  • Tomcat 9 stable release is tied to the release of Java EE 8
  • Java EE 8 has been repeatedly delayed
  • Currently delayed until at least H1 2017
  • Don't want users to have to wait another year+ to get

access our new features:

  • HTTP/2
  • OpenSSL encryption for JSSE
  • TLS virtual hosting
  • JASPIC
  • Hence, Tomcat 8.5...
slide-19
SLIDE 19

19

What is Tomcat 8.5?

Tomcat 9.0.0.M4...

  • Started from Apache Tomcat 9.0.0M4
  • Reverted all Servlet 4.0 API changes
  • Reworked code that required Java 8
  • Tomcat specific Push Server API
  • Configuration compatible with 8.0.x
  • “big” removal:
  • Comet (migrate to WebSocket)
  • BIO (Connector… probably not noticed)
slide-20
SLIDE 20

20

Tomcat 8.5 timing

Possible roadmap

  • ~6 months of 8.0.x and 8.5.x
  • Extended if needed.
  • ~ one month between releases
  • ~ after no more 8.0.x releases
  • First 8.5 release 24 March 2016
  • Current release: 8.5.6 stable
  • Expect last 8.0.x soon: no date yet!
slide-21
SLIDE 21

21

Why HTTP/2

– HTTP/1.1: June 1999 (RFC 2616)

  • 1999:

– 1 page ~ 1kB HTML

  • 2015:

– 1 page ~ 3MB HTML + IMAGES + JS + CSS etc – Protocol:

  • Not adapted / ineffjcient / etc
slide-22
SLIDE 22

22

HTTP/2 general

  • HTTP/2:
  • Binary
  • Frame
  • Multiplex
  • Based on SPDY
  • TLS everywhere:
  • Browers use https and strong ciphers
  • No forward proxy
  • h2c: Clear text only with reverse proxy (proxy to back-end

server)

slide-23
SLIDE 23

23

HTTP/2 general HTTP/2 general

  • Two specifjcations:
  • Hypertext Transfer Protocol version 2 - RFC7540
  • HPACK - Header Compression for HTTP/2 - RFC7541
  • By the Internet Engineering Task Force
  • ALPN Application-Layer Protocol Negotiation - RFC 7301
slide-24
SLIDE 24

24

HTTP/2 Multiplexed HTTP/2 Multiplexed

Headers

Data

Headers Headers Headers

Data Data Headers Data Data Headers Data

Headers

slide-25
SLIDE 25

25

HTTP/2 : more

  • HTTP headers compression
  • ~ 80 % saved
  • Request priority
  • Both sides
  • Server Push
  • Prevents round trips to get page elements.
  • Faster / better rendering on browsers.
slide-26
SLIDE 26

26

HTTP/2 When Browsers

  • Browser with HTTP/2 and TLS
  • FireFox 34
  • Chrome 40 (with ALPN before was NPN)
  • IE 11
  • Opera and Safari 9
  • Stats from docs.trafficserver and ci.trafficserver:
  • More than 50% is over HTTP/2 (data from April)
  • → go for it now!
slide-27
SLIDE 27

27

ALPN Client Hello (Firefox)

slide-28
SLIDE 28

28

ALPN Server Hello (tomcat)

slide-29
SLIDE 29

29

TC connector server.xml TC connector server.xml

<Connector port="8002" scheme="https" SSLEnabled="true" ciphers="TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256" SSLCertifjcateFile="/home/jfclere/CERTS/newcert.pem" SSLCertifjcateKeyFile="/home/jfclere/CERTS/newkey.txt.pem" protocol="org.apache.coyote.http11.Http11AprProtocol"> <UpgradeProtocol className="org.apache.coyote.http2.Http2Protocol" /> <Connector/> <Connector port="8003" protocol="HTTP/1.1" SSLEnabled="true" scheme="https" secure="true" keystoreFile="conf/.keystore" keystorePass="changeit" socket.directBuffer="true" socket.directSslBuffer="true"> <UpgradeProtocol className="org.apache.coyote.http2.Http2Protocol" /> </Connector> <Connector port="8004" protocol="org.apache.coyote.http11.Http11AprProtocol"> <UpgradeProtocol className="org.apache.coyote.http2.Http2Protocol" /> </Connector>

slide-30
SLIDE 30

30

Tomcat / confjguration

In bin/setenv.sh: LD_LIBRARY_PATH=/home/jfclere/tomcat-native/native/.libs export LD_LIBRARY_PATH And the libtcnative-1.so linked with openssl-1.0.2c, checking with ldd: libssl.so.1.0.0 => /home/jfclere/OPENSSL-1.0.2c/lib/libssl.so.1.0.0 (0x00007f6ab147b000) libcrypto.so.1.0.0 => /home/jfclere/OPENSSL-1.0.2c/lib/libcrypto.so.1.0.0 (0x00007f6ab1028000) libapr-1.so.0 => /home/jfclere/APR-1.4.x/lib/libapr-1.so.0 (0x00007f6ab0dfa000) Usually the openssl of recent distribution (fedora 23) will work.

slide-31
SLIDE 31

31

Tomcat / Performances

4KiB.bin 8KiB.bin 16KiB.bin 32KiB.bin 64KiB.bin 128KiB.bin 256KiB.bin 512KiB.bin 1MiB.bin 50000 100000 150000 200000 250000 300000 350000 400000

Concurency 240

coyote_nio_jsse_h1_https coyote_nio_jsse_h2_https

File Size Kbytes / second

slide-32
SLIDE 32

32

Tomcat / Performances

4KiB 8KiB 16KiB 32KiB 64KiB 128KiB 256KiB 512KiB 1MiB 10 20 30 40 50 60 70 80 90

Concurency 240

coyote_nio_jsse_h1_https coyote_nio_jsse_h2_https

File Size CPU Usage

slide-33
SLIDE 33

33

Tomcat / Demo

  • No server push (may be change it: SimpleImagePush)
  • Multiplexing
  • headers compression
  • Page html page:
  • That requires a lot (~1000) of (~4Kbytes) images to

render.

slide-34
SLIDE 34

34

SNI Client Hello (Firefox)

slide-35
SLIDE 35

35

TC connector server.xml TC connector server.xml

<Connector protocol="org.apache.coyote.http11.Http11AprProtocol" SSLEnabled="true" maxThreads="150" secure="true" scheme="https" defaultSSLHostConfjgName="local1.com" port="8443" > <UpgradeProtocol className="org.apache.coyote.http2.Http2Protocol" /> <SSLHostConfjg honorCipherOrder="false" hostName="local1.com" > <Certifjcate certifjcateKeyFile="conf/local1.key" certifjcateFile="conf/local1.crt" type="RSA" /> </SSLHostConfjg> <SSLHostConfjg honorCipherOrder="false" hostName="local2.com"> <Certifjcate certifjcateKeyFile="conf/local2.key" certifjcateFile="conf/local2.crt" type="RSA" /> </SSLHostConfjg> </Connector>

slide-36
SLIDE 36

36

Tomcat / Demo

  • 2 pairs of key/certifjcate
  • local1.com
  • local2.com
  • /etc/hosts
  • 127.0.0.1 localhost local1.com local2.com
  • SNI allows to select the right key/certifjcate
slide-37
SLIDE 37

37

Why a new SSLImplementation

  • JSSE:
  • Very slow
  • Missing features: like ALPN (JEP 244: TLS Application-Layer Protocol

Negotiation)

  • Hardware acceleration used to be very partial (like AES in early java8)
  • Native connector:
  • Fast but a lot of native code
  • Use OpenSSL for SSL/TLS.
  • New OpenSSL implemetation:
  • Fast.
  • Uses only a OpenSSL for native code (no native socket, poller etc).
  • Works with NIO and NIO2.
  • Uses OpenSSL for SSL/TLS. (warp, unwarp, handshake etc).
slide-38
SLIDE 38

38

OpenSSLImplementation

  • Code orginates from netty-tcnative a forked Tomcat

Native

  • Prototype (2015):
  • Done with the BeFriNe University
  • Tested and ported to tc_trunk last summer
  • SSL Configuration compatible with the JSSE

configuration style (*)

  • Uses keystores (*)
  • Uses OpenSSL BIO to wrap/unwarp, handshake
  • Uses java NIO or NIO2 Sockets for the reads and writes
  • Automatically enabled when TC native is

installed/enabled (*)

slide-39
SLIDE 39

39

How TLS is done in Tomcat

Tomcat JSSE Con. Java stdlib JSSE SSL Engine NIO/NIO2 Tomcat Native APR JNIs Webserver APR Internals APR Connector OpenSSL OS Sockets

J a v a C / N a t i v e

Webserver OpenSSL Impl.

slide-40
SLIDE 40

40

Connector Throughput (c80)

4KiB.bin 8KiB.bin 16KiB.bin 32KiB.bin 64KiB.bin 128KiB.bin 256KiB.bin 512KiB.bin 1MiB.bin 2MiB.bin 4MiB.bin 8MiB.bin 16MiB.bin 32MiB.bin 100000 200000 300000 400000 500000 600000 700000

concurency 80

coyote_apr_https coyote_nio2_openssl_https coyote_nio_jsse_https coyote_nio_openssl_https

File Size Throughput Kbytes/sec

slide-41
SLIDE 41

41

TC connector server.xml TC connector server.xml

OLD NATIVE CONNECTOR WAY: <Connector port="8002" scheme="https" SSLEnabled="true" SSLCertifjcateFile="/home/jfclere/CERTS/newcert.pem" SSLCertifjcateKeyFile="/home/jfclere/CERTS/newkey.txt.pem" protocol="org.apache.coyote.http11.Http11AprProtocol"> <UpgradeProtocol className="org.apache.coyote.http2.Http2Protocol" /> <Connector/> NEW OPENSSLImplementation WAY: (AprLifecycleListener" with SSLEngine="on" + tcnative libs) <Connector port="8003" protocol="HTTP/1.1" SSLEnabled="true" scheme="https" secure="true" keystoreFile="conf/.keystore" keystorePass="changeit" socket.directBuffer="true" socket.directSslBuffer="true"> <UpgradeProtocol className="org.apache.coyote.http2.Http2Protocol" /> </Connector>

slide-42
SLIDE 42

42

Migration from Apache Tomcat 8.0.x

  • Aiming to make it a seamless process for most users
  • Some users will have some work to do
  • Confjguration fjles can be re-used
  • Will need migration to use new TLS features
  • Some removed features will not be replaced
  • Comet (Stick with fjnal 8.0, revert 7.0 or migrate WebSocket)
  • Work arounds may be added for some removed features
  • BIO
  • Removed deprecated code may be restored
  • Manager, Context, RealmBase
slide-43
SLIDE 43

43

GET INVOLVED

Help is welcomed ;-)

  • SVN:
  • http://svn.apache.org/repos/asf/tomcat/tc8.5.x/trunk/
  • http://svn.apache.org/repos/asf/tomcat/trunk/
  • MAIL LISTS:
  • dev@tomcat.apache.org Dev list.
  • users@tomcat.apache.org Users list.
  • WIKI:
  • http://wiki.apache.org/tomcat/FrontPage
slide-44
SLIDE 44

THANK YOU

jfclere@gmail.com
