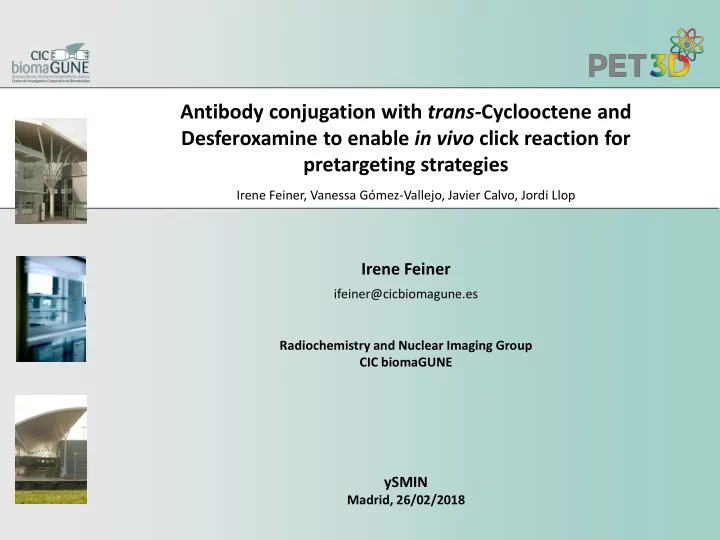

Antibody conjugation with trans- Cyclooctene and Desferoxamine to enable in vivo click reaction for pretargeting strategies Irene Feiner, Vanessa Gmez-Vallejo, Javier Calvo, Jordi Llop Irene Feiner ifeiner@cicbiomagune.es Radiochemistry and
SLIDE 2
SLIDE 3
Pretargeting
- Why pretargeting?
– Antibody distribution is slow – Radiolabeled antibody leads to a high radiation dose – Functionalized Antibody enables in vivo click reaction – Second component, a small radiolabeled molecule, distributes fast – In vivo coupling to the antibody leads to the high selectivity of antibodies but the low radiation dose of small radiotracers
- 2 critical aspects
– Find the right time point to inject the second component – Determine the functionalization of antibodies to predict pretargeting efficacy
3
SLIDE 4
Antibody labeling
- M. J. W. D. Vosjan, et al., Nat. Prot. 2010, 5, 739
- To follow
biodistribution of monoclonal Antibody (mAb)
- To know timepoint for
injection of second component
4
SLIDE 5
The approach
- conjugation through lysine residues with
– trans-Cyclooctene (TCO) enable for click reaction – p-isothiocyanatobenzyl-desferrioxamine (DFO) enable radiolabeling
- determination of the number of functionalities per monoclonal
Antibody (mAb) paramount to predict pretargeting efficacy
5
SLIDE 6
Antibody modification
DFO-NCS TCO-NHS
= =
- mAb (1.5 mg/mL) in 0.9 % NaCl, pH 8.7-9.1
- Addition of 50 times excess of TCO-NHS (3mg/mL)
and 10 times excess of DFO-NCS (3.7 mg/mL) in DMSO
- Incubation for 45 min at 37ºC
- Purification by spin filters (50 kDa) with sucrose/NaOAc
buffer
6
SLIDE 7
Average ratio
average number of TCO moieties per mAb UV/VIS photospectrometry
- Tetrazine-fluorophore (mTzCy3) was attached via click reaction to TCO
- resulting spectra could be used to determine the concentrations of
mTzCy3, which equals TCO and the concentration of mAb
0.00 0.05 0.10 0.15
230 330 430 530 630
absorbance wavelength [nm]
UV/VIS photospectrometry
7
SLIDE 8
Average ratio
average number of chelators per mAb Titration with spiked Zirconium-oxalate
- mAb was labeled with spiked Zr89-ox in different ratios of ‘cold Zr-ox’
- The different ratios of bound and free Zr89 were used to calculate the
average number of chelator per mAb
0.0 10000.0 20000.0 30000.0 40000.0 50000.0 60000.0 2 4 6 8 10 12 14 cpm fraction
Titration
0 eq 1 eq 2 eq 3 eq
8
SLIDE 9
Reality
DFO-NCS TCO-NHS
- Using lysine residues to conjugate antibodies leads to a high heterogeneity
- f conjugates
9
SLIDE 10
UPLC/ESI-TOF MS
Excess
- f chelator*
chelator/mAb (UPLC/ESI-TOF MS) 3 0 – 1 5 0 – 2 10 0 – 3 Excess
- f TCO*
TCO/mAb (UPLC/ESI-TOF MS) 20 0 – 3 30 0 – 3 40 0 – 5 50 0 – 6 200 0 – 12 Mass spectra:
- unmodified mAb
- chelator-functionalized mAb
- UPLC/ESI-TOF MS gave a good qualitative insight of the different species
present after conjugation, although quantitative data could not be
- btained due to poor separation of the different species.
10 * Molar excess in reaction mixture compared to mAb
SLIDE 11
Hydrophobic Interaction Chromatography (HIC)
Mobile phase: A: 125 mM sodium phosphate + 2 M ammonium sulfate B: 125 mM sodium phosphate
mAb mAb-chelator
- Improvement of the chromatographic resolution is still ongoing but we
already see the great variety of conjugates for the chelator functionalized antibody
11
SLIDE 12
Summary
- Using lysine residues to conjugate antibodies leads to a high heterogeneity
- f conjugates
- TCO and chelator are very small moieties (152 g/mol and 753 g/mol)
compared to the high molecular weight of antibodies (150000 g/mol) which difficult characterization and analysis of the receiving conjugates
- Average number of moieties could be obtained for both, TCO and chelator
- UPLC/ESI-TOF MS as well as HIC gave insight of the verity of existing
conjugates
12
SLIDE 13
Acknowledgements
This project has received funding from the European Union’s Horizon 2020 research and innovationprogramme under the Marie Sklodowska–Curie grant agreement No 675417
