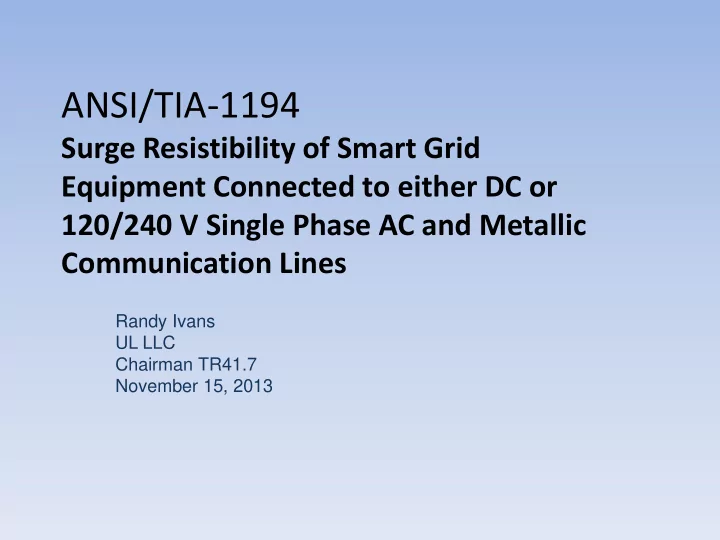

ANSI/TIA-1194 Surge Resistibility of Smart Grid Equipment Connected to either DC or 120/240 V Single Phase AC and Metallic Communication Lines Randy Ivans UL LLC Chairman TR41.7 November 15, 2013 Why is it important for the H2G DEWG to offer


slide-1
SLIDE 1

ANSI/TIA-1194

Surge Resistibility of Smart Grid Equipment Connected to either DC or 120/240 V Single Phase AC and Metallic Communication Lines

Randy Ivans UL LLC Chairman TR41.7 November 15, 2013

slide-2
SLIDE 2

Why is it important for the H2G DEWG to offer TIA-1194 as a candidate for the SGIP Catalog of Standards?

  • The H2G DEWG focuses on elements of a smart grid

that extend beyond the meter into homes

  • These elements include equipment that is exposed to

electrical transients and surges

  • These surges can (and do) cause equipment failures
  • This is true even if the equipment is not metallically

connected to outside communications lines

  • TIA-1194 contains test procedures and resistibility

requirements to ensure communications ports continue to demonstrate basic functionality

2

slide-3
SLIDE 3

A Possible Home Network

3

slide-4
SLIDE 4

So What Is The Problem??

4

slide-5
SLIDE 5

Ground Potential Rise (GPR)

5

slide-6
SLIDE 6

Equipment with 2 Ground Reference Points

6

  • The equipment is referenced on the signal side to point A
  • The equipment is referenced on the AC side to point B
slide-7
SLIDE 7
  • During a transient event, a potential

difference can exist between the ground conductors of different parts of the same building

  • As the potential difference equalizes

throughout the ground system, it creates a transient surge on the LAN cables

  • The result is damaged network cards, blown

ports on a hub, and other problems

7

Equipment with 2 Ground Reference Points

slide-8
SLIDE 8

Equipment with 2 Ground Reference Points

8

  • A lightning strike can develop a large potential difference between point A

and point B

  • With a 3000 A surge and a 9 meter (~30 foot) long ground connection

between A and B, the voltage developed in wire A–B can be ~10,000 V

slide-9
SLIDE 9

Signal Lines Grounded at Remote Site – Ground Potential Rise (GPR)

9

slide-10
SLIDE 10
  • Examples of equipment with services having

separate grounds:

10

slide-11
SLIDE 11
  • Examples of equipment with services having

separate grounds:

– smart grid power meter that is connected to the AC power at one side of a building and a communications service at the opposite side

11

slide-12
SLIDE 12

Smart Grid Meters/Meter Accessories

12

slide-13
SLIDE 13
  • Examples of equipment with services having

separate grounds:

– smart grid power meter that is connected to the AC power at one side of a building and a communications service at the opposite side – photovoltaic system with a communications link to the smart grid

13

slide-14
SLIDE 14

Smart Grid PV System

14

slide-15
SLIDE 15
  • Examples of equipment with services having

separate grounds:

– smart grid power meter that is connected to the AC power at one side of a building and a communications service at the opposite side – photovoltaic system with a communications link to the smart grid – networking equipment with power and multiple communications ports

15

slide-16
SLIDE 16

Smart Grid Network Equipment

16

slide-17
SLIDE 17

ANSI/TIA-1194

It doesn’t matter how “Smart” a system is. If it is susceptible to failures resulting from routine transient and surge events

– it won’t reliably perform its intended function – it can be an inconvenience for both the utility and the consumer – it degrades consumer confidence in the smart grid system

17

slide-18
SLIDE 18

ANSI/TIA-1194

  • Premises equipment that is connected to:

– one or more metallic conductive communication line(s) – a DC power source, or a 120/240 V single phase AC power service with the neutral grounded at the service entrance

  • Test procedures
  • Resistibility requirements
  • Communications ports shall continue to

demonstrate basic functionality when subjected to surges

18

slide-19
SLIDE 19

19

Questions ?
