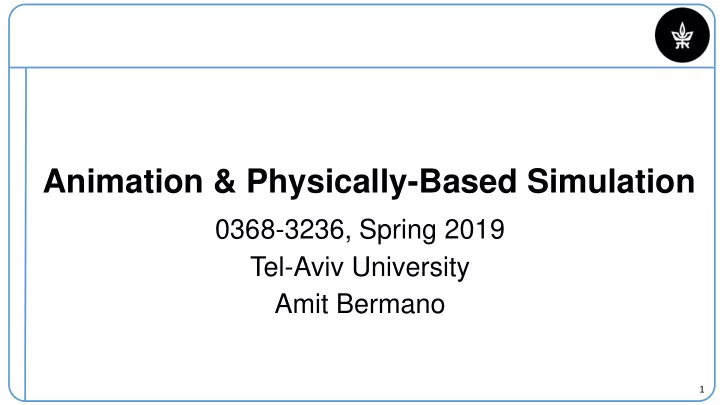

Animation & Physically-Based Simulation

0368-3236, Spring 2019 Tel-Aviv University Amit Bermano

slide-2
SLIDE 2

2

Computer Animation

  • Describing how 3D objects (& cameras)

move over time

Pixar

slide-3
SLIDE 3

3

Computer Animation

  • Challenge is balancing between …
  • Animator control
  • Physical realism
slide-4
SLIDE 4

4

Computer Animation

  • Manipulation
  • Posing
  • Configuration control
  • Interpolation
  • Animation
  • In-betweening

focus.gscept.com https://blenderartists.org/

slide-5
SLIDE 5

5

Character Animation Methods

  • Modeling (manipulation)
  • Deformation
  • Blendshape rigging
  • Skeleton+Envelope rigging
  • Interpolation
  • Key-framing
  • Kinematics
  • Motion Capture
  • Energy minimization
  • Physical simulation
  • Procedural

focus.gscept.com https://blenderartists.org/

slide-6
SLIDE 6

6

Character Animation Methods

  • Modeling (manipulation)
  • Deformation
  • Blendshape rigging
  • Skeleton+Envelope rigging
  • Interpolation
  • Key-framing
  • Kinematics
  • Motion Capture
  • Energy minimization
  • Physical simulation
  • Procedural

focus.gscept.com https://blenderartists.org/

slide-7
SLIDE 7

7

Deformation

  • How to change a character’s pose?
  • Every vertex directly
  • Intuitive computation

https://www.youtube.com/watch?v=oxkf_N-QCNI

slide-8
SLIDE 8

8

Deformation

  • A HUGE variety of methods
  • Laplacian mesh editing
  • ARAP
  • CAGE Base
  • Barycentric coordinates
  • Heat diffusion
  • Variational
slide-9
SLIDE 9

9

Deformation

  • A HUGE variety of methods
  • Laplacian mesh editing
  • ARAP
  • CAGE Base
  • Barycentric coordinates
  • Heat diffusion
  • Variational
slide-10
SLIDE 10

10

Laplacian Mesh Editing

  • Local detail representation – enables detail preservation

through various modeling tasks

  • Representation with sparse matrices
  • Efficient linear surface

reconstruction

slide-11
SLIDE 11

11

Overall framework

  • 1. Compute differential representation
  • 2. Pose modeling constraints
  • 3. Reconstruct the surface – in least-squares sense

𝜀𝑗 = 𝑀 𝑤𝑗 = 𝑤𝑗 − 1 𝑒𝑗 Σ𝑘∈N 𝑗 𝑤𝑘 𝑤𝑗

′ = 𝑣𝑗,

𝑗 ∈ 𝑫 𝑀 𝑀𝑑 𝑾 = 𝜺 𝑽

slide-12
SLIDE 12

12

Differential coordinates?

  • In matricial form:
  • They represent the local detail / local shape description
  • The direction approximates the normal
  • The size approximates the mean curvature

𝑀𝑗𝑘 = ൞ −𝑥𝑗𝑘 𝑗 ≠ 𝑘 Σ𝑘∈1𝑠𝑗𝑜𝑕𝑗𝑥𝑗𝑘 𝑗 = 𝑘 𝑓𝑚𝑡𝑓

slide-13
SLIDE 13

13

  • In matricial form:

𝑀𝑗𝑘 = ൞ −𝑥𝑗𝑘 𝑗 ≠ 𝑘 Σ𝑘∈1𝑠𝑗𝑜𝑕𝑗𝑥𝑗𝑘 𝑗 = 𝑘 𝑓𝑚𝑡𝑓

P Q

Adding constraints

slide-14
SLIDE 14

14

Adding constraints

  • In matricial form:

𝑀𝑗𝑘 = ൞ −𝑥𝑗𝑘 𝑗 ≠ 𝑘 Σ𝑘∈1𝑠𝑗𝑜𝑕𝑗𝑥𝑗𝑘 𝑗 = 𝑘 𝑓𝑚𝑡𝑓

𝑦1 𝑦2 𝑦3 𝑦4 𝑦5 𝑦6 𝑦7 𝑦8 𝑦9 𝑦10

=

𝜀1 𝜀2 𝜀3 𝜀4 𝜀5 𝜀6 𝜀7 𝜀8 𝜀9 𝜀10 𝑸𝒚 𝑹𝒚

𝑧1 𝑧2 𝑧3 𝑧4 𝑧5 𝑧6 𝑧7 𝑧8 𝑧9 𝑧10

=

𝜀1 𝜀2 𝜀3 𝜀4 𝜀5 𝜀6 𝜀7 𝜀8 𝜀9 𝜀10 𝑸𝒛 𝑹𝒛

P Q

slide-15
SLIDE 15

15

Demo

slide-16
SLIDE 16

16

Character Animation Methods

  • Modeling (manipulation)
  • Deformation
  • Blendshape rigging
  • Skeleton+Envelope rigging
  • Interpolation
  • Key-framing
  • Kinematics
  • Motion Capture
  • Energy minimization
  • Physical simulation
  • Procedural

focus.gscept.com https://blenderartists.org/

slide-17
SLIDE 17

17

Blendshapes

  • Blendshapes are an approximate semantic parameterization
  • Linear blend of predefined poses
slide-18
SLIDE 18

18

Blendshapes

https://www.youtube.com/watch?v=KPDfMpuK2fQ

slide-19
SLIDE 19

19

Blendshapes

  • Usually used for difficult to pose complex deformations
  • Such as faces
  • Given:
  • A mesh 𝑁 = (𝑊, 𝐹) with 𝑛 vertices
  • 𝑜 configurations of the same

mesh, 𝑁𝑐 = 𝑊

𝑐, 𝐹 , 𝑐 = 1 … 𝑜

  • A new configuration is simply:
  • 𝑁′ = (Σ𝑐=1…𝑜wbVb, E)
  • Delta formulation:
  • 𝑁′ = Σ𝑐=1…𝑜𝑊

0 + wb(Vb − V0 , E)

  • A bit more convenient
  • 𝑁0 - the rest pose, 𝑥𝑐 blend weights
slide-20
SLIDE 20

20

Blendshapes

https://www.youtube.com/watch?v=jBOEzXYMugE

slide-21
SLIDE 21

21

Character Animation Methods

  • Modeling (manipulation)
  • Deformation
  • Blendshape rigging
  • Skeleton+Envelope rigging
  • Interpolation
  • Key-framing
  • Kinematics
  • Motion Capture
  • Energy minimization
  • Physical simulation
  • Procedural

focus.gscept.com https://blenderartists.org/

slide-22
SLIDE 22

22

Angel Figures 8.8 & 8.9 Base Arm Hand

Scene Graph

Articulated Figures

  • Character poses described by set of rigid bodies

connected by “joints”

slide-23
SLIDE 23

23

Articulated Figures

  • Well-suited for humanoid characters

Rose et al. `96 Root LHip LKnee LAnkle RHip RKnee RAnkle Chest LCollar LShld LElbow LWrist LCollar LShld LElbow LWrist Neck Head

slide-24
SLIDE 24

25

Articulated Figures

  • Animation focuses on joint angles, or general transformations

Watt & Watt

slide-25
SLIDE 25

26

Forward Kinematics

  • Describe motion of articulated character

1 2 X = (x,y)

l2 l1

(0,0) “End-Effector”

slide-26
SLIDE 26

27

Forward Kinematics

  • Animator specifies joint angles: 1 and 2
  • Computer finds positions of end-effector: X

1 2 X = (x,y)

l2 l1

(0,0)

slide-27
SLIDE 27

29

Example: Walk Cycle

  • Articulated figure:

Watt & Watt

slide-28
SLIDE 28

30

Example: Walk Cycle

  • Hip joint orientation:

Watt & Watt

Keyframes

slide-29
SLIDE 29

31

Example: Walk Cycle

  • Knee joint orientation:

Watt & Watt

slide-30
SLIDE 30

32

Example: Walk Cycle

  • Ankle joint orientation:

Watt & Watt

slide-31
SLIDE 31

33

Example: walk cycle

Lague: www.youtube.com/watch?v=DuUWxUitJos

slide-32
SLIDE 32

34

Character Animation Methods

  • Modeling (manipulation)
  • Deformation
  • Blendshape rigging
  • Skeleton+Envelope rigging
  • Interpolation
  • Key-framing
  • Kinematics
  • Motion Capture
  • Energy minimization
  • Physical simulation
  • Procedural

focus.gscept.com https://blenderartists.org/

slide-33
SLIDE 33

35

Beyond Skeletons…

  • Skinning

creativecrash.com

slide-34
SLIDE 34

36

Kinematic Skeletons

  • Hierarchy of transformations (“bones”)
  • Changes to parent affect

all descendent bones

  • So far: bones affect objects in scene
  • r parts of a mesh
  • Equivalently, each point on a mesh

acted upon by one bone

  • Leads to discontinuities when

parts of mesh animated

  • Extension: each point on a mesh

acted upon by more than one bone

slide-35
SLIDE 35

37

Linear Blend Skinning

  • Each vertex of skin potentially influenced by all bones
  • Normalized weight vector w(v) gives influence of each bone transform
  • When bones move, influenced vertices also move
  • Computing a transformation Tv for a skinned vertex
  • For each bone
  • Compute global bone transformation Tb from transformation hierarchy
  • For each vertex
  • Take a linear combination of bone transforms
  • Apply transformation to vertex in original pose
  • Equivalently, transformed vertex position is weighted combination of positions

transformed by bones

B b b v b v

T w T

) (

 

B b b v b d transforme

v T w v

) (

slide-36
SLIDE 36

38

Assigning Weights: “Rigging”

  • Painted by hand
  • Automatic: function of relative distances to

nearest bones

  • Smoothness of skinned surface depends on smoothness of weights!
slide-37
SLIDE 37

39

Assigning Weights: “Rigging”

  • Painted by hand
  • Automatic: function of relative distances to

nearest bones

  • Smoothness of skinned surface depends on smoothness of weights!
  • Other problems with extreme deformations
  • Many solutions
slide-38
SLIDE 38

40

Assigning Weights: “Rigging”

  • Painted by hand
  • Automatic: function of relative distances to

nearest bones

  • Smoothness of skinned surface depends on smoothness of weights!
  • Other problems with extreme deformations

https://cgl.ethz.ch /publications/pap ers/paperOzt13.p hp

slide-39
SLIDE 39

41

Character Animation Methods

  • Modeling (manipulation)
  • Deformation
  • Blendshape rigging
  • Skeleton+Envelope rigging
  • Interpolation
  • Key-framing
  • Kinematics
  • Motion Capture
  • Energy minimization
  • Physical simulation
  • Procedural

focus.gscept.com https://blenderartists.org/

slide-40
SLIDE 40

42

Keyframe Animation

  • Define character poses at specific time steps

called “keyframes”

Lasseter `87

slide-41
SLIDE 41

43

Keyframe Animation

  • Interpolate variables describing keyframes to determine poses

for character in between

Lasseter `87

slide-42
SLIDE 42

44

Keyframe Animation

  • Inbetweening:
  • Linear interpolation - usually not enough continuity

H&B Figure 16.16 Linear interpolation

slide-43
SLIDE 43

45

Keyframe Animation

  • Inbetweening:
  • Spline interpolation - maybe good enough

H&B Figure 16.11

slide-44
SLIDE 44

46

Temporal Enhancement

Start frame End frame

slide-45
SLIDE 45

47

Time

1 2 3 4 5

Displacement

Temporal Enhancement

x x x x

Database Interpolation

slide-46
SLIDE 46

48

Results – Hand Animated Rig

slide-47
SLIDE 47

50

Example: Ball Boy

Fujito, Milliron, Ngan, & Sanocki Princeton University “Ballboy”

slide-48
SLIDE 48

51

Character Animation Methods

  • Modeling (manipulation)
  • Deformation
  • Blendshape rigging
  • Skeleton+Envelope rigging
  • Interpolation
  • Key-framing
  • Kinematics
  • Motion Capture
  • Energy minimization
  • Physical simulation
  • Procedural

focus.gscept.com https://blenderartists.org/

slide-49
SLIDE 49

53

Inverse Kinematics

  • What if animator knows position of “end-effector”?

1 2 X = (x,y)

l2 l1

(0,0) “End-Effector”

slide-50
SLIDE 50

54

Inverse Kinematics

  • Animator specifies end-effector positions: X
  • Computer finds joint angles: 1 and 2:

1 2 X = (x,y)

l2 l1

(0,0)

slide-51
SLIDE 51

55

Inverse Kinematics

  • End-effector postions can be specified by spline curves

1 2 X = (x,y)

l2 l1

(0,0) y x t

slide-52
SLIDE 52

56

Inverse Kinematics

  • Problem for more complex structures
  • System of equations is usually under-constrained
  • Multiple solutions

1 2

l2 l1

(0,0) X = (x,y)

l3

3 Three unknowns: 1, 2 , 3 Two equations: x, y

slide-53
SLIDE 53

57

Inverse Kinematics

  • Solution for more complex structures:
  • Find best solution (e.g., minimize energy in motion)
  • Non-linear optimization

1 2

l2 l1

(0,0) X = (x,y)

l3

3

slide-54
SLIDE 54

58

Kinematics

  • Advantages
  • Simple to implement
  • Complete animator control
  • Disadvantages
  • Motions may not follow physical laws
  • Tedious for animator

Lasseter `87

slide-55
SLIDE 55

59

Kinematics

  • Advantages
  • Simple to implement
  • Complete animator control
  • Disadvantages
  • Motions may not follow physical laws
  • Tedious for animator

Lasseter `87

slide-56
SLIDE 56

60

Character Animation Methods

  • Modeling (manipulation)
  • Deformation
  • Blendshape rigging
  • Skeleton+Envelope rigging
  • Interpolation
  • Key-framing
  • Kinematics
  • Motion Capture
  • Energy minimization
  • Physical simulation
  • Procedural

focus.gscept.com https://blenderartists.org/

slide-57
SLIDE 57

61

Motion Capture

  • Measure motion of real characters and then

simply “play it back” with kinematics

Captured Motion

slide-58
SLIDE 58

62

Motion Capture

  • Measure motion of

real characters and then simply “play it back” with kinematics

https://www.youtube.com/watch?v=MVvDw15-3e8

slide-59
SLIDE 59

63

Motion Capture

  • Could be applied on different parameters
  • Skeleton Transformations
  • Direct mesh deformation
  • Advantage:
  • Physical realism
  • Challenge:
  • Animator control
slide-60
SLIDE 60

65

Character Animation Methods

  • Modeling (manipulation)
  • Deformation
  • Blendshape rigging
  • Skeleton+Envelope rigging
  • Interpolation
  • Key-framing
  • Kinematics
  • Motion Capture
  • Energy minimization
  • Physical simulation

focus.gscept.com https://blenderartists.org/

slide-61
SLIDE 61

66

Animation Techniques

slide-62
SLIDE 62

67

Physically Based Simulation

slide-63
SLIDE 63

68

Physically-based simulation

  • Computational Sciences
  • Reproduction of physical phenomena
  • Predictive capability (accuracy!)
  • Substitute for expensive experiments
  • Computer Graphics
  • Imitation of physical phenomena
  • Visually plausible behavior
  • Speed, stability, art-directability

PBS and Graphics

slide-64
SLIDE 64

69

Simulation in Graphics

  • Art-directability
slide-65
SLIDE 65

70

Simulation in Graphics

  • Speed

https://www.youtube.com/watch?v=-x9B_4qBAkk

slide-66
SLIDE 66

71

Simulation in Graphics

  • Stability

https://www.youtube.com/watch?v=tT81VPk_ukU

slide-67
SLIDE 67

72

Applications in Graphics

slide-68
SLIDE 68

73

Applications in Graphics

slide-69
SLIDE 69

74

Mass – Spring Systems

slide-70
SLIDE 70

75

Spatial Discretization

slide-71
SLIDE 71

76

Forces

slide-72
SLIDE 72

77

Forces

slide-73
SLIDE 73

78

Forces

slide-74
SLIDE 74

79

Example: Rope

slide-75
SLIDE 75

80

Particle System Forces

  • Spring-mass mesh
slide-76
SLIDE 76

81

Example: Cloth

slide-77
SLIDE 77

82

Demo

slide-78
SLIDE 78

83

Equations of Motion

  • Newton’s Law for a point mass
  • f = ma
  • Computing particle motion requires solving

second-order differential equation

  • Add variable v to form coupled

first-order differential equations: “state-space form”

slide-79
SLIDE 79

84

Solving the Equations of Motion

  • Initial value problem
  • Know x(0), v(0)
  • Can compute force (and therefore acceleration)

for any position / velocity / time

  • Compute x(t) by forward integration

f

x(0) x(t)

slide-80
SLIDE 80

85

Solving the Equations of Motion

  • Forward (explicit) Euler integration
slide-81
SLIDE 81

86

Solving the Equations of Motion

  • Forward (explicit) Euler integration
  • x(t+Δt)  x(t) + Δt v(t)
  • v(t+Δt)  v(t) + Δt f(x(t), v(t), t) / m
slide-82
SLIDE 82

87

Solving the Equations of Motion

  • Forward (explicit) Euler integration
  • x(t+Δt)  x(t) + Δt v(t)
  • v(t+Δt)  v(t) + Δt f(x(t), v(t), t) / m
  • Problem:
  • Accuracy decreases as Δt gets bigger
slide-83
SLIDE 83

88

Single Particle Demo

slide-84
SLIDE 84

89

Mass Spring Systems

slide-85
SLIDE 85

90

Alternative

slide-86
SLIDE 86

91

Continuum Mechanics

https://www.youtube.com/watch?v=BOabEZXm9IE

slide-87
SLIDE 87

92

1D Continuous Elasticity

undeformed state

1D elastic solid

Given 𝑢, how to determine deformed configuration?

Principle of minimum potential energy A mechanical system in static equilibrium will assume a state of minimum potential energy.

t

deformed state

slide-88
SLIDE 88

93

1D Continuous Elasticity

  • Strain:

𝜁 =

Δ𝑚 𝑀

(relative stretch)

  • Stress:

𝜏 =

𝑔𝑗𝑜𝑢 𝐵

(internal force density)

  • Hooke’s law:

𝜏 = 𝑙𝜁 (𝑙 material constant)

  • Strain energy density: Ψ =

1 2 𝑙𝜁2

(postulate via 𝜏 =

𝜖Ψ 𝜖𝜁 )

L Δl t A

1D elastic solid

𝑔

𝑗𝑜𝑢

undeformed state deformed state

slide-89
SLIDE 89

94

1D Continuous Elasticity

  • Discretize domain into elements
  • Element strain:

𝜁𝑗 =

𝑦𝑗+1

−𝑦𝑗

′ −𝑀𝑗

𝑀𝑗

with 𝑀𝑗 = 𝑦𝑗+1 − 𝑦𝑗

  • Element strain energy:

𝑋

𝑗 = Ψ𝑗 ⋅ 𝑀𝑗 = 1 2 𝑙𝜁𝑗 2 ⋅ 𝑀𝑗

  • Total strain energy:

𝑋 = ∑𝑋

𝑗

t

… … 𝑦1 𝑦2 𝑦3 𝑦𝑜 𝑦1

𝑦2

𝑦3

𝑦𝑜

undeformed state deformed state

slide-90
SLIDE 90

95

1D Continuous Elasticity

Minimum energy principle: at equilibrium

  • system assumes a state of minimum total energy
  • total forces vanish for all nodes
  • 𝑋

𝑗 = 1 2 𝑙𝜁𝑗 2 ⋅ 𝑀𝑗 and 𝜁𝑗 = 𝑦𝑗+1

−𝑦𝑗

′−𝑀𝑗

𝑀𝑗

𝜖𝑋𝑗 𝜖𝑦𝑗

′ =

𝜖𝑋𝑗 𝜖𝜁𝑗 𝜖𝜁𝑗 𝜖𝑦𝑗

′ = −𝑙𝜁𝑗

  • 𝑔

𝑗 = − 𝜖𝑋 𝜖𝑦𝑗

′ = −

𝜖𝑋𝑗−1 𝜖𝑦𝑗

′ −

𝜖𝑋𝑗 𝜖𝑦𝑗

′ = −𝑙(𝜁𝑗−1 − 𝜁𝑗) for 𝑗 = 2 … 𝑜 − 1

  • 𝑔

1 = 𝑙𝜁1 and 𝑔 𝑜 = −𝑙𝜁𝑜−1

t

… … 𝑦1 𝑦2 𝑦3 𝑦𝑜 𝑦1

𝑦2

𝑦3

𝑦𝑜

undeformed state deformed state

slide-91
SLIDE 91

96

1D Continuous Elasticity

Equilibrium conditions

𝑔

𝑗 =

∀𝑗 ∈ 2 … 𝑜 − 1 −𝑢 𝑗 = 𝑜

→ n-2 linear equations for n-2 unknowns 𝑦𝑗

→ solve linear system of equations to obtain deformed configuration.

t

𝑦1 … … 𝑦2 𝑦3 𝑦𝑜 𝑦1

𝑦2

𝑦3

𝑦𝑜

𝑢 𝑗 = 1

undeformed state deformed state

slide-92
SLIDE 92

97

Stress Strain Curve

  • What do these represent?

A: Paper B: Fabric / unfilled plastic C: Rubber

slide-93
SLIDE 93

98

Material Models – Linear

𝛀 = 𝟐 𝟑 𝝁𝐮𝐬(𝜻)𝟑+𝝂𝒖𝒔(𝜻𝟑)

slide-94
SLIDE 94

99

Material Models – Linear

slide-95
SLIDE 95

100

Material Models – Linear

𝜈 = − Δ𝑧 Δ𝑦 = 0.5

slide-96
SLIDE 96

101

Negative Poisson’s Ratio

https://www.youtube.com/watch?v=5wpRszZZhYQ

slide-97
SLIDE 97

103

Nonlinear Elasticity

  • Idea: replace Cauchy strain with Green strain

→ St. Venant-Kirchhoff material (StVK)

  • Energy Ψ

𝑇𝑢𝑊𝐿 = 1 2 𝜇tr(𝐅)2+𝜈tr(𝐅2)

  • Component 𝑚 of force on node 𝑙 is 𝐠𝑙𝑚

𝑓 = − 𝜖𝑋𝑓 𝜖𝐲𝑙 = − ∑𝑗𝑘 𝜖𝑋𝑓 𝜖𝐆𝑗𝑘

𝑓

𝜖𝐆𝑗𝑘

𝑓

𝜖𝐲𝑙𝑚

  • Note:
  • Energy is quartic in 𝐲, forces are cubic
  • Solve system of nonlinear equations
slide-98
SLIDE 98

104

Nonlinear Elasticity

slide-99
SLIDE 99

105

Limits

  • Real-world materials are not perfectly (hyper)elastic
  • Viscosity (stress relaxation, creep)
  • Plasticity (irreversible deformation)
  • Mullins effect (stiffness depends on strain history)
  • Fatigue, damage, …
slide-100
SLIDE 100

106

Finite Elements

What is a finite element?

A finite element is a triplet consisting of

  • a closed subset Ω𝑓 ⊂ 𝑺𝑒 (in 𝑒 dimensions)
  • 𝑜 vectors of nodal variables ഥ

𝒚𝑗 ∈ 𝑺𝑒 describing the reference geometry

  • 𝑜 nodal basis functions, 𝑂𝑗: Ω𝑓 → 𝑺

→ 𝑜 vectors of degrees of freedom (e.g., deformed positions 𝒚𝑗)

𝑦 𝑣 𝑦𝑗 𝑣𝑗 = 𝑣𝑗+1 ⋅

𝑦−𝑦𝑗 𝑦𝑗+1−𝑦𝑗 + 𝑣𝑗 ⋅ 𝑦𝑗+1−𝑦 𝑦𝑗+1−𝑦𝑗

𝑦 ∈ 𝑦𝑗, 𝑦𝑗+1 ,𝑗 = 0 … 𝑜 − 1 = ෍

𝑗

𝑣𝑗 ⋅ 𝑂𝑗 𝑦

slide-101
SLIDE 101

107

FEM – 1D – Basis Functions

slide-102
SLIDE 102

108

Linear Simplicial Elements

1D: line segment 2D: triangle 3D: tetrahedron

  • Simplicial elements admit linear basis functions
  • Basis functions are uniquely defined through
  • reference geometry ഥ

𝒚𝑗 and

  • interpolation requirement 𝑂𝑗 ഥ

𝒚𝑘 = 𝜀𝑗𝑘

ഥ 𝒚𝑗 = ҧ 𝑦𝑗 in 1D ഥ 𝒚𝑗 = ( ҧ 𝑦𝑗, ത 𝑧𝑗) in 2D ഥ 𝒚𝑗 = ( ҧ 𝑦𝑗, ത 𝑧𝑗, ҧ 𝑨𝑗) in 3D ഥ 𝒚1 ഥ 𝒚2 ഥ 𝒚3 ഥ 𝒚1 ഥ 𝒚2 ഥ 𝒚4 ഥ 𝒚3 ഥ 𝒚1 ഥ 𝒚2

slide-103
SLIDE 103

109

Computing Basis Functions – 2D

                               

i i i i i i

c b a y x y x y x

3 2 1 3 3 2 2 1 1

1 1 1                                   

 i i i i i i

y x y x y x c b a

3 2 1 1 3 3 2 2 1 1

1 1 1   

  • Due to

, we have

ij j i

N   ) (x

Example: 3-node elements with linear basis functions

e

1

N

2

N

3

N

  • Basis functions are linear:

c y b x a y x N

i i i

   ) , (

slide-104
SLIDE 104

110

Computing Basis Functions – 3D

110 𝑂𝑗 ҧ 𝑦, ത 𝑧, ҧ 𝑨 = 𝑏𝑗 ҧ 𝑦 + 𝑐𝑗 ത 𝑧 + 𝑑𝑗 ҧ 𝑨 + 𝑒𝑗 Ω𝑓 ത 𝐲1 ത 𝐲2 ത 𝐲3 ത 𝐲4 ഥ V𝑓 4-node tetrahedron with 4 linear basis functions … … … …

  • Basis functions are linear, 𝑂𝑗

ҧ 𝑦, ത 𝑧, ҧ 𝑨 = 𝑏𝑗 ҧ 𝑦 + 𝑐𝑗 ത 𝑧 + 𝑑𝑗 ҧ 𝑨 + 𝑒𝑗

  • From 𝑂𝑗 ഥ

𝒚𝑘 = 𝜀𝑗𝑘 we obtain

slide-105
SLIDE 105

112

Example

https://www.youtube.com/watch?v=I46ly-ubzYQ

slide-106
SLIDE 106

113

Example

https://vimeo.com/245424174
