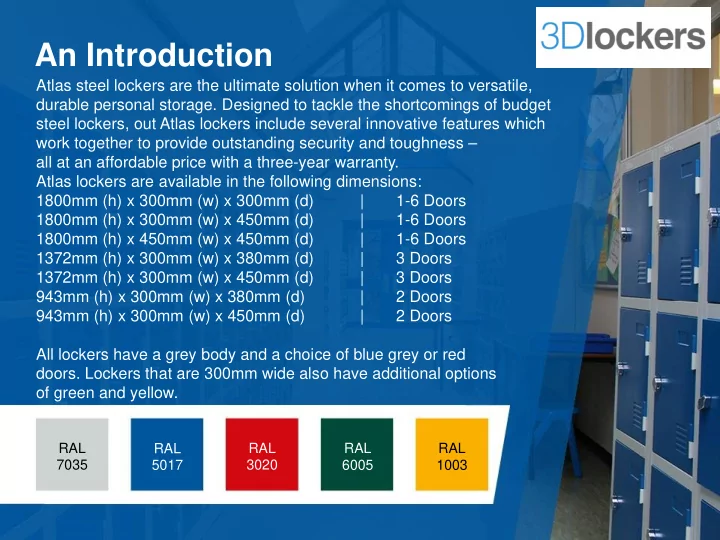

An Introduction Atlas steel lockers are the ultimate solution when - - PowerPoint PPT Presentation

Atlas steel lockers are the ultimate solution when it comes to versatile, durable personal storage. Designed to tackle the shortcomings of budget steel lockers, out Atlas lockers include several innovative features which work together to provide outstanding security and toughness – all at an affordable price with a three-year warranty. Atlas lockers are available in the following dimensions: 1800mm (h) x 300mm (w) x 300mm (d) | 1-6 Doors 1800mm (h) x 300mm (w) x 450mm (d) | 1-6 Doors 1800mm (h) x 450mm (w) x 450mm (d) | 1-6 Doors 1372mm (h) x 300mm (w) x 380mm (d) | 3 Doors 1372mm (h) x 300mm (w) x 450mm (d) | 3 Doors 943mm (h) x 300mm (w) x 380mm (d) | 2 Doors 943mm (h) x 300mm (w) x 450mm (d) | 2 Doors All lockers have a grey body and a choice of blue grey or red

• doors. Lockers that are 300mm wide also have additional options
• f green and yellow.

An Introduction

RAL 7035 RAL 5017 RAL 3020 RAL 6005 RAL 1003

Unique Features

ß Screw together construction means there are no weak pointed between riveted sections. ß Pre-drilled nesting holes for quick and easy installation. ß Antibacterial paint finish. ß Supplied with key lock or swivel catch (for use with padlock, not supplied) as standard – other lock options are available. ß Louvred doors for ventilation (except 6 Door lockers). ß The 1 and 2 Door, 1800mm high lockers are fitted with a coat rail and two hooks. 1 Door lockers also have a top shelf. ß Inset in every door to accept a number plate (58mm x 28mm). ß Every door has corner stiffeners, to reinforce the corner edge, in addition to full height to full height vertical door stiffeners. ß Behind the tough door is a unique four-way frame, making it extremely difficult to push the door into the compartment. ß No matter how tough the doors are, from time to time they will need to be replaced. Unlike other lockers changing an Atlas door is a simple and painless process requiring only a soft faced mallet.

Dimensions

Interior dimensions shown in the diagrams detail the size of the door

• pening, the actual internal space is

larger. Custom sizes can be manufactured to

• rder (subject to minimum order

quantity.

Dimensions

Dimensions

Lock Types

Swivel Catch The swivel catch can be used as a simple handle or can be used with a standard or combination padlock. The shackle bar of the padlock should be between 5 – 7mm. Key Lock The key/cam lock comes with two keys and has 4000 differs. The unique extra thick key minimizes the ricks of snapping. Additionally, these locks simplify management as the barrels can be replaced with a new set of keys. Combination Lock These mechanical combination locks allow the user to program a unique code. Orders include a management key enabling an authorized person to recover the previous code

• r to reset it. Available in black or white.

Electronic + RFID Locks This includes a range of innovative, flexible & user- friendly alternatives to traditional locking systems including combination, combination + air, or RFID – compatible with: ISO1443, ISO 15693 & Legic RF.

Accessories

Sloping Tops

150mm high sloping tops to prevent the accumulation of litter and other

• items. Available in both 300mm and

450mm widths, 300mm and 450mm

• depths. Can be retrofitted.

Number Plates

Hard-wearing plastic discs which are securely fastened to the doors before dispatch. Available in bright and attractive colours. Can be retrofitted.

Locker Stands

Ideal for locker areas where floors need frequent cleaning. 25mm steel square tube. Adjustable levelling feet. Height 170mm to 185mm. Available wide enough to suit 2 or 3 lockers. Different widths and depths available.
