ALL.DIAG 2014 1. Load samples, reagent cartridges and plastic consumables 2. Select the protocol with the control pad or with a quick barcode scan 3. At the end of the run, purified nucleic acids are auto collected Individual prefilled,

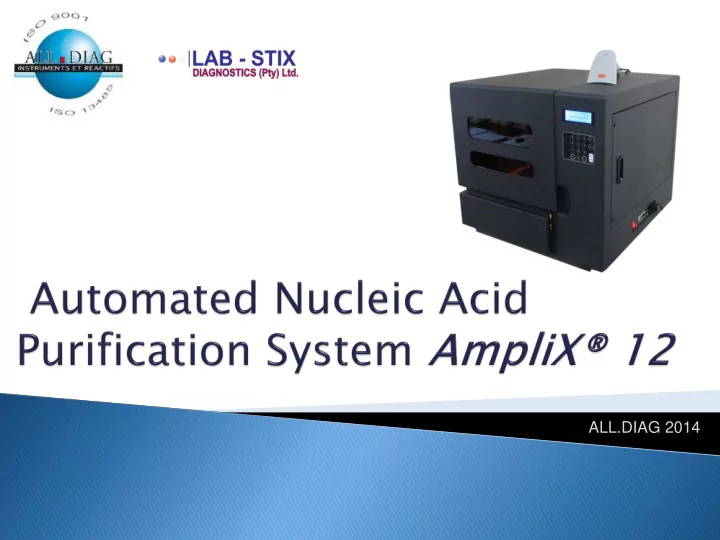

SLIDE 1

ALL.DIAG 2014

SLIDE 2

1. Load samples, reagent cartridges and plastic

consumables

2. Select the protocol with the control pad or with a

quick barcode scan

3. At the end of the run, purified nucleic acids are

auto collected

SLIDE 3

Individual prefilled, film-sealed reagent cartridges: no manual reagents adding, prevents from contamination Synchronized stage movement designed to prevent cross -contaminations Built-in UV-lamp for decontamination before and after extraction

SLIDE 4

Ready-to-run kit containing everything needed for purification, including prefilled reagent cartridges and disposal plastics.

Test by test

1 to 12 samples can be extracted, there is no required minimum number of samples.

Barcode reader

The extraction protocol, volume of sample and elution can be set through a quick barcode

scan. The extractor automates the rest.

SLIDE 5

Dimensions 48 cm x 70 cm x 52 cm Weight 43 kg Display LCD Operating temperature 15 – 30 °C Operating relative humidity 30 – 80 % Power supply 110-240V 50/60hz Extraction method Magnetic particle separation Processing capability 1 – 12 samples/run Processing time 30-50 minutes Sample volume 100 – 1000 µl Elution volume 50 – 300 µl Safety CE IVD

LCD screen Sliding door U.V-lamp Barcode reader View window Control pad

SLIDE 6

Distributed by Labstix Diagnostics (Pty) Ltd 50 Betty Street, Riviera, Pretoria, 0186 (South-Africa) Tel: +27 12 329 0320 info@labstix.co.za / www.labstix.co.za
