241 Central Park West ACCESSIBLE ENTRANCE PROPOSAL AKA Allen + Killcoyne Architects PAGE 1 12 West 27th Street, 17th Floor NY, NY 10001 212.645.2222 241 Central Park West ACCESSIBLE ENTRANCE PROPOSAL AREA OF WORK

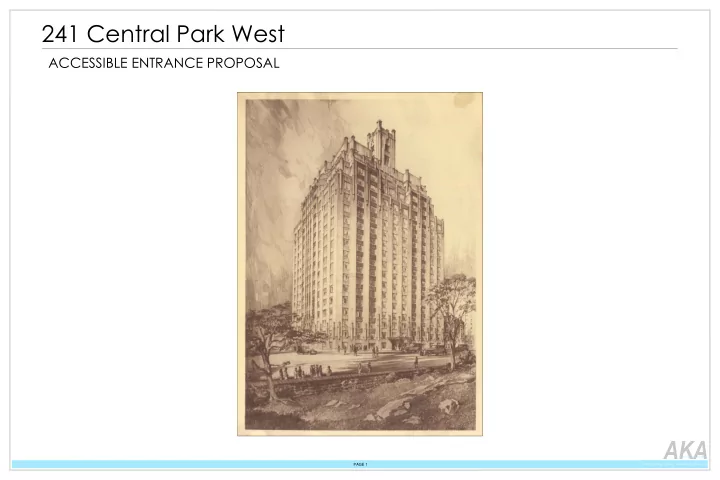

SLIDE 1

AKA

Allen + Killcoyne Architects 12 West 27th Street, 17th Floor NY, NY 10001 212.645.2222

241 Central Park West

ACCESSIBLE ENTRANCE PROPOSAL

PAGE 1

SLIDE 2

EXISTING SOUTH FACING 84TH STREET FACADE AREA OF WORK EXISTING BUILDING PHOTO

AKA

Allen + Killcoyne Architects 12 West 27th Street, 17th Floor NY, NY 10001 212.645.2222

241 Central Park West

PAGE 2

ACCESSIBLE ENTRANCE PROPOSAL

SLIDE 3

PROPOSED 84TH STREET ELEVATION 4

NEW ARCADIA INC DOOR "ARC 8250" W/ FLUSH SILL + ADA BOTTOM RAIL W/ TRANSOM TO MATCH EXISTING BLDG FENESTRATION

EXISTING 84TH STREET ELEVATION 2

REGRADE SIDEWALK

7'-3" VIF

RELOCATED FLUTED STONE PANEL CUT TO FIT EXISTING OPENING, PROVIDE NEW STONE TO MATCH IF REQ'D

1'-8"

REMOVE STONE SILL

3'-9" VIF

EXISTING 84TH STREET FACADE PHOTOGRAPH 1

4 PG5 3 PG5 2 PG5 EXISTING LINE OF M.O. TO REMAIN REMOVE SILL REMOVE AND SAVE FLUTED LIMESTONE BELOW WINDOW TO WIDTH OF NEW DOOR OPENING REMOVE WINDOW REMOVE STONE INFILL WINDOW TO BE REMOVED, REINSTALL FLUTED STONE IN OPENING TO MATCH EXISTING FACADE + PATTERN, PROVIDE NEW FLUTED STONE PANELS AS REQ'D REMOVE FLUTED STONE, PROTECT EXISTING FOR REINSTALL

PROPOSED 84TH STREET FACADE RENDERING 3

NEW DOOR LIMESTONE INFILL REMOVE GRANITE BELOW WINDOW TO WIDTH OF NEW DOOR OPENING

AKA

Allen + Killcoyne Architects 12 West 27th Street, 17th Floor NY, NY 10001 212.645.2222

241 Central Park West

AREA OF WORK AREA OF WORK

PAGE 3

ACCESSIBLE ENTRANCE PROPOSAL

SLIDE 4

C #2 L R OUTER COURT ROOF OVER CELLAR OUTER COURT PE #2 STAIR #2 SE #1 STAIR #1 SR #1 SR #5 SR #6 SR #7 CARRIAGE SR #15 SR #14 SR #13 M C L R M C STAIR #4 SR #12 SR #11 SR #10 SR #9 SR #8 X RAY ROOM YARD ROOM STAIR #3 LOBBY CORRIDOR LOBBY CORRIDOR

FIN. FL.
1'-9 3/8" AFF
FIN. FL.
0'-0" AFF

GROUND

FIN. FL.
1'-9 3/8" AFF

BUILDING LOBBY VESTIBULE

INT NEW INT

PROPOSED DEMOLITION PLAN 4

DEMOLISH EXISTING WINDOW AND WALL BELOW, SEE EXISTING ELEVATION ELEVATION CHANGE FROM INTERIOR TO EXTERIOR: 3" REMOVE EXISTING WINDOW AND SILL AND PREPARE FOR NEW WALL + STONE FACADE.

REGRADE SIDEWALK FLAGS AS REQUIRED RELOCATED FLUTED STONE FACADE NEW ARCADIA INC DOOR + TRANSOM TO MATCH EXISTING WINDOWS ON BLDG NEW OPENING BLOCKING, CLAD IN METAL PANELING

PROPOSED CONSTRUCTION PLAN 1 GROUND FLOOR - EXISTING MEANS OF EGRESS

5 PG4

LOCATION OF PROPOSED ADA ENTRY DOOR PROPOSED PATH OF EGRESS

LOBBY CORRIDOR ADA ENTRANCE LOBBY CORRIDOR LOBBY

NO WORK NEW APARTMENT WALL AND DOOR

WEST 84TH STREET CENTRAL PARK WEST

NEW APARTMENT WALL

3,4 PG5

AKA

Allen + Killcoyne Architects 12 West 27th Street, 17th Floor NY, NY 10001 212.645.2222

241 Central Park West

PAGE 4

ACCESSIBLE ENTRANCE PROPOSAL

2 3 CPW BUILDING ENTRY - VIEW 1

EXISTING PATH OF EGRESS VIEW 2

CPW BUILDING ENTRY - VIEW 2

SLIDE 5

SECTION DETAIL 2

SCALE: 3" = 1'-0"

111 2" 1" SIMULATED DIVIDED LITES (ARCADIA WWM33) TO MATCH EXISTING FENESTRATION DESIGN PROVIDE SAMPLES FOR OWNER APPROVAL ADA DOUBLE BOTTOM RAIL ADA FLUSH SILL @ DOOR AND TRANSOM JAMB

PLAN SECTION DETAIL @ DOOR 3

SCALE: 3" = 1'-0"

PLAN SECTION DETAIL (DOOR OPEN) 3b

SCALE: 3" = 1'-0"

PLAN SECTION DETAIL @ TRANSOM 4

SCALE: 3" = 1'-0"

3'-6 1

2" DOOR + FRAME VIF

32" MIN CLEAR OPENING 3'-9" OPENING VIF

RECESSED INTERCOM / CAMERA PANEL @ NEW JAMB RECESSED INTERCOM / CAMERA PANEL @ NEW JAMB

3'-6 1

2" DOOR + FRAME VIF LINE OF EXISTING MASONRY OPENING AT WINDOW AND LIMESTONE GROUT LINE BELOW NEW GYP BOARD FINISH NEW MASONRY BLOCK BACKUP

WALL. TIE REINFORCEMENT BACK TO

EXISTING WALL GROUT LIMESTONE TO MATCH EXISTING RELOCATED FLUTED LIMESTONE PANEL SUPPORTED OFF NEW BLOCK WALL NEW PAINTED ALUMINUM DOOR SUB-FRAME TO CONCEAL MASONRY BACKUP NEW GYP BOARD FINISH NEW MASONRY BLOCK BACKUP

WALL. TIE REINFORCEMENT BACK TO

EXISTING WALL GROUT LIMESTONE TO MATCH EXISTING RELOCATED FLUTED LIMESTONE PANEL SUPPORTED OFF NEW BLOCK WALL NEW GYP BOARD FINISH NEW MASONRY BLOCK BACKUP

WALL. TIE REINFORCEMENT BACK TO

EXISTING WALL GROUT LIMESTONE TO MATCH EXISTING RELOCATED FLUTED LIMESTONE PANEL SUPPORTED OFF NEW BLOCK WALL EXISTING LINTELS TO REMAIN NEW CONCRETE SIDEWALK AT ENTRY

V.I.F.

PAINTED ALUMINUM DOOR FRAME AND TRANSOM TO MATCH EXISTING WINDOW COLOR LINE OF EXISTING MASONRY OPENING AT WINDOW AND LIMESTONE GROUT LINE BELOW 1" 11 2" 23 4" 1" 11 2" PAINTED ALUMINUM AND GLASS DOOR WITH TRANSOM ABOVE 21 2" LINE OF EXISTING MASONRY OPENING AT WINDOW AND LIMESTONE GROUT LINE BELOW NEW PAINTED ALUMINUM DOOR SUB-FRAME TO CONCEAL MASONRY BACKUP LINE OF EXISTING MASONRY OPENING AT WINDOW AND LIMESTONE GROUT LINE BELOW LINE OF EXISTING MASONRY OPENING AT WINDOW AND LIMESTONE GROUT LINE BELOW NEW PAINTED ALUMINUM DOOR SUB-FRAME TO CONCEAL MASONRY BACKUP LINE OF EXISTING MASONRY OPENING AT WINDOW AND LIMESTONE GROUT LINE BELOW WATERPROOFING

ELEVATION DETAIL 1

SCALE: 3" = 1'-0" INTERIOR EXTERIOR INTERIOR EXTERIOR INTERIOR EXTERIOR INTERIOR EXTERIOR

1 2" MAX 27 8" 1" 13 8" 1" 1" 1 4" 21 2" 13 8" 13 8" 23 8" 51 4" 1 8" 23 8" STANDARD ARCADIA ADA LEVER AND LOCKSET 51 4" 1" 13 8" 1 4" 13 8" 111 2" 41 4" 1" 23 4" 41 4" 1"

AKA

Allen + Killcoyne Architects 12 West 27th Street, 17th Floor NY, NY 10001 212.645.2222

241 Central Park West

PAGE 5
