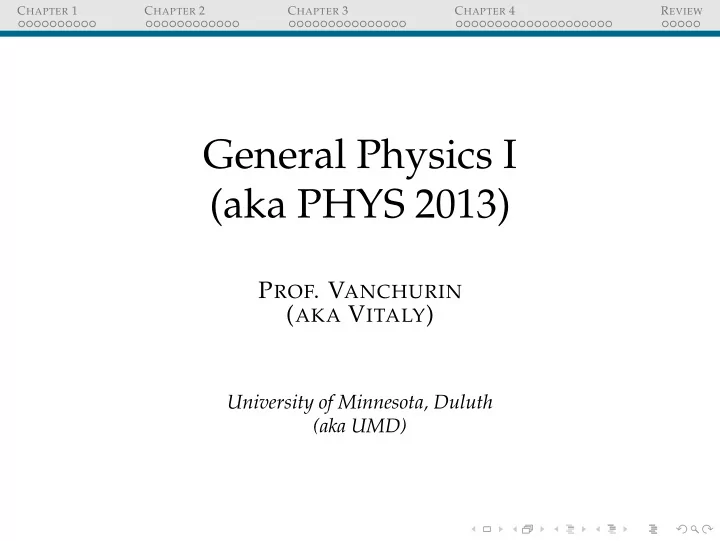

General Physics I (aka PHYS 2013)

• PROF. VANCHURIN

(AKA VITALY)

University of Minnesota, Duluth (aka UMD)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

OUTLINE

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 1.1: THE NATURE OF PHYSICS

◮ Mathematics

◮ is the language of science: physics, astronomy, chemistry,

engineering, geology, etc.

◮ very abstract math ideas find their way into science (e.g.

complex numbers, differential geometry)

◮ It was conjectured that all of the mathematics has a

physical realization somewhere (e.g. multiverse theories)

◮ Physics

◮ serves as a bridge (or foundation) to other sciences. ◮ one can never prove anything in physics, but math is also

not as pure as seems (Godel’s theorems)

◮ it is however remarkable how successful the language of

math is in describing the world around us.

◮ Think of physics as a toolbox of ideas which can be used in

building scientific models in chemistry, biology, geology, astronomy, engineering, etc.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 1.2: SOLVING PHYSICS PROBLEMS

◮ Concepts

◮ in most disciplines the more material you can memorized

the better your final grade will be. Not the case in physics.

◮ concepts is what you have to understand (actually there is

• nly a single concept and almost everything follows)

◮ learning how to learn physics concepts will be your first

and perhaps most difficult task.

◮ Problems

◮ the only way to evaluate if you really understand concepts

is to solve problems. understanding solutions not enough.

◮ you might have hard time solving problems at first, but it is

essential to learn how to solve problems on your own.

◮ keep track of how many problems you solved by yourself

in each chapter (without anyone helping or googling)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 1.3: STANDARDS AND UNITS

◮ Units

◮ Physics is an experimental science and experiments

involves measurements (e.g. time, length, mass).

◮ To express the results of measurements we use units. Units

• f length, units of time units of mass.

◮ There are some standard units just because historically we

decided so (e.g. seconds, meters, kilograms).

◮ One can always convert from one system of units to

another given a conversion dictionary.

◮ Time: measured in seconds, milliseconds, microseconds,...

◮ What is time and arrow of time is a deep philosophical question. We might discuss it a bit in the last day of classes in context of the second law of thermodynamics.

◮ Length: measured in meters, millimeters, micrometers, ....

◮ Despite of the fact that length and time appear to us very differently, there is a very deep connection (symmetry) between them. We might discuss is briefly when we discuss gravitation.

◮ Mass: measured in units of gram, milligram, microgram, ...

◮ Mass is also something very familiar to us in everyday life, but also has very deep properties connecting it so length and time. We might mention it briefly in connection to black-holes.

◮ Other units can be formed from seconds, meters and kilograms

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 1.4: CONVERTING UNITS

◮ Dimension.

◮ Any physical quantity expressed in units of TIME, LENGTH or MASS is said to have dimensions of time, length or mass respectively. More generally one can have physical quantities which have mixed dimensions. For example if d has units of LENGTH and t has units of TIME, then quantity v = d t (1) has units of LENGTH/TIME. ◮ Evidently Eq. (1) has quantities with the same dimension (i.e. LENGTH/TIME) on both sides of the

• equation. This must be true for any equation that you write. Checking that the quantities on both

sides of equation have the same dimension is a quick, but very important test that you could do whenever you setup a new equation. If the dimension is not the same than you are doing something wrong.

Conversion.

◮ Sometimes you will need to convert from one system of units to another. This can always be done with the help of conversion dictionary. For the case of conversion from standard system of units to British system of units the dictionary is: 1 in = 2.54 cm (2) 1 pound = 4.448221615260 Newtons (3) ◮ If we are given a quantity in units of speed, then we can convert it from one system of units to another.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 1.5: UNCERTAINTY AND SIGNIFICANT FIGURES

Experimental Measurements.

◮ Measurements are always uncertain, but it was always hoped

that by designing a better and better experiment we can improve the uncertainty without limits. It turned out not to be the case.

◮ There is a famous uncertainty principle of quantum mechanics,

but you will only learn it next year in (PHYS 2021) if you decide to take it.

◮ From our point of view uncertainty is nothing but uncertainty in

• measurements. This (as well as significant figures) will be

discussed in your lab course.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 1.6: ESTIMATES AND ORDER OF MAGNITUDE

Theoretical Estimates.

◮ Similarly to uncertainties in experimental measurements,

theoretical predictions are never exact. We always make simplifying assumption and thus the best we can hope for is an estimate for the physical quantities to be measured.

◮ A useful tool in such estimates is known as order-of-magnitude

estimate (also know as outcome of “back-of-the-envelope calculations”).

◮ Such estimates are often done using the so-called dimensional

analysis - i.e. just use the known quantities to form a quantity with the dimension of the quantity that you are looking for.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 1.7: VECTORS AND VECTOR ADDITION

Vectors.

◮ Some physical quantities are describe by a single real number. We call these quantities - scalar quantities or scalars. ◮ Other quantities also have a direction associated with them and thus are describe by three real numbers.

• A = (Ax, Ay, Az).

(4) We call these quantities - vector quantities or vectors. There are also tensors etc. ◮ When dealing with vectors it is often useful to draw a picture:

◮ Vectors are nothing but straight arrows drawn from one point to another.

Zero vector is just a vector of zero length - a point.

◮ Length of vectors is the magnitude of vectors. The longer the arrow the

bigger the magnitude.

◮ It is assumed that vectors can be parallel transported around. If you attach

beginning of vector B to end of another vector A then the vector A + B is a straight arrow from begging of vector A to end of vector B.

Coordinates.

◮ The space around us does not have axis and labels, but we can imagine that these x, y and z axis or the coordinate system to be there. ◮ This makes it possible to talk about position of, for example, point particles using their coordinates - real numbers. ◮ Since one needs three real numbers to specify position it is a vector. Similarly, velocity, acceleration and force are all vectors.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 1.8: COMPONENTS OF VECTORS

◮ Symmetry. You might complain that there is arbitrariness in how one chooses coordinate system or what components of the vector are and you would be right. It turns out that the physically observable quantities do not depend on the choice of coordinate systems and thus one can choose it to be whatever is more

• convenient. Moreover, this symmetry is an extremely deep property which gives

rise to conservation laws that we will learn in this course. ◮ Magnitude. The length of vector or magnitude is a scalar quantity

• A = |

A| = A (5)

• r in components

(Ax, Ay, Az) =

• A2

x + A2 y + A2 z.

(6) ◮ Direction. One can also find direction of vector using trigonometric identities. ◮ Addition. Two vectors can be added together to get a new vector

• C =

A + B (7) an in component form (Cx, Cy, Cz) = (Ax, Ay, Az) + (Bx, By, Bz) = (Ax + Bx, Ay + By, Az + Bz). (8)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 1.9: UNIT VECTORS

◮ Unit vectors is a vector (denoted with a hat) that has magnitude one. |ˆ u| =

• u2

x + u2 y + u2 z = 1.

(9) There are three unit vectors are so important that there are special letters reserved to denote these vectors ˆ i = (1, 0, 0) ˆ j = (0, 1, 0) ˆ k = (0, 0, 1). (10) ◮ Multiplication / division by scalar. Any vector can be multiplied by a scalar to

• btain another vector,
• A = C

B. (11) In components from (Ax, Ay, Az) = C(Bx, By, Bz) = (CBx, CBy, CBz). (12) ◮ Components. Any vector can be written in components in two ways:

• A = (Ax, Ay, Az) = Axˆ

i + Ayˆ j + Azˆ k (13)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 1.10: PRODUCT OF VECTORS

◮ Scalar (or dot) product. Dot product is a multiplication between two vectors which produces a scalar:

• A ·

B = B · A = C (14) In components

• A ·

B = (Ax, Ay, Az) · (Bx, By, Bz) = AxBx + AyBy + AzBz = AB cos φ. (15) One can also derive multiplication table for unit vectors. ◮ Vector (or cross) product. Cross product is a multiplication between two vectors which produces a vector:

• A ×

B = − B × A = C (16) In components

• A×

B = (Ax, Ay, Az)×(Bx, By, Bz) ≡ (AyBz−AzBy, AzBx−AxBz, AxBy−AyBx) = C. (17) One can also derive multiplication table for unit vectors.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.1: DISPLACEMENT, TIME, AVG. VELOCITY

◮ Point particles.

◮ Objects (car, ball, stone) often modeled as point particles. ◮ Position is described by a vector in some coordinate system ◮ 1D coordinate system for motion along a straight line.

◮ Position.

◮ As time progresses position vector changes with time

• r(t) = (x(t), y(t), z(t)).

(18)

◮ For motion in 1D only one component is relevant: x(t).

◮ Average velocity.

◮ In 1D average velocity is defined as

vavg ≡ ∆x ∆t = x(t2) − x(t1) t2 − t1 . (19) where ∆x ≡ x(t2) − x(t1) and ∆t ≡ t2 − t1.

◮ Question: Can traveled distance be larger than displacement?

Can it be smaller? Can it be the same?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.2: INSTANTANEOUS VELOCITY

◮ Instantaneous velocity.

◮ Instantaneous velocity (or just velocity) is defined as

v(t) ≡ lim

∆t→0 vavg = lim ∆t→0

∆x(t) ∆t = dx(t) dt . (20)

◮ Given x as a function of t one can always find instantaneous

velocity at every moment of time by simple differentiation.

◮ Graphical representation.

◮ average velocity is a slope of a line joining the coordinates

• f initial (x1, t1) and final (x2, t2) points points on x(t) graph

◮ instantaneous velocity if a slope of the tangent line to x(t) at

a given time.

◮ Question: Can instantaneous velocity be larger than average?

Can it be smaller? Can it be the same?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.3: ACCELERATION

◮ Average acceleration.

◮ Given instantaneous velocity as a function of time v(t), one

can calculate average acceleration: aavg ≡ ∆v ∆t = v(t2) − v(t1) t2 − t1 . (21)

◮ This is analogous to how the average velocity was defined.

◮ Instantaneous acceleration.

◮ Instantaneous acceleration (i.e. an acceleration at a given

moment of time) is defined by taking a limit, a(t) ≡ lim

∆t→0 aavg = lim ∆t→0

∆v ∆t = dv(t) dt . (22)

◮ Graphical representation.

◮ avg. velocity is slope of line joining (v(t1), t1) and (v(t2), t2) ◮ instantaneous velocity if a slope of the tangent line to v(t) .

◮ Question: Can instantaneous acceleration be larger than

average? Can it be smaller? Can it be the same?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.4: MOTION WITH CONST. ACCELERATION

Constant Acceleration.

◮ Motion with constant acceleration is a motion for which

instantaneous acceleration is a constant function a(t) = ax. (23)

◮ Velocity for such motion changes as

vx(t) = v0x + axt (24)

◮ Position changes as

x(t) = x0 + v0xt + 1 2axt2. (25)

◮ Note that ax, v0x, x0 are some fixed numbers representing

acceleration, velocity and position at time t = 0, but t is a variable which can take any non-negative value.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.4: MOTION WITH CONST. ACCELERATION

Useful relations.

◮ One can obtain other useful relations from Eqs. (24) and

(25) by expressing t in one equation and plugging it into another vx(t)2 = v2

0x + 2ax (x(t) − x0) .

(26)

◮ Another useful relation is obtained from Eqs. (24) and (25)

by expressing ax in one equation and plugging it into another x(t) − x0 = 1 2 (vx(t) + v0x) t. (27)

◮ Question: What would change in equations (23), (24), (25), (26)

and (27) if the initial time is at t0 = 0?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.4: MOTION WITH CONST. ACCELERATION

Example 2.4. A motorcyclist heading east through a small town accelerates at a constant acceleration 4.0 m/s2 after he leaves city

• limits. At time t = 0 he is 5.0 m east of the city-limits while he moves

east at 15 m/s. (a) Find position and velocity at t = 2.0 s. (b) Where is he when his speed is 25 m/s?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.5: FREE FALLING BODIES

Free falling.

◮ Free fall is a very deep concept in physics. All it means

that in 4-dimensional space-time free falling object move along straight lines (geodesics).

◮ For now we are only interested in motion very close to

surface of the Earth and such motions can be approximated as motions with constant acceleration ax = g = 9.80 m/s2. (28)

◮ Thus all of the concepts and equations considered in the

previous section apply.

◮ Note that g is taken to be positive and thus it makes sense

to choose x-axis to point vertically and downward. If you choose the x-axis to point upward then ax = −9.80 m/s2.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.5: FREE FALLING BODIES

Example 2.6. One-euro coin is dropped from the Leaning Tower of Pisa and falls free from rest. What are its position and velocity after 1.0 s?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.5: FREE FALLING BODIES

Example 2.7. You throw a ball vertically upward from the roof of a tall building. The ball leaves your hand at a point even with the roof railing with an upward speed of 15.0 m/s; the ball is then in free fall. On its way back, it just misses the railing. Find (a) the ball’s position and velocity 1.00 s and 4.00 s after leaving your hand; (b) the ball’s velocity when it is 5.00 m above the railing; (c) the maximum height reached; (d) the ball’s acceleration when it is at its maximum height.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.6: VELOCITY/POSITION BY INTEGRATION.

Velocity by Integration.

From definition of acceleration ax(t) = dvx(t) dt (29) and thus in differential from dvx = ax(t)dt (30)

• r in integral form

vx(t2)

vx(t1)

dvx = t2

t1

ax(t)dt. (31) Therefore for t1 = 0 and t2 = T we have vx(T) = vx(0) + T ax(t)dt. (32) If we replace T → t t → τ vx(0) → v0x (33) then we get vx(t) = v0x + t ax(τ)dτ (34) and in the case of constant acceleration vx(t) = v0x + axt. (35)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.6: VELOCITY/POSITION BY INTEGRATION.

Position by Integration.

From definition of velocity vx(t) = dx(t) dt (36) and thus in differential from dx = vx(t)dt (37)

• r in integral form

x(t2)

x(t1)

dx = t2

t1

vx(t)dt. (38) Therefore for t1 = 0 and t2 = T we have x(T) = x(0) + T vx(t)dt. (39) If we replace T → t t → τ x(0) → x0 (40) then we get x(t) = x0 + t vx(τ)dτ (41) and in the case of constant acceleration x(t) = x0 + t (v0x + axτ)dτ

• r

x(t) = x0 + v0xt + 1 2axt2. (42)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 2.6: VELOCITY/POSITION BY INTEGRATION

Example 2.9. Sally is driving along a straight highway in her 1965 Mustang. At t = 0, when she is moving at 10 m/s in the positive x-direction, she passes a signpost at x = 50 m. Her x-acceleration as a function of time is ax(t) = 2.0 m/s2 −

• 0.10 m/s3

t. (43) (a) Find her x-velocity vx(t) and x(t) as functions of time. (b) When is her x-velocity greatest? (c) What is that maximum x-velocity? (d) Where is the car when it reaches that maximum x-velocity?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.1: POSITION AND VELOCITY VECTORS

Extra dimensions

◮ We now generalize motion to 2D and 3D, but one can extend it further ◮ Extra dim. (six of them) are also needed to formulate string theory ◮ These extra dim. are usually very small and can often be neglected

Position

◮ Vector r specifies position of an object in three dimensions

• r = (x, y, z) = xˆ

i + yˆ j + zˆ k (44) ◮ If the object is in motion, then the position changes with time

• r(t) = (x(t), y(t), z(t)) = x(t)ˆ

i + y(t)ˆ j + z(t)ˆ k. (45)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.1: POSITION AND VELOCITY VECTORS

Velocity

◮ Average velocity vector defined as

• vavg ≡ ∆

r ∆t = r(t2) − r(t1) t2 − t1 , (46) ◮ Instantaneous velocity vector defined as

• v(t) ≡ lim

∆t→0

vavg = lim

∆t→0

∆ r ∆t = d r(t) dt . (47)

• r in components as
• v = d

r(t) dt = dx(t) dt , dy(t) dt , dz(t) dt

• = dx(t)

dt ˆ i + dx(t) dt ˆ j + dx(t) dt ˆ k (48) and if we denote v ≡

• vx, vy, vz
• then

vx = dx(t) dt vy = dy(t) dt vz = dz(t) dt . (49)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.1: POSITION AND VELOCITY VECTORS

Example 3.1. A robotic vehicle, or rover, is exploring the surface of Mars. The stationary Mars lander is the origin of coordinates, and the surrounding Martian surface lies in the xy-plane. The rover, which we represent as a point, has x- and y-coordinates that vary with time: x(t) = 2.0 m −

• 0.25 m/s2

t2 y(t) = (1.0 m/s) t +

• 0.025 m/s3

t3 z(t) = 0 m (50) (a) Find the rover’s coordinates and distance from the lander at t = 2.0 s. (b) Find the rover’s displacement and average velocity vectors for the interval t = 0.0 s to t = 2.0 s. (c) Find a general expression for the rover’s instantaneous velocity vector

• v. Express

v at t = 2.0 s in components from and in terms of magnitude and direction.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.2: THE ACCELERATION VECTOR

Acceleration

◮ Average accelaration vector defined as

• aavg ≡ ∆

v ∆t = v(t2) − v(t1) t2 − t1 , (51) ◮ Instantaneous velocity vector defined as

• a(t) ≡ lim

∆t→0

aavg = lim

∆t→0

∆ v ∆t = d v(t) dt . (52)

• r in components as
• a = d

v(t) dt = dvx(t) dt , dvy(t) dt , dvz(t) dt

• = dvx(t)

dt ˆ i + dvy(t) dt ˆ j + dvz(t) dt ˆ k (53) and if we denote a ≡

• ax, ay, az
• then

ax = dvx(t) dt = d2x(t) dt2 ay = dvy(t) dt = d2y(t) dt2 az = dvz(t) dt = d2z(t) dt2 . (54)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.2: THE ACCELERATION VECTOR

Example 3.2. Let’s return to motion of the Mars from the previous

• section. (a) Find the components of the average acceleration for the

interval t = 0.0 s to t = 2.0 s. (b) Find the instantaneous acceleration at t = 2.0 s.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.2: THE ACCELERATION VECTOR

Parallel and Perpendicular Components.

◮ A useful example of a moving coordinate system in 2D is when one of the axis point in the direction of the velocity vector v. ◮ Then we can decompose the acceleration vector into component parallel a|| and perpendicular a⊥ to the direction of motion. ◮ Magnitude of velocity vector changes as dv(t) dt = ˆ v(t) · a||(t) (55) ◮ Direction of the velocity vector changes as dˆ v(t) dt = a⊥(t) v(t) . (56) ◮ Parallel component is responsible for changes in magnitude of the velocity vector (i.e. speed), but not the direction

• a|| =

     +

a|| v

v speed is increasing speed is not changing −

a|| v

v speed is decreasing. (57) ◮ Perpendicular component is responsible for changes in direction of velocity,but not in magnitude. ◮ If there is only a perpendicular component then the object is in circular motion.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.3: PROJECTILE MOTION

Projectile motion

◮ Projectile motion is completely determined by gravitationally acceleration and air resistance starting from initial condition determined by position and velocity. ◮ The fact that you have to specify an even number of initial data is a consequence of the fact that (differential) equations of motion are of the second order in time. ◮ Projectile motion is always confined to a 2D plane determined by two vectors: gravitational acceleration vector and initial velocity vector. ◮ It is convenient to choose a coordinate system so that one of the axis is vertical, the other one is horizontal (and there is no motion in z-direction.) ◮ For y-axis pointing upward and x-axis horizontally

• a = (0, −g) = −gˆ

j (58) and thus

• v(t)

= v0xˆ i + (v0y − gt)ˆ j

• r(t)

= (x0 + v0xt)ˆ i +

• y0 + v0yt − 1

2 gt2

• ˆ

j (59)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.3: PROJECTILE MOTION

Example 3.6. A motorcycle stunt rider rides off the edge of a cliff. Just at the edge his velocity is horizontal with magnitude 9.0 m/s. Find the motorcycle’s position, distance from the edge of the cliff, and velocity 0.50 s after it leaves the edge of the cliff.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.4: MOTION IN A CIRCLE

Uniform motion

◮ Uniform motion is when the direction of velocity vector changes, but magnitude (or speed) does not change, i.e. dv dt = 0 and dˆ v dt = 0, (60) ◮ This implies that

• v · d

v dt = 0 (61) but if the magnitude of acceleration also does not change, a(t) = a⊥(t) = const. (62) then 0 = d dt a2 = d dt ( a · a) = d dt d v dt · d v dt

• = 2d2

v dt2 · d v dt (63) ◮ By combining Eqs. (61) and (63) in 2D we must conclude that

• v ∝ d2

v dt2 . (64) ◮ If the proportionality constant is negative, then solutions of the above equation are sines and cosines (you will see this differential equation over and over in physics courses).

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.4: MOTION IN A CIRCLE

Uniform motion

◮ We have shown that

• v(t) ∝ d2

v(t) dt2 . (65) ◮ With little more of calculus (that we shall skip) one can show the such motion gives rise to circular motion described by equation R =

• (x(t) − X)2 + (y(t) − Y)2

(66) where (X, Y) is at the center of the circle and R is its radius. ◮ By choosing the origin of coordinates at the center of circle, i.e. making (X, Y) = (0, 0) (67) we can simplify Eq. (66) to get r =

• x(t)2 + y(t)2 = R

(68)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.4: MOTION IN A CIRCLE

Radial (or centripetal) acceleration.

By differentiating Eq. (66) with respect to time once we get 0 = dx(t) dt x(t) + dy(t) dt y(t) (69)

• r
• r ·

v = 0 (70) and by differentiating it twice we get 0 = dx(t) dt 2 + d2x(t) dt2

• x(t) +

dy(t) dt 2 + d2y(t) dt2

• y(t)

(71)

• r

v2 = − a · r = − a⊥ · r. (72) But since the two vectors a⊥ and r point in opposite directions we have v2 = a⊥R (73)

• r

a⊥ = v2 R . (74)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.4: MOTION IN A CIRCLE

Periodic motion.

◮ Since the motion is circular the object must come to were it started at some finite

• time. This time is called period, T, and the motion is called also periodic.

◮ It is useful to write an exact solution for periodic motion around origin

• r(t) =
• R sin
• 2π t

T + φ

• , R cos
• 2π t

T + φ

• (75)

where R, T and φ are some constants. ◮ Note that as time goes from t to t + T the arguments of the sin and cos functions change by 2πand thus the position vector does not change

• r(t) =

r(t + T). (76) ◮ Evidently, an object in circular motion is traveling a distance 2πR with a constant speed v and thus the period must be T = 2πR v and v = 2πR T . (77) ◮ By combining it with a⊥ = v2 R (78) we get a⊥ = 4π2R T2 . (79)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.4: MOTION IN A CIRCLE

Example 3.12. Passengers on a carnival ride move at a constant speed in a horizontal circle of radius 5.0 m, making a complete circle in 4.0 s. What is their acceleration? Step 1: What is the coordinate system? Let choose a (moving) coordinate system with || direction in the direction of motion and ⊥ direction in the radial direction. Step 2: What is given? Period T = 4.0 s and radius R = 5.0 m Step 3: What do we have to find? Then a⊥ = 4π2(5.0 m) (4.0 s)2 = 12 m/s2 = 1.3 g and a|| = 0.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.5: REFERENCE FRAME.

Reference frame.

◮ We have already mentioned how the choice of coordinate system is important for calculations, but should not matter for physically observable quantities. ◮ We have also discussed (in context of 2D motions) how it is sometime useful to work with respect to a moving coordinate system. ◮ More generally, let object A move with respect to a coordinate system (or reference frame) of object B, described by position vector

• rA/B(t)

(80) and let object B move with respect to a coordinate system (or reference frame) of

• bject C, described by position vector
• rB/C(t)

(81) then we say that to describe object A with respect to a coordinate system (or reference frame) of object C, we use the following rule

• rA/C(t) =

rA/B(t) + rB/C(t). (82) ◮ By taking a time derivative of Eq. (82) we get a rule for adding velocities d rA/C(t) dt = d rA/B(t) dt + d rB/C(t) dt

• vA/C(t)

=

• vA/B(t) +

vB/C(t). (83)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 3.5: REFERENCE FRAME.

Example 3.14-15. There is a 100 km/h wind from west to east. (a) If an airplane’s compass indicates that it is headed due north, and its airspeed indicator shows that it is moving through the air at 240 km/h, what is the velocity of the airplane relative to earth? (b) What direction should the pilot head with speed 240 km/h to travel due north? Step 1: Choose coordinate system. Let x-axis to point east and y-axis to point north. Step 2: What is given?

• vA/E = 100 km/hˆ

i Step 3: What do we have to find? (a) The airspeed indicator tells us that

• vP/A = 240 km/hˆ

j and thus

• vP/E =

vP/A + vA/E = 100 km/hˆ i + 240 km/hˆ j (b) In general velocity of airplane relative to air is

• vP/A = xˆ

i + yˆ j with vP/A =

• x2 + y2 = 240 km/h

and thus

• vP/E =

vP/A + vA/E =

• xˆ

i + yˆ j

• + 100 km/hˆ

i = (x + 100 km/h)ˆ i + yˆ j = yˆ j. Thus we have two equations with two unknowns with solution

• vP/A = xˆ

i + yˆ j = −100 km/hˆ i + 218 km/hˆ j.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.1: FORCES AND INTERACTIONS

Fundamental forces.

◮ There are four types of fundamental forces:

1) electromagnetic, 2) weak, 3) strong and 4) gravitational.

◮ The electromagnetic and weak (and to some extend strong)

forces had been successfully unified into electroweak (and to some extend GUT) theory.

◮ The situation is much worse with regards to gravitational force

which is manifests itself not through exchange of participles like

• ther forces, but through curvature of space-time.

◮ The string theory does describe a way of how to think about

gravity (perturbatively), but it is too naive to expect that we will know the final answer any time soon.

◮ In our everyday experience the (microscopic) forces manifest

themselves trough (macroscopic) forces.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.1: FORCES AND INTERACTIONS

Superposition of forces.

There might be a number of different forces action on a given object, and the total force (or net force) is given by

• R =
• i
• Fi =

F1 + F2 + F3 + ... (84) where the usual vector addition is used, i.e. (Rx, Ry, Rz) =

• i

Fix,

• i

Fiy,

• i

Fiz

• .

(85) Strength of the net force is then R =

• R2

x + R2 y + R2 z =

• i

Fix 2 +

• i

Fix 2 +

• i

Fix 2 . (86)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.1: FORCES AND INTERACTIONS

Example 4.1. Three professional wrestlers are fighting over a champion’s

• belt. The forces are on horizontal plane and have magnitudes and directions:

F1 = 250 N and θ1 = 127◦ F2 = 50 N and θ2 = 0◦ F3 = 120 N and θ3 = 270◦. (87) Find the components of the net force on the belt and it magnitude and direction.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.2: NEWTON’S FIRST LAW

First Law.

◮ A body acted on by no net force, i.e.

• i
• Fi = 0

(88) has a constant velocity (which may be zero) and zero acceleration.

◮ (This tendency for a body to continue its motion is know as

inertia and is extremely important concept in theory of general relativity.)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.2: NEWTON’S FIRST LAW

Example 4.2. In the classic 1950 science-fiction film Rocketship X-M, a space-ship is moving in the vacuum of the outerspace, far from any star or planet, when it engine dies. As a result, the spaceship slows down and stops. What does Newton’s first law say about this scene?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.2: NEWTON’S FIRST LAW

Example 4.3. You are driving a Maserati GranTurismo S on a straight testing track at a constant speed of 250 km/h. You pass a 1971 Volkswagen Beetle doing a constant speed 75 km/h. On which car is the net force greater?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.2: NEWTON’S FIRST LAW

Inertial frames.

◮ It is important to note that the Newton’s first law is not obeyed

in all reference frames (e.g. inside of an accelerating train).

◮ Those frames of references where it is obeyed is called inertial

frame of reference (e.g. inside a train moving with constant velocity).

◮ Surface of Earth is not exactly an inertial reference frame (why?)

but it is pretty close to being inertial.

◮ For inertial reference frames one can easily go from one frame to

another using

• rA/C(t) =

rA/B(t) + rB/C(t). (89)

◮ and

• vA/C(t) =

vA/B(t) + vB/C(t). (90) which makes such frames particularly useful.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.2: NEWTON’S FIRST LAW

• Examples. In which of the following situations is there zero net force on the

body?

◮ An airplane flying due north as a steady 120 m/s and at a

constant altitude?

◮ A car driving straight up a hill with a 3o slope at a s constant 90

km/h

◮ A hawk circling at a a constant 20 km/h at a constant height of

15 m above an open field?

◮ A box with slick, firctionless surface in the back truck as the

truck accelerates on a a level road at 5 m/s2.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.2: NEWTON’S SECOND LAW

Second Law.

◮ If a net external force acts on a body, the body accelerates. The direction

• f acceleration is the same as the direction of the net force. The mass of

the body times the acceleration vector of the body equals to the net force vector, i.e.

• i
• Fi = m

a (91)

• r
• a =
• i

Fi m . (92)

◮ As a vector equation in 3D it is equivalent to three equations

• i

Fix = max

• i

Fiy = may

• i

Fiz = maz. (93)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.2: NEWTON’S SECOND LAW

Units.

◮ With the help of second law we can now relate the units of

force to units of mass and acceleration.

◮ Since each equation must have the same units on both

sides we see that N = kg · m/s2. (94)

◮ If a 1 kg object moves with acceleration 1 m/s2 then there

must be a net fore of 1 N applied to it.

◮ In British system of units

1 lb = 4.448 N. (95)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.2: NEWTON’S SECOND LAW

Example 4.4. A worker applies a constant horizontal force with magnitude 20 N to a box with mass m = 40 kg resting on a level floor with negligible friction. What is the acceleration of the box?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.3: MASS AND WEIGHT

Weight.

◮ Is a gravitational force acting on an object close to the surface of

the Earth (to be precisely at the see level)

• w = m

g. (96)

◮ It is a vector, but one often refers to the magnitude of the weight

force as weight w = mg (97)

• r even to mass itself just because one, i.e. m, is simply related to

the other, i.e. w.

◮ One should however be careful when weight is measured above

• r below the sea level (e.g. on the airplane), as the weight force

can vary.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.3: MASS AND WEIGHT

Example 4.7. A 2.49 × 104 N Rolls-Royce Phantom traveling in the +x direction makes an emergency stop; the x-component of the net force acting on it is −1.83 × 104 N. What is its acceleration?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.4: NEWTON’S THIRD LAW

Third Law. If a body A exerts a force on body B (an “action”), then body B exerts a force on body A (a “reaction”). These two forces have the same magnitude, but are opposite in direction. These two forces act on different bodies.

• FA on B = −

FB on A. (98)

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.4: NEWTON’S THIRD LAW

Example 4.8. After your sport car breaks down, you start to push it to the nearest repair shop. While the car is starting to move, how does the force exert on the car compare to the force the car exerts on you? How do these forces compare when you are pushing the car along at a constant speed?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.4: NEWTON’S THIRD LAW

Example 4.9. An apple sits at rest on a table, in equilibrium (i.e. static). What forces act on the apple? What is the reaction force to each of the forces acting on the apple? What are the action-reaction pairs?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.4: NEWTON’S THIRD LAW

Example 4.10. A stonemason drags a marble block across a floor by pulling on a (weightless) rope attached to the block. The block is not necessarily in equilibrium. How are the various forces related? What are the action-reaction pairs?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.4: NEWTON’S THIRD LAW

• Example. You are driving a car on a country road when a mosquito

splatters on the windshield. Which has the greater magnitude: the force that the car exerts on the mosquito or the force that the mosquito exerted on the car? Or are the magnitudes the same? If they are the different, how can you reconcile this fact with Newton’s third law? If they are equal, why is mosquito splattered and damaged while the car is undamaged?

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.5: FREE-BODY DIAGRAM

Free-body diagram. A useful tool in solving problems on Newton’s laws is to draw free-body diagram, where a chosen body appears by itself without of its surroundings, and with vectors drawn to show the magnitude and directions of all the forces that act on the body. The tricky part here is to include all of the forces that act on a chosen body, but not to include any other forces that act on

• ther bodies.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

SECTION 4.5: FREE-BODY DIAGRAM

Free-body diagram.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

CHAPTER 0: MATHEMATICS

◮ Algebra

◮ Solving linear equations ◮ Solving quadratic equations ◮ Solving system of two equations with two unknowns

◮ Trigonometry

◮ Hypotenuse from two sides ◮ Side from hypotenuse and another side ◮ Angle from hypothenuse and one side ◮ Angle from two sides, etc.

◮ Calculus

◮ Differentiation of standard functions ◮ Product rule, quotient rule, chain rule. ◮ Indefinite integrals (i.e. antiderivitives) ◮ Definite integrals over interval

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

CHAPTER 1: UNITS, PHYSICAL QUANTITIES AND VECTORS

◮ Units

◮ SI system of units ◮ British system of units ◮ Conversion of units

◮ Physical quantities

◮ Scalars, Vectors, etc.

◮ Vector algebra

◮ Vector representations (graph., comp., unit vec.) ◮ Magnitude and direction of a 2D vector from components ◮ Components of a 2D vector from magnitude and direction ◮ Vector addition/subtraction (graph., comp., unit vec.) ◮ Vector multiplication by scalar (graph., comp., unit vec.) ◮ Dot product between 2 vectors (graph., comp., unit vec.). ◮ Finding angle between 2 vectors from dot product ◮ Cross product between 2 vectors (graph., comp., unit vec.) ◮ Determine direction of cross product using right hand rule.

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

CHAPTER 2: MOTION ALONG A STRAIGHT LINE

◮ Definition of relevant physical quantities

◮ Position and displacement ◮ Average velocity and instantaneous velocity ◮ Average acceleration and instantaneous acceleration

◮ Graphing of physical quantities vs. time

◮ Graphs a-vs-t, v-vs-t and x-vs-t (obtain one from another) ◮ Calculate quantities from graphs of a-vs-t, v-vs-t or x-vs-t

◮ Differentiation and integration

◮ Calculate functions a(t), v(t) or x(t) (calc. one from another) ◮ Calculate quantities from functions of a(t), v(t) or x(t)

◮ 1D kinematic problem (e.g. free fall)

◮ Step 1: Choose 1D coordinate system (x-axis, origin) ◮ Step 2: Determine initial conditions (e.g. position, velocity) ◮ Step 3: Determine final conditions (e.g. position, velocity) ◮ With many stages of motion consider each stage separately ◮ Final cond. for one stage are initial cond. for next stage

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

CHAPTER 3: MOTION IN TWO OR THREE DIMENSIONS

◮ 2D kinematic problem (e.g. projectile motion)

◮ Step 1: Choose 2D coordinate system (x-axis, y-axis, origin) ◮ Step 2: Determine initial conditions (e.g. position, velocity) ◮ Step 3: Determine final conditions (e.g. position, velocity) ◮ With many phases solve for each phase separately. ◮ Final cond. for one phase are initial cond. for next phase

◮ Hints

◮ Intermediate answers can be algebraic, not numeric. ◮ Every equation must have the same units on both sides. ◮ Solve system if there are as many equations as unknowns. ◮ Remember that quadratic equation may have two solutions.

◮ Uniform circular motion

◮ Acceleration is perp. to velocity and points towards center ◮ Relations between: acceleration, velocity, radius, period.

◮ Relative motion

◮ Find relative quantities by vector addition/subtraction

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 4 REVIEW

CHAPTER 4: NEWTON’S LAWS OF MOTION

◮ Newton’s First Law

◮ Distinguishing inertial and non-inertial reference frames. ◮ Apply the first law to object moving with zero acceleration

(which may or may not have zero velocity)

◮ Newton’s Second Law

◮ Determine magnitudes of all forces applied to object, the

net force and acceleration along a given direction.

◮ Apply the second law to object moving with non-zero

acceleration (which may or may not be have const. speed).

◮ Newton’s Third Law

◮ Determine all action-reaction pairs of objects. ◮ Apply the third law to every pair of objects.

◮ Forces problems

◮ Step 1: Choose a coordinate system (1D or 2D). ◮ Step 2: Draw a free-body diagram for each object. ◮ Step 3: Apply Newton’s Laws (1st, 2nd and/or 3rd)
