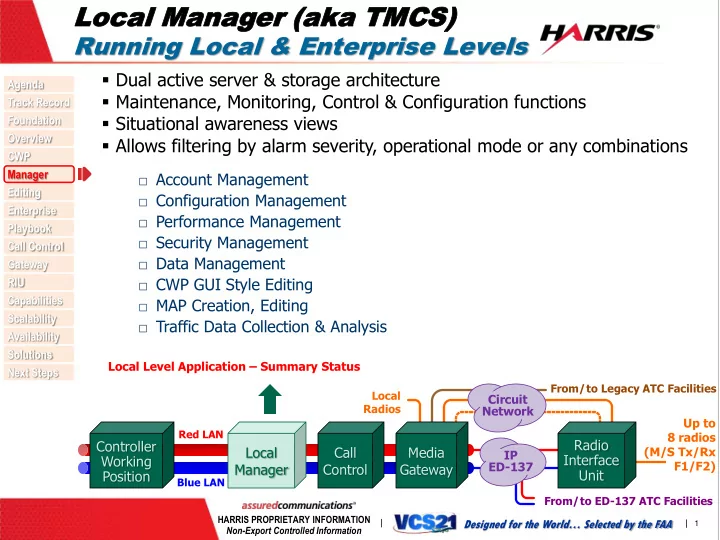

Lo Loca cal l Ma Mana nage ger r (aka (aka TM TMCS CS)

Running Local & Enterprise Levels

  • Dual active server & storage architecture
  • Maintenance, Monitoring, Control & Configuration functions
  • Situational awareness views
  • Allows filtering by alarm severity, operational mode or any combinations

Call Control Local Manager Controller Working Position

Red LAN Blue LAN Local Radios From/ to ED-137 ATC Facilities From/ to Legacy ATC Facilities

Up to 8 radios (M/S Tx/Rx F1/F2)

Media Gateway Radio Interface Unit

Circuit Network IP ED-137 Local Level Application – Summary Status

□ Account Management □ Configuration Management □ Performance Management □ Security Management □ Data Management □ CWP GUI Style Editing □ MAP Creation, Editing □ Traffic Data Collection & Analysis

Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Gateway RIU Enterprise Overview Solutions Next Steps Foundation Track Record

slide-2
SLIDE 2

| 2 |

Designed for the World… Selected by the FAA

HARRIS PROPRIETARY INFORMATION Non-Export Controlled Information

Lo Loca cal l Ma Mana nage ger

Position MAP & GUI Style Editing

Call Control Local Manager Controller Working Position

Red LAN Blue LAN

F306E-089.vsd (0) 022312

Local Radios From/ to ED-137 ATC Facilities From/ to Legacy ATC Facilities

Up to 8 radios (M/S Tx/Rx F1/F2)

Media Gateway Radio Interface Unit

Circuit Network IP ED-137 Position Map Editing GUI Style Editing

  • Powerful GUI Editor:

□ Simple & Intuitive Drag-and-Drop functions □ Built-in rule sets preventing human factor violation □ Unprecedented degree of GUI flexibility □ Portable application (off-line on laptop)

Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Gateway RIU Enterprise Overview Solutions Next Steps Foundation Track Record

slide-3
SLIDE 3

| 3 |

Designed for the World… Selected by the FAA

HARRIS PROPRIETARY INFORMATION Non-Export Controlled Information

Lo Loca cal l Ma Mana nage ger

Enterprise Level

Enterprise Level Application – Frequency Allocation

Call Control Local Manager Controller Working Position

Red LAN Blue LAN Local Radios From/ to ED-137 ATC Facilities From/ to Legacy ATC Facilities

Up to 8 radios (M/S Tx/Rx F1/F2)

Media Gateway Radio Interface Unit

Circuit Network IP ED-137

  • Enterprise Level as primary tool for performing SESAR / NextGen Features:

□ Facility Load Sharing □ Disaster Recovery Planning □ Facility Consolidation

  • Frequency Oversight

across multiple ATC sites:

□ Frequency Allocation □ Frequency Asset Sharing □ Map validation □ Help preventing

  • Unallocated frequencies,
  • Over-shared frequencies

Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Gateway RIU Enterprise Overview Solutions Next Steps Foundation Track Record

slide-4
SLIDE 4

| 4 |

Designed for the World… Selected by the FAA

HARRIS PROPRIETARY INFORMATION Non-Export Controlled Information

Lo Loca cal l Ma Mana nage ger r

Enterprise Level & Playbook

Site-to-Site Communications’ Health & Transition Status Detailed Site Status including Other NextGen Systems, e.g. FTI Voice Enterprise Facility Table of Contents AVN, Radio Site, RRN, and Legacy Site Health and Transition Status Allocated Frequencies at Selected Site Health and Voice Enterprise Facility Table of Contents Site-to-Site Communications’ Health & Transition Status Detailed Site Status including Other NextGen Systems, e.g. FTI AVN, Radio Site, RRN, and Legacy Site Health and Transition Status Allocated Frequencies at Selected Site

Enterprise Level Application

Call Control Local Manager Controller Working Position

Red LAN Blue LAN Local Radios From/ to ED-137 ATC Facilities From/ to Legacy ATC Facilities

Up to 8 radios (M/S Tx/Rx F1/F2)

Media Gateway Radio Interface Unit

Circuit Network IP ED-137

  • Enterprise situational awareness

□ Both Aggregate and Local levels □ Detailed site status □ Site-to-Site communications status

  • Asset Sharing Playbook:

□ Plans & ‘Plays’ for multiple ATC sites □ Pre-defined sharing scenarios □ Quick search and sort capabilities □ Updates distributed automatically

  • Single Sign-On (SSO) and

Role-based functions:

Configuration Specialist (L), Maintainer (L) Network Maintainer (L), Supervisor (L) Operations Manager (E), System Admin (E) Enterprise Maintainer (E), Security Admin (E) Enterprise Modeler (E)

Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Gateway RIU Enterprise Overview Solutions Next Steps Foundation Track Record

slide-5
SLIDE 5

| 5 |

Designed for the World… Selected by the FAA

HARRIS PROPRIETARY INFORMATION Non-Export Controlled Information

Ca Call ll Co Control ntrol

SIP Proxy & Conference Functions

CWP #1 Call initiate Ringback CWP call established Ringing Answer 2-Way RTP SIP Proxy Server CWP #2 (1) INVITE w/ SDP (2) 100 / Trying (3) 180-Ringing (4) 200-Ok Answer (5) ACK (1) INVITE w/ SDP (2) 100 / Trying (3) 180-Ringing (4) 200-Ok Answer (5) ACK

tx (2) 030712

  • Running on redundant COTS

servers

  • SIP Proxy Functions:

□ Endpoint discovery capability □ Authentication □ Dual-active operation accepting registrations from multiple SIP user agents □ Traffic data collection & performance management

  • Conference Server Functions:

□ Meet-me conference □ Progressive conference □ Preset conference

Endpoint Call Establishment Compliant to ED-137B Protocol

Call Control Local Manager Controller Working Position

Red LAN Blue LAN Local Radios From/ to ED-137 ATC Facilities From/ to Legacy ATC Facilities

Up to 8 radios (M/S Tx/Rx F1/F2)

Media Gateway Radio Interface Unit

Circuit Network IP ED-137 Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Gateway RIU Enterprise Overview Solutions Next Steps Foundation Track Record

slide-6
SLIDE 6

| 6 |

Designed for the World… Selected by the FAA

HARRIS PROPRIETARY INFORMATION Non-Export Controlled Information

Me Media dia Ga Gatew teway ay

For both Legacy & IP Interfaces

  • TMG – Trunk Media Gateway:

□ 2W, 4W, E&M, T1, E1, ATS-R2…

  • RMG – Radio Media Gateway:

□ Local, Remote (RCE Emul), IP

  • Single circuit gateway approach:

□ Impact of failure limited to single function/ resource

  • 2N Capability
  • ED-137B Compliant
  • Dual-Feed 12-slot Chassis

housing any mix of TMG & RMG

  • Supports any mix of feeds:

□ 24VDC, 48VDC □ 120VAC, 208VAC, 230VAC

  • Power Factor Correction

4U Media Gateway Chassis TMG or RMG Card

Call Control Local Manager Controller Working Position

Red LAN Blue LAN Local Radios From/ to ED-137 ATC Facilities From/ to Legacy ATC Facilities

Up to 8 radios (M/S Tx/Rx F1/F2)

Media Gateway Radio Interface Unit

Circuit Network IP ED-137 Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Gateway RIU Enterprise Overview Solutions Next Steps Foundation Track Record

slide-7
SLIDE 7

| 7 |

Designed for the World… Selected by the FAA

HARRIS PROPRIETARY INFORMATION Non-Export Controlled Information

Ra Radio dio Interfac Interface e Un Unit it

For both Legacy & IP Interfaces

Radio Interface Unit

Call Control Local Manager Controller Working Position

Red LAN Blue LAN Local Radios From/ to ED-137 ATC Facilities From/ to Legacy ATC Facilities

Up to 8 radios (M/S Tx/Rx F1/F2)

Media Gateway Radio Interface Unit

Circuit Network IP ED-137

  • Media Gateway at Remote Radio Site
  • Telco Side:

□ Legacy Modem: Interfacing C-RCE or RMG by emulating all legacy RCE functions □ IP Interface (ED-137B Compliant)

  • Radio Side:

□ Supports two radio frequencies with main and standby transmitters and receivers □ Any mix of legacy analog or IP-native radios (up to 8 per RIU)

  • Remote Monitoring & Control:

□ RS-232 pass-through data □ GPIOs

  • Dual Feeds:

□ 120/ 230VAC □ 24VDC

  • 1U x 19”

Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Gateway RIU Enterprise Overview Solutions Next Steps Foundation Track Record

slide-8
SLIDE 8

| 8 |

Designed for the World… Selected by the FAA

HARRIS PROPRIETARY INFORMATION Non-Export Controlled Information

Fu Future ture-Pro Proof

  • f Ca

Capa pabiliti bilities es

Generic VCS Requirements

  • Telephone Capabilities:

□ DA, IA, Intercom calls, Call Transfer, Call Forward, Call Divert, Call Hold, Call Pick-up, Conference, 2W/4W circuit, loop/ tone/ DC signaling …

  • Radio Capabilities:

□ Main/ Standby function on Transmitters & Receivers, Best Signal Selection, Tone Keying, Radio Access Modes,…

  • Operator Position Capabilities:

□ Touch-Sensitive Display(s), Phone Book, Position forwarding, Audio Device Management, Split Headset, Variety of Ring Tones,…

  • Management System Capabilities:

□ Status Monitoring, Fault Reporting, Control, Configuration…

Call Control Local Manager Controller Working Position

Red LAN Blue LAN Local Radios From/ to ED-137 ATC Facilities From/ to Legacy ATC Facilities

Up to 8 radios (M/S Tx/Rx F1/F2)

Media Gateway Radio Interface Unit

Circuit Network IP ED-137 Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Gateway RIU Enterprise Overview Solutions Next Steps Foundation Track Record

slide-9
SLIDE 9

| 9 |

Designed for the World… Selected by the FAA

HARRIS PROPRIETARY INFORMATION Non-Export Controlled Information

Fu Future ture-Pro Proof

  • f Ca

Capa pabiliti bilities es

… and more

  • Open Interfaces:

□ ED-137B, SNMP, IPv4, IPv6, DHCP, NTPv4, IPSec, Service-Oriented-Architecture (SOA) Interfaces…

  • Enterprise Level Functions:

□ Electronic Playbook, Next-Generation Features such as Facility Load Sharing, Disaster Recovery Planning and Facility Consolidation

  • Flexibility:

□ GUI Style Editor, extensive array of Classmarks

  • High Availability:

□ Parallel Redundancy Protocol, Decentralized Architecture, Primary/ Backup Systems

  • Security Architecture:

□ IPSec, Access Control (AC) Service, Audit and Accountability Service, System and Information Integrity (SI) Service

Call Control Local Manager Controller Working Position

Red LAN Blue LAN Local Radios From/ to ED-137 ATC Facilities From/ to Legacy ATC Facilities

Up to 8 radios (M/S Tx/Rx F1/F2)

Media Gateway Radio Interface Unit

Circuit Network IP ED-137 Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Gateway RIU Enterprise Overview Solutions Next Steps Foundation Track Record

slide-10
SLIDE 10

| 10 |

Designed for the World… Selected by the FAA

HARRIS PROPRIETARY INFORMATION Non-Export Controlled Information

Sc Scala alability bility

Better than TDM-based Systems

  • No port-density limitations, contrary to TDM-based

systems

  • Single channel granularity
  • Common hardware & software platform for all system

sizes

  • Modular and highly distributed architecture
  • CWP directly addressable from network (IP at the core)
  • No single point of failure
  • No performance breakpoints
  • Capable of expanding seamlessly

Radio Interface Unit Call Control Local Manager Controller Working Position Media Gateway

Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Gateway RIU Enterprise Overview Solutions Next Steps Foundation Track Record

slide-11
SLIDE 11

| 11 |

Designed for the World… Selected by the FAA

HARRIS PROPRIETARY INFORMATION Non-Export Controlled Information

Prima Primary ry / B / Bac acku kup p Sy Syste stems ms

For Higher Availability

  • Two independent systems to prevent propagation of failures
  • Control Working Positions accessing both systems over 4 LAN interfaces
  • IP radio & telephone resources always connected to both systems
  • Legacy resources mirrored on both systems and handled via A/B switch
  • Initiating switchover from:

□ Primary system □ Backup system □ Enterprise Level user (remote location)

  • Controllers see no change to position displays and resource assignments

Call Control Local Manager

Red Blue

Call Control

Green Black

Media Gateway Controller Working Position Local Manager

Primary System Backup System Local Radios From/ to ED-137 ATC Facilities From/ to Legacy ATC Facilities

Up to 8 radios (M/S Tx/Rx F1/F2)

Media Gateway Radio Interface Unit

A / B Switch IP ED-137 Circuit Network Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Gateway RIU Enterprise Overview Solutions Next Steps Foundation Track Record

slide-12
SLIDE 12

| 12 |

Designed for the World… Selected by the FAA

HARRIS PROPRIETARY INFORMATION Non-Export Controlled Information

Legacy ATC Facility

Agenda CWP Manager Editing Playbook Call Control Capabilities Scalability Availability Solutions Gateway RIU Enterprise Overview

third party third party

Legacy Radio Site ED-137 ATC Facility ED-137 ATC Facility ED-137 Radio Site ED-137 Radio Site

Na Native tive IP IP En Enterpris terprise So Solution lutions

In support of SESAR & NextGen

Next Steps

ED-137 ATC Facility

Media Gateway

Legacy VCS ED-137 ATC Facility

third party

IP ED-137

third party

Circuit Network Foundation Track Record
