AIT Complex Facility Design Team Mary Ellen McCrillis HQDA, G-3/5/7 (Proponent) Dolat G. Desai OACSIM (Co-Chair) David Carr IMCOM (Housing) Chip Williams TRADOC, G-4 Goldie Bailey 5-STORY AIT B/COF Ft. Lee, VA ACES Dwain Scott, R.L.A.

slide-1

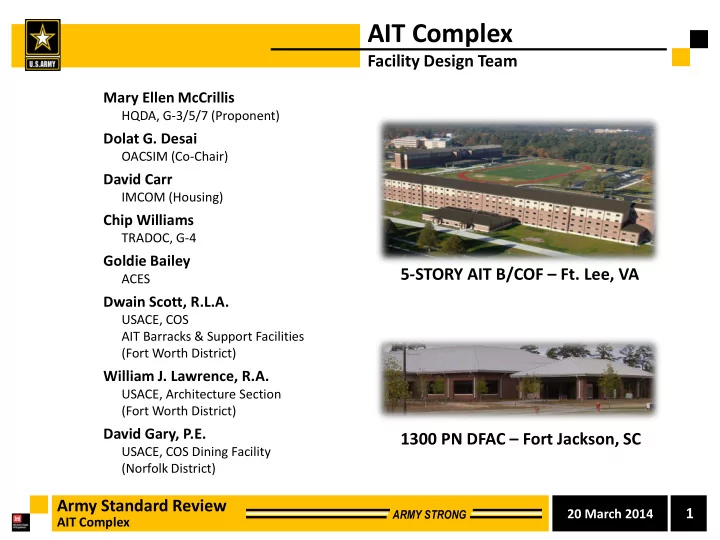

SLIDE 1

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

1 Mary Ellen McCrillis

HQDA, G-3/5/7 (Proponent)

Dolat G. Desai

OACSIM (Co-Chair)

David Carr

IMCOM (Housing)

Chip Williams

TRADOC, G-4

Goldie Bailey

ACES

Dwain Scott, R.L.A.

USACE, COS AIT Barracks & Support Facilities (Fort Worth District)

William J. Lawrence, R.A.

USACE, Architecture Section (Fort Worth District)

David Gary, P.E.

USACE, COS Dining Facility (Norfolk District)

AIT Complex

Facility Design Team 5-STORY AIT B/COF – Ft. Lee, VA 1300 PN DFAC – Fort Jackson, SC

slide-2
SLIDE 2

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

2

AIT Complex

B/COF Living Quarters

In lieu of 100% of the Living Quarters designed to accommodate the Peak Design Capacity (PDC) of 3 Occupants per Sleeping Area only 50% of the Living Quarters will accommodate PDC Relocation of structural Grid lines removes column from built-in wardrobe closets Length of the Vanity Counter extended from 3'-0" to 4'-0" Width of Toilet/Shower Room extended to provide more separation between toilet and shower

Redesigned Living Quarters to address reduced Peak Design Capacity

Current Floor Plan Proposed Floor Plan

2 1 4 3 Design Criteria

  • Base Design Capacity (BDC)

BDC = 2 Occupants per Sleeping Area in 50%

  • f the Living Quarters
  • Peak Design Capacity (PDC)

PDC = 3 Occupants per Sleeping Area in 50%

  • f the Living Quarters
  • Allocated Space per Occupant

Base Design Capacity (BDC): 90 NSF Peak Design Capacity (PDC): 72 NSF

Sleeping

Area (3PN)

Toilet Mech SH Sleeping

Area (2PN)

Sleeping

Area (3PN)

Sleeping

Area (3PN)

1 1 1 1

Toilet Mech SH 3

3 3 3 4 4 4 4

2 2

slide-3
SLIDE 3

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

3

AIT Complex

B/COF Standard Design

Grouping of Laundry, Day Rooms, and Computer Learning Lab to create Trainee Support Modules

Two Laundry Rooms provide gender separation for enhanced safety and security

Corridor Learning Lab Day Room (Media) Day Room (Games) Laundry

Jan Stor

Laundry

5

Central location of the Trainee Support Module among the Living Quarters provides improved trainee access to laundry rooms and recreational spaces Relocation of the laundry and recreational spaces from the building’s central core to the housing wings allows for natural day-lighting Two Day Rooms provide for separation of trainee recreational uses, Media (Quiet) and Games (Noisy) Corridor width increased to minimize congestion at entrances to laundry rooms and trainee recreational spaces

4 2 3 3 Trainee Support Module

KEY PLAN Proposed Design

1 1

2 1 4 3 5

Cust

2 2 2 4 2

slide-4
SLIDE 4

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

4

Covered Training Covered Training Multi Purpose W M W M AV ST Mech Mech Scrub Scrub Mech Supply Supply ST ST ST AV AV AV C J Elect Fire Prot Recycle Recycle Comm Comm Vend Vend Recovery Recovery CQ W M Stair Elev Elev Lobby Wait Wait CO CO XO XO OPS 1st Sgt Vest OPS 1st Sgt Vault Vault CS CS Corridor Corridor Corridor Plt Sgt Plt Sgt

KEY PLAN

Training and Instruction Module

Proposed Design

AIT Complex

Reorganization of Administrative and Training /Instructional Areas to create a Training and Instruction Module

Company COFs have been redesigned and remain at the front of the building. COFs are adjacent yet separated by and accessible from a single main entrance to the building Placement of the CQ Station to maximize visual site lines for enhanced safety and security

B/COF Standard Design

Adjacency of Multi-Purpose/Instructional Areas for each Company provide maximum flexibility through the use of operable walls to partition instructional areas

2 1 3

3 2 1

Main Entrance

1st Sgt

slide-5
SLIDE 5

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

5

AIT Complex

B/COF Proposed Standard Design

2 1 3

B/COF Proposed Standard Design Building footprint options

Standardization and Sustainability

The Standardization of Building Program Components advances the concept of 'Standardization' The Trainee Support Module can be reorganized to serve as a transitional space to support multiple 'Building Organizational Concepts' These 'Building Organizational Concepts' will provide Installations with the ability to consider multiple site configurations in the development of their Installation Master Plan This additional level of 'Standardization' will provide the opportunity to select a 'Building Organization Concept‘ and Site that consider building orientation and placement minimizing site development costs while addressing sustainability requirements to maximize day- lighting and energy efficiencies

4

Building Organizational Concept 'A' Building Organizational Concept 'B' Building Organizational Concept 'C'

slide-6
SLIDE 6

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

6

AIT Complex

5-Story B/COF - Standard Design

Proposed Floor Plan (First Floor)

Main Entrance

LEGEND

slide-7
SLIDE 7

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

7

AIT Complex

Proposed Floor Plan (Second through Fifth Floor)

5-Story B/COF - Standard Design

Main Entrance

slide-8
SLIDE 8

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

8

AIT Complex

5-Story B/COF – Proposed Standard Design

Massing Model

slide-9
SLIDE 9

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

9

Main Entrance Main Entrance

AIT Complex

3-Story B/COF - Standard Design

Proposed Floor Plan (First Floor)

LEGEND

slide-10
SLIDE 10

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

10

AIT Complex

Proposed Floor Plan (Second Floor)

3-Story B/COF - Standard Design

Main Entrance Main Entrance

slide-11
SLIDE 11

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

11

AIT Complex

B/COF Living Quarters

Design Criteria

  • Base Design Capacity (BDC)

BDC = 2 Occupants per Sleeping Area in 50% of the Living Quarters

  • Peak Design Capacity (PDC)

PDC = 3 Occupants per Sleeping Area in 50% of the Living Quarters

  • Authorized Furnishings per PN

A. One Bed (39" x 84") B. One Night Stand (18" x 18") C. One Desk (24" x 36") D. One Chair (24" x 24")

  • Authorized Personal Storage

E. Built-In Wardrobe Closet (24" x 36")

Proposed Floor Plan

  • Allocated Space per Occupant

Base Design Capacity (BDC): 90 NSF Peak Design Capacity (PDC): 72 NSF

A C B E D Sleeping Area (3PN) Toilet

Mech

SH Toilet SH Sleeping Area (2PN)

LEGEND Proposed Design KEY PLAN

1

slide-12
SLIDE 12

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

12

AIT Complex

B/COF Proposed Standard Design

LEGEND

Living Quarters: 16 Room Module Living Quarters: 14 Room Module

Placement of two pair of cross-corridor doors and internal stairs on the upper floors

  • f each wing within the 14-Room Living

Quarters Modules provides more flexibility for gender separation and enhanced Safety and Security

Grouping of individual rooms to create Living Quarters Modules

Standardization of the 14-Room and 16- Room Living Quarters Modules provides symmetry and balance of building’s massing with a more cost-effective building/roof structure.

2

KEY PLAN

1 1

Proposed Design

Number of Female Occupants per Floor:

  • 1 Flr 18 BDC to 24 PDC 6.0% to 6.4%
  • 2 Flrs 36 BDC to 48 PDC 12.0% to 12.8%
  • 3 Flrs 54 BDC to 72 PDC 18.0% to 19.2%
  • 4 Flrs 72 BDC to 96 PDC 24.0% to 25.6%

2 1

1A 1B

1B 1B 1A 1A

9 LQs / Floor for Women

slide-13
SLIDE 13

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

13

AIT Complex

Corridor Learning Lab Day Room (Media) Day Room (Games) Laundry Laundry Jan Cust Stor

Trainee Support Module B/COF Proposed Standard Design

Standardization and Sustainability

1 The Standardization of Building Program Components advances the concept of 'Standardization' 2 This Module can be reorganized to serve as a transitional space to support multiple 'Building Organizational Concepts' 3 These 'Building Organizational Concepts' will provide Installations with the ability to consider multiple site configurations in the development of their Installation Master Plan 4 This additional level of 'Standardization' will provide the opportunity to select a 'Building Organization Concept‘ and Site that consider building orientation and placement minimizing site development costs while addressing sustainability requirements to maximize day- lighting and energy efficiencies

slide-14
SLIDE 14

Army Standard Review

AIT Complex

ARMY STRONG

20 March 2014

14

AIT Complex

Covered Training Covered Training Multi Purpose W M W M AV ST Mech Mech Scrub Scrub Mech Supply Supply ST ST ST AV AV AV C J Elect Fire Prot Recycle Recycle Comm Comm Vend Vend Recovery Recovery CQ W M Stair Elev Elev Lobby Wait Wait CO CO XO XO OPS 1st Sgt Vest OPS 1st Sgt

Main Entrance

Vault Vault CS CS Corridor Corridor Corridor

Training Module

Plt. Sgt Plt. Sgt

Reorganization of the Company Multi- Purpose Rooms to provide adjacency of Instructional Areas within the Training and Instruction Module

1 Provides maximum flexibility for instruction and assembly

Multi-Purpose Room

Alternative Seating Plan (300 PN in Chairs w/tablet arms)

Drop-down Projection Screens (2 locations) Instructor's Podium (3 locations) Seating Capacity 300 PN Standing Muster 600 PN

Training and Instruction Module
