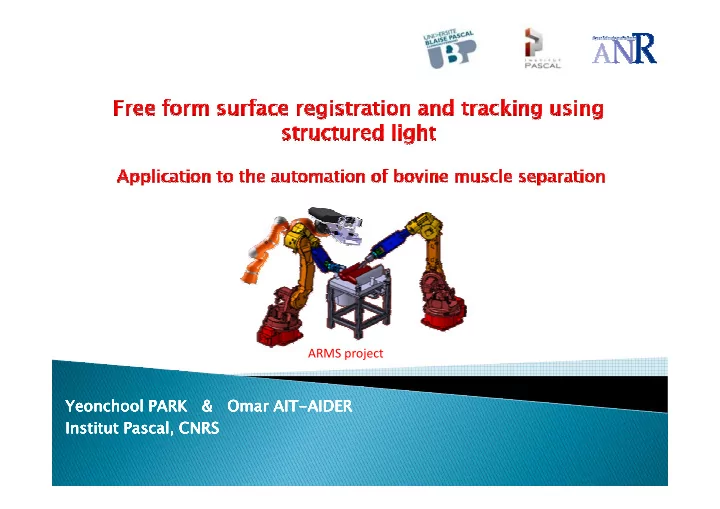

ARMS project

RGB-D camera Robot Effector Cutting path

1/ Registration

Current view of meat part Model Local surface mesh from current view Recognition + Registration

2/ Tracking surface deformation during muscle separation

• High variability in meat parts :
• Appearance (color, texture, specularity,…)
• Shape (many bovin species, approximative cutting,…)
• Size
• Robust to partial occlusion
• Robust to partial occlusion
• Must work in real time
• Accuracy in pose computation

• RGB-D image acquisition
• Scene segmentation
• Meat surface mesh generation
• Meat surface mesh generation
• Scene-to-model registration

• Calibrated procam system

RGB caméra + structured light (Currently Kinect)

2D Images 3D Points cloud

(Currently Kinect)

• 3D Point Cloud with associated RGB data
• Data are expressed in camera coordinate

system

3D Points cloud

• Select only data corresponding to the

meat part among the hole point cloud meat part among the hole point cloud

• Use both 3D and 2D information

3D 3D 3D 3D Segmentation Segmentation Segmentation Segmentation

2D Images

Boundary: border between 3D point and background. Basing on color histograms

• Obtained contours are closed
• RGB-D data corresponding to

Semistep: how far from each

• ther between points

Fold : surface discontinuity (normal difference)

• RGB-D data corresponding to

meat part are selected

Transform brut data (point cloud) into a continous surface

Reconstructed Mesh Calculation of Normal from Segmented Patch

Sphere generation to create auxiliary points

Triangulation and cleaning

• Establish point correspondences
• Compute the best rigid

transformation between the

[ R , T ] Model mesh Current view mesh

transformation between the current mesh nd the model

• Existing approaches :

RANSAC (Fischler and Bolles, 1981), ICP (Besl & McKay, 1992)

[ R , T ] Model mesh Current view mesh

• Huge number of combinations
• Risk of high outlier ratio due to

variability of models

• Johnson & Hebert (1999)
• Coordinate transform
• Object centered representation

Andrew E. Johnson and Martial Hebert, 06

• Object centered representation

• Each model is a polygonal mesh M with vertices
• One spin image for each vertex

Matching score improvement

• Bhattacharyya Distance
• Stochastic distance
• Mutual correspondence consistency checking

[ , , , , , ]T z x y z α β γ = = = =

• Compute the set 6 parameter (translation and rotation)

2 1

( ) ( )

b

N i i i

E z a Rb T

= = = =

= − + = − + = − + = − +

∑ ∑ ∑ ∑

• Which minimizes the cost function (least square optimization)
• Eliminate outliers using a RANSAC algorithm

• An initial path is given by the

model

• As the robot effector proceeds to

muscle separation, the cutting « valley » deformations are tracked in real time

• Non-rigid ICP based tracking :
• Iteratively searches the nearest neighbours

whith the highest curvature

• Calculates affine transform using Non-rigid ICP
• Calculates affine transform using Non-rigid ICP

(Minimize deformation energy, Minimize alignment error, Maximize regions of overlap)

• Transform the guide-path points
• Guide-path refinement using polynomial

fitting to generate smooth curve

• Library model :

1000 Points, built using sfm methods from a classical camera image sequence

• Tests with 3 different meat parts
• RGB-D camera :

Kinect with resolution 640 × 480, 32 bits, 30 fps

Performances :

• Registration : 3 to 4 seconds with a model of 1000 points
• Tracking : 30 fps (Kinect frame rate)
• Qualitative evaluation due the difficulty to generate large data sets

with real meat and groundtruth values

• An active vision system enabling free form surface registration and tracking

for boine muscle separation

• Registration processing time is sufficient for our application
• Tracking frame rate must be improved to enable visual servoing

Tracking frame rate must be improved to enable visual servoing

• Need for evaluation with large model data bases
• Take into account the mechanical deformation model to improve the tracking

efficiency and robustness
