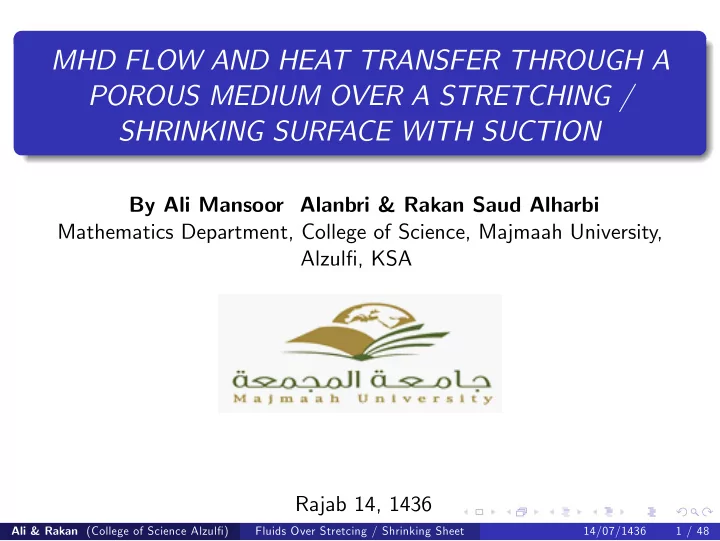

MHD FLOW AND HEAT TRANSFER THROUGH A POROUS MEDIUM OVER A STRETCHING / SHRINKING SURFACE WITH SUCTION

By Ali Mansoor Alanbri & Rakan Saud Alharbi Mathematics Department, College of Science, Majmaah University, Alzul…, KSA Rajab 14, 1436

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 1 / 48

slide-2
SLIDE 2

In The Name of ALLAH

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 2 / 48

slide-3
SLIDE 3

Supervised By Supervised By

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 3 / 48

slide-4
SLIDE 4

Supervised By Supervised By

  • Dr. Farooq Ahmad Gujar

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 3 / 48

slide-5
SLIDE 5

Acknowledgments Acknowledgments

Praise and glory is to Allah, the Cherisher and Sustainer of the worlds, without His will, faith and support, we would not have been able to accomplish this laborious task. We bow to Him in reverence and gratitude.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 4 / 48

slide-6
SLIDE 6

Acknowledgments Acknowledgments

Praise and glory is to Allah, the Cherisher and Sustainer of the worlds, without His will, faith and support, we would not have been able to accomplish this laborious task. We bow to Him in reverence and gratitude. Peace and blessing to Hazrat Muhammad (Peace Be Upon Him) who is the cause of conceiving the universe.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 4 / 48

slide-7
SLIDE 7

Acknowledgments

We are highly obliged and very grateful to our respected teacher and supervisor, Dr. Farooq Ahmad Gujar, whom we always found helpful and courteous. We owe a great debt of gratitude to him for his valuable suggestions in the selection of a suitable topic and the research problems. We are very much obliged for his day to day guidance, their keen supervision and friendly a¤ection. They have always been the most cordial and cooperative throughout the research work and during the compilation of this project. We are highly

  • bliged. We are also very grateful to our respected teacher Dr. Sajjad

Hussain, whom we always found helpful.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 5 / 48

slide-8
SLIDE 8

Acknowledgments

We are highly obliged and very grateful to our respected teacher and supervisor, Dr. Farooq Ahmad Gujar, whom we always found helpful and courteous. We owe a great debt of gratitude to him for his valuable suggestions in the selection of a suitable topic and the research problems. We are very much obliged for his day to day guidance, their keen supervision and friendly a¤ection. They have always been the most cordial and cooperative throughout the research work and during the compilation of this project. We are highly

  • bliged. We are also very grateful to our respected teacher Dr. Sajjad

Hussain, whom we always found helpful. We are obliged and very grateful to my respected teacher, Prof. Dr. Adel Zaki, Head of the Department of Mathematics, Majmaah University, College of Science, Alzul… whom we always found helpful. We am very much obliged for his day to day guidance.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 5 / 48

slide-9
SLIDE 9

Acknowledgments

We are also highly obliged and very grateful to respected Dr. Mohammad Saleh Aloboudi, Dean of College of Science, Majmaah University, Alzul…. It has been a privilege and great honor for us to learn with a great man of such prominent characteristics. We love and respect him the most for his high morality and honorable sincerity, his guidance is a ray of light in our research.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 6 / 48

slide-10
SLIDE 10

Acknowledgments

We are also highly obliged and very grateful to respected Dr. Mohammad Saleh Aloboudi, Dean of College of Science, Majmaah University, Alzul…. It has been a privilege and great honor for us to learn with a great man of such prominent characteristics. We love and respect him the most for his high morality and honorable sincerity, his guidance is a ray of light in our research. We express heartiest thanks to Dr. Thamir Shelih Al-Harbi, Dean of Scienti…c research, Majmaah University, KSA who also helped us in publishing the research work in ISI listed journal.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 6 / 48

slide-11
SLIDE 11

Abstract

Abstract

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 7 / 48

slide-12
SLIDE 12

Abstract

Abstract

This article examines MHD ‡ow and heat transfer through a porous medium over a shrinking surface with suction. The governing partial di¤erential equations of ‡uid motion are converted in to ordinary di¤erential form by using similarity functions. The resulting equations have been solved numerically to observe the e¤ects of physical parameters of this study namely magnetic parameter M2, permeability parameter K, suction parameter λ and Prandtl number Pr. Results are presented in graphical form.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 7 / 48

slide-13
SLIDE 13

AMS Subject Classi…cation

AMS Subject Classi…cation:

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 8 / 48

slide-14
SLIDE 14

AMS Subject Classi…cation

AMS Subject Classi…cation:

[2000] Primary 05C38, 15A15; Secondary 05A15, 15A18

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 8 / 48

slide-15
SLIDE 15

Key Words Classi…cation

Key Words:

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 9 / 48

slide-16
SLIDE 16

Key Words Classi…cation

Key Words:

MHD ‡ow, Heat Transfer, Porous medium, Prandtl number, Suction, Shrinking / Stretching surface.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 9 / 48

slide-17
SLIDE 17

Publication in ISI listed Journal Research work has been got published in ISI listed Journal: [2]

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 10 / 48

slide-18
SLIDE 18

Publication in ISI listed Journal Research work has been got published in ISI listed Journal: [2] Farooq Ahmad, Sajjad Hussain, Ali Mansoor Alanbari and Rakan Saud Alharbi, MHD Flow And Heat Transfer Through A Porous Medium Over A Stretching/Shrinking Surface With Suction, Sci.Int.(Lahore), 27(2), 931-935, 2015. [2]

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 10 / 48

slide-19
SLIDE 19

Publication in ISI listed Journal Research work has been got published in ISI listed Journal: [2] Farooq Ahmad, Sajjad Hussain, Ali Mansoor Alanbari and Rakan Saud Alharbi, MHD Flow And Heat Transfer Through A Porous Medium Over A Stretching/Shrinking Surface With Suction, Sci.Int.(Lahore), 27(2), 931-935, 2015. [2]

http://sci-int.com/pdf/749916686931-935-Farooq.%20Ahmad- paper%202-MATH%20-%20KSA-.pdf

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 10 / 48

slide-20
SLIDE 20

Publication Paper in ISI listed Journal

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 11 / 48

slide-21
SLIDE 21

Detail of the Project

The project comprises 5 chapters. Chapter 1. This chapter consists of seven sections. The section 1.1 gives the detail of the project and the section 1.2 covers the nomenclature of the project. The section 1.3 covers general terms and concepts, the section 1.4 covers types of the ‡uids and the section 1.5 covers some important de…nitions. The section 1.6 consists objects of the project, and the last section 1.7 shows research publications from the project / research work.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 12 / 48

slide-22
SLIDE 22

Detail of the Project

The project comprises 5 chapters. Chapter 1. This chapter consists of seven sections. The section 1.1 gives the detail of the project and the section 1.2 covers the nomenclature of the project. The section 1.3 covers general terms and concepts, the section 1.4 covers types of the ‡uids and the section 1.5 covers some important de…nitions. The section 1.6 consists objects of the project, and the last section 1.7 shows research publications from the project / research work. Chapter 2. This chapter covers literature review, it contains some detail research work already done about the MHD ‡ow and heat transfer through a porous medium over a shrinking surface with suction.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 12 / 48

slide-23
SLIDE 23

Detail of the Project

The project comprises 5 chapters. Chapter 1. This chapter consists of seven sections. The section 1.1 gives the detail of the project and the section 1.2 covers the nomenclature of the project. The section 1.3 covers general terms and concepts, the section 1.4 covers types of the ‡uids and the section 1.5 covers some important de…nitions. The section 1.6 consists objects of the project, and the last section 1.7 shows research publications from the project / research work. Chapter 2. This chapter covers literature review, it contains some detail research work already done about the MHD ‡ow and heat transfer through a porous medium over a shrinking surface with suction. Chapter 3. This chapter has only two sections, the section 3.1 represents formation of the problem and the section 3.2 deals with governing equations of the problem and mathematical analysis.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 12 / 48

slide-24
SLIDE 24

Detail of the Project

Chapter 4. This chapter consists of 2 sections. The section 4.1 covers the discussion on graphical results. The section 4.2 covers graphical results from graph numbered 4.1-4.11.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 13 / 48

slide-25
SLIDE 25

Detail of the Project

Chapter 4. This chapter consists of 2 sections. The section 4.1 covers the discussion on graphical results. The section 4.2 covers graphical results from graph numbered 4.1-4.11. Chapter 5. In this chapter, the section 5.1 gives conclusion of the

  • study. The section 5.2 represents an overview of the research. The

section 5.3 consists of some future extensions.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 13 / 48

slide-26
SLIDE 26

Detail of the Project

Chapter 4. This chapter consists of 2 sections. The section 4.1 covers the discussion on graphical results. The section 4.2 covers graphical results from graph numbered 4.1-4.11. Chapter 5. In this chapter, the section 5.1 gives conclusion of the

  • study. The section 5.2 represents an overview of the research. The

section 5.3 consists of some future extensions.

In the last references related to the research, have been mentioned.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 13 / 48

slide-27
SLIDE 27

Introduction

Introduction

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 14 / 48

slide-28
SLIDE 28

Introduction

Introduction

The ‡ow and heat transfer over a stretching surface bears important research interest due to its various applications in industries such as hot rolling, wire drawing, glass …ber production, manufacturing plastic …lms and extrusion of a polymer in a melt spinning process. Sakiadis [24, 25] was the …rst to propose and analyze the surface stretching problem based on the boundary layer approximation.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 14 / 48

slide-29
SLIDE 29

Introduction

Introduction

The ‡ow and heat transfer over a stretching surface bears important research interest due to its various applications in industries such as hot rolling, wire drawing, glass …ber production, manufacturing plastic …lms and extrusion of a polymer in a melt spinning process. Sakiadis [24, 25] was the …rst to propose and analyze the surface stretching problem based on the boundary layer approximation. Crane [9] gave a closed-form solution for steady two-dimensional ‡ow

  • f an incompressible viscous ‡uid caused by the stretching of an

elastic sheet, which moves in its own plane with a velocity that varies linearly with distance from a …xed point. Gupta and Gupta [13] extended the work of Crane [9] by investigating the e¤ect of mass transfer on a stretching sheet with suction or blowing for linear surface velocity subject to uniform temperature.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 14 / 48

slide-30
SLIDE 30

Introduction

Magyari and Keller [17] introduced a new type of the stretching sheet problem by considering the ‡ow due to a sheet stretched exponentially in its own plane, and they investigated also the heat transfer characteristics for the ‡ow taking the exponentially varying wall temperature. Barik et al. [7] studied heat and mass transfer on MHD ‡ow through a porous medium over a stretching surface with heat source.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 15 / 48

slide-31
SLIDE 31

Introduction

Miklavcic and Wang [18] obtained the solution for steady two-dimensional, as well as axisymmetric viscous, ‡ow over a shrinking sheet. Wang [26] studied two dimensional stagnation ‡ow towards a shrinking sheet. Muhaimin et al. [19] observed the e¤ects

  • f heat and mass transfer on MHD boundary layer ‡ow past a

shrinking sheet subject to suction. Cortell [10] discussed MHD viscous ‡ow caused by a shrinking sheet with suction for two-dimensional and axisymmetric cases.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 16 / 48

slide-32
SLIDE 32

Introduction

Miklavcic and Wang [18] obtained the solution for steady two-dimensional, as well as axisymmetric viscous, ‡ow over a shrinking sheet. Wang [26] studied two dimensional stagnation ‡ow towards a shrinking sheet. Muhaimin et al. [19] observed the e¤ects

  • f heat and mass transfer on MHD boundary layer ‡ow past a

shrinking sheet subject to suction. Cortell [10] discussed MHD viscous ‡ow caused by a shrinking sheet with suction for two-dimensional and axisymmetric cases. Fang and Zhang [12] obtained the closed form solution for steady MHD ‡ow over a shrinking surface subject to applied suction. Fang [11] investigated the ‡ow over a shrinking sheet to power law surface velocity and obtained the multiple solutions for certain mass transfer with controlling parameters.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 16 / 48

slide-33
SLIDE 33

Introduction

Noor et al. [20] analyzed the magnetohydrodynamic viscous ‡ow due to a shrinking sheet analytically and found that the result obtained by a domain decomposition and homotopy analysis methods are well

  • agreed. Sajid and Hayat [23] investigated the e¤ect of the MHD for

two-dimensional and axisymmetric shrinking sheet. Bhattacharyya and Pop [8] investigated MHD boundary layer ‡ow due to an exponentially shrinking sheet.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 17 / 48

slide-34
SLIDE 34

Introduction

Noor et al. [20] analyzed the magnetohydrodynamic viscous ‡ow due to a shrinking sheet analytically and found that the result obtained by a domain decomposition and homotopy analysis methods are well

  • agreed. Sajid and Hayat [23] investigated the e¤ect of the MHD for

two-dimensional and axisymmetric shrinking sheet. Bhattacharyya and Pop [8] investigated MHD boundary layer ‡ow due to an exponentially shrinking sheet. Asghar et al. [5] presented an exact analytical solution for the boundary layer ‡ow of a viscous ‡uid over an impermeable shrinking

  • sheet. Hayat et al. [14, 15] reported an analytic HAM solution for the

MHD ‡ow of a second grade ‡uid over a shrinking sheet without and with rotation e¤ects.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 17 / 48

slide-35
SLIDE 35

Introduction

In recent years, the study of magnetohydrodynamic (MHD) ‡ow problems has gained considerable interest of researchers because of its huge applications in many engineering problems. Pavlov [22] discussed the MHD boundary layer ‡ow of an electrically conducting ‡uid due to the stretching sheet. Whereas, Al-Odat et al. [21] explained the e¤ect of magnetic …eld on the thermal boundary layer

  • ver an exponentially stretching continuous surface taking exponential

temperature distribution and Ishak [16] studied the MHD boundary layer ‡ow over an exponentially stretching sheet in the presence of thermal radiation.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 18 / 48

slide-36
SLIDE 36

Introduction

In recent years, the study of magnetohydrodynamic (MHD) ‡ow problems has gained considerable interest of researchers because of its huge applications in many engineering problems. Pavlov [22] discussed the MHD boundary layer ‡ow of an electrically conducting ‡uid due to the stretching sheet. Whereas, Al-Odat et al. [21] explained the e¤ect of magnetic …eld on the thermal boundary layer

  • ver an exponentially stretching continuous surface taking exponential

temperature distribution and Ishak [16] studied the MHD boundary layer ‡ow over an exponentially stretching sheet in the presence of thermal radiation. Baag et al. [6] analyzed MHD ‡ow on a stretching sheet embedded in a porous Medium. The magnetohydrodynamic ‡ow over a stretching surface has been studied by [10] & [18] for both permeable and impermeable surfaces.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 18 / 48

slide-37
SLIDE 37

Introduction

Flow of an electrically conducting non- Newtonian ‡uid past a stretching surface was studied by Able et al. [1] when a uniform magnetic …eld acts transverse to the surface. Ahmad and Sajjad [3]

  • btained exact solution for a viscous, incompressible, MHD ‡ow over

a porous stretching sheet. Ali et al. [4] presented numerical solution

  • f MHD ‡ow of ‡uid and heat transfer over porous stretching sheet.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 19 / 48

slide-38
SLIDE 38

Mathematical Analysis Mathematical Analysis

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 20 / 48

slide-39
SLIDE 39

Mathematical Analysis Mathematical Analysis

Consider steady, two dimensional and incompressible laminar ‡ow of viscous ‡uid through porous medium over a stretching/ shrinking

  • surface. The ‡uid is electrically conducting. Magnetic …eld of

strength B0 is applied in normal direction to the sheet. A convective heat source with heat ‡ux boundary conditions provides temperature Tw at the surface. The Cartesian coordinates are used. The x axis is along the sheet and y axis is perpendicular to it.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 20 / 48

slide-40
SLIDE 40

Mathematical Analysis Mathematical Analysis

Consider steady, two dimensional and incompressible laminar ‡ow of viscous ‡uid through porous medium over a stretching/ shrinking

  • surface. The ‡uid is electrically conducting. Magnetic …eld of

strength B0 is applied in normal direction to the sheet. A convective heat source with heat ‡ux boundary conditions provides temperature Tw at the surface. The Cartesian coordinates are used. The x axis is along the sheet and y axis is perpendicular to it. The origin is …xed. Here u, v are velocity components along horizontal and vertical directions. The induced magnetic …eld is

  • neglected. The permeability of medium is K0. The governing

equations of the motion are:

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 20 / 48

slide-41
SLIDE 41

Nomenclature

M2 = Magnetic Parameter λ = Suction Parameter Re = Reynolds’s Number Pr = Prandtl Number B0 =Strength of Transverse Magnetic Field σ =Electrical Conductivity µ = The Coe¢cient of Viscosity c = Positive Constant ρ = Fluid Density V0 = Injection Velocity η = Dimensionless Variable

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 21 / 48

slide-42
SLIDE 42

Mathematical Analysis

∂u/∂x + ∂v/∂y = 0, (3.1) u∂u/∂x + v∂u/∂y = υ∂2u/∂y2 σB2

0 u

ρ υ K0 u, (3.2) u∂T/∂x + v∂T/∂y = K 0 ρCp ∂2T/∂y2 (3.3) where µ is dynamic viscosity, ρ is ‡uid density, υ kinematic viscosity, Cp is the speci…c heat at constant pressure and K 0 is thermal conductivity.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 22 / 48

slide-43
SLIDE 43

Mathematical Analysis

The associated boundary conditions are: u = ax, υ = v0, K 0 ∂T ∂y = qw = E0x2 at y = 0 (3.4) u ! 0, T ! Tw as y ! ∞ where u > 0 corresponds with ‡ow over stretching surface and u < 0 for ‡ow over shrinking surface.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 23 / 48

slide-44
SLIDE 44

Mathematical Analysis

The similarity transformations are as follows: u = cxf 0(η), v = p υcf (η), (3.5) T T∞ = E0x2 K 0 r υ a θ(η), where η = yp a

υis dimensionless variable, E0 is positive constant, T∞

is temperature far away from the surface, qw is ratio of heat transfer.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 24 / 48

slide-45
SLIDE 45

Mathematical Analysis

The similarity transformations are as follows: u = cxf 0(η), v = p υcf (η), (3.5) T T∞ = E0x2 K 0 r υ a θ(η), where η = yp a

υis dimensionless variable, E0 is positive constant, T∞

is temperature far away from the surface, qw is ratio of heat transfer. ∂u/∂x = c f 00, ∂u/∂y = c f 00(∂η/∂y) = c f 00 rc υ = c2/3 υ1/2 f 00,

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 24 / 48

slide-46
SLIDE 46

Mathematical Analysis

and ∂2u/∂y2 = c2/3 υ1/2 rc υf 000 = c2 υ f 000,

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 25 / 48

slide-47
SLIDE 47

Mathematical Analysis

and ∂2u/∂y2 = c2/3 υ1/2 rc υf 000 = c2 υ f 000, also ∂v/∂x = and ∂v/∂y = p υcf 0 rc υ = cf 0,

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 25 / 48

slide-48
SLIDE 48

Mathematical Analysis

T T0 = E0x2 K 0 r υ c θ(η), ∂T/∂x = E0x2 K 0 r υ c θ(η)

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 26 / 48

slide-49
SLIDE 49

Mathematical Analysis

T T0 = E0x2 K 0 r υ c θ(η), ∂T/∂x = E0x2 K 0 r υ c θ(η) and ∂T/∂y = E0x2 K 0 r υ c θ0(η) rc υ = E0x2 K 0 θ0(η), ∂2T/∂y2 = E0x2 K 0 rc υθ00(η).

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 26 / 48

slide-50
SLIDE 50

Mathematical Analysis

The equation (3.1) is readily satis…ed and the equations (3.2) and (3.3) become: f 000 + ¤ 00 f 02 (M2 + 1 K )f 0 = 0, (3.6) θ00 + Prf θ0 2Prf 0θ = 0, (3.7) where prime denotes the di¤erentiation with respect to η, M2 = σB 2

ρc

is magnetic parameter, K = K0c

υ

is permeability parameter and Pr = µCp

K 0 .

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 27 / 48

slide-51
SLIDE 51

Mathematical Analysis

The boundary conditions (3.4) then become: f (0) = λ, f 0(0) = 1, θ0(0) = 1, f 0(∞) = 0, θ(∞) = 0.

  • (3.8)

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 28 / 48

slide-52
SLIDE 52

Results and Discussion

Discussion on Graphical Results

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 29 / 48

slide-53
SLIDE 53

Results and Discussion

Discussion on Graphical Results

The equations (3.6) and (3.7) are solved subject to the boundary conditions (3.8). The numerical results have been computed by using Mathematica 5.5 software. The e¤ects of the physical parameters namely magnetic parameter M2, suction parameter λ, permeability parameter K and Prandtl number Pr have been noticed on velocity and temperature distributions. The results have been presented graphically.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 29 / 48

slide-54
SLIDE 54

Results and Discussion

Discussion on Graphical Results

The equations (3.6) and (3.7) are solved subject to the boundary conditions (3.8). The numerical results have been computed by using Mathematica 5.5 software. The e¤ects of the physical parameters namely magnetic parameter M2, suction parameter λ, permeability parameter K and Prandtl number Pr have been noticed on velocity and temperature distributions. The results have been presented graphically. The ‡uid ‡ow due to stretching surface is described in …g-4.1 to …g-4.3.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 29 / 48

slide-55
SLIDE 55

Results and Discussion

Discussion on Graphical Results

The equations (3.6) and (3.7) are solved subject to the boundary conditions (3.8). The numerical results have been computed by using Mathematica 5.5 software. The e¤ects of the physical parameters namely magnetic parameter M2, suction parameter λ, permeability parameter K and Prandtl number Pr have been noticed on velocity and temperature distributions. The results have been presented graphically. The ‡uid ‡ow due to stretching surface is described in …g-4.1 to …g-4.3. Fig-4.1 and …g-4.2 respectively show that the velocity component f 0decreases with increasing values of M2 and λ.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 29 / 48

slide-56
SLIDE 56

Results and Discussion

Discussion on Graphical Results

The equations (3.6) and (3.7) are solved subject to the boundary conditions (3.8). The numerical results have been computed by using Mathematica 5.5 software. The e¤ects of the physical parameters namely magnetic parameter M2, suction parameter λ, permeability parameter K and Prandtl number Pr have been noticed on velocity and temperature distributions. The results have been presented graphically. The ‡uid ‡ow due to stretching surface is described in …g-4.1 to …g-4.3. Fig-4.1 and …g-4.2 respectively show that the velocity component f 0decreases with increasing values of M2 and λ. Fig- 4.3 demonstrates that velocity f 0 increases with increase in the value of K.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 29 / 48

slide-57
SLIDE 57

Results and Discussion

Discussion

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 30 / 48

slide-58
SLIDE 58

Results and Discussion

Discussion The ‡uid ‡ow over a shrinking surface is described in …g-4.4 to …g-4.6.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 30 / 48

slide-59
SLIDE 59

Results and Discussion

Discussion The ‡uid ‡ow over a shrinking surface is described in …g-4.4 to …g-4.6. The …g-4.4, …g-4.5 and …g-4.6 respectively show that the velocity f 0 increases with increasing values of M2, λ and K.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 30 / 48

slide-60
SLIDE 60

Results and Discussion

Discussion The ‡uid ‡ow over a shrinking surface is described in …g-4.4 to …g-4.6. The …g-4.4, …g-4.5 and …g-4.6 respectively show that the velocity f 0 increases with increasing values of M2, λ and K. The temperature distributions for ‡ow due to stretching surface are presented in …g-4.7 and …g-4.8.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 30 / 48

slide-61
SLIDE 61

Results and Discussion

Discussion The ‡uid ‡ow over a shrinking surface is described in …g-4.4 to …g-4.6. The …g-4.4, …g-4.5 and …g-4.6 respectively show that the velocity f 0 increases with increasing values of M2, λ and K. The temperature distributions for ‡ow due to stretching surface are presented in …g-4.7 and …g-4.8. The temperature function θ(η) decreases with increasing values of Pr and λ.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 30 / 48

slide-62
SLIDE 62

Results and Discussion

Discussion The ‡uid ‡ow over a shrinking surface is described in …g-4.4 to …g-4.6. The …g-4.4, …g-4.5 and …g-4.6 respectively show that the velocity f 0 increases with increasing values of M2, λ and K. The temperature distributions for ‡ow due to stretching surface are presented in …g-4.7 and …g-4.8. The temperature function θ(η) decreases with increasing values of Pr and λ. Fig-4.9 and …g-4.10 respectively demonstrate the e¤ects of Pr and λ

  • n θ(η) for ‡ow over shrinking surface.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 30 / 48

slide-63
SLIDE 63

Results and Discussion

Discussion The ‡uid ‡ow over a shrinking surface is described in …g-4.4 to …g-4.6. The …g-4.4, …g-4.5 and …g-4.6 respectively show that the velocity f 0 increases with increasing values of M2, λ and K. The temperature distributions for ‡ow due to stretching surface are presented in …g-4.7 and …g-4.8. The temperature function θ(η) decreases with increasing values of Pr and λ. Fig-4.9 and …g-4.10 respectively demonstrate the e¤ects of Pr and λ

  • n θ(η) for ‡ow over shrinking surface.

The temperature function θ(η) decreases for increase in the values of Pr and λ.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 30 / 48

slide-64
SLIDE 64

Results and Discussion

Discussion The ‡uid ‡ow over a shrinking surface is described in …g-4.4 to …g-4.6. The …g-4.4, …g-4.5 and …g-4.6 respectively show that the velocity f 0 increases with increasing values of M2, λ and K. The temperature distributions for ‡ow due to stretching surface are presented in …g-4.7 and …g-4.8. The temperature function θ(η) decreases with increasing values of Pr and λ. Fig-4.9 and …g-4.10 respectively demonstrate the e¤ects of Pr and λ

  • n θ(η) for ‡ow over shrinking surface.

The temperature function θ(η) decreases for increase in the values of Pr and λ. Fig-4.11 shows that temperature function θ(η) is higher for ‡ow over shrinking surface than for stretching surface.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 30 / 48

slide-65
SLIDE 65

Results and Discussion

Fig-4.1 shows that the velocity component f 0decreases with increasing values of M2.

4.1 Fig-4.1 Graph of f 0 for di¤erent values of M2 when K=100, λ =2, Pr=0.1

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 31 / 48

slide-66
SLIDE 66

Results and Discussion Fig-4.2 shows that the velocity component f 0decreases with increasing values of λ.

4.2 Fig-4.2 Graph of f 0 for di¤erent values of λ when K=100, M2 =2, Pr=0.1

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 32 / 48

slide-67
SLIDE 67

Results and Discussion

Fig-4.3 demonstrates that velocity f 0 increases with increase in the value of K.

4.3 Fig-4.3 Graph of f 0 for di¤erent values of K when M2=100, λ =2, Pr=0.1

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 33 / 48

slide-68
SLIDE 68

Results and Discussion

The ‡uid ‡ow over a shrinking surface is described in …g-4.4.

4.4 Fig-4.4 Graph of f 0 for di¤erent values of M2 when K=100, λ =2, Pr=0.1

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 34 / 48

slide-69
SLIDE 69

Results and Discussion

The ‡uid ‡ow over a shrinking surface is described in …g- 4.5.

4.5 Fig- 4.5 Graph of f 0 for di¤erent values of λ when K=100, M2 =2, Pr=0.1

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 35 / 48

slide-70
SLIDE 70

Results and Discussion

The ‡uid ‡ow over a shrinking surface is described in …g- 4.6.

4.6 Fig- 4.6 Graph of f 0 for di¤erent values of K when M2=100, λ =2, Pr=0.1

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 36 / 48

slide-71
SLIDE 71

Results and Discussion

The temperature distributions for ‡ow due to stretching surface are presented in …g-4.7.

4.7 Fig-4.7 Graph of θ for di¤erent values of Pr when K=100, λ =2, M2=2

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 37 / 48

slide-72
SLIDE 72

Results and Discussion

The temperature distributions for ‡ow due to stretching surface are presented in …g- 4.8.

4.8 Fig-4.8 Graph of θ for di¤erent values of λ when K=100, M2 =2, Pr=0.1

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 38 / 48

slide-73
SLIDE 73

Results and Discussion

Fig-4.9 demonstrate the e¤ects of Pr on θ(η) for ‡ow over shrinking surface.

4.9 Fig-4.9 Graph of f 0 for di¤erent values of Pr when K=100, λ =2, M2=2

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 39 / 48

slide-74
SLIDE 74

Results and Discussion

Fig-4.10 demonstrate the e¤ects of λ on θ(η) for ‡ow over shrinking surface.

4.10 Fig- 4.10 Graph of θ for di¤erent values of λ when K=100, M2 =2, Pr=0.1

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 40 / 48

slide-75
SLIDE 75

Results and Discussion

Fig-4.11 shows that temperature function θ(η) is higher for ‡ow over shrinking surface than for stretching surface.

4.11 Fig-4.11 Graph for the comparison of the values of θ for ‡ow over stretching/shrinking surface.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 41 / 48

slide-76
SLIDE 76

Bibliography I

[1] S. Able, P. H. Veena, K. Rajagopal & V. K. Pravin, Non- Newtonian magnetohyderodynamic ‡ow over a stretching surface with heat and mass transfer. International Journal of Nonlinear Mechanics 39, 1067-1078, 2004. [2] Farooq Ahmad, Sajjad Hussain, Ali Mansoor Alanbari and Rakan Saud Alharbi, MHD Flow And Heat Transfer Through A Porous Medium Over A Stretching/Shrinking Surface With Suction, Sci.Int.(Lahore), 27(2), 931-935, 2015. [3] F. Ahmad, Sajjad Hussain and M. Ali, An Analytical Solution of MHD Flow over Porous Stretching Sheet, J. Basic. Appl. Sci. Res., 4(3),160-167, 2014. [4] M. Ali, F. Ahmad and S. Hussain, Numerical Solution of MHD Flow of Fluid and Heat Transfer over Porous Stretching Sheet, J.

  • Basic. Appl. Sci. Res., 4(5),146-152, 2014.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 42 / 48

slide-77
SLIDE 77

Bibliography II

[5] S. Asghar, A. Ahmad and A. Alsaedi, Flow of a viscous ‡uid over an incompressible shrinking sheet, Applied Mathematics Letters, 26(12),1165-1168, 2013. [6] S. Baag, M. R. Acharya, G. C. Dash, MHD Flow Analysis Using DTM-Pade and Numerical Methods, American Journal of Fluid Dynamics, 4(1), 6-15, 2014. [7] R. N. Barik, G. C. Dashand & P. K. Rath, Heat and mass transfer

  • n MHD ‡ow through a porous Medium over a stretching surface with

heat source,Mathematical Theory and Modeling , 2(7), 49-60, 2012. [8] K. Bhattacharyya and I. Pop, MHD boundary layer ‡ow due to an exponentially shrinking sheet, MAGNETOHYDRODYNAMICS, 47(4), 337–344, 2011.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 43 / 48

slide-78
SLIDE 78

Bibliography III

[9] L. J. Crane, Flow past a stretching plate, Zeitschrift f¨ ur Angewandte Mathematik und Physik, 21(4), 645–647, 1970. [10] R. Cortell. On a certain boundary value problem arising in shrinking sheet ‡ows. Appl. Math. Comput., 217, 4086–4093, 2010. [11] T. G. Fang, Boundary layer ‡ow over a shrinking sheet with power-law velocity, International Journal of Heat and Mass Transfer, 51(25-26), 5838–5843, 2008. [12] T. Fang and J. Zhang, Closed-form exact solutions of MHD viscous ‡ow over a shrinking sheet, Communications in Nonlinear Science and Numerical Simulation, 14(7), 2853–2857, 2009. [13] P. S. Gupta and A. S. Gupta, Heat and mass transfer on a stretching sheet with suction or blowing, The Canadian Journal of Chemical Engineering, 55 (6), 744–746, 1977.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 44 / 48

slide-79
SLIDE 79

Bibliography IV

[14] T. Hayat, Z. Abbas, M. Sajid. On the analytic solution of magnetohydrodynamic ‡ow of a second grade ‡uid over a shrinking

  • sheet. ASME J. Appl. Mech., 74, 1165–1171, 2007.

[15] T. Hayat, T. Javed, M. Sajid. Analytic solution for MHD rotating ‡ow of a second grade ‡uid over a shrinking surface. Phys. Lett. A, 372, 3264–3273, 2008. [16] A. Ishak. MHD boundary layer ‡ow due to an exponentially stretching sheet with radiation e¤ect. Sains Malaysiana, 40, 391–395, 2011. [17] E. Magyari, B. Keller. Heat and mass transfer in the boundary layers on an exponentially stretching continuous surface. J. Phys. D.

  • Appl. Phys., 32, 577–585, 1999.

[18] M. Miklavcic and C. Y. Wang, Viscous ‡ow due to a shrinking sheet, Quarterly of Applied Mathematics, 64(2), 283–290, 2006.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 45 / 48

slide-80
SLIDE 80

Bibliography V

[19] I. Muhaimin, R. Kandasamy and A.B. Khamis, E¤ects of heat and mass transferon non-linear MHD boundary layer ‡ow over a shrinking sheet in the presence of suction, Applied Mathematics and Mechanics, 29(10),1309-1317, 2008. [20] N. F. M. Noor, S. A. Kechil, I. Hashim. Simple non-perturbative solution for MHD viscous ‡ow due to a shrinking sheet. Commun. Nonlinear Sci. Numer. Simul., 15, 144–148, 2010. [21] M. Q. Al-Odat, R. A. Damseh, T. A. Al-Azab. Thermal boundary layer on an exponentially stretching continuous surface in the presence

  • f magnetic …eld e¤ect. Int. J. Appl. Mech. Eng., 11, 289–299, 2006.

[22] K. B. Pavlov. Magnetohydrodynamic ‡ow of an incompressible viscous ‡uid caused by the deformation of a plane surface. Magnetohydrodynamics, 10(4), 507–509, 1974.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 46 / 48

slide-81
SLIDE 81

Bibliography VI

[23] M. Sajid and T. Hayat, The application of homotopy analysis method for MHD viscous ‡ow due to a shrinking sheet, Chaos, Solitons and Fractals, 39(3), 1317–1323, 2009. [24] B. C. Sakiadis, Boundary layer behavior on continuous solid surface: I. Boundary layer equations fortwo dimensional and axisymmetric ‡ow, AIChE Journal, 7(1), 26–28, 1961. [25] B. C. Sakiadis, Boundary layer behavior on continuous solid surface: II. Boundary layer equations for two dimensional and axisymmetric ‡ow, AIChE Journal, 7(1), 221–225, 1961. [26] C. Y. Wang, Stagnation ‡ow towards a shrinking sheet, Int. J. Non- Linear Mechanics, 43, 377-382, 2008.

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 47 / 48

slide-82
SLIDE 82

Thanks

THANKS

Ali & Rakan (College of Science Alzul…) Fluids Over Stretcing / Shrinking Sheet 14/07/1436 48 / 48
