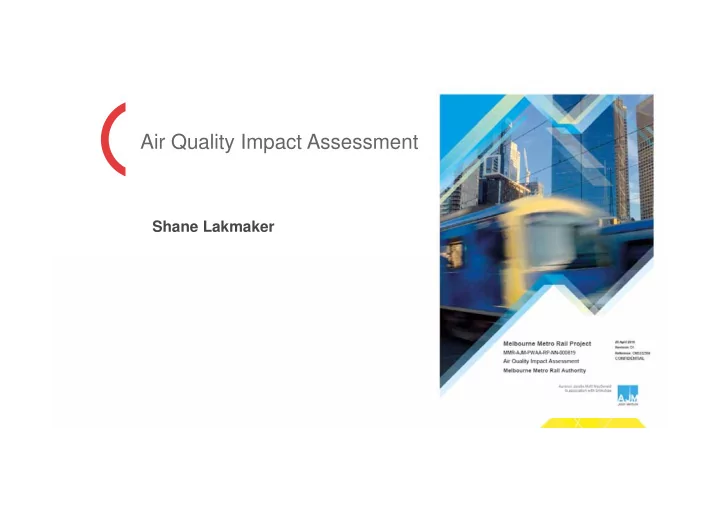

Air Quality Impact Assessment

1

Shane Lakmaker

Air Quality

EES Scoping Requirements

2

Evaluation objective Key Legislation Amenity: To minimise adverse air quality, noise or vibration effects on the amenity of nearby residents and local communities, as far as practicable, especially during the construction phase Environment Protection Act 1970, State Environment Protection Policies and guidelines, Planning and Environment Act 1987, Transport Integration Act 2010

Air Quality

Environmental Risk Assessment Outcomes

• Dust emissions from construction activities
• Exhaust emissions from on-site plant and equipment
• Emissions from construction traffic movements
• Increased / concentrated traffic emissions due to road closures or

diversions

• Emissions from ventilation outlets
• Odorous emissions from excavation, transport and disposal of soils

and sediments

3

Air Quality

Quantitative Assessment of Construction Sites

4

Air Quality

Meteorological Conditions

5

Air Quality

Emissions (example for Arden Precinct)

6

Activity and emissions in kg/y TSP PM10 PM2.5

Loading and unloading spoil to construction stockpiles

568 269 41

Wheel generated dust on unsealed surfaces

23,591 6,971 708

Wind erosion from exposed areas

12,264 6,132 920

Materials handling associated with concrete batch plant

2,362 1,181 177

Materials storage / wind erosion associated with concrete batch plant

2,016 1,008 151

Total

40,801 15,561 1,997

Air Quality

Existing Air Quality

• EPA measures air quality at 10 locations in the Port Phillip Air

Quality Control Region; some results for Richmond are shown below

7

Statistic from Richmond data 2011 2012 2013 2014 Objective Maximum 24‐hour average PM10 (µg/m3) 42 47 42 63 50 Annual average PM10 (µg/m3) 17 17 17 N/A ‐

Air Quality

Model Predictions

• Arden Precinct
• Maximum 24-hour

average PM10 concentrations (µg/m3) including background of 21 µg/m3

• Criteria = 50 µg/m3

8

Air Quality

Model Predictions

• Domain Precinct
• Maximum 24-hour

average PM10 concentrations (µg/m3) including background of 21 µg/m3

• Criteria = 50 µg/m3

9

Air Quality

Conclusions to the EES Technical Appendix H

• Construction activities at Arden and Domain represent the highest risk
• Concentrations of environmental indicators are predicted to comply

with air quality objectives and goals

• Compliance based on conventional dust mitigation practices
• Operational impacts are expected to be minimal, consistent with

monitoring in the vicinity of the existing network

10

Air Quality

Conclave of Air Quality Experts

• 1. Robust and transparent framework
• 2. The Botanica apartments will be sensitive to increases in local dust
• 3. Design criteria from SEPP (AQM) for point sources
• 4. Dispersion modelling and adequate basis for defining residual risk
• 5. Respirable crystalline silica
• 6. Further dispersion modelling
• 7. Community Liaison Committee

11

Air Quality

Environmental Performance Requirements

12

• Recommendation from Conclave is that EPR AQ1 is more

prescriptive in terms of the specific management measures.
