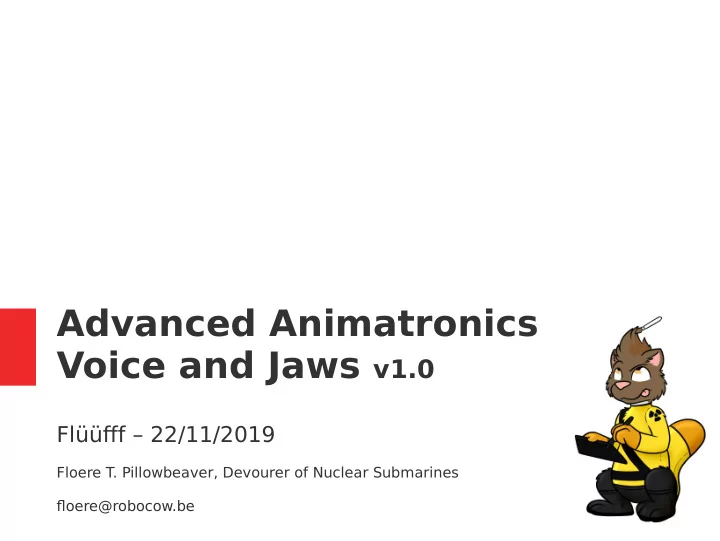

Advanced Animatronics Voice and Jaws v1.0

Flüüfgf – 22/11/2019

Floere T. Pillowbeaver, Devourer of Nuclear Submarines fmoere@robocow.be

2 / 60

What is this Talk About ?

• An overview of the State of the Art of moving

jaws and voice projection

• Why I think their performance is ‘meh’
• My research into a self-contained, real-time,

speech expression mimicking character with a clear voice

• All the good ideas that weren’t...

3 / 60

Content

• The Goal
• State of the Art
• Why Moving Jaws Fail
• Mapping Human Speech to a Character
• Dealing with Speech in the Real World
• Jaw Motion Capture
• Voice Projection
• Putting it all together

4 / 60

Goal: Puppet Without Strings

• Your character driven

by your acting

• Clear voice projection
• Live audience

interaction

• Everything self-

contained in the costume

• Comfortable
• Afgordable

Lip-syncing with puppet mask (manual actuated) Radula Castion – Zuzu’s White Rabbit https://www.youtube.com/watch?v=b2pDuWh3ik8

5 / 60

Low Integration Complexity

• Easy enough to

implement by hobbyists

• Not a movie-grade

animatronic with 30+ servos and a head full

• f gears
• Simple mechanisms

must suffjce

– Ofg-the-shelf parts – 3D printable

Gustav Hoegen

6 / 60

The Big Challenge

• Motion must be

psychologically correct, not necessarily physiologically correct!

• A big, fmappy mouth on

a fuzzy critter is not exactly real…

• Uncanny valley helps

→ stay non-human!

Wikipedia - Uncanny Valley Conjecture (Mori 1970)

7 / 60

Content

• The Goal
• State of the Art
• Why Moving Jaws Fail
• Mapping Human Speech to a Character
• Dealing with Speech in the Real World
• Jaw Motion Capture
• Voice Projection
• Putting it all together

8 / 60

Let’s Watch Some Videos...

• All of these are live performances by the costume actor themselves

(no lip-syncing or over-dubbing)

• Professional

–

Katey McGregor – T alking Mickey Mouse https://www.youtube.com/watch?v=762-tHwnAHg

–

Mascot – Animatronic Mascots https://www.youtube.com/watch?v=Ve3vuxII6Dc

–

Lunaspuppets - Human-Size Animatronic Robotic T alking Donkey Puppet

https://www.youtube.com/watch?v=Cv5yAfHWEY4

• Furry Fandom

–

Bake Me Up Buttercup – How to Measure Flour Correctly https://www.youtube.com/watch?v=YBkT5woqmAY

–

Beautyofthe Bass – Speaker Costume T alks Live! V3 https://www.youtube.com/watch?v=UWOWqe1kP7U

–

DRAGON =^‿^= - Howwwwwwdy folks and welcome to Monday

T witter: @GRNdragon0

9 / 60

It’s a Bit of a Mess, isn’t It?

• Professional work

– Limited, static articulation (blinks + simple mouth) – Good voice quality

• ...is not actually the case!
• Often a remote voice actor involved
• Often pre-recorded phrases (semi-scripted)

– Most costumes are actually puppets, controlled by

the actor’s hand/chin/tongue, or a remote operator

– Let’s have a look at this…

The Character Academy – How Disney Characters Blink https://www.youtube.com/watch?v=YRDBFc-TrtM

10 / 60

It’s a Bit of a Mess, isn’t It?

• Amateur work is actually better in some ways

– Articulated jaws can work (but often don’t)

• But it does not look like real speech!
• Good fjt = uncomfortable to use for long

– Voice is dull in real life

• YouTube videos use internal microphones
• Beautyofthe Bass is about the best one for

live voice projection

• There are cosplayers who use the “TC Helicon

Perform V” for voice projection, which works well (but bulky system)

11 / 60

Why is the Tech So Basic?

• There are many practicalities for the big boys

that limit scope (getting the character voices right, consistency with many actors per costume, training requirements, etc …)

• The main reason, I think, is because it is

actually a hard problem to solve in practice

• It would take a lot of money, or a motivated

idiot with a PhD...

12 / 60

Content

• The Goal
• State of the Art
• Why Moving Jaws Fail
• Mapping Human Speech to a Character
• Dealing with Speech in the Real World
• Jaw Motion Capture
• Voice Projection
• Putting it all together

13 / 60

Why Moving Jaws Fail for Speech

• Fundamentally: moving jaws do not work

well while speaking because normal speech does not use much jaw motion

• Any slop in the mechanism dulls jaw motion
• Some performers can make their jaw work

– Speaking with exaggerated jaw motion – E.g.: Buttercup and NIIC do this well

• Still does not feel right… (hint: visemes)

14 / 60

What the Science Says...

• There are two sets of muscles in the jaw:

– Big and very powerful ones for chewing and

large jaw motions. These are slow!

– Little, fast ones for speech – The big ones disengage when speaking

• Jaw motion during speech is usually small:

– Under ~0.3 cm pronouncing /ta/ and /te/

Ostry and Flanagan, 1989

• Some sounds (eg: vowels) can have large motion:

– Under ~2.5 cm pronouncing /a/

Vatikiotis-Bateson and Ostry, 1995

15 / 60

What the Science Says...

“Human Jaw Movement in Mastication and Speech”, D.J. Ostry and J.R. Flanagan,

• Archs. Oral Biol. Vol. 34, No. 9, pp. 685-693, 1989

Sensor attached to the chin, just posterior to the mental notch.

16 / 60

What the Science Says...

Marker 4 cm from lower incisors, ~on the midsagittal plane. “An Analysis of the Dimensianality of Jaw Motion in Speech”, E. Vatikiotis-Bateson and D.J. Ostry, Journal of Phonetics, Vol. 23, pp. 101-117, 1995

17 / 60

Content

• The Goal
• State of the Art
• Why Moving Jaws Fail
• Mapping Human Speech to a Character
• Dealing with Speech in the Real World
• Jaw Motion Capture
• Voice Projection
• Putting it all together

18 / 60

First, a Little...

19 / 60

How Speech is Produced

Haskins Laboratories

• K. Duh, M. Lloyd, M. Smiley

gosh.nhs.uk

20 / 60

How Speech is Produced

Jörgen Ahlberg – Source-Filter Model of Speech Production

21 / 60

Phonemes vs Visemes

• Animators learn that much of

visible speech is lip motion

• They use only a few visemes

– Many speech sounds

(phonemes) look alike

– Eg: to a lip reader

“elephant juice” = “I love you”

• Thus: we can simplify a lot
• Can we get phonemes from

speech?

– A very hard problem – Key to speech recognition

22 / 60

Mouth Shape from Sound?

• Look at the visemes

and try the utterances

– Voiced or louder

→ mouth more open

– Nasal or unvoiced

→ mouth more closed

• Try: “mama” “is” “na”
• Not perfect, but should

be good enough for a simple jaw

Wolf Paulus – Viseme Model with 12 Mouth Shapes

23 / 60

How We’re Going to Do It

• Key idea: rough visemes

– Estimate mouth state

from jaw + lips

– No actual phoneme

detection

– Don’t need perfection

• Jaw sensor

– Chin motion (slow) – Measured from jaw – Includes static poses

• Lip “sensor” (or/na mic)

– Lip motion (fast) – Estimated from

speech

– No action when silent

Jaw sensor Lip “sensor” Speech Analysis Jaw Servos Mouth Est.

24 / 60

Voicedness + Nasalence

• Voicing detection

– Voiced, unvoiced,

• r silence?

– How much energy?

• Nasalence

– How nasal is

voiced speech?

• Have done original

research on sensors

Donald Derrick – nasalence of na “A pattern recognition approach to voiced-unvoiced-silence classification with applications to speech recognition,” Bishnu S. Atal, Lawrence R. Rabiner, 1976.

25 / 60

Bringing it All Together

• Jaw activity gets us the “wide open” visemes,

as well as silent + static mouth motions

• Speech activity opens the lips
• Unvoiced speech and high nasalence counter-

act the lip opening

• Thus: voice signal adds the lost small (fast)

lips motion to the large (slow) jaw motion

– Lips can be separate or added to jaw motion

26 / 60

Bringing it All Together

• Mechanism

– Jaw → 1 servo

On jaw hinge

– Lips → 1/2 servos (opt.)

On lip actuation wires

• Sensors

– T

wo microphones (mouth + nose)

– Jaw strap

Eva Taylor – Animatronic Alien

https://makezine.com/2014/10/27/the-making-of-an-animatronic-alien/

27 / 60

Mechanisms

• Tioh

http://www.tioh.de/

• Radula Castion

https://radulacastion.wixsite.com/radulacastion

• “Animatronic Character Creation – Organic Mechanics I & II,”

Rick Lazzarini, Stan Winston School of Character Arts

skud duncan – Animatronic Jaw Test https://www.youtube.com/watch?v=15IVl1VYdSk Winter Snowmew - “Couple of my followers have been curious about the weird snout. Here is the snarl and mouth mechanics.”

28 / 60

How Good is “Simple”?

• We gain a lot with only jaw, or jaw + simple

lips (1 – 3 servos)

• Full expression of movie-grade animatronic

mouth would require many more servos and much more complex motion capture system

– This is not the point of this project – Afgorability and “bang for the buck” is key

29 / 60

Does Simple Lose Much?

• Let’s compare high-

end animatronics to a well-done lip sync

• I think small errors in

animation are working against it → uncanny valley

• Clearly: deminishing

returns

TheCharacterShop – TCSpolarbearWaldo.mov https://www.youtube.com/watch?v=bFW2azvVEdI Shanetheactor – MetroPCS Commercial https://www.youtube.com/watch?v=udlQ7SH_RtM Radula Castion – Zuzu’s White Rabbit https://www.youtube.com/watch?v=b2pDuWh3ik8

VS

30 / 60

So, Is It Really That Simple?

• Unfortunately, NO
• This is one of those things that seems easy

enough in principle, doable in the lab…

• ...but is much harder in the fjeld:

– Conventions are LOUD! – Voice acting gives bizarre speech patterns – Sensors don’t stay put

• Not practical to glue sensors to the face
• r require piercings/implants

– Computer vision systems not practical (yet)

31 / 60

Fundamental Limitations

• Errors in animation will happen (exp. 10-20%)
• Some patterns of speech and acting will fail

– Mouth held open for a long time – Mouth unmoving while speaking – Mouth held shut while mumbling

• Sudden, loud changes in environment may

result in jaw motion (surpirse?)

• No provisions for smiling, snarling, etc… yet

– Smile = mouth a little open for now...

32 / 60

Content

• The Goal
• State of the Art
• Why Moving Jaws Fail
• Mapping Human Speech to a Character
• Dealing with Speech in the Real World
• Jaw Motion Capture
• Voice Projection
• Putting it all together

33 / 60

Speech in LOTS of Noise

• Noise causes the jaw to move
• Conventions, outdoors:

– Loud, even during calm

moments

– Noise is non-stationary

• Adaptive fjlters required!
• I designed a 3-layer system
• Purpose of L1 and L2 is to lift

as much of our voice out of the noise as possible, so L3 can really go to town on the

• noise. (Which can also be a

voice! This is how it can tell the difgerence.)

L3 MMSE L2 GCCPF

L1 Cardioid Mic Ambient Mic

34 / 60

Speech in LOTS of Noise

35 / 60

Three-Layer Noise Reduction L1 Close-Talking Cardioid Microphone

• Start with as high a

SNR as we can!

• The test recording

was done facing a speaker set so loud I could hardly hear myself talk*

• The costume head

will also add some noise reduction

* This test recording was actually done using an omni-directional microphone, thus worst-case

36 / 60

Three-Layer Noise Reduction L2 Two-Channel Cancellation

• GCCPF - Generalized

Cross-Coupled Paired Filter

• Models the paths between

the noise reference and speech microphones, then substract the noise reference from the signal and vise-versa

• I modifjed the Sugiyama

algorithm to take better advantage of the close- talking mic and self-adjust to the stupid acoustic environment better

“Low Distortion Noise Cancellers – Revival of a Classical Technique,” Akihiko Sugiyama

37 / 60

Three-Layer Noise Reduction L3 One-Channel Cancellation

• Based on MMSE-STSA

noise estimation (Minimum Mean-Square Error Short-Time Spectral Amplitude)

• Related to the Audacity

noise canceller, but able to handle non-stationary noise conditions. Like your phone does!

• The example is set
• verly aggressive

“Development of speech technologies to support hearing through mobile terminal users,” T. Togawa, T. Otani, K. Suzuki, T. Taniguchi, 2015.

38 / 60

Speech in Frequency Domain

39 / 60

Handling the Algorithms

• The good news: they are adaptive

–

They will work in most environments

–

They will work with most speakers and languages

–

They will work with squeakers

• The bad news: they are adaptive

–

They can get it wrong at times

–

Many, many parameters to confjgure

• The good news: they are robust and forgiving

–

These are some of the most robust algo’s out there

–

Most of the parameters are fjxed for the application

• Your cellphone doesn’t need manual intervention either!

–

The remainder tunes easily to a specifjc costume

• There will be assistance software

40 / 60

Content

• The Goal
• State of the Art
• Why Moving Jaws Fail
• Mapping Human Speech to a Character
• Dealing with Speech in the Real World
• Jaw Motion Capture
• Voice Projection
• Putting it all together

41 / 60

Capturing Jaw Motion

• Well, I’ll just use a chin

strap with a stretch sensor and…

• Oh. Bugger
• Never mind, it’s not

comfortable anyway

• Tried a paddle, a bar,

elastic, etc…

– Shifts around too much – Interferes with speech

42 / 60

Capturing Jaw Motion

• Fibre-optic chin loop

– Very comfy – Quite robust – Cheap – Easy to manufacture – Looks boss!

• Based on exceeding the

critical bend angle and causing light to leak-out

• Still in development

– Needs an adaptive

algorithm!

Sensor output while saying “mama, papa”

43 / 60

An Aside: Cameras

• Why not just use computer vision?

– Aside from the latency? (need >50 fps) – Contrast with beards, balaclava’s; lighting (IR) – Powerful computer needed

(gets better, eg: Jetson board)

– Readily-available algorithms for facial

landmarking (Dlib) are rather noisy

• Kalman fjltering and such removed the fast

lip motion, or I had issues with overshoot,

• r noise again. Maybe LMS with access to

voice signal could work?

44 / 60

An Aside: Cameras

• Used in the industry

– Works very well – Good accuracy

• Not suitable for use in a

costume

– Need clear view of

face from a distance

– Complex algorithms

need powerful computers

Cara Motion Capture (www.vicon.com) DisneyResearchHub – Synthetic prior design for real time facial capture https://www.youtube.com/watch?v=w71vxi60SzM

45 / 60

An Aside: Cameras

• Dlib-based real-time

facial landmark annotation

• Requires aggressive

smoothing (Kalman)

– Filters-out all the

little motions

– Some overshoot

• Camera positioning

requirements and lighting not practical

RoboCow Industries

46 / 60

Content

• The Goal
• State of the Art
• Why Moving Jaws Fail
• Mapping Human Speech to a Character
• Dealing with Speech in the Real World
• Jaw Motion Capture
• Voice Projection
• Putting it all together

47 / 60

Voice System Overview

Close-Talking Cardioid Microphone 3L Noise Reduction Feed-Back Canceller Parametric Equalizer Cross-Over Sound Effects Amplifier Tweeter Mid-Range Woofer

48 / 60

Voice System Overview

Close-Talking Cardioid Microphone 3L Noise Reduction Feed-Back Canceller Parametric Equalizer Cross-Over Sound Effects Amplifier Tweeter Mid-Range Woofer

49 / 60

Awooooooooooo!!!!!!!!!!!

• It’ll howl allright...

– Larson efgect – Why there are few

costume voice systems out there

• Needs:

– Microphone design – Speaker design – Feed-back control

• Speech efgects help!

(eg: pitch shifting)

50 / 60

Adaptive Feed-Back Canceller

• Models the path between the

microphone and speaker

• Not magic: about 10 dB or so

extra gain

–

Cardioid mic + decent speaker design ~20 dB

–

T

• tal: 30 dB system gain!
• Good enough, as the goal is to

replicate your voice, at about the same volume. (Or “big creature” volume)

–

Not “punk band in a suit”!

• BUT: it’s about gain, not volume

–

If you can speak loud, the suit can also be LOUD

“Robust and Efficient Implementation of the PEM–AFROW Algorithm for Acoustic Feedback Cancellation,” G. Rombouts, T. Van Waterschoot,

• M. Moonen, 2007.

51 / 60

Voice System Overview

Close-Talking Cardioid Microphone 3L Noise Reduction Feed-Back Canceller Parametric Equalizer Cross-Over Sound Effects Amplifier Tweeter Mid-Range Woofer

52 / 60

Sound Efgects – An Example

• People love pitch shifters

– But it often sounds bad (kinda incomprehensible)

• Reason 1: simple (W)OLA algorithms (such as the one

commonly used on an Arduino) are NOT formant preserving

– This ruins the formant relationships in speech – A time-domain pitch shifter has to lock to F0 for that

• Such algorithms are far more numerically complex
• PSOLA is one such algorithm.
• Reason 2: artefacts increase with increasing shift

– Help the algorithm and actually voice act!

53 / 60

Voice System Overview

Close-Talking Cardioid Microphone 3L Noise Reduction Feed-Back Canceller Parametric Equalizer Cross-Over Sound Effects Amplifier Tweeter Mid-Range Woofer

54 / 60

Parametric Equalizer

• This corrects for the

muffmed voice

• Compensates the

fjlter efgect of the costume head, speaker response, microphone, etc...

• EQ tuning is complex

– REW to the rescue – With help from own

method for transfer function estimation

https://www.roomeqwizard.com/

55 / 60

Voice System Overview

Close-Talking Cardioid Microphone 3L Noise Reduction Feed-Back Canceller Parametric Equalizer Cross-Over Sound Effects Amplifier Tweeter Mid-Range Woofer

56 / 60

Why a Bi-Amped System?

• The voice MUST come from the

mouth for realism

• It’s hard to fjt a full-range

speaker in the mouth

• We can cheat a bit:

–

High frequencies do most for sound localization

–

T weeter/mid in the nose

–

T weeters are small!

• Mid-low range speaker can be

some place else (eg: cheeks, forehead, chin, chest, shoulders)

• Woofer can be almost anywhere

(no directionality)

3-D Audio & Applied Acoustics Lab Princeton

57 / 60

An Aside: Speaker Enclosures

• Enclosure or sound

board required for proper sound

– Avoid comb fjltering

due to acoustic short-circuit

• Must be big enough
• Helps with speaker ↔

microphone isolation

• Best is right in front of

the microphone (if cardioid)

Elliot Sound Products

58 / 60

Content

• The Goal
• State of the Art
• Why Moving Jaws Fail
• Mapping Human Speech to a Character
• Dealing with Speech in the Real World
• Jaw Motion Capture
• Voice Projection
• Putting it all together

59 / 60

Eh, Yeah… About That...

I ran out of time for Flüüfff… Research = 99% falling on my face in high spirits 0.9% crying under a blanket 0.1% success It’ll be working by NFC 2020! (I hope... It’s a nice blanket)
