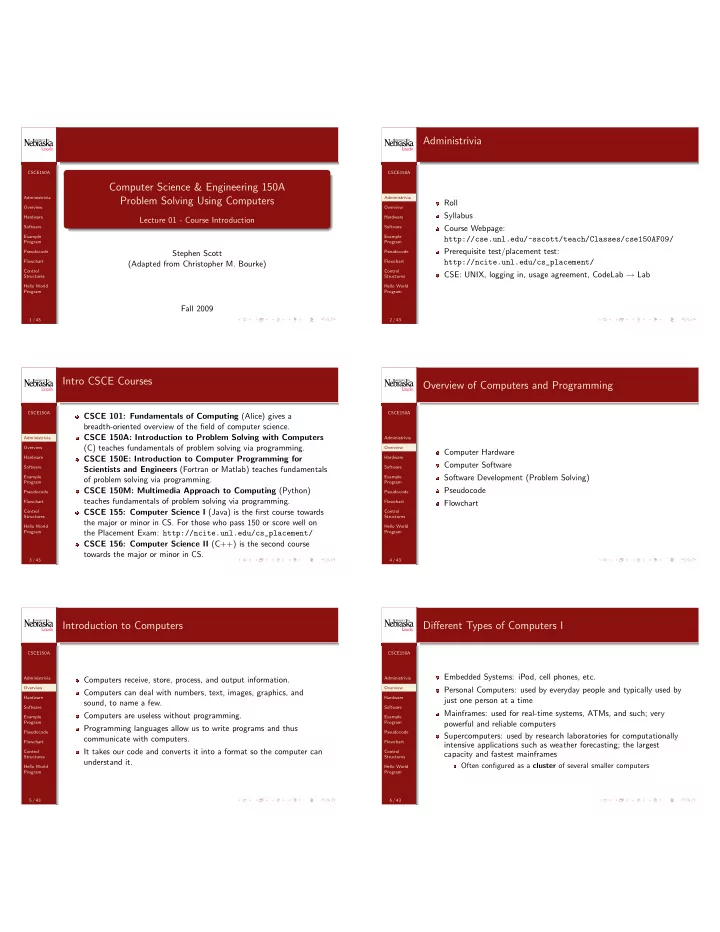

Computer Science & Engineering 150A Problem Solving Using Computers

Lecture 01 - Course Introduction Stephen Scott (Adapted from Christopher M. Bourke) Fall 2009

1 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Administrivia

Roll Syllabus Course Webpage: http://cse.unl.edu/~sscott/teach/Classes/cse150AF09/ Prerequisite test/placement test: http://ncite.unl.edu/cs_placement/ CSE: UNIX, logging in, usage agreement, CodeLab → Lab

2 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Intro CSCE Courses

CSCE 101: Fundamentals of Computing (Alice) gives a breadth-oriented overview of the field of computer science. CSCE 150A: Introduction to Problem Solving with Computers (C) teaches fundamentals of problem solving via programming. CSCE 150E: Introduction to Computer Programming for Scientists and Engineers (Fortran or Matlab) teaches fundamentals

• f problem solving via programming.

CSCE 150M: Multimedia Approach to Computing (Python) teaches fundamentals of problem solving via programming. CSCE 155: Computer Science I (Java) is the first course towards the major or minor in CS. For those who pass 150 or score well on the Placement Exam: http://ncite.unl.edu/cs_placement/ CSCE 156: Computer Science II (C++) is the second course towards the major or minor in CS.

3 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Overview of Computers and Programming

Computer Hardware Computer Software Software Development (Problem Solving) Pseudocode Flowchart

4 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Introduction to Computers

Computers receive, store, process, and output information. Computers can deal with numbers, text, images, graphics, and sound, to name a few. Computers are useless without programming. Programming languages allow us to write programs and thus communicate with computers. It takes our code and converts it into a format so the computer can understand it.

5 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Different Types of Computers I

Embedded Systems: iPod, cell phones, etc. Personal Computers: used by everyday people and typically used by just one person at a time Mainframes: used for real-time systems, ATMs, and such; very powerful and reliable computers Supercomputers: used by research laboratories for computationally intensive applications such as weather forecasting; the largest capacity and fastest mainframes

Often configured as a cluster of several smaller computers

6 / 43

CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Different Types of Computers II

Figure: PrairieFire is a 98-node Beowulf cluster, originally constructed in 2002. It originally scored an HPL benchmark number of 442.50 GFlops, which was then the 107th most powerful supercomputer in the world, according to the TOP500 supercomputer list. See http://rcf.unl.edu/prairiefire/index.php

7 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Hardware vs. Software

Hardware is the equipment used to perform the necessary

• computations. E.g. CPU, monitor, keyboard, mouse, printer, etc.

Software is the programs that enable us to solve problems with a computers by providing it with a list of instructions to follow. Examples: Word, Firefox, games, etc. Firmware - small programs stored in non-volatile memory

8 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Computer Hardware

Main Memory

RAM - Random Access Memory - Memory that can be accessed in any order ROM - Read Only Memory - Memory that cannot be written to

Secondary Memory - Hard disks, flash drives, CDs, DVDs, etc. Central Processing Unit (CPU) - Coordinating all computer

• perations and perform arithmetic and logical operations

Input/Output Devices - Monitor, printer, keyboard, & mouse Computer Networks (not hardware, but configuration of the hardware) - WAN, LAN, MAN, Wireless LAN

9 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Memory I

Memory is an essential component in any computer. Memory Cell - the storage location Address - the location of the memory cell relative to other memory cells Content - what is stored in the memory cell

All programs run in memory Every memory cell has content, whether we know it or not. So always initialize variables

10 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Memory II

Address Contents

• 27.2

1 42 2 0.005 3

• 26

4 H . . . . . . 998 x 999 75.62

Figure: Portion of Memory Cells

11 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Memory III

bit - deriving from binary digit, is either a 0 or 1 byte - a memory cell is actually a grouping of smaller units called

• bytes. A byte is made up of 8 bits

Example: A single character, H requires a byte to store kilobyte: 1024 bytes (not 1000 bytes) In general, memory sizes are powers of two, 210 = 1024 is the power

• f two closest to 1, 000

megabyte: 220 = 1, 048, 576 bytes (or 1024 kilobytes) gigabyte: 230 = 1, 073, 741, 824 bytes (or 1024 megabytes) kilo-, mega-, giga- may refer to bytes in base-10 in some contexts (network data) or when discussing bits

12 / 43

CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Memory

Exercise

Problem

A certain portable MP3 player is advertised as a having a “30GB” hard

• drive. In reality, it has 30, 000, 000, 000 bytes. How many actual (base-2)

gigabytes does it have?

13 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Memory

Exercise

Problem

A certain portable MP3 player is advertised as a having a “30GB” hard

• drive. In reality, it has 30, 000, 000, 000 bytes. How many actual (base-2)

gigabytes does it have? Divide by the number of bytes in a gigabyte:

13 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Memory

Exercise

Problem

A certain portable MP3 player is advertised as a having a “30GB” hard

• drive. In reality, it has 30, 000, 000, 000 bytes. How many actual (base-2)

gigabytes does it have? Divide by the number of bytes in a gigabyte: 30, 000, 000, 000 bytes 1024 × 1024 × 1024 bytes-per-gigabyte

13 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Memory

Exercise

Problem

A certain portable MP3 player is advertised as a having a “30GB” hard

• drive. In reality, it has 30, 000, 000, 000 bytes. How many actual (base-2)

gigabytes does it have? Divide by the number of bytes in a gigabyte: 30, 000, 000, 000 bytes 1024 × 1024 × 1024 bytes-per-gigabyte = 27.93GB

13 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Computer Software I

Operating System - controls the interaction between machine and user Communicate with user Manage memory Collect input/Display output Read/write data

14 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Computer Software II

Figure: OS/device interaction

15 / 43

CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Computer Software III

Application Software - developed to assist a computer use in accomplishing specific tasks (e.g. Word, Excel, Safari, etc.)

16 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Computer Languages

Machine Language - A collection of binary numbers

Machine language is not standardized, and will vary between families

• f processors, such as Intel (x86) and Macintosh

ML bits directly control the electronic circuits

Assembly Language - mnemonic codes rather than binary

Low-level language - A language that is close to the hardware

High-level Languages - combine algebraic expressions and symbols from English

High-level language (HLL) - Closer to human language, easier to read, write, and maintain Must be translated to Machine language Independent from the hardware E.g. Fortran, Cobol, Lisp, C, Prolog, Pascal, C#, Java

17 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Computer Languages

Figure: Language Hierarchy

18 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Examples of Different Levels of Computer Languages

Figure: Examples of Languages

19 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Compiling Code

Compiling is the process of taking your source code and turning it into executable code Source file - A file containing the program code

A compiler turns the source file into an object file

Object file - a file containing machine language instructions

A Linker turns the object file into an executable

Integrated Development Environment (IDE) - a program that combines simple word processing with a compiler, linker, and loader

20 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Compiler Overview

21 / 43

CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Software Development Method

Specify the problem requirements Analyze the problem Design the algorithm to solve the problem Implement the algorithm Test and verify the completed program Maintain and update the program

22 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Steps Defined

Problem - specifying the problem requirements forces you to better understand the problem Analysis - analyzing the problem involves identifying the problem’s inputs, outputs, and additional requirements Design - designing the algorithm to solve the problem requires you to develop a list of steps that solve the problem and verify the steps Implementation - implementing is writing the algorithm as a program Testing - testing accuracy of the program Maintenance - maintaining involves finding previously undetected errors and update the program to code

Problems and setbacks are part of the process.

23 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Example: Converting Miles to Kilometers

Problem - convert miles to kilometers Analysis

Input: Number of miles, Output: Number of kilometers, Relevant info: 1 mile = 1.609 kilometers Design:

1

Get distance in miles

2

Convert to kilometers

3

Display kilometers

24 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Example Program

Miles to Kilometer Conversion 1 #include <stdio.h> 2 int main(void) 3 { 4 double miles , kilometers; 5 printf("How many miles do you have?"); 6 7 scanf("%lf" ,&miles ); 8 9 kilometers = miles * 1.609; 10 printf("You have %f kilometers\n",kilometers ); 11 12 return 0; 13 }

25 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Testing

We need to test the previous program to make sure it works. To test we run our program and enter different values and make sure the output is correct.

26 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Pseudocode

Algorithm - A list of steps for solving a problem; can be represented as pseudocode or as a flowchart Pseudocode - A combination of English phrases and C constructs to describe algorithm steps Flowchart - A diagram that shows the step-by-step execution of a control structure

Less commonly used than pseudocode, but gives you a visual feel for the flow of the program

27 / 43

CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Pseudocode

Pseudocode is simply an outline of a program

Cannot be compiled nor executed There are no formatting or syntax rules

The benefit of pseudocode is that it enables the programmer to concentrate on the algorithms without worrying about the syntactic details of a particular programming language. In fact, You can write pseudocode without even knowing what programming language you will use for the final implementation Program M2KM:

1

Input Miles

2

kilometers = 1.609 × miles

3

Output kilometers

28 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Example of Pseudocode

Problem - How do I compute my grade for this course? Specify the problem - get the scores for elements of the course and compute the final grade Analyze the problem - we need to input the scores and percentage for each part of the course and output the grade Design -

1

Get the scores for homeworks, quizzes, exams, learning objects, and lab

2

FinalScore = homework * 0.35 + quizzes * 0.10 + midterm * 0.1 + final * 0.15 + lab * 0.25 + learningObjects * 0.05

3

Output FinalScore

Implement - We can implement after we learn how to program

29 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Flowchart

Figure: Flowchart objects

30 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Example of Flowchart

Figure: Flowchart Example: ATM

31 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Seven Structures

Control Structure: A method for controlling the order in which instructions execute In C, there are 7 control structures

1

Sequential

2

If-Then

3

If-Then-Else

4

Switch

5

For-Do

6

While-Do

7

Do-While

32 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Sequential

Use a sequential structure whenever program statements follow one after the another with no decisions and no repetitions Processing flow is always downward from top to bottom in sequential structures

Figure: Sequence

33 / 43

CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

If Then

Use the If-Then structure when there is a single process to do or not do Processing flow is down either the left side or the right side A conditional is checked. If it is true then the action is performed If the conditional is false then the action is not performed and the flow continues

Figure: If Then

34 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

If Then Else

Figure: If Then Else

Use If Then Else when one of two processes must be chosen Processing flow is down either the left side or the right side Similar to the If-Else, a conditional is checked, but some action is performed in either event

35 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Switch

Whenever there are multiple potential

• ptions depending on a single values, use the

switch statement Example: Multiple If-Then-Else statements If a conditional can match several possibilities, then a different action must be chosen for each possibility

Figure: Switch

36 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

For-Do

Figure: For-Do

Use For-Do when you need to repeat an action multiple times, and you know how many times you will repeat it Also known as a For Loop A specific action or actions are executed for as many times as are specified Must know the number of times to be executed up front (though may still be variable: n)

37 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

While-Do

Use While-Do when the number of loops is unknown and process might not be executed at all (indeterminate pre-test) A conditional is checked before each execution to see if the loop should continue

• r end

Each time the loop executes, (hopefully) progress is made toward its terminating condition

Figure: While-Do

38 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Do-While

Do-While: similar to While-Do, but the action is executed at least once unconditionally Conditional can be seen as being checked at the end of the loop Difference is subtle but important

Figure: Do-While

39 / 43

CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Which Control Structure to Use

Figure: Flowchart to decide which type of control

40 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Questions Questions?

41 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Example Program

Your First Program

Your first program:

1 Edit code using your favorite text editor (pico, emacs, gvim (tip: use

gvim Easy), etc.)

2 Save code to a file, helloWorld.c 3 CSE command line: use gcc to compile into an executable file,

a.out

4 Run program by calling a.out 5 More details in lab 42 / 43 CSCE150A Administrivia Overview Hardware Software Example Program Pseudocode Flowchart Control Structures Hello World Program

Example Program

Hello World

1 #include <stdlib.h> 2 #include <stdio.h> 3 4 int main(int argc , char *argv []) 5 { 6 printf("Hello World !\n"); 7 return 0; 8 }
