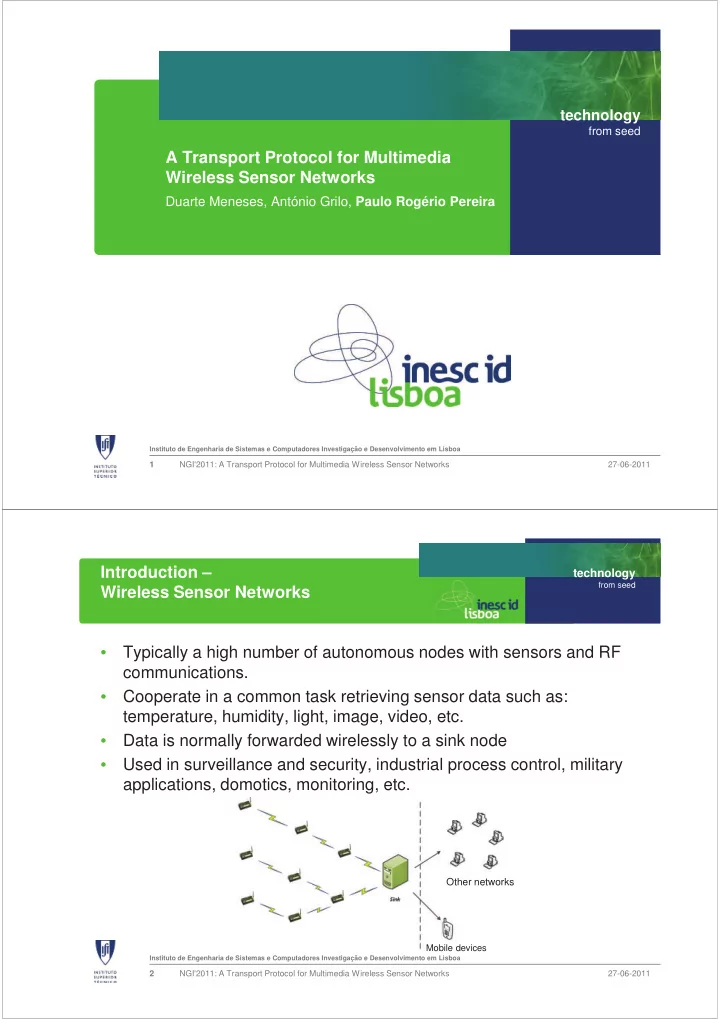

A Transport Protocol for Multimedia Wireless Sensor Networks

Duarte Meneses, António Grilo, Paulo Rogério Pereira

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

27-06-2011 1 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

technology

from seed

Introduction – Wireless Sensor Networks

• Typically a high number of autonomous nodes with sensors and RF

communications.

• Cooperate in a common task retrieving sensor data such as:

temperature, humidity, light, image, video, etc.

• Data is normally forwarded wirelessly to a sink node
• Used in surveillance and security, industrial process control, military

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

• Used in surveillance and security, industrial process control, military

applications, domotics, monitoring, etc.

27-06-2011 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks 2

Other networks

Mobile devices

technology

from seed

Motivation

• Protection of critical infrastructures, namely electrical energy

distribution infrastructures

• Multimedia data from cameras is routed multi-hop to the sink
• WSN advantages: ease of installation, configuration, flexibility, low

power

• TCP: end-to-end, loss assumed as congestion, RTT delays

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

• TCP: end-to-end, loss assumed as congestion, RTT delays
• New transport protocol tailored for WSN: DTSN.

27-06-2011 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks 3

technology

from seed

Objectives

Transport protocol for WSN with the following characteristics:

• Adapted to embedded systems
• Battery operated
• Runs on Linux
• Support reliability

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

• Support reliability
• Optimize multimedia data transfers, particularly real-time

video

• Support several simultaneous applications
• Support security mechanisms
• Ease of use through an API

27-06-2011 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks 4

technology

from seed

Purpose: Reliability Guarantee and/or Congestion Control

Several different characteristics and mechanisms:

• upstream/downstream communication
• Loss feedback through: ACK, NACK, iACK
• Lost segment detection: sequence number continuity or

timers for each segment

Transport Protocols for WSN

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

timers for each segment

• end-to-end or hop-by-hop

recovery

• Two types of target

applications: sending events or sending large data volumes

27-06-2011 5 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

• !
• technology

from seed

• Sessions identified by

a Session Number, Application ID, source and destination addresses

• Feedback when

requested by the source through an DTSN

DATA 0 DATA 3 DATA 2 DATA 1 DATA 8 DATA 4 DATA 6 DATA 5 DATA 7 + EAR DATA 10 DATA 12 DATA 11 DATA 9 DATA 13 DATA 15 + EAR DATA 14 DATA 3 DATA 2 DATA 4 DATA 6 DATA 5 DATA 7 + EAR DATA 10 DATA 12 DATA 11 DATA 9 DATA 13 DATA 14 DATA 3 DATA 4 DATA 6 DATA 5 DATA 10 DATA 12 DATA 11 DATA 13 DATA 14 EAR 15 DATA 7 + EAR NACK 0, <0,1,2,3>

Node 1 Node 3 Node 2

NACK 0, <0,1,2>

Node 4

DATA 3 EAR Timeout

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

source through an Explicit Acknowledgement Request (EAR)

• Losses detected

through the sequence number continuity

• Selective Repeat

retransmission hop- by-hop: intermediate nodes cache packets

27-06-2011 6 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

EAR 15 EAR 15 EAR 15 NACK 0, <0,1,2,8,9,10,12,15> DATA 10 DATA 12 NACK 0, <0,1,2,8,9,15> NACK 0, <0,1,8,15> DATA 0 DATA 1

t

DATA 8 DATA 15 Flow Control Timeout EAR 15 EAR 15 EAR 15 DATA 0 DATA 1 DATA 8 DATA 15 DATA 0 DATA 1 DATA 15 NACK 7, <8,10,12> NACK 7, <8,12> NACK 7, <> DATA 2 DATA 9 DATA 2 DATA 9 DATA 10 DATA 8 DATA 12 DATA 8 DATA 12 DATA 17 DATA 16 DATA 18 DATA 20 DATA 19 DATA 17 DATA 16 DATA 18 DATA 19 DATA 17 DATA 16 DATA 18 DATA 19 DATA 21

technology

from seed

Expected number of links crossed: Expected number of transmissions per

Probabilistic Model

Success probability:

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

packet: Generalized formulas for different losses in each link:

27-06-2011 7 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

technology

from seed

Expected number of transmissions when packets are cached with 50% probability:

Probabilistic model 2

"# "" "$

• Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

27-06-2011 8 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks % & ' "# #(#" #(#$ #(#) #(#* #(#+ #(#, #(#% #(#& #(#' #("

• ..$+/-0
• .$+/-0
• 1-+#/
• .
• ..

technology

from seed

• The protocol is generic: can work over several wireless

technologies and hardware

• The Silex SX-560 was used.
• Supports Wi-Fi 802.11a/b/g.
• 200 MHz 32-bit ARM processor
• 16 MB RAM

Development Platform

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

• 16 MB RAM
• 8MB Flash
• Runs Linux
• 792 mW average power
• 49.6 x 34.3 x 9.65 mm
• Developer’s daughtercard with

USB, serial, SPI, GPIO, Ethernet, power

27-06-2011 9 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

technology

from seed

General Architecture

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

• DTSN implemented as a single daemon process for all node

types: source, receiver and intermediate nodes.

• Clients use the protocol through a library that connects to the

daemon through UNIX sockets

• Several configuration parameters may be adjusted in a

configuration file

27-06-2011 10 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

technology

from seed

• Dynamic library
• Interface similar to the Unix sockets interface
• Simple operation, with most work done centrally in the

daemon

• The application can receive asynchronous events
• Threads, blocking and exclusive access implemented

API

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

• Threads, blocking and exclusive access implemented

through the pthread library

27-06-2011 11 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

technology

from seed

• Header present in all packets:

Bit Flag ACK 1 NACK 2 EAR 3 DATA 4 RESEND 5 ENDSESSION 6 (not used 7 (not used)

DTSN Sessions 1

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

• Soft unidirectional sessions, identified by <App ID, Session No,

Src Addr, Dest Addr>. No connection establishment: the applications just creates the session and start sending packets

• A complete session description is maintained with buffers, timers,

ID, mode, etc.

• The session can be kept internally after being closed by the

application

7 (not used) 27-06-2011 12 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

technology

from seed

• Sliding windows mapped into circular buffers
• Both windows synchronized.
• Simple flow control by limiting the number of unconfirmed

packets

DTSN Sessions 2

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

sender receiver

27-06-2011 13 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

3 6 8 367 3 6 6 365 364 3 6 3 362 361 360 3 5 9 3 5 8 369 3 7 371 372 373 374 3 7 5 3 7 6

Aplication

Oldest unconfirmed segment Last segment sent Where the next segment will be placed

DTSN 368 367 3 6 6 365 364 363 362 361 360 359 3 5 8 3 6 9 3 7 371 372 373 374 375 376 Aplication

Next expected segment Last segment received Next segment to be read by the application

DTSN

technology

from seed

• Intermediate nodes participate in packet recovery
• Space uniformly divided through existing sessions
• Packets kept in linked lists
• FIFO for each session
• Other caching policies for

2 34 2 34 2 34

• Cache

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

• Other caching policies for

future work

• Packets eliminated with

ACK/NACK/ENDSESSION received if security is not used

27-06-2011 14 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

34 5 ((( 34 5 ((( 34 5 (((

6330 73689

technology

from seed

• Activity Timeout: used when the sender window is not empty or

full, and no new data is received from the application, to trigger sending an EAR.

• EAR Timeout: used when an EAR was sent and the sender is

There are 5 timers with different periods and purposes. There is always a single one active at each time for each session. Timers

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

• EAR Timeout: used when an EAR was sent and the sender is

waiting for a NACK/ACK.

• Wait Timeout: used when the sender window is empty to destroy

a session without activity.

• Flow control Timeout: Active when the sender window is full
• Receiver Activity Timeout: only timer used by the receiver,

restarted every time a packet is received from the source.

sender receiver

27-06-2011 15 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

technology

from seed

Security 1

• Most WSN protocols ignore the security issues, assuming

it is assured by lower layers (e.g. MAC).

– This may be energetically inefficient, as only some (important) packets require security

• Attacks possible by packet replication or injection

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

– Purpose: denial of service, data manipulation, reduce node lifetime

• Security requires some overhead, increasing energy spent
• Security is optional: the application decides
• The DTSN security extension uses symmetric

cryptographic functions (HMAC based on the SHA-2 hash function).

27-06-2011 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks 16

technology

from seed

masterkey “ACK master key” |AppId ACK master key NACK master key HMAC HMAC HMAC HMAC

KACK

(n)

KNACK

(n)

“per packet ACK key” |n HMAC HMAC

MICNACK

(n)

MICACK

(n)

<packet contents>

Message Integrity Code (MIC) and key computation: Security 2

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

Packet format:

“NACK master key” |AppId “per packet NACK key” |n <packet contents>

27-06-2011 17 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

• "%

"% "% " 9& 5 ", $

: :

• ",

", 5

• ",

technology

from seed

• M-DTSN functionality implemented, allows restarting a
• session. The following actions are performed:
• Discard all packets in the sender window and change the session nr.
• Intermediate nodes also discard cached packets
• The receiver eliminates data from the window and notifies the

application Multimedia

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

3" 3$ 3) 3" 3$ 3)

• !

;3 ;3. ..3 ..3.

• A new session is implicitly started without additional overhead
• The idea is to give up
• n sending data from

a frame after a temporal limit set by the application.

27-06-2011 18 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

technology

from seed

• A module to simulate a sensor network over a LAN was developed
• Routing is made based on DTSN addresses
• Arbitrary bit error rates can be configured
• A 1.95 MB file was transmitted over 7 hops
• 5 situations tested:
• 512 bytes payload with and without cache
• 512, 350 and 200 bytes payload with security and cache

Simulation

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

512, 350 and 200 bytes payload with security and cache

• Single hop between a PC and a Silex to measure throughput

27-06-2011 19 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks " "'$(",&()(" " "'$(",&()(" * "'$(",&()(* + "'$(",&()(+ , "'$(",&()(, % "'$(",&()(% & "'$(",&()(& " "'$(",&()(" $ "'$(",&()($ ) "'$(",&()()

• technology

from seed

$)$ "&% "&, "'# ",& "+) "," *,& **+ )%$ )', )*' )$" )$* %', ,+, %%, ,$* *%, +$, *+$

$## )## *## +## ,## %## &##

"#

$#$ "&$ "%% "," ",& "+$ "'" )"& )$# )#, $'" $&' )#& $') *&, *') *+) *)# *", *+$ *$, $## )## *## +## ,## %## &##

"#

Results 1

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa %% ** *& )" )% *" )+ "+)

# "##

" $ ) * + , %

• <#(#"

<#(#* <#(#% <#("

*+ *' )) *, *, *" *+ "," "+$ # "## $## " $ ) * + , %

• <#(#"

<#(#* <#(#% <#("

27-06-2011 20 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

% %(" %($ %() %(* %(+ %(, %(% %(& %(' #(#" #(#* #(#% #("

$%&" #

technology

from seed

• Comparing the 5 tested scenarios:

Results 2

#(+& #(++ #(&) #(*, #(,& #(,% "(#& #(+ #(, #(% #(& #(' " "("

• '

"# ""

• Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

27-06-2011 21 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

200 512 #(#) #("* #($* #()% #(#, #($$ #()' #(#& #()) #(#& #($, #(*, #(#& #()$ # #(" #($ #() #(* #(+ $(*=#, '(,=#, "(%=#+ $(+=#+

' (

• .-$##.
• .-)+#.
• .-+"$.
• -+"$.
• -+"$.

% & $(*=#, '('=#, "(%=#+ $(+=#+ $%& (

• .-$##.
• .-)+#.
• .-+"$.
• -+"$.
• -+"$.

technology

from seed

Results 3

#("* #(", #("& #($ #($$ #($* #($, #($& #()

% "" "$ ") "* "+ ", "% "& "' $# $" $$ $) $* * +

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

27-06-2011 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks 22

# #(#$ #(#* #(#, #(#& #(" #("$ $(*=#, '('=#, "(%=#+ $(+=#+

)% (

• .-$##.
• .-)+#.
• .-+"$.
• -+"$.
• -+"$.

# " $ ) * + , % & ' "# "" $(*=#, '(,=#, "(%=#+ $(+=#+

• (
• .-$##.
• .-)+#.
• .-+"$.
• -+"$.
• -+"$.

technology

from seed

Results 4

PC Silex Silex PC DTSN 10.36 s (1.51 Mbps) 8.03 s (1.94 Mbps) DTSN with security 10.97 s (1.42 Mbps) 8.22 s (1.90 Mbps)

• 1.95 MB file transfer over a 10Mbps Ethernet
• 1 hop, no link errors
• Performance results:

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

• High overhead in the communication between the protocol

and application

• The security option impact on performance is not significant

DTSN with security 10.97 s (1.42 Mbps) 8.22 s (1.90 Mbps) DTSN without delivery to application on Silex 4.69 s (3.33 Mbps) 8.03 s (1.94 Mbps) TFTP (UDP) 12.0 s (1.30 Mbps) 79.9 s (0.20 Mbps) FTP (TCP) 3.00 s (5.20 Mbps) 5.17 s (3.02 Mbps)

27-06-2011 23 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

technology

from seed

Results 5

• Optimized version performance results:

PC -> PC

(Fast Ethernet)

[Mbps] PC -> Silex

(802.11b)

[Mbps] Silex -> PC

(802.11b)

[Mbps] Silex -> Silex

(802.11b)

[Mbps] DTSN 83.20 2.36 3.21 2.69

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

• Much better performance
• Silex CPU performance is a limitation

27-06-2011 24 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks

DTSN 83.20 2.36 3.21 2.69 DTSN with security 62.42 1.68 2.02 1.87 FTP 88.68 5.73 4.47 4.69 TFTP 10.96 0.34 0.29 0.17

technology

from seed

Conclusion

• A transport protocol for real-time streaming in WMSN was

successfully implemented and tested.

• Tests prove the correct operation and show that DTSN is

efficient in reducing the number of transmissions in WMSN, thus saving energy.

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

WMSN, thus saving energy.

• Future work:

– Dynamic parameters, such as timeouts, window and cache sizes – New caching policies, for instance by storing packets with probability less than 1, according to the distance to destination, etc. – raw sockets – BeagleBoard

27-06-2011 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks 25

technology

from seed

technology from seed

Instituto de Engenharia de Sistemas e Computadores Investigação e Desenvolvimento em Lisboa

27-06-2011 NGI'2011: A Transport Protocol for Multimedia Wireless Sensor Networks 26

from seed
