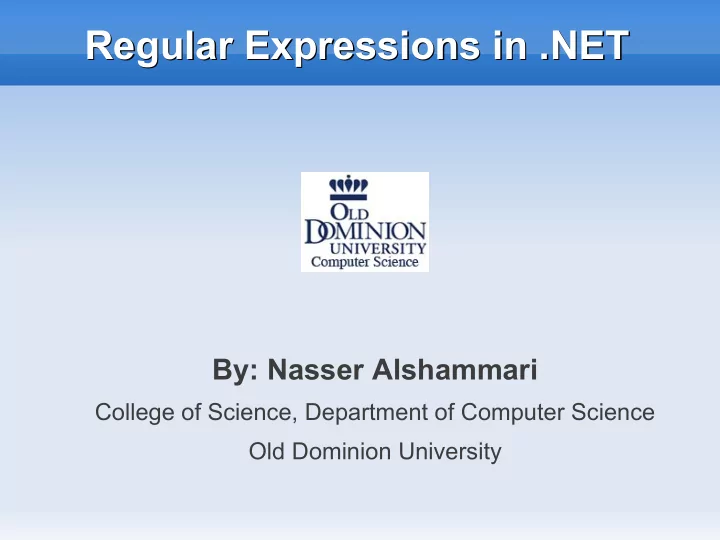

Regular Expressions in .NET Regular Expressions in .NET

By: Nasser Alshammari

College of Science, Department of Computer Science Old Dominion University

Outline Outline

 Regular Expressions?  Why do we need them?  RE language  RE in .NET  Conclusion

Regular Expressions? Regular Expressions?

 Regular Expressions (regex) are a special

string that describes a search pattern.

 Provide flexible and easy string matching.  Syntax:

 POSIX BRE  POSIX ERE  POSIX character classes

 Example:

 \b[A-Z0-9._%+-]+@[A-Z0-9.-]+\.[A-Z]{2,4}\b

Why do we need them? Why do we need them?

 Security

 Buffer overflow attack.  SQL injection attack.  Cross-site scripting attack.

 Easy and powerful  Flexibility

RE language RE language

 Metacharacters: a character that has a special

meaning.

. Any single character. a.c matches abc [ ] A single character contained within the brackets. [abc] matches ”a”, ”b”, or ”c” [a-z] matches any characater in this range [^ ] A single character that is not contained within the brackets. [^abc] matches any character other than ”a”, ”b”, or ”c”. ^ Starting position of the string $ Ending position of the string BRE \( \) ERE ( ) Defines a group or subexpression *

Matches the preceding element zero or more times

ab*c matches ”ac”, ”abc”, ”abbc”, etc BRE \{m,n\} ERE {m,n}

Matches the preceding element at least m and not more than n times a{3,5} matches only ”aaa”, ”aaaa”, and ”aaaaa”

Continue. Continue.

 More Examples

.at matches any three-character string ending with "at", including "hat", "cat", and "bat". [hc]at matches "hat" and "cat". [^b]at matches all strings matched by .at except "bat". ^[hc]at matches "hat" and "cat", but only at the beginning of the string or line. [hc]at$ matches "hat" and "cat", but only at the end of the string or line. \[.\] matches any single character surrounded by "[" and "]" since the brackets are escaped, for example: "[a]" and "[b]".

Continue. Continue.

 POSIX ERE Metacharacters  Examples

? Matches the preceding element zero or one time. For example, ba? matches "b" or "ba". + Matches the preceding element one or more times. For example, ba+ matches "ba", "baa", "baaa", and so on. | The choice (aka alternation or set union) operator matches either the expression before or the expression after the

• perator.

[hc]+at matches "hat", "cat", "hhat", "chat", "hcat", "ccchat", and so on, but not "at". [hc]?at matches "hat", "cat", and "at". cat | dog matches "cat" or "dog".

Continue. Continue.

 POSIX character classes



Many ranges of characters depend on the locale settings (i.e., in some settings letters are organized as abc...zABC...Z, while in some others as aAbBcC...zZ)

POSIX .NET ASCII Description [:alnum:] [A-Za-z0-9] Alphanumeric characters [:word:] \w [A-Za-z0-9_] Alphanumeric characters plus "_" [:alpha:] [A-Za-z] Alphabetic characters [:blank:] [ \t] Space and tab [:digit:] \d [0-9] Digits [:space:] \s [ \t\r\n\v\f] Whitespace characters

RE in .NET RE in .NET

 .NET's regex flavor is feature-rich.

 RegularExpressionValidator Server Control.  System.Text.RegularExpressions Namespace.  Examples:

^[a-zA-Z''-'\s]{1,40}$ Ravi Mukkamala O'Dell Allows uppercase or lowercase letters

• r whitespaces up to 40 characters.

^\d{3}-\d{2}-\d{4}$ 000-11-2222 Allows only digits separated by hyphens. ^\d+$ 123 Positive integer greater than zero. ^\d+(\.\d\d)?$ 5.00 Positive currency amount. If there is a decimal point, it requires 2 numeric characters after the decimal point. For example, 3.00 is valid but 3.1 is not. ^(-)?\d+(\.\d\d)?$

• 2.44

Positive or negative currency.

Continue. Continue.

 Using the RegularExpressionValidator Server Control

<%@ language="C#" %> <form ID="form1" runat="server"> <asp:TextBox ID="txtName" runat="server"/> <asp:Button ID="btnSubmit" runat="server" Text="Submit" /> <asp:RegularExpressionValidator ID="regexpName" runat="server" ErrorMessage="This expression does not validate." ControlToValidate="txtName" ValidationExpression="^[a-zA-Z'.\s]{1,40}$" /> </form>

Continue. Continue.

 Using System.Text.RegularExpressions  The Regex class

 IsMatch: returns true if a match is found.  Match: returns a Match object if a match is found.  Matches: returns a MatchCollection object.  Replace: replaces a matched string with another.  Split: splits a string according to regex and retuens String[].

// Instance method: Regex reg = new Regex(@"^[a-zA-Z'.]{1,40}$"); Response.Write(reg.IsMatch(txtName.Text)); // Static method: if (!Regex.IsMatch(txtName.Text, @"^[a-zA-Z'.]{1,40}$")) { // Name does not match }

Continue. Continue.

 Regex.Replace

public class Example { public static void Main() { string input = "This is text with far too much " + "whitespace."; string pattern = "\s+"; string replacement = " "; Regex rgx = new Regex(pattern); string result = rgx.Replace(input, replacement); Console.WriteLine("Original String: {0}", input); Console.WriteLine("Replacement String: {0}", result); } // The example displays the following output: // Original String: This is text with far too much whitespace. // Replacement String: This is text with far too much whitespace.

Continue. Continue.

 Regex.Split

string input = @"07/14/2007"; string pattern = @"(-)|(/)"; Regex regex = new Regex(pattern); foreach (string result in regex.Split(input)) { Console.WriteLine("'{0}'", result); } // Under .NET 1.0 and 1.1, the method returns an array of // 3 elements, as follows: // '07' // '14' // '2007' // Under .NET 2.0, the method returns an array of // 5 elements, as follows: // '07' // '/' // '14' // '/' // '2007'

Continue. Continue.

 Comments

Regex regex = new Regex(@" ^ # anchor at the start (?=.*\d) # must contain at least one numeric character (?=.*[a-z]) # must contain one lowercase character (?=.*[A-Z]) # must contain one uppercase character .{8,10} # From 8 to 10 characters in length \s # allows a space $ # anchor at the end", RegexOptions.IgnorePatternWhitespace);

Continue. Continue.

 Match class: immutable and has no public

constructor.

// Search for a pattern that is not found in the input string. string pattern = "dog"; string input = "The cat saw the other cats playing in the back yard."; Match match = Regex.Match(input, pattern); if (match.Success ) // Report position as a one-based integer. Console.WriteLine("'{0}' was found at position {1} in '{2}'.", match.Value, match.Index + 1, input); else Console.WriteLine("The pattern '{0}' was not found in '{1}'.",pattern, input);

Continue. Continue.

 MatchCollection class: immutable and has no

public constructor.

static void Main(string[] args) { string input = "The quick brown dog jumps over the lazy dog"; string pattern = "dog"; MatchCollection matches = Regex.Matches(input, pattern); foreach (Match match in matches) Console.WriteLine("'{0}' found at position '{1}'", match.Value, match.Index); }

Output:

'dog' found at position '16' 'dog' found at position '40'

Continue. Continue.

 More Examples

// Create a Regex that accepts all URLs containing the host fragment www.odu.edu. Regex myRegex = new Regex(@"http://www\.odu\.edu/.*"); //a WebPermission that gives permissions to all the hosts containing the same host fragment. WebPermission myWebPermission = new WebPermission(NetworkAccess.Connect, myRegex); // Check whether all callers higher in the call stack have been granted the permission. myWebPermission.Demand();

Conclusion Conclusion

 Regex is your friend, use it.  Regex offers additional security measures.  .NET supports many of regex features.

Thank You

References References

 http://www.regular-expressions.info  http://msdn.microsoft.com
