A Tale of Two Telescopes - Scintillation studies using LEAP and - - PowerPoint PPT Presentation
A Tale of Two Telescopes - Scintillation studies using LEAP and - - PowerPoint PPT Presentation

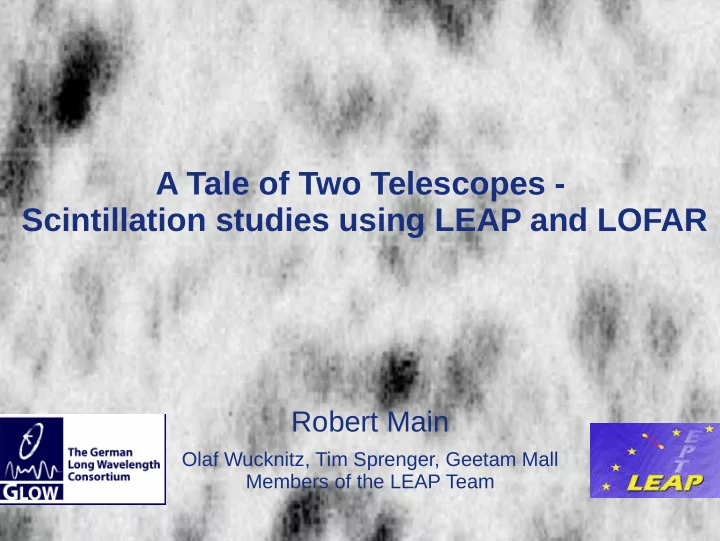

A Tale of Two Telescopes - Scintillation studies using LEAP and LOFAR Robert Main Olaf Wucknitz, Tim Sprenger, Geetam Mall Members of the LEAP Team 1 LEAP 2 LEAP 3 LEAP Large European Array for Pulsars 4 LEAP Large European Array for
SLIDE 2
SLIDE 3
3
LEAP
SLIDE 4
4
LEAP
Large European Array for Pulsars
SLIDE 5
5
LEAP
Large European Array for Pulsars
- Monthly simultaneous observations
- Coherently add all telescopes
–
Effective 194m dish “6th telescope” of EPTA
SLIDE 6
6
LEAP
Large European Array for Pulsars Ideal for Scintillation
- Large collecting area
- Baseband data is kept from the
coherent addition
- LEAP is an interferometer!
- Monthly simultaneous observations
- Coherently add all telescopes
–
Effective 194m dish “6th telescope” of EPTA
SLIDE 7
7 J1713+0747
175 MHz 16 MHz 1 MHz
Scintillation on a variety of Scales
SLIDE 8
8
B1937+21 J0751+1807 J1713+0747
A zoo of parabolic arcs in MSPs!
M28A
SLIDE 9
9
B1937+21 J0751+1807 J1713+0747
A zoo of parabolic arcs in MSPs!
M28A
B1933+16, Our Pol. Cal
SLIDE 10
10
B1937+21 J0751+1807 J1713+0747
A zoo of parabolic arcs in MSPs!
M28A
?
B1933+16, Our Pol. Cal
SLIDE 11
11
Measuring Timing Delays – Application to J0613-0200
SLIDE 12
12
Sum over Gives
Measuring Timing Delays – Application to J0613-0200
SLIDE 13
13
Measuring Timing Delays – Application to J0613-0200
SLIDE 14
14
Scattering Variations over 5 years
- Currently uncorrected for in timing
Similar method as Hemberger & Stinebring 2008
Arc curvature and scattering variations – Application to J0613-0200
Annual variation of scintillation:
- Measure distance / orientation
- Needs a joint fit with orbital parameters
SLIDE 15
15
LEAP Summary
- Promising early results!
– Limited by I/O
(~200 TB of data re-reduced so far)
- Immediate uses for these data:
– Monitor scattering delays – Distances to scattering screens – Orbital parameters
- In Progress
– Use time delays / visibilities
SLIDE 16
16
LEAP
SLIDE 17
17
LEAP
SLIDE 18
18
- Wide-band: 110 – 190 MHz
- LOFAR core has highest sensitivity
- Each station can separately
record baseband
- 6 German stations, can be used in
standalone mode for bright pulsars
Low-Frequency Array
SLIDE 19
19
- Wide-band: 110 – 190 MHz
- LOFAR core has highest sensitivity
- Each station can separately
record baseband
- 6 German stations, can be used in
standalone mode for bright pulsars
Low-Frequency Array
2 Ongoing Projects
B1133+16 - “Interstellar Interferometry” B0655+64 – Orbits with scintillation
SLIDE 20
20
B1133+16,single GLOW station (DE 601)
SLIDE 21
21
Map Scattering Screen using Multiple Stations
SLIDE 22
22
Screen aligned with baseline Maximum time delay
In 1D screen, patterns differ only by a time delay
SLIDE 23
23
Screen 45 degrees off baseline Smaller time delay
In 1D screen, patterns differ only by a time delay
SLIDE 24
24
Screen perpendicular to baseline Zero time delay
In 1D screen, patterns differ only by a time delay
SLIDE 25
25
B1133+16 with 3 Stations
- 50 0 50
- 50 0 50
Amplitude Phase
SLIDE 26
26
Map of Scattering Screen
Distance to Pulsar = 370 pc Distance to Screen = 230+-10 pc Screen extent = 36 mas = 8.5 AU
SLIDE 27
27
Map of Scattering Screen
Distance to Pulsar = 370 pc Distance to Screen = 230+-10 pc Use as “Interstellar Interferometer”! Resolution of ~20000km at pulsar Screen extent = 36 mas = 8.5 AU
SLIDE 28
28
Constrains Emission Regions to km!
“Interstellar Interferometer”! Resolution of ~20000 km at pulsar Measure time delay of scintillation across the pulse profile
Pulse Phase I n t e n s i t y ( a r b ) Separation (km) Pulse Phase I n t e n s i t y ( a r b )
SLIDE 29
29
Constrains Emission Regions to km!
“Interstellar Interferometer”! Resolution of ~20000 km at pulsar Measure time delay of scintillation across the pulse profile Submitted proposal: 2-hours LOFAR core + GLOW & international stations ~ 10 km astrometric precision!
Pulse Phase I n t e n s i t y ( a r b ) Separation (km) Pulse Phase I n t e n s i t y ( a r b )
SLIDE 30
30
Scintillation rate proportional to velocity parallel to scattering screen
Solving Orbits through Scintillation
26 hours DE 601 – PSR B0655+64 Secondary Spectrum varies throughout Orbit
SLIDE 31
31
Scintillation rate proportional to velocity parallel to scattering screen
Solving Orbits through Scintillation
26 hours
No symmetry axis
- 2D screen?
- Motion of subimages?
SLIDE 32
32
Scintillation rate proportional to velocity parallel to scattering screen
Solving Orbits through Scintillation
26 hours
No symmetry axis
- 2D screen?
- Motion of subimages?
Simulation
SLIDE 33
33
Scintillation rate proportional to velocity parallel to scattering screen
Solving Orbits through Scintillation
No symmetry axis
- 2D screen?
- Motion of subimages?
Velocity over orbit (from arc curvature)
Measuring something very precisely, but we need to understand our screen
SLIDE 34
34
LOFAR Core Reveals an Arc
- Combining core with GLOW and international stations
- Observing Campaign in Progress! (LC12_007)
Time (2 hours) Frequency (130-140 MHz)
SLIDE 35
In Progress!
- 6 ft (mHz) 6
- 90 tau (mus) 90
SLIDE 36
In Progress!
- 90 tau (mus) 90
- 6 ft (mHz) 6
SLIDE 37
In Progress!
- 90 tau (mus) 90
- 6 ft (mHz) 6
SLIDE 38
In Progress!
- 90 tau (mus) 90
- 6 ft (mHz) 6
SLIDE 39
In Progress!
- 90 tau (mus) 90
- 6 ft (mHz) 6
SLIDE 40
In Progress!
- 90 tau (mus) 90
- 6 ft (mHz) 6
SLIDE 41
In Progress!
- 90 tau (mus) 90
- 6 ft (mHz) 6
SLIDE 42
In Progress!
- 90 tau (mus) 90
- 6 ft (mHz) 6
SLIDE 43
In Progress!
No distance / orientation of the screen yet More data to be taken, data needs to be looked at in more detail
SLIDE 44
44
- LEAP and LOFAR are ideal telescopes for scintillation
- Promising early results
– Scattering variations – Solving for Scattering Screens – Orbital Parameters – Probing emission regions
- (In progress) LEAP and LOFAR as an interferometer
