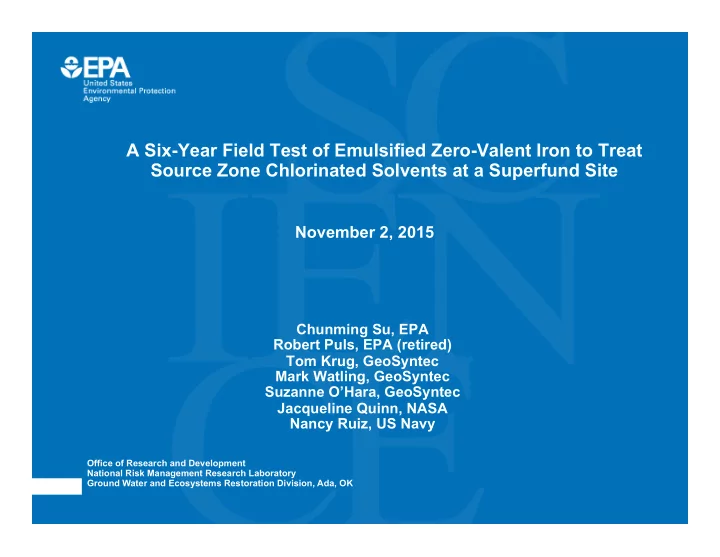

A Six-Year Field Test of Emulsified Zero-Valent Iron to Treat Source Zone Chlorinated Solvents at a Superfund Site November 2, 2015 Chunming Su, EPA Robert Puls, EPA (retired) Tom Krug, GeoSyntec Mark Watling, GeoSyntec Suzanne OHara,

slide-1
SLIDE 1

Office of Research and Development National Risk Management Research Laboratory Ground Water and Ecosystems Restoration Division, Ada, OK

A Six-Year Field Test of Emulsified Zero-Valent Iron to Treat Source Zone Chlorinated Solvents at a Superfund Site

Chunming Su, EPA Robert Puls, EPA (retired) Tom Krug, GeoSyntec Mark Watling, GeoSyntec Suzanne O’Hara, GeoSyntec Jacqueline Quinn, NASA Nancy Ruiz, US Navy

November 2, 2015

slide-2
SLIDE 2

2

Properties of Emulsified Zero-Valent Iron (EZVI)

  • Emulsion droplets contain nanoscale zero-valent iron (ZVI)

particles in water surrounded by an oil-liquid membrane (food-grade surfactant, biodegradable vegetable oil)

  • Oil layer of emulsion is miscible with the DNAPL
  • Chlorinated volatile organic compounds (CVOCs) diffuse

through the oil membrane and are degraded in the presence

  • f the ZVI in the interior aqueous phase
  • EZVI can be used to enhance degradation of DNAPL by

enhancing contact between the DNAPL and the ZVI particles

  • Due to vegetable oil and surfactant which will act as long-

term electron donors, EZVI also promotes anaerobic biodegradation

Water Oil Surfactant Iron

  • 12. 3 µm

Jacqueline Quinn, NASA

slide-3
SLIDE 3

Objectives

  • To evaluate two injection technologies (pneumatic and

direct injections) within a DNAPL source zone for EZVI delivery

  • To evaluate the effectiveness of EZVI to decrease mass

flux of dissolved volatile organic compounds (VOCs) from a DNAPL source zone and decrease the DNAPL mass in the source area

  • To investigate fate and transport of injected nanoscale ZVI

3

slide-4
SLIDE 4

4

Reasons for Selecting Parris Island site:

  • Free phase DNAPL
  • Easy access
  • Site support available
slide-5
SLIDE 5

Demonstration Site

Marine Corps Recruit Depot Parris Island, SC Former dry cleaner facility Buildings torn down Source areas located around former above- and below-ground storage tanks Tetrachloroethene (C2Cl4,PCE) Spill in 1994

5

slide-6
SLIDE 6

6

  • 9 soil cores and groundwater samples collected in 2005 and 2006 to evaluate

contaminant distribution

  • Wells installed in June 2006 to target the source areas identified through cores

Previous Storage Tank Area Direct Injection Plot Pneumatic Injection Plot

GW flow rate 0.15 – 0.18 ft/day

1.5 3 1.5 3 Meters Meters

SC-9 SC-2 SC-4 SC-6 SC-8 TW-1 TW-4 TW-3 SC-7 SC-5 SC-3 SC-1 TW-2 PMW-1 PMW-2 PMW-4 PMW-3 ML-7 ML-1 ML-2 ML-6 ML-5 ML-4 ML-3 PMW-5 PMW-6

slide-7
SLIDE 7

7

Pneumatic Injection Plot Targeted VOCs 38 kg Direct Injection Plot Targeted VOCs 155 g

Monitoring Well Installation

Multilevel Well Construction Direct and Pneumatic Injection Plots

slide-8
SLIDE 8

Baseline Characterization

  • Samples collected from over 50 sample

locations (including multilevel wells) during June, August, and October 2006 sampling events

  • Sample parameters include fjeld parameters

(DO, ORP, pH, conductivity, turbidity), CVOCs, DHGs, VFAs, anions, alkalinity, TOC/TIC, metals (dissolved, total), and isotopes (C-13, Cl-37)

  • Integral pump test performed downgradient of

Pneumatic Injection test plot DNAPL

8

slide-9
SLIDE 9

4/

EZVI Preparation

  • EZVI made on-site by combining:
  • Nanosized iron (Toda, 35-140 nm, $2

lb) 10% by weight

  • Corn oil 38%
  • Surfactant (Sorbitan Trioleate) 1%
  • Tap water 51%
  • Ingredients added to drum and mixed

using a top mounted industrial mixer

  • EZVI pumped from mixing drums into

injection tanks

9

slide-10
SLIDE 10

10

Pneumatic Injection Plot Direct Injection Plot

sand silty clay sand peat

0 m 1 m 2 m 4 m 6 m

sand silty sand sand peat sand/clay

3 m 5 m

Fully screened and multilevel wells

Demonstration Site

Target zone: 2-3.5 m bgs Target zone: 2-6 m bgs

slide-11
SLIDE 11

EZVI Injections Pneumatic Injection Plot

  • 575 gal EZVI injected at 8

locations between 7 and 19 ft bgs (2 locations using Direct Injection)

  • During injections, monitored

injection pressure, pressure distribution in subsurface, ground heave, and looked for EZVI at ground surface (daylighting)

1.5 3 Meters

11

slide-12
SLIDE 12

Direct Injection Plot

  • 150 gal EZVI injected at 4

locations between 6 and 12 ft bgs

  • During injections, monitored

injection pressure and looked for EZVI at ground surface (daylighting)

1.5 Meters

EZVI Injections

12

3

slide-13
SLIDE 13

EZVI Injection

EZVI daylighted in both Pneumatic Injection and Direct Injection Plots Pneumatic Injection plot Direct Injection plot (daylighting around ML-3 pad, (daylighting possibly from down-gradient of plot)

  • ld soil core location)

13

slide-14
SLIDE 14

14

EZVI Soil Cores

  • Collected cores to evaluate ability of injection

technologies to distribute EZVI evenly over the target treatment intervals

Sand saturated with EZVI

  • EZVI was observed in all soil cores with the

possible exception of ESC-06

  • The most conservative estimate of travel

distance was made by using the closest injection points as the assumed point of

  • rigin.

ESC-04, 12-16ft

1.5 3 Meters

slide-15
SLIDE 15

15

slide-16
SLIDE 16

16

slide-17
SLIDE 17

Performance Monitoring

  • Samples collected from same

locations as baseline sampling events; samples collected in November 2006; January, March, and July 2007; and January, July 2008; March 2009; September, October 2010; October 2012 (2-3 week sampling events)

  • Samples analyzed for the same

parameters as baseline events

17

slide-18
SLIDE 18

18

slide-19
SLIDE 19

19

slide-20
SLIDE 20

20

slide-21
SLIDE 21

21

slide-22
SLIDE 22

Upgradient Mass Flux Estimates Based on Wells ML-1 and ML-2

Mass Flux (mmol yr-1 m-2) 45,000 40,000 35,000 30,000 25,000 20,000 15,000 10,000 5,000

Pre-Injection (August & October 2006) November 2006 & January 2007 March & July 2007 January & July 2008 Post-Demonstration (March 2009) September 2010 October 2012

PCE TCE cDCE VC Ethene Compound

22

slide-23
SLIDE 23

Downgradient Mass Flux Estimates Based on Wells ML-3 and ML-7

Mass Flux (mmol yr-1 m-2) 25,000 20,000 15,000 10,000 5,000 PCE

Pre-Injection (August & October 2006) November 2006 & January 2007 March & July 2007 January & July 2008 Post-Demonstration (March 2009) September 2010 October 2012

TCE cDCE VC Ethene Compound

23

slide-24
SLIDE 24

Pre- and Post-demonstration CVOC Mass Estimates in Pneumatic Injection Plot

Pre-Injection Mass Post-demonstration Media VOC (g) Mass (g) Sorbed/Dissolved DNAPL Total Sorbed/Dissolved DNAPL Total Soil PCE 2,760 29,028 31,788 3,116 1,384 4,500 TCE 1,317 1,317 672 672 Cis-DCE 1,254 1,254 1,542 1,542 VC 2,214 2,214 204 204 Groundwater PCE 577 577 48 48 TCE 267 267 50 50 Cis-DCE 588 588 1,226 1,226 VC 12 12 103 103 Total Mass (g) 8,990 29,028 38,018 6,962 1,384 8,346 % Reduction 23% 95% 78%

24

slide-25
SLIDE 25

X-ray Diffractograms of Solids from Well Purge Water

Fe0: α-Fe0 M: Magnetite (Fe3O4) L: Lepidocrocite (γ-FEOOH) G: Goethite (α-FeOOH) 25

slide-26
SLIDE 26

X-ray Diffractograms of Soil Cores (2.5 Years After Injection)

Q: Quartz (SiO2) K: Kaolinite (Al2Si2O5(OH)4) P: Pyrite (FeS2) M: Magnetite (Fe3O4) 26

slide-27
SLIDE 27

27 c: ML3-1, 3/3/09 d: ML3-2, 7/7/07 f: ESC-12, 4.6-4.8 m, 3/19/09 e: ML3-2, 3/3/09 b: ML3-1, 7/7/07 a: RNIP-10DS, Aged 8 days

Scanning Electron Microscopy

slide-28
SLIDE 28

Cl Cl C C PCE Cl a 2 a dichloroacetylene C C Cl Cl b 17 d 16 15 d 6 Cl 1 b 3 b Cl Cl TCE C C b 4 H Cl b 5 a: β-elimination b: Hydrogenolysis c: α-elimination d: Hydrogenation Degradation Pathways chloroacetylene C C Cl H b 14 acetylene C C H H 12 C4 compounds a 8 13 d 10 a 7 b trans-1,2-DCE Cl C Cl H C H b 18 b 9 cis-1,2-DCE Cl C H Cl C H ethene H C H H C H vinyl chloride Cl C H H C H 11 c 1,1-DCE Cl C H H C Cl 19 d C2H6 ethane

28

slide-29
SLIDE 29

Conclusions

  • Injected nanoiron was transformed to iron oxides (with greater

particle size) mostly within three months.

  • EZVI resulted in more reducing conditions that stimulated

dechlorinating bacteria; there is no evidence of adverse effect to the microbial communities.

  • Radius of influence was as much as 2.1 m with pneumatic

injection and 0.89 m with direct injection.

  • There were significant reductions in the downgradient

groundwater mass flux.

  • There were significant reduction in total VOC and DNAPL.
  • EZVI technology can be successfully applied to treat source zone

DNAPL.

29

slide-30
SLIDE 30

Acknowledgements

  • Mr. Brad Scroggins, Mr. Ken Jewell, Mr. Russell Neil, Mr. Justin Groves,
  • Mr. Mark White, Mr. Pat Clark, Ms. Lynda Callaway, Ms. Kristie Hargrove,

EPA/ORD/NRMRL

  • Professors Christian Clausen, Cherie Geiger, University of Central Florida
  • Ms. Deborah Schnell, Mr. Cornel Plebani, Pneumatic Fracturing, Inc.
  • Mr. Corey Gamwell, Mr. Andrew Thornton, Vironex Environmental Field

Services

  • Mr. Steve Randall, Geosyntec
  • Mr. Steve Markham, Mr. Andrew Greenwood, CB&I
  • Mr. Tim Harrington, Ms. Lisa Donohoe, Marine Corps Recruit Depot, Parris

Island, SC

  • Ms. Bridget Toews, Independent Student Contractor

30

slide-31
SLIDE 31

Questions?

The Kerr Lab

Ground Water and Ecosystems Restoration Division (Kerr Lab) National Risk Management Research Laboratory Office of Research and Development United States Environmental Protection Agency Ada, Oklahoma

31
