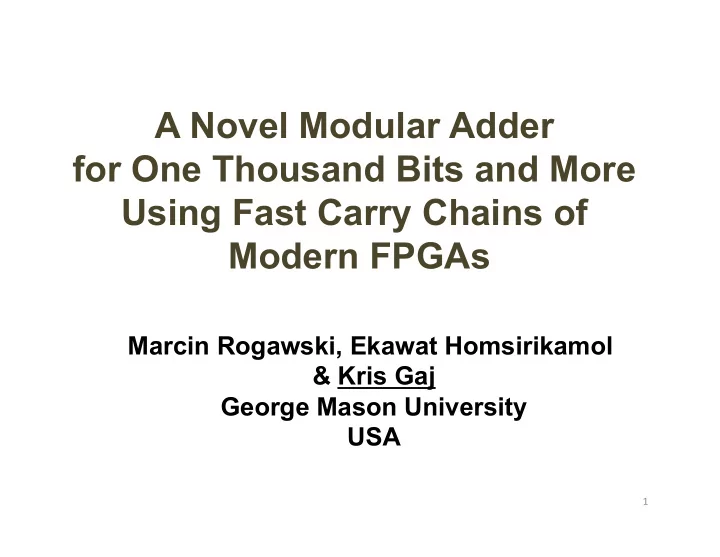

¡ A Novel Modular Adder for One Thousand Bits and More Using Fast Carry Chains of Modern FPGAs

1 ¡

Marcin Rogawski, Ekawat Homsirikamol & Kris Gaj George Mason University USA

Co-Authors

Ekawat Homsirikamol a.k.a “Ice” Marcin Rogawski PhD @ GMU, Summer 2013 Currently @ Cadence Design Systems San Jose, CA PhD Student

3

• Adders used in multiple branches of science & engineering
• Basic building block of more complex arithmetic

computations (multiplication, modular reduction, etc.)

• Need for long-operand adders (≥1024 bits) in cryptography

(RSA, Diffie-Hellman, Elliptic Curve Cryptography, Pairing-Based Cryptography, post-quantum cryptography)

• FPGAs contain special dedicated resources (fast carry

chains) supporting fast addition, but only for operands in the range of 32-64 bits.

Motivation

4

Fast Carry Chains of Modern FPGAs

cin b0 b1 a1 a0

1

s FA a0 b0 a1 b1 LUT 1 cout s

1

s s

a) b)

LUT 1 LUT LUT cin cout FA

Xilinx FPGAs Altera FPGAs

• Minimize delays
• Save reconfigurable resources

5

Parallel Prefix Network (PPN) Adder

6

Parallel Prefix Network – Major Concept (1)

Given: (gn-1, pn-1) …. (g2, p2) (g1, p1) (g0, p0) Generate-propagate signals for each bit position Calculate (in parallel): Generate-propagate signals for each block of bits starting at position 0 (g[0,n-1], p[0,n-1]) …. (g[0,2], p[0,2]) (g[0,1], p[0,1]) (g[0,0], p[0,0])

7

Parallel Prefix Network – Major Concept (2)

Calculate:

pci = g[0,i-1] + c0p[0,i-1]

Assuming c0 = 0 (no need to cascade adders that are already very long):

pci = g[0,i-1]

where i=1..n Projected carry at position i

8

Kogge-Stone PPN

• Minimum Latency (log2N)
• Large Area

9

Brent-Kung PPN

• Good trade-off between Latency (2 log2N – 2) and Area

10

Parallel Prefix Network (PPN) Adder in FPGA

• All logic must be implemented using LUTs!
• Large PPN required (e.g., n=1024)

11

Our High-Radix Parallel Prefix Network Adder

12

GPS: Generate-Propagate-Sum in Xilinx FPGAs

13

S: Sum unit in Xilinx FPGAs

14

Our High-Radix Parallel Prefix Network Adder

• GPS and S units implemented using Fast Carry Chains
• The size of PPN reduced from n=1024 to N=1024/w

15

General Construction for the Modular Adder

R

n

2 −P

n n n n n

0 1

n n n

B A

cout#2 cout#1

R = A + B mod P R = A + B – P when A + B ≥ 2n > P (cout#1)

• r

A + B – P ≥ 0 (cout#2) R = A + B

• therwise

16

Our Construction for the High-Radix PPN Modular Adder

1

spc

1

spc

N−1

fpN−1

N−1

fg fpcN−1 fpc1

w

1

1

sg GPS

w

1 sg

w

1

N−1

sg spN−1

w w

GPS

w w w w

GPS fg

w w w w

fpcN spc

N N−2

fg fg

N−1

fg

w w

GPS

w

fpN−1 GPSc GPSc

w w w

IP

w N−1

IP

1

IP

S S

w

sp

N−1

sg spN−1 sg 1 spc sp1 sp0 sel fpc1

1

1 fpc spcN−1

N−1

sel sel fp

1 1

fg fp0 fp PPN PPN R R R A B A B B A

1 1 N−1 N−1 N−1

17

GPSc: Generate-Propagate-Sum with carry

18

Our Construction for the High-Radix PPN Modular Adder

1

spc

1

spc

N−1

fpN−1

N−1

fg fpcN−1 fpc1

w

1

1

sg GPS

w

1 sg

w

1

N−1

sg spN−1

w w

GPS

w w w w

GPS fg

w w w w

fpcN spc

N N−2

fg fg

N−1

fg

w w

GPS

w

fpN−1 GPSc GPSc

w w w

IP

w N−1

IP

1

IP

S S

w

sp

N−1

sg spN−1 sg 1 spc sp1 sp0 sel fpc1

1

1 fpc spcN−1

N−1

sel sel fp

1 1

fg fp0 fp PPN PPN R R R A B A B B A

1 1 N−1 N−1 N−1

Two additions: Ÿ Ÿ overlapped in time Ÿ Ÿ sharing resources (S units)

19

Target FPGA Families

Technology ¡ Low-­‑cost ¡ High-­‑ performance ¡ 65 ¡nm ¡ Virtex-­‑5 ¡ 45 ¡nm ¡ Spartan-­‑6 ¡ Technology ¡ Low-­‑cost ¡ High-­‑ performance ¡ 65 ¡nm ¡ Stra2x ¡III ¡ 40 ¡nm ¡ Cyclone ¡IV ¡

Xilinx FPGAs Altera FPGAs

20

Design Flow

RTL Design VHDL ¡Code ¡ Option Optimization & Parameter Exploration FPGA ¡Tools ¡ Netlist ¡

Post ¡ Place ¡& ¡Route ¡ Results ¡

Functional Verification Timing Verification SpecificaEon ¡ Test ¡Vectors ¡

GMU ATHENa (FPL 2010)

ATHENa used to simplify parameter exploration (multiple values of generics) and option optimization for both Xilinx and Altera FPGAs

21

Choosing the Best PPN & Word Size Adders – Altera Cyclone IV

22

Choosing the Best PPN & Word Size Adders – Xilinx Spartan 6

23

Choosing the Best PPN & Word Size Modular Adders – Altera Cyclone IV

24

Choosing the Best PPN & Word Size Modular Adders – Xilinx Spartan 6

25

The Best Choices of PPN Type & Word Size

Adders Modular Adders

Family PPN (w, N) PPN Word Size

Cyclone IV KS (16, 64) KS (16, 64) Stratix III BK (16, 64) BK (16, 64) Spartan 6 BK (32, 32) KS (128, 8) Virtex 5 KS (16, 64) KS (64, 16) KS: Kogge-Stone Parallel Prefix Network BK: Brent-Kung Parallel Prefix Network w – word size N – size of PPN

26

The Best Long-Operand Adders Proposed to Date

H.D. Nguyen, B. Pasca, T.B. Preuβer, FPGA-Specific Arithmetic Optimizations of Short-Latency Adders FPL 2011, Chania, Greece

• Adders based on Carry-Select Architecture

(rather than PPN Architecture)

• Three specific architectures proposed
• AAM: Add-Add-Multiplex
• CAI: Compare-Add-Increment
• CCA: Compare-Compare-Add
• Limited results (only Virtex 5) included in the original paper
• AAM architecture re-implemented and results collected

for different FPGAs

27

Comparison with Other Adders – Virtex 5

28

Comparison with Other Adders – Virtex 5

29

Comparison with Other Adders – Spartan 6

30

Comparison with Other Adders – Spartan 6

31

Comparison with Other Adders – Cyclone IV

32

Comparison with Other Adders – Stratix III

33

Comparison Between Modular Adders Xilinx Virtex 5

34

Comparison Between Modular Adders Xilinx Virtex 5

35

Comparison Between Modular Adders Xilinx Spartan 6

36

Comparison Between Modular Adders Xilinx Spartan 6

37

Comparison Between Modular Adders Altera Stratix III

38

Comparison Between Modular Adders Altera Stratix III

39

Comparison Between Modular Adders Altera Cyclone IV

40

Comparison Between Modular Adders Cyclone IV

41

Modular Adder/Subtractor

cout#2 n

2 −P 0 1

n n n n n n n n n n n n n n n n

0 1 0 1 0 1

n n n n n

0 1

n

2 −P P

n n n n n n n

B A R

cout#2 cout#1

A P R 1 B

n

R

SUB SUB

A 1 B

n n

cout#1

42

Overhead of Modular Adder/Subtractor

Altera Cyclone IV

43

Overhead of Modular Adder/Subtractor

Altera Stratix III

44

Overhead of Modular Adder/Subtractor

Xilinx Spartan 6

45

Overhead of Modular Adder/Subtractor

Xilinx Virtex 5

46

Proposed New Dedicated Resources of Modern FPGAs

• Dedicated (hardwired) PPNs (Kogge-Stone and/or Brent-Kung)
• Standard sizes (e.g., 32 and/or 64)
• Support fast addition and modular addition for large operand sizes

(as described in this paper)

• Support for fast addition and modular addition of medium
• perand sizes (up to 64), using classical PPN adders
• Pipelined registers that can be activated or bypassed

47

• A new family of

High-Radix Parallel Prefix Network Adders using fast carry chains of modern FPGAs

• New family outperforming the best previously known

FPGA-specific adders and modular adders for Xilinx FPGAs

• Very small performance penalty for an extension

to adders/subtractors

• A proposal for embedding medium-size hardwired PPN

structures in the new generations of FPGAs

Conclusions

48

• Possible optimizations for Altera FPGAs
• Better (preferably analytical) method of choosing

an optimum word size for

• Other FPGA families
• Other operand sizes
• Optimal method of pipelining for adders and modular adders
• Extended and more detailed proposal of new FPGA

resources supporting fast addition

Future Work

Questions? Thank you!

49

Suggestions?

ATHENa: http:/cryptography.gmu.edu/athena CERG: http://cryptography.gmu.edu
