A majorization-minimization algorithm for (multiple) hyperparameter - - PowerPoint PPT Presentation

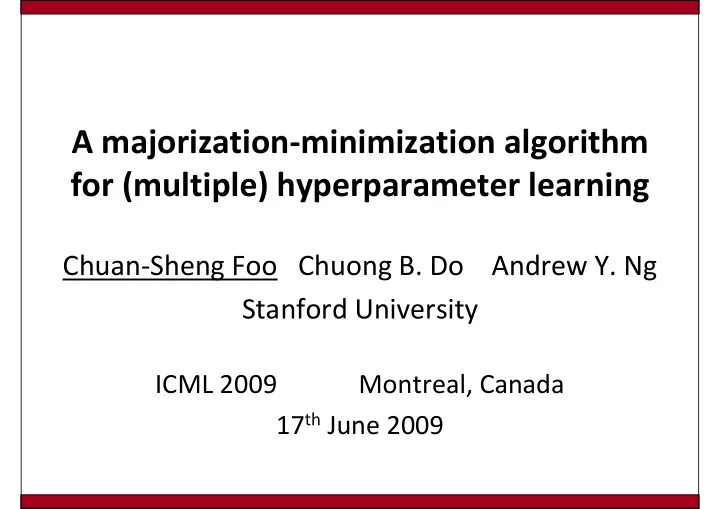

A majorization-minimization algorithm for (multiple) hyperparameter learning

ICML 2009 Montreal, Canada 17th June 2009

Chuan-Sheng Foo Chuong B. Do Andrew Y. Ng Stanford University

Supervised learning

• Training set of m IID examples
• Probabilistic model
• Estimate parameters

Labels may be real-valued, discrete, structured

• Regularized maximum likelihood estimation
• Also maximum a posteriori (MAP) estimation

Regularization prevents overfitting

Log-prior over model parameters Data log- likelihood

L2-regularized Logistic Regression Regularization Hyperparameter

How to select the hyperparameter(s)?

• Grid search

+ Simple to implement − Scales exponentially with # hyperparameters

• Gradient-based algorithms

+ Scales well with # hyperparameters − Non-trivial to implement

Can we get the best of both worlds?

Our contribution

Striking ease of implementation

Simple, closed-form updates for C Leverage existing solvers

Scales well to multiple hyperparameter case Applicable to wide range of models

Outline

• 1. Problem definition
• 2. The “integrate out” strategy
• 3. The Majorization-Minimization algorithm
• 4. Experiments
• 5. Discussion

The “integrate out” strategy

• Treat hyperparameter C as a random variable
• Analytically integrate out C
• Need a convenient prior p(C)

Integrating out a single hyperparameter

• For L2 regularization,
• A convenient prior:
• The result:
• 2. Neither convex nor concave in w
• 1. C is gone

The Majorization-Minimization Algorithm

• Replace hard problem by series of easier ones
• EM-like; two steps:
• 1. Majorization

Upper bound the objective function

• 2. Minimization

Minimize the upper bound

MM1: Upper-bounding the new prior

• New prior:
• Linearize the log:

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

• 5
• 4
• 3
• 2
• 1

1 2 3 4 x y log(x) expansion at x=1 expansion at x=1.5 expansion at x=2

MM2: Solving the resultant

• ptimization problem
• Resultant linearized prior
• Get standard L2-regularization!

Terms independent of w

Use existing solvers!

Visualization of the upper bound

• 5
• 4
• 3
• 2
• 1

1 2 3 4 5 0.5 1 1.5 2 2.5 3 x y log(0.5 x2 + 1) expansion at x=1 expansion at x=1.5 expansion at x=2 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

• 5
• 4
• 3
• 2
• 1

1 2 3 4 x y log(x) expansion at x=1 expansion at x=1.5 expansion at x=2

Overall algorithm

• 1. Closed form updates for C
• 2. Leverage existing solvers

Converges to a local minimum

What about multiple hyperparameters?

• Regularization groups

w = ( w1, w2, w3, w4, w5 )

Unigram feature weights Hairpin loops Bigram feature weights Bulge loops NLP RNA Secondary Structure Prediction

C = ( C1 , C2 )

Mapping from weights to groups “To C or not to C. That is the question…”

What about multiple hyperparameters?

Separately update each regularization group

Sum weights in each group Weighted L2-regularization

Experiments

• 4 probabilistic models

– Linear regression (too easy, not shown) – Binary logistic regression – Multinomial logistic regression – Conditional log-linear model

• 3 competing algorithms

– Grid search – Gradient-based algorithm (Do et al., 2007) – Direct optimization of new objective

• Algorithm run with α = 0, β = 1

50 60 70 80 90 100

australian breast- cancer diabetes german- numer heart ionosphere liver- disorders mushrooms sonar splice w1a

Accuracy Grid Grad Direct MM

Results: Binary Logistic Regression

Results: Multinomial Logistic Regression

30 40 50 60 70 80 90 100

• connect-4
• dna
• glass
• iris
• le6er

mnist1

• sa7mage
• segment
• svmguide2
• usps
• vehicle
• vowel
• wine

Accuracy Grid Grad Direct MM

Results: Conditional Log-Linear Models

• RNA secondary structure

prediction

• Multiple hyperparameters

ROC Area

0.58 0.59 0.6 0.61 0.62 0.63 0.64 0.65 Single Grouped Gradient Direct MM

AGCAGAGUGGCGCA GUGGAAGCGUGCUG GUCCCAUAACCCAGA GGUCCGAGGAUCGA AACCUUGCUCUGCUA (((((((((((((.......))))..((((((.... (((....)))....))))))......))))))))).

Discussion

• How to choose α, β in Gamma prior?

– Sensitivity experiments – Simple choice reasonable – Further investigation required

• Simple assumptions sometimes wrong
• But competitive performance with Grid, Grad
• Suited for ‘Quick-and-dirty’ implementations

Thank you!
