A Little giant of Moto Industry in Taiwan Her Chee-History 1978 Her Chee Moto established Beginning Period Beginning Period 1983 Mr. C.C. Chen took over the position of (1978~1986) (1978~1986) chairman 1985 Launched 1st generation scooter-

slide-1
SLIDE 1

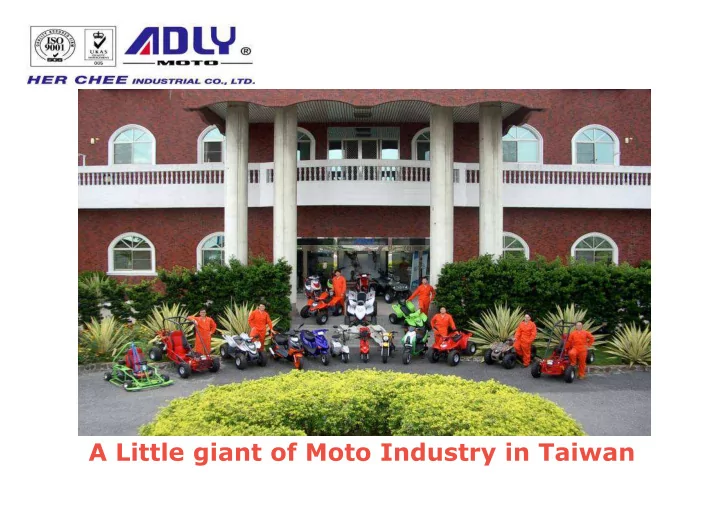

A Little giant of Moto Industry in Taiwan

slide-2
SLIDE 2

1978 Her Chee Moto established 1983 Mr. C.C. Chen took over the position of chairman 1985 Launched 1st generation scooter- Adly 50/100cc 1987 Launched 1st generation scooter- Adly 50/100cc worldwide 1997 Obtained ISO-9002 certification

Her Chee-History

Beginning Period (1978~1986) Beginning Period (1978~1986) Technical Introduction Period (1987~2003) Technical Introduction Period (1987~2003)

1999 – To be the pioneer to get ATV-50 EEC 98/61 homologation and bring ATV on-road vehicles into European market 2001Upgrade ISO certification to ISO-9001 2002 Become a public traded company in TWSE 2003 – To be the pioneer to get Go kart-125/E-bike EEC 92/61 homologation -Launched ATV150/300

Period (1987~2003) Period (1987~2003)

slide-3
SLIDE 3

Stability Growth Period (2004~ ) Stability Growth Period (2004~ )

2004 ATV150/300 Euro (2) homologated 2005 Launched 2nd generation of ATV150/300 2007 - ATV-320U won “ The Best Dealers’ Choice” Award in GEI Kentucky Show, USA Launched ATV-280/320U 2006 Launch ATV220 2008 -

Her Chee-History

2008 - Mini Car won “The Editor’s Choice” award in Indy Show, USA Launched ATV500 Geared with Fuji (Subaru) engine 2009 Launched Scooter, GTA50/125, AS50 and Mini Car 320 2010 - Launched ATV600 ATV320 won the champion of Italy local racing 2011 Presented Electric Mini Car 2012 Launched ATV300/320/400/500 Super Motor version 2013 Rewarded 2013 Best Brands in German Market

slide-4
SLIDE 4

Her Chee Product Summary Her Chee Product Summary

slide-5
SLIDE 5

Scooters & Motorcycle Scooters & Motorcycle

slide-6
SLIDE 6

Road Tracer Road Tracer-50/90/100 50/90/100

  • The mini-motorcycle from Adly moto.
  • Available in 50 and 100 c.c. 2 stroke. 50c.c. is with EURO(2)

& EPA homologated; 100c.c. is with EURO(3) homologated

  • Also Available 90c.c. 4 stroke, Semi-Clutch Transmission with 4 speed
slide-7
SLIDE 7

Stylish Model Stylish Model

Two Types of Powerful engine:

1.)50c.c. 2T, w/ EURO(2) & EPA homologated 2.)125c.c. 4T, w/ EURO(3) homologated 3.)150c.c. 4T, w/ EPA homologated Styling Head and Signal Lights

GTA GTA – – 50/125/150 50/125/150

Styling Head and Signal Lights

with modern LED equipment

Front Suspension: Telescope

Absorber

Rear Suspension: 5 ways Adjustable Shock-Absorber Front: Fashionable wave Disc

brake

Rear: Drum Brake Sporty type of muffler Aluminum wheel rims

slide-8
SLIDE 8

Main Attractive Features for GTA Main Attractive Features for GTA

Optional: Black Rim with Styling reflective strip One Touch of Automatic Passenger Footrest Modern Wave Type of Brake Disc in Front Wide Footrest for Comfortable Driving Integrated LED Tail Light Styling LED Head & Signal Lights Big Met-In for Full Face Helmet Sporty Muffler for 50cc

slide-9
SLIDE 9

GTC GTC-50 50

Stylish Model Stylish Model

Powerful air-cooled 49.3cc,

2T at 3.25kW H.P.

w/ EURO (2) & EPA homologated Front: Telescope Absorber

Rear: Shock-Absorber with Oil Damper

Front: Fashionable wave Disc

brake brake Rear: Drum Brake

Sporty type of muffler Aluminum wheel rims

slide-10
SLIDE 10

Noble Noble-50/100/125/150 50/100/125/150

Main Features Main Features

  • Available in 50 and 100 c.c. -2 Stroke, and 125 , 150 cc - 4 Stroke.
  • 50c.c. is EURO (2) / EPA homologated ; 100 &125c.c. is EURO(3) homologated ;

150cc is EPA homologated

slide-11
SLIDE 11

TB-50/100/125/150

Main Features Main Features

  • Available in 50 and 100 c.c. -2 Stroke, and 125 , 150 cc - 4 Stroke.
  • 50c.c. is EURO (2) / EPA homologated ; 100 &125c.c. is EURO(3) homologated ;
slide-12
SLIDE 12

AIR TEC-50/100/125/150

Main Features Main Features

  • Available in 50 and 100 c.c. -2 Stroke, and 125 , 150 cc - 4 Stroke.
  • 50c.c. is EURO (2) / EPA homologated ; 100 & 125c.c. is EURO(3) homologated ;
slide-13
SLIDE 13

ATV ATV - Sporty version Sporty version

slide-14
SLIDE 14

ATV-50/90/100/110cc (I)

  • Air-Cooled Engine Types:

ATV-50: 49.3c.c., 2T, CVT ATV-90: 81.3c.c., 2T,CVT ATV-100: 96.5c.c., 2T, CVT ATV-110:103.6c.c. 2T, CVT

  • L x W xH: 1540 mm*850

mm*900 mm

  • Front suspension: A-Arm
  • Rear suspension: Single

Shock

  • Front Brake: Drum
  • Rear Brake: Drum
  • Fuel Capacity: 5L
  • Optional : reverse
slide-15
SLIDE 15

ATV-50/90/100/110cc (II)

  • Air-Cooled Engine Types:

ATV-50: 49.3c.c., 2T, CVT ATV-90: 81.3c.c., 2T,CVT ATV-100: 96.5c.c., 2T, CVT ATV-110:103.6c.c. 2T, CVT

  • L x W xH: 1540 mm*850

mm*900 mm mm*900 mm

  • Front suspension: A-Arm
  • Rear suspension: Single

Shock

  • Front Brake: Drum
  • Rear Brake: Drum
  • Fuel Capacity: 5L
  • Optional : reverse
slide-16
SLIDE 16

ATV-50/90/100/110cc (V)

  • Air-Cooled Engine Types:

ATV-50: 49.3c.c., 2T, CVT ATV-90: 81.3c.c., 2T,CVT ATV-100: 96.5c.c., 2T, CVT ATV-110:103.6c.c. 2T, CVT

  • L x W xH: 1540 mm*850

mm*900 mm mm*900 mm

  • Front suspension: A-Arm
  • Rear suspension: Single

Shock

  • Front Brake: Drum
  • Rear Brake: Drum
  • Fuel Capacity: 5L
  • Optional : reverse
slide-17
SLIDE 17
  • Air-Cooled Engine Types:

ATV-50: 49.3c.c., 2T, CVT ATV-100: 96.5c.c., 2T, CVT

  • L x W xH: 1540 mm*850

mm*900 mm

  • Front suspension: A-Arm
  • Rear suspension: Single

ATV-50/100cc (DB)

Rear suspension: Single Shock

  • Front Brake: Drum
  • Rear Brake: Drum
  • Fuel Capacity: 5L
  • Optional : reverse
slide-18
SLIDE 18
  • Air-Cooled Engine Types:

ATV-50: 49.3c.c., 2T, CVT ATV-100: 96.5c.c., 2T, CVT

  • L x W xH: 1560 mm*970

mm*930 mm

  • Front suspension: A-Arm

ATV-50/100cc (L) 2014 New Launched!!!

  • Rear suspension: Single

Shock (5-way preload adjustable)

  • Front Brake: Drum
  • Rear Brake: Drum
  • Fuel Capacity: 5L
  • Optional : reverse
slide-19
SLIDE 19

ATV-DB100Plus vs. Standard (length)

(length) (length) (length)

100Plus standard

standard

100Plus

slide-20
SLIDE 20

standard

ATV-DB100Plus vs. Standard (length)

(length) (length) (length)

100Plus

slide-21
SLIDE 21

ATV-DB100Plus vs. Standard (length)

(length) (length) (length)

standard

100Plus

slide-22
SLIDE 22
  • Air-Cooled Engine Types:

ATV-50: 49.3c.c., 4T, CVT L x W xH: 1130 mm*725 mm*690 mm

  • Front suspension: A-Arm
  • Front Brake: Drum

Rear Brake: Disc

ATV-50 (Mini) 2014 New Launched!!!

  • Rear Brake: Disc
  • Fuel Capacity: 3.5L
slide-23
SLIDE 23

ATV ATV-50RS & 150 / 300 S(I) 50RS & 150 / 300 S(I)

  • 1.) 49.3c.c. CVT, air-cooled, 2T 2.) 149.5c.c. CVT, oil-cooled, 4T, 4 valve, SOHC

3.) 282c.c. 4T, air-cooled, 5 speed shift, 4 valve, SOHC w/Reverse

  • EURO 2 homologated
  • Front: Dual A-arm/ 5 way preload-adjustable shocks
  • Rear: Swing arm/ preload-adjustable shock
  • Front: R/L Disc brake, Rear: Disc Brake
slide-24
SLIDE 24

ATV ATV-150 / 300 S(II) 150 / 300 S(II)

  • 1.) 149.5c.c. CVT, oil-cooled 2.) 282c.c. 4T, air-cooled, 5 speed, 4 valve,
  • SOHC, with Reverse
  • EURO 2 homologated
  • Front: Dual A-arm/5 way preload-adjustable shocks
  • Rear: Swing arm/ preload-adjustable shock
  • Front: R/L Disc brake, Rear: Disc Brake
slide-25
SLIDE 25

ATV ATV- 320S (CVT) 320S (CVT)

Closed Version Footrest Open Version Foot Panel w/Aluminum Nerf bar

  • 1.) 272c.c. 4T, 4 valve, CVT, Liquid-cooled w/Ceramic Cylinder,

15kW Horse Power, High/low speed w/reverse, recoil as backup

  • EURO 2 HOMOLOGAED
  • Front: Dual A-arm/ 5 way preload-adjustable shocks
  • Rear: Swing arm/ preload-adjustable shock
  • Front: R/L Disc brake, Rear: Disc Brake
  • Optional: Alloy rims / Iron rims
slide-26
SLIDE 26

Engine

  • 272cc. 4T, 4 valve, CVT, Liquid-

cooled w/ceramic cylinder, High-Low speed with reverse; recoil as backup Suspension Front Dual A-arm/5 way preload adjustable shock absorber. Brake

2013 ATV 2013 ATV-

  • 320SM (Low Gravity)

320SM (Low Gravity)

(Supermoto w/ On (Supermoto w/ On-road Tire) road Tire)

Brake Front: R/L disc brakes Rear: disc brake Nerf Bar/Foot Rest Alloy, with black net Tires Front: Maxxis 195/50-10 (M991) Rear: Maxxis 255/40-10 (M992) with silver Alloy rims

slide-27
SLIDE 27
  • Engine

282c.c./4T, 372c.c./4T w/ceramic cylinder air-cooled, 4 valve, SOHC, manual clutch 5 speed shift with reverse system

  • Suspension

Front: Dual A-arm/5 way preload- adjustable shocks

2013 ATV 2013 ATV-

  • 300XS / 400XS

300XS / 400XS (Off (Off-

  • Road Tire)

Road Tire)

Rear: swing arm/preload- adjustable shock

  • Brake

Front: R/L disc brake Rear: disc brake

  • Nerf Bar/Foot Rest:

Open version, steel

  • Tires:

Front: Kenda 22x7-10 (K532F) Rear: Kenda 20x11-9 (K533)

  • black steel round shape frame
  • black steel rims / handle bar / front bumper
  • black steel open version nerf bar
  • Preload adjustable hydraulic shock absorber (red)
slide-28
SLIDE 28
  • Engine

282c.c./4T, 372c.c./4T, w/ceramic cylinder air-cooled, 4 valve, SOHC, manual clutch 5 speed shift with reverse system

  • Suspension

Front: Dual A-arm/5 way preload- adjustable shocks Rear: swing arm/preload-

2013 ATV 2013 ATV-

  • 300XSM / 400XSM

300XSM / 400XSM (Supermoto w/ On (Supermoto w/ On-

  • road Tire)

road Tire)

Rear: swing arm/preload- adjustable shock

  • Brake

Front: R/L disc brake Rear: disc brake

  • Nerf Bar/Foot Rest

Open version, Alloy

  • Tires

Front: Maxxis195/50-10 (M991) Rear: Maxxis 255/40-10 (M992) with silver Alloy rims

  • silver Alloy round shape frame
  • silver Alloy rims / handle bar / front bumper
  • silver Alloy open version nerf bar
  • Preload adjustable hydraulic shock absorber (red)
slide-29
SLIDE 29

Engine 499c.c. 4T, Japan Fuji Subaru engine powerful liquid-cooled DOHC engine, manual clutch 5-speed with reverse system, 50HP at 8,000 rpm Suspension Front: Dual A-arm/adjustable Nitrogen absorbers Rear: swing arm/adjustable

2013 ATV 2013 ATV-

  • 500S

500S

(Off (Off-

  • Road Tire)

Road Tire)

Rear: swing arm/adjustable Nitrogen absorber (user friendly & drive-comfort) Brake Front: right hand lever, Hydraulic Double discs Rear: right foot pedal, Hydraulic disc Parking: Mechanical on rear disc Tires Front: Kenda 22x7-10 (K532F) Rear: Kenda 20x11-9 (K533)

  • black Steel round shape frame
  • black Steel rims / handle bar / front bumper
  • black Steel open version nerf bar
  • Adjustable Nitrogen shock absorber (red)
slide-30
SLIDE 30

2013 ATV 2013 ATV-

  • 500SM

500SM (Supermoto w/ (Supermoto w/ On On-road Tire road Tire) )

Engine

499c.c. 4T, powerful liquid-cooled DOHC engine, manual clutch 5- speed with reverse system, 50HP at 8,000 rpm

Suspension

Front Dual A-arm/adjustable Nitrogen absorbers Rear: swing arm/adjustable Rear: swing arm/adjustable Nitrogen absorber (user friendly & drive-comfort) Brake Front: right hand lever, Hydraulic Double discs Rear: right foot pedal, Hydraulic disc Parking: Mechanical on rear disc Tires Front: Maxxis 195/50-10 (M991) Rear: Maxxis 255/40-10 (M992) with silver Alloy rims

  • black steel round shape frame
  • silver Alloy rims / handle bar / front bumper
  • silver Alloy open version nerf bar
  • Adjustable Nitrogen shock absorber (red)
slide-31
SLIDE 31

Sporty Sporty-fashion Mini Car 320 fashion Mini Car 320

Torsion bar in front for better balance while driving Rear: shaft drive w/lockable

  • 1.) 272c.c. 4T, 4 valve, CVT, Liquid-cooled w/Ceramic Cylinder, SOHC, High/low speed

w/reverse, recoil as backup

  • Transmission: Shaft Drive w/Rear lockable different
  • EURO 2 homologated
  • Front Suspension: Single A-Arm w/5 way preload adjustable shock & Torsion bar.
  • Rear Suspension: Double A-Arm w/5 way preload adjustable shock
  • Front: R/L Disc brake, Rear: R/L Disc Brake

w/lockable differential

slide-32
SLIDE 32

SPARE TIRE STORAGE

Sporty Sporty-fashion Mini Car 320 fashion Mini Car 320

Option in storage box

slide-33
SLIDE 33

ATV ATV - Utility version Utility version

slide-34
SLIDE 34

ATV ATV-50RU / 150U / 300 50RU / 150U / 300U (II) U (II)

  • 1.) 49.3c.c. CVT, air-cooled, 2T, high-low speed 2.) 149.5c.c. CVT, oil-

cooled, 4T, 4 valve, SOHC 3.) 282c.c. 4T, air-cooled, 5 speed shift, 4 valve, SOHC – all are w/Reverse

  • EURO 2 homologated
  • Front: Dual A-arm/ 5 way preload-adjustable shocks
  • Rear: Swing arm/ preload-adjustable shock
  • Front: R/L Disc brake, Rear: Disc Brake
slide-35
SLIDE 35

ATV ATV-320 320U U

  • 272c.c. 4T, 4 valve, CVT, Liquid-cooled w/Ceramic Cylinder, 15kW Horse

Power, SOHC, High/low speed w/reverse, recoil as backup

  • Front: Dual A-arm/ 5 way preload-adjustable shocks
  • Rear: Swing arm/ preload-adjustable shock
  • Front: R/L Disc brake, Rear: Disc Brake
slide-36
SLIDE 36

Secondary transmission w/more safe Parking brake system Lockable Rear Differential

ATV ATV-320U 4x2 / 4x4 Shaft Drive 320U 4x2 / 4x4 Shaft Drive

  • 272c.c. 4T, 4 valve, CVT, Liquid-cooled w/Ceramic Cylinder, SOHC,

High/low speed w/reverse, recoil as backup with secondary transmission gear (H/L) for 50% extra torque and also increase the life time and durability of CVT transmission, 4 wheel independent suspension , Luxury Shaft drive ATV application!! EURO 2 homologated.

  • Front lockable differential for ATV-320U 4X4, rear differential is optional.
  • Independent Front/Rear Double A-arm & 5 Way Preload Adjustable,

Compression & Rebound Damping, front torsion bar for better balance.

  • Front: R/L Disc brake, Rear: Disc Brake

Differential Lock

slide-37
SLIDE 37

ATV ATV-320 320U U -Shaft drive Shaft drive 2014 New Launched!!!

  • 272c.c. 4T, 4 valve, CVT, Liquid-cooled w/Ceramic Cylinder
  • SOHC, High/low speed w/reverse, recoil as backup
  • Front: Dual A-arm/5 way preload-adjustable shocks
  • Rear: Swing arm/ preload-adjustable shock
  • Front: R/L Disc brake, Rear: Disc Brake
slide-38
SLIDE 38

Comparison of 320 Shaft Drive and Chain Drive Comparison of 320 Shaft Drive and Chain Drive Shaft drive Chain drive

Performance

Better transmission performance Shaft drive around 2~5% horsepower loss (Gear to gear power transmission ) Chain Drive around 20%~25% horsepower loss

Maintenance

Easy Maintenance Unnecessary to make frequent chain adjustment Need Frequent Maintenance Every 500 ~1000KM needs to check the status of the chain.

Durability

More durable ! more suitable for harsh terrain than chain drive Suitable for regular or racing application

slide-39
SLIDE 39
  • 565cc, 4T, water cooled, CVT with

L/H/N/R/P gear shift

  • Performance: 15kw (limited),

30kW(open)

  • Front two storage boxes, 12V power

supply

  • 2WD/4WD/ front differential lock

with electrical switch.

  • Mechanical emergency brake
  • Fuel tank switch :On / Off / Res

2013 ATV 2013 ATV-600 4x4 (4WD) 600 4x4 (4WD)

  • Fuel tank switch :On / Off / Res
  • Water proof electric wiring

connection

  • Skid plate and A-arm protector.
  • Torsion bar : good balance when

running

  • Front & rear rack and bumper
  • Stainless muffler
  • Multi-Function Speedometer
  • Optional winch and Hitch ball
slide-40
SLIDE 40

Features

Optional Winch Stainless muffler Multi-function speedometer 2WD/4WD/ front differential lock with electrical switch Steel Front Skid Plate for assembling snow shovel Skid plate / side covers *Al. material as optional Optional Winch with remote control Optional : Maxxis 14” Bighorn Tire +Matt Black Alloy Rim Standard : Maxxis 12” Bighorn Tire +Alloy Rim Optional Hitch Ball

slide-41
SLIDE 41

Be wild with us!!
