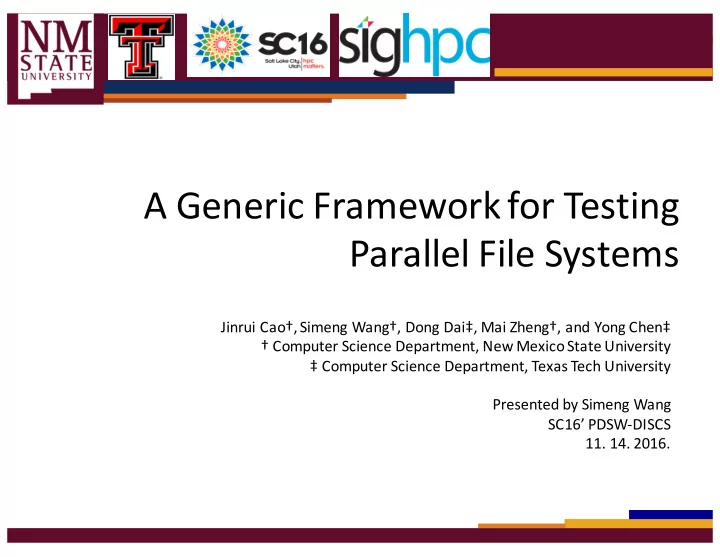

A Generic Framework for Testing Parallel File Systems

Jinrui Cao†, Simeng Wang†, Dong Dai‡, Mai Zheng†, and Yong Chen‡ † Computer Science Department, New Mexico State University ‡ Computer Science Department, Texas Tech University Presented by Simeng Wang SC16’ PDSW-DISCS

  • 11. 14. 2016.
slide-2
SLIDE 2

Motivation

2

Jan, 2016 @HPCC: power outage lead to unmeasurable data loss

slide-3
SLIDE 3

Motivation

q Existingmethods fortestingstoragesystemsare not good enough for large-

scaleparallelfilesystems (PFS)

Ø Modelchecking [e.g., EXPLODE@OSDI’06] v difficult to build a controllable model for PFS v state explosion problem Ø Formalmethods [e.g., FSCQ@SOSP’15] v challenging to write correct specifications for PFS Ø Automatic Testing[e.g., TorturingDB, CrashConsistency@OSDI’14] v closely tied to local storage stack: intrusive for PFS v only work for single-node

3

slide-4
SLIDE 4

Our Contributions

q A genericframeworkfor testingfailurehandlingofparallelfilesystem Ø Minimalinterference& high portability v decouple PFS from the testing framework through a remote storage

protocol(iSCSI)

Ø Systematicallygeneratefailureevents with high fidelity v fine-grained,controllablefailureemulation v emulaterealisticfailuremodes q An initialprototypeforLustrefilesystem Ø

Uncover internal I/O behaviors of Lustre under different workloads and failureconditions

4

slide-5
SLIDE 5

Outline

q Introduction q Design Ø Virtual Device Manager Ø Failure State Emulator Ø Data-Intensive Workloads Ø Post-Failure Checker q Preliminary Experiments q Conclusion and Future Work

5

slide-6
SLIDE 6

Outline

q Introduction q Design Ø Virtual Device Manager Ø Failure State Emulator Ø Data-Intensive Workloads Ø Post-Failure Checker q Preliminary Experiments q Conclusion and Future Work

6

slide-7
SLIDE 7

Overview

7

Device File

……

MGS MGT MDS MDT OSS OST OSS OST OSS OST

….. LustreNodes

Virtual Device Manager

……

Virtual Device Virtual Device Virtual Device Virtual Device Virtual Device

Post-Failure Checker Failure State Emulator Data-Intensive Workload

Testing Framework

MGS: Management Server MGT: Management Target MDS: Metadata Server MDT: Metadata Target OSS: Object Storage Server OST: Object Storage Target

slide-8
SLIDE 8

Overview

8

Device File

……

MGS MGT MDS MDT OSS OST OSS OST OSS OST

….. LustreNodes

Virtual Device Manager

……

Virtual Device Virtual Device Virtual Device Virtual Device Virtual Device

Post-Failure Checker Failure State Emulator Data-Intensive Workload

Testing Framework

slide-9
SLIDE 9

Virtual Device Manager

q Createsand maintainsdevicefiles for storagedevices. q Mounted to Lustrenodesas virtualdevices via iSCSI. q I/O operations aretranslatedinto diskI/O commands

q Log commandsintoa commandhistorylog Ø Include nodeIDs,commanddetails, andactual datatransferred Ø Used bythe FailureStateEmulator

9

slide-10
SLIDE 10

Overview

10

Virtual Device Virtual Device Virtual Device Virtual Device Virtual Device

…… ……

Failure State Emulator Post-Failure Checker Data-Intensive Workload

Testing Framework LustreNodes

MGS MGT MDS MDT OSS OST OSS OST OSS OST

…..

Device File

……

Virtual Device Manager

slide-11
SLIDE 11

Failure State Emulator

q Generatefailureeventsin a systematicand controllableway. Ø Manipulate I/Ocommandsand emulatesfailure state ofeach individualdevice

Ø Emulate four realistic failure modes based on previous studies [e.g., FAST’13,

OSDI’14, TOCS’16, FAST’16]

11

1.WholeDeviceFailure

Device becomes invisible to the host

2.CleanTerminationofWrites

Emulates simplestpower outage

3.ReorderingoftheWrites

Commits writes in an order different from the issuing order

4.CorruptionoftheDeviceBlock

Change content of writes

slide-12
SLIDE 12

Overview

12

Virtual Device Virtual Device Virtual Device Virtual Device Virtual Device

…… ……

Data-Intensive Workload

Testing Framework LustreNodes

MGS MGT MDS MDT OSS OST OSS OST OSS OST

…..

Device File

Post-Failure Checker Virtual Device Manager Failure State Emulator

slide-13
SLIDE 13

Co-design Workloads and Checkers

q Post-Failure Checkers

Ø examines the post-failurebehavior andcheckifit can recover withoutdataloss Ø May use existing checkers (e.g.,, LFSCKfor Lustre)

13

q Data-Intensive workloads

Ø Stress Lustre and generate I/O operations to age the system and bring it

to a statethatmaybedifficultto recover

Ø Mayuseexistingdata-intensiveworkloads Ø Mayincludeself-identification/verificationinformation

slide-14
SLIDE 14

Outline

q Introduction q Design Ø Virtual Device Manager Ø Failure State Emulator Ø Data-Intensive Workloads Ø Post-Failure Checker q Preliminary Experiments q Conclusion and Future Work

14

slide-15
SLIDE 15

Preliminary Experiment

q Experiment setup

Ø Cluster of sevenVMs, installed with CentOS 7. Ø Lustrefile system (version 2.8) on five VMs. Ø OneMGS/MGT node, oneMDS/MDT node, and threeOSS/OST nodes. Ø Sixth VM: hosts the Virtual Device Manager and the Failure State

Emulator

v Virtual Device Manager is built on top of the Linux SCSI target framework

Ø Last VM: used as client for launching workloads and LFSCK

v Data-Intensive Workload, Post-Failure Checker

15

slide-16
SLIDE 16

16

Workload Description

Montage/m101 cp tar rm astronomical imagemosaic engine copy a file into Lustre decompress a file on Lustre delete a file from Lustre

q Workloads

Ø Normal Workloads ran on Lustre

Operation Description lfs setstripe dd-nosync dd-sync LFSCK set striping pattern create & extend a Lustrefile create & extend a Lustrefile check & repair Lustre

Ø Post-Failure Workloads ran on Lustre

Preliminary Experiment

slide-17
SLIDE 17

Preliminary Results

17

Luster Nodes cp tar rm Montage/m101 s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12

MGS/MGT 0 MDS/MDT 0.1 5 0.2

6 0.4 6 0.5 6 0.6 6 0.7 6 1 6 1

OSS/OST#1 0

14 14 28 14 66 14 66 18 66 18 94 56 94

OSS/OST#2 15 14 15 14 43

14 81 14 81 19 81 19 109 19 110

OSS/OST#3 0

16 16 24 16 24 17 24 21 24 21 49 58 49

q Internal Pattern of Writes without Failure

Ø Numbers of bytes (MB) written to different Lustrenodes

under different workloads.

Ø Montage/m101 is spilt into twelve steps (i.e., s1 to s12)

to show the fine-grained write pattern.

slide-18
SLIDE 18

18

q Internal Pattern of Writes without Failure

Ø Accumulated numbers of bytes (KB) written to

different nodes during the workloads.

Preliminary Results

slide-19
SLIDE 19

19

Operation Description Report Error? lfs setstripe dd-nosync dd-sync LFSCK set striping pattern create & extend a Lustrefile create & extend a Lustrefile check & repair Lustre No No Yes No

q Post-Failure Behavior q Emulate a whole device failure on MDS/MDT node q Run operations on Lustre after the emulated device failure

Ø dd-nosyncmeans using dd to create and extend a Lustrefile Ø dd-sync means enforcing synchronous writes on the dd command Ø The last column shows whether the operation reported error or not

Preliminary Results

slide-20
SLIDE 20

Outline

q Introduction q Design Ø Virtual Device Manager Ø Failure State Emulator Ø Data-Intensive Workloads Ø Post-Failure Checker q Preliminary Experiments q Conclusion and Future Work

20

slide-21
SLIDE 21

Conclusion and Future Work

q Proposed and prototyped a framework for testing failure handling of

large-scale parallel file systems.

q Uncovered internal behaviors towards workloads under normal and

failure conditions

q More effective post-failure checking operations q More file systems (e.g., PVFS, Ceph) q Explore novel mechanisms to enhance the resilience of large-scale

parallel file systems

21

slide-22
