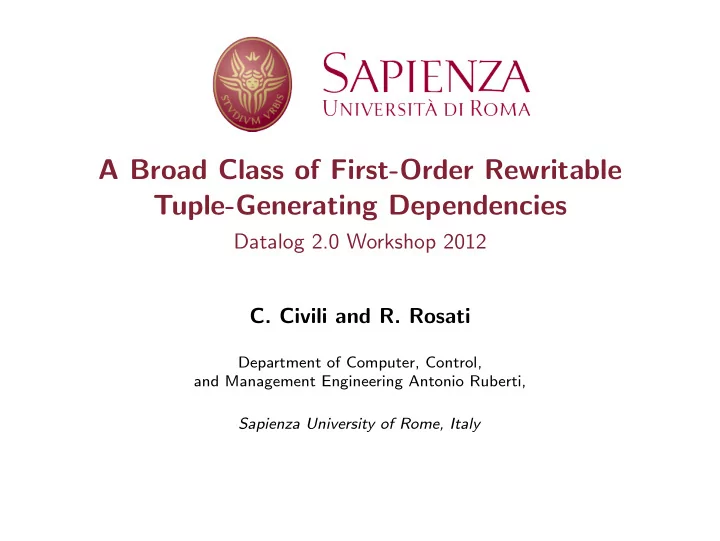

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

Datalog 2.0 Workshop 2012

• C. Civili and R. Rosati

Department of Computer, Control, and Management Engineering Antonio Ruberti, Sapienza University of Rome, Italy

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Outline

1 Introduction 2 Preliminaries 3 Weakly Recursive simple TGDs 4 Query Rewriting 5 Conclusions

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Introduction

• Interesting recent works on Datalog extensions are based on the idea
• f extending Datalog rules with existential variables in rule heads.
• This kind of rules correspond to tuple-generating dependencies

(TGDs), a well-known form of database dependencies in database theory.

• The problem of reasoning over Datalog programs with existential

variables in rule heads corresponds to the problem of reasoning over a database with TGDs under an open-world assumption.

• Almost all the recent approaches to this problem focus on

conjunctive query answering under TGDs.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The Problem

• We are interested in first-order rewritable TGDs, i.e., classes of

TGDs for which conjunctive query answering can be reduced to the evaluation of a first-order query over the database.

• Very important both from the theoretical and the practical viewpoint.
• Such classes of TGDs could be used for building efficient query

answering systems that delegate data management to standard relational database technology, like in ontology-based data access (OBDA) systems.

• Our aim is to identify a broader class of TGDs that comprises all

known FOL-rewritable classes of TGDs, and in particular acyclic TGDs, multi-linear TGDs, and sticky-join TGDs.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Our Contributions

1 We define the class of weakly recursive TGDs. 2 We prove that weakly recursive TGDs are first-order rewritable,

by defining an algorithm that is able to compute the first-order rewriting of conjunctive queries over weakly recursive TGDs and proving termination of this algorithm over weakly recursive TGDs.

3 We prove that, under the restriction to simple TGDs, weakly

recursive TGDs comprise and generalize every previously known FOL-rewritable class of TGDs, in particular, acyclic TGDs, linear TGDs, multi-linear TGDs, sticky TGDs, sticky-join TGDs.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Our Contributions

1 We define the class of weakly recursive TGDs. 2 We prove that weakly recursive TGDs are first-order rewritable,

by defining an algorithm that is able to compute the first-order rewriting of conjunctive queries over weakly recursive TGDs and proving termination of this algorithm over weakly recursive TGDs.

3 We prove that, under the restriction to simple TGDs, weakly

recursive TGDs comprise and generalize every previously known FOL-rewritable class of TGDs, in particular, acyclic TGDs, linear TGDs, multi-linear TGDs, sticky TGDs, sticky-join TGDs.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Our Contributions

1 We define the class of weakly recursive TGDs. 2 We prove that weakly recursive TGDs are first-order rewritable,

by defining an algorithm that is able to compute the first-order rewriting of conjunctive queries over weakly recursive TGDs and proving termination of this algorithm over weakly recursive TGDs.

3 We prove that, under the restriction to simple TGDs, weakly

recursive TGDs comprise and generalize every previously known FOL-rewritable class of TGDs, in particular, acyclic TGDs, linear TGDs, multi-linear TGDs, sticky TGDs, sticky-join TGDs.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Our Contributions

1 We define the class of weakly recursive TGDs. 2 We prove that weakly recursive TGDs are first-order rewritable,

by defining an algorithm that is able to compute the first-order rewriting of conjunctive queries over weakly recursive TGDs and proving termination of this algorithm over weakly recursive TGDs.

3 We prove that, under the restriction to simple TGDs, weakly

recursive TGDs comprise and generalize every previously known FOL-rewritable class of TGDs, in particular, acyclic TGDs, linear TGDs, multi-linear TGDs, sticky TGDs, sticky-join TGDs.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Outline

1 Introduction 2 Preliminaries 3 Weakly Recursive simple TGDs 4 Query Rewriting 5 Conclusions

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Syntax

• A tuple-generating dependency (TGD) R is an expression of the

form β1, . . . , βn → α1, . . . , αm, where α1, . . . , αm, β1, . . . , βn are atoms and m ≥ 1, n ≥ 1.

• Given an atom γ, we denote by Rel(γ) the relation symbol of γ.
• We call distinguished variables of R the variables occurring in the

head and in the body of R, existential body variables of R the ones

• ccurring only in the body of R, and existential head variables of R

the ones occurring only in the head of R.

• We focus on simple TGDs, i.e., TGDs in which every atom does not

contain occurrences of constants and does not contain repeated

• ccurrences of variables.
• A CQ q is an expression of the form q(x) :- α1, . . . , αn, where

α1, . . . , αn (body) is a sequence of atoms.

• A UCQ is a set of CQs of the same arity.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Syntax

• A tuple-generating dependency (TGD) R is an expression of the

form β1, . . . , βn → α1, . . . , αm, where α1, . . . , αm, β1, . . . , βn are atoms and m ≥ 1, n ≥ 1.

• Given an atom γ, we denote by Rel(γ) the relation symbol of γ.
• We call distinguished variables of R the variables occurring in the

head and in the body of R, existential body variables of R the ones

• ccurring only in the body of R, and existential head variables of R

the ones occurring only in the head of R.

• We focus on simple TGDs, i.e., TGDs in which every atom does not

contain occurrences of constants and does not contain repeated

• ccurrences of variables.
• A CQ q is an expression of the form q(x) :- α1, . . . , αn, where

α1, . . . , αn (body) is a sequence of atoms.

• A UCQ is a set of CQs of the same arity.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Syntax

• A tuple-generating dependency (TGD) R is an expression of the

form β1, . . . , βn → α1, . . . , αm, where α1, . . . , αm, β1, . . . , βn are atoms and m ≥ 1, n ≥ 1.

• Given an atom γ, we denote by Rel(γ) the relation symbol of γ.
• We call distinguished variables of R the variables occurring in the

head and in the body of R, existential body variables of R the ones

• ccurring only in the body of R, and existential head variables of R

the ones occurring only in the head of R.

• We focus on simple TGDs, i.e., TGDs in which every atom does not

contain occurrences of constants and does not contain repeated

• ccurrences of variables.
• A CQ q is an expression of the form q(x) :- α1, . . . , αn, where

α1, . . . , αn (body) is a sequence of atoms.

• A UCQ is a set of CQs of the same arity.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Syntax

• A tuple-generating dependency (TGD) R is an expression of the

form β1, . . . , βn → α1, . . . , αm, where α1, . . . , αm, β1, . . . , βn are atoms and m ≥ 1, n ≥ 1.

• Given an atom γ, we denote by Rel(γ) the relation symbol of γ.
• We call distinguished variables of R the variables occurring in the

head and in the body of R, existential body variables of R the ones

• ccurring only in the body of R, and existential head variables of R

the ones occurring only in the head of R.

• We focus on simple TGDs, i.e., TGDs in which every atom does not

contain occurrences of constants and does not contain repeated

• ccurrences of variables.
• A CQ q is an expression of the form q(x) :- α1, . . . , αn, where

α1, . . . , αn (body) is a sequence of atoms.

• A UCQ is a set of CQs of the same arity.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Syntax

• A tuple-generating dependency (TGD) R is an expression of the

form β1, . . . , βn → α1, . . . , αm, where α1, . . . , αm, β1, . . . , βn are atoms and m ≥ 1, n ≥ 1.

• Given an atom γ, we denote by Rel(γ) the relation symbol of γ.
• We call distinguished variables of R the variables occurring in the

head and in the body of R, existential body variables of R the ones

• ccurring only in the body of R, and existential head variables of R

the ones occurring only in the head of R.

• We focus on simple TGDs, i.e., TGDs in which every atom does not

contain occurrences of constants and does not contain repeated

• ccurrences of variables.
• A CQ q is an expression of the form q(x) :- α1, . . . , αn, where

α1, . . . , αn (body) is a sequence of atoms.

• A UCQ is a set of CQs of the same arity.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Syntax

• A tuple-generating dependency (TGD) R is an expression of the

form β1, . . . , βn → α1, . . . , αm, where α1, . . . , αm, β1, . . . , βn are atoms and m ≥ 1, n ≥ 1.

• Given an atom γ, we denote by Rel(γ) the relation symbol of γ.
• We call distinguished variables of R the variables occurring in the

head and in the body of R, existential body variables of R the ones

• ccurring only in the body of R, and existential head variables of R

the ones occurring only in the head of R.

• We focus on simple TGDs, i.e., TGDs in which every atom does not

contain occurrences of constants and does not contain repeated

• ccurrences of variables.
• A CQ q is an expression of the form q(x) :- α1, . . . , αn, where

α1, . . . , αn (body) is a sequence of atoms.

• A UCQ is a set of CQs of the same arity.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Semantics

Let P be a set of TGDs, let q be a UCQ and let D or B be databases.

• Given a TGD R of the form β1, . . . , βn → α1, . . . , αm and a database

B, we say that B satisfies R if the first-order interpretation IB satisfies the first-order sentence ∀ x.β1 ∧ . . . ∧ βn → ∃ y.α1 ∧ . . . ∧ αm.

• sem(P, D) = set of all models of P ∪ D.
• ans(q, B) = set of tuples of constants c such that IB satisfies q(c).
• cert(q, P, D) = set of tuples c such that c ∈

B∈sem(P,D) ans(q, B).

• P is FOL-rewritable if, for every UCQ q, there exists a FOL query q′

such that, for every database D, cert(q, P, D) = ans(q′, D).

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Semantics

Let P be a set of TGDs, let q be a UCQ and let D or B be databases.

• Given a TGD R of the form β1, . . . , βn → α1, . . . , αm and a database

B, we say that B satisfies R if the first-order interpretation IB satisfies the first-order sentence ∀ x.β1 ∧ . . . ∧ βn → ∃ y.α1 ∧ . . . ∧ αm.

• sem(P, D) = set of all models of P ∪ D.
• ans(q, B) = set of tuples of constants c such that IB satisfies q(c).
• cert(q, P, D) = set of tuples c such that c ∈

B∈sem(P,D) ans(q, B).

• P is FOL-rewritable if, for every UCQ q, there exists a FOL query q′

such that, for every database D, cert(q, P, D) = ans(q′, D).

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Semantics

Let P be a set of TGDs, let q be a UCQ and let D or B be databases.

• Given a TGD R of the form β1, . . . , βn → α1, . . . , αm and a database

B, we say that B satisfies R if the first-order interpretation IB satisfies the first-order sentence ∀ x.β1 ∧ . . . ∧ βn → ∃ y.α1 ∧ . . . ∧ αm.

• sem(P, D) = set of all models of P ∪ D.
• ans(q, B) = set of tuples of constants c such that IB satisfies q(c).
• cert(q, P, D) = set of tuples c such that c ∈

B∈sem(P,D) ans(q, B).

• P is FOL-rewritable if, for every UCQ q, there exists a FOL query q′

such that, for every database D, cert(q, P, D) = ans(q′, D).

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Semantics

Let P be a set of TGDs, let q be a UCQ and let D or B be databases.

• Given a TGD R of the form β1, . . . , βn → α1, . . . , αm and a database

B, we say that B satisfies R if the first-order interpretation IB satisfies the first-order sentence ∀ x.β1 ∧ . . . ∧ βn → ∃ y.α1 ∧ . . . ∧ αm.

• sem(P, D) = set of all models of P ∪ D.
• ans(q, B) = set of tuples of constants c such that IB satisfies q(c).
• cert(q, P, D) = set of tuples c such that c ∈

B∈sem(P,D) ans(q, B).

• P is FOL-rewritable if, for every UCQ q, there exists a FOL query q′

such that, for every database D, cert(q, P, D) = ans(q′, D).

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Semantics

Let P be a set of TGDs, let q be a UCQ and let D or B be databases.

• Given a TGD R of the form β1, . . . , βn → α1, . . . , αm and a database

B, we say that B satisfies R if the first-order interpretation IB satisfies the first-order sentence ∀ x.β1 ∧ . . . ∧ βn → ∃ y.α1 ∧ . . . ∧ αm.

• sem(P, D) = set of all models of P ∪ D.
• ans(q, B) = set of tuples of constants c such that IB satisfies q(c).
• cert(q, P, D) = set of tuples c such that c ∈

B∈sem(P,D) ans(q, B).

• P is FOL-rewritable if, for every UCQ q, there exists a FOL query q′

such that, for every database D, cert(q, P, D) = ans(q′, D).

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Semantics

Let P be a set of TGDs, let q be a UCQ and let D or B be databases.

• Given a TGD R of the form β1, . . . , βn → α1, . . . , αm and a database

B, we say that B satisfies R if the first-order interpretation IB satisfies the first-order sentence ∀ x.β1 ∧ . . . ∧ βn → ∃ y.α1 ∧ . . . ∧ αm.

• sem(P, D) = set of all models of P ∪ D.
• ans(q, B) = set of tuples of constants c such that IB satisfies q(c).
• cert(q, P, D) = set of tuples c such that c ∈

B∈sem(P,D) ans(q, B).

• P is FOL-rewritable if, for every UCQ q, there exists a FOL query q′

such that, for every database D, cert(q, P, D) = ans(q′, D).

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Outline

1 Introduction 2 Preliminaries 3 Weakly Recursive simple TGDs 4 Query Rewriting 5 Conclusions

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Some Definitions

• A position σ is either an expression of the form r[i] or an expression
• f the form r[ ], where r is a relation symbol and i is an integer such

that 1 ≤ i ≤ k, where k is the arity of r.

• Let R be a TGD of the form β1, . . . , βn → α1, . . . , αm, and let α be

an atom of head(R). Then:

i given a position r[ ], we say that α is R-compatible with r[ ] if Rel(α) = r; ii given a position r[i], we say that α is R-compatible with r[i] if Rel(α) = r and α[i] is a distinguished variable of R.

• Given an atom β of the body and a variable x occurring in β in

position i, we denote by Pos(x, β) the position r[i].

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Some Definitions

• A position σ is either an expression of the form r[i] or an expression
• f the form r[ ], where r is a relation symbol and i is an integer such

that 1 ≤ i ≤ k, where k is the arity of r.

• Let R be a TGD of the form β1, . . . , βn → α1, . . . , αm, and let α be

an atom of head(R). Then:

i given a position r[ ], we say that α is R-compatible with r[ ] if Rel(α) = r; ii given a position r[i], we say that α is R-compatible with r[i] if Rel(α) = r and α[i] is a distinguished variable of R.

• Given an atom β of the body and a variable x occurring in β in

position i, we denote by Pos(x, β) the position r[i].

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Some Definitions

• A position σ is either an expression of the form r[i] or an expression
• f the form r[ ], where r is a relation symbol and i is an integer such

that 1 ≤ i ≤ k, where k is the arity of r.

• Let R be a TGD of the form β1, . . . , βn → α1, . . . , αm, and let α be

an atom of head(R). Then:

i given a position r[ ], we say that α is R-compatible with r[ ] if Rel(α) = r; ii given a position r[i], we say that α is R-compatible with r[i] if Rel(α) = r and α[i] is a distinguished variable of R.

• Given an atom β of the body and a variable x occurring in β in

position i, we denote by Pos(x, β) the position r[i].

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Some Definitions

• A position σ is either an expression of the form r[i] or an expression
• f the form r[ ], where r is a relation symbol and i is an integer such

that 1 ≤ i ≤ k, where k is the arity of r.

• Let R be a TGD of the form β1, . . . , βn → α1, . . . , αm, and let α be

an atom of head(R). Then:

i given a position r[ ], we say that α is R-compatible with r[ ] if Rel(α) = r; ii given a position r[i], we say that α is R-compatible with r[i] if Rel(α) = r and α[i] is a distinguished variable of R.

• Given an atom β of the body and a variable x occurring in β in

position i, we denote by Pos(x, β) the position r[i].

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Some Definitions

• A position σ is either an expression of the form r[i] or an expression
• f the form r[ ], where r is a relation symbol and i is an integer such

that 1 ≤ i ≤ k, where k is the arity of r.

• Let R be a TGD of the form β1, . . . , βn → α1, . . . , αm, and let α be

an atom of head(R). Then:

i given a position r[ ], we say that α is R-compatible with r[ ] if Rel(α) = r; ii given a position r[i], we say that α is R-compatible with r[i] if Rel(α) = r and α[i] is a distinguished variable of R.

• Given an atom β of the body and a variable x occurring in β in

position i, we denote by Pos(x, β) the position r[i].

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The Notion of Position Graph

A position graph is a graph that encodes the structure of a program P:

• nodes are positions;
• edges reflect the structure of program rules (from head to body);
• can be used to determine whether P is FOL-rewritable;
• graph edges are classified (m-edges, s-edges) so as to distinguish

dangerous and harmless cycles in the graph.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The Notion of Position Graph

A position graph is a graph that encodes the structure of a program P:

• nodes are positions;
• edges reflect the structure of program rules (from head to body);
• can be used to determine whether P is FOL-rewritable;
• graph edges are classified (m-edges, s-edges) so as to distinguish

dangerous and harmless cycles in the graph.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The Notion of Position Graph

A position graph is a graph that encodes the structure of a program P:

• nodes are positions;
• edges reflect the structure of program rules (from head to body);
• can be used to determine whether P is FOL-rewritable;
• graph edges are classified (m-edges, s-edges) so as to distinguish

dangerous and harmless cycles in the graph.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The Notion of Position Graph

A position graph is a graph that encodes the structure of a program P:

• nodes are positions;
• edges reflect the structure of program rules (from head to body);
• can be used to determine whether P is FOL-rewritable;
• graph edges are classified (m-edges, s-edges) so as to distinguish

dangerous and harmless cycles in the graph.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The Position Graph #1

Definition

Given a set P of TGDs, the position graph of P, PG(P), is a triple V , E, L where V (the set of nodes of PG(P)) is a set of positions, E is a set of edges (pairs of nodes), and L is an edge labeling function L : E → 2{m,s}. PG(P) is inductively defined as follows:

• for every TGD R ∈ P of the form β1, . . . , βn → α1, . . . , αm and for

every i such that 1 ≤ i ≤ m, r[ ] ∈ V where r = Rel(αi);

• if σ ∈ V , then for every TGD R ∈ P and for every atom α of

head(R) that is R-compatible with σ:

• 1. for every atom β ∈ body(R):

(a) σ, s[ ] ∈ E, where s = Rel(β); (b) for each existential body variable z of R occurring in β, σ, σ′ ∈ E, where σ′ = Pos(z, β);

(continue)

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The Position Graph #2

Definition

(continued)

(c) if σ is of the form r[i], then σ, σ′′ ∈ E, where σ′′ = Pos(y, β) and y is the variable occurring in α at position i; (d) if there exists a distinguished variable of R that does not occur in β, then, for every edge e added to E at points (a), (b), (c), m ∈ L(e);

• 2. if there exists an existential body variable x of R occurring in at least

two atoms of body(R), then for every edge e added to E at point 1, s ∈ L(e);

• 3. if σ is of the form r[i], y is the variable occurring in α at position i,

and y occurs in at least two atoms of body(R), then, for every edge e added to E at point 1, s ∈ L(e).

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Weakly Recursive Simple TGDs

We call m-edge an edge e such that m ∈ L(e), and call s-edge an edge e such that s ∈ L(e).

Definition

A set of simple TGDs P is weakly recursive (WR) if in PG(P) there exists no cycle that contains both an m-edge and an s-edge.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Weakly Recursive Simple TGDs

We call m-edge an edge e such that m ∈ L(e), and call s-edge an edge e such that s ∈ L(e).

Definition

A set of simple TGDs P is weakly recursive (WR) if in PG(P) there exists no cycle that contains both an m-edge and an s-edge.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

An Example #1

Example

Let P be the following set of TGDs: R1 : s(x, w, y), t(z) → r(x, y), p(y, z) R2 : v(x, y), q(y) → s(x, z, y) R3 : r(x, y) → v(x, y) Since there are no s-edges in PG(P), it immediately follows that P is a weakly recursive set of TGDs.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

An Example #1

Example

Let P be the following set of TGDs: R1 : s(x, w, y), t(z) → r(x, y), p(y, z) R2 : v(x, y), q(y) → s(x, z, y) R3 : r(x, y) → v(x, y) Since there are no s-edges in PG(P), it immediately follows that P is a weakly recursive set of TGDs.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

An Example #2

Example

Let P be the following set of TGDs: R1 : s(x, w), t(y, z) → r(x, y, z) R2 : p(x, y), v(y) → s(x, y) R3 : r(x, y, z) → p(x, y), t(y, z) This graph contains a cycle that has both an m-edge and an s-edge. Consequently, P is not a weakly recursive set of TGDs.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

An Example #2

Example

Let P be the following set of TGDs: R1 : s(x, w), t(y, z) → r(x, y, z) R2 : p(x, y), v(y) → s(x, y) R3 : r(x, y, z) → p(x, y), t(y, z) This graph contains a cycle that has both an m-edge and an s-edge. Consequently, P is not a weakly recursive set of TGDs.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Outline

1 Introduction 2 Preliminaries 3 Weakly Recursive simple TGDs 4 Query Rewriting 5 Conclusions

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Query Rewriting for Weakly Recursive TGDs

• We present an algorithm that, given a UCQ Q and a set P of TGDs,

computes a FOL perfect rewriting of Q under P.

• The only purpose of the version presented here is to show that weakly

recursive TGDs are FOL-rewritable.

• The algorithm assumes that TGDs are single-head TGDs, i.e., TGDs
• f the form β1, . . . , βn → α, in which only one atom occurs in the

head of every TGD.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Query Rewriting for Weakly Recursive TGDs

• We present an algorithm that, given a UCQ Q and a set P of TGDs,

computes a FOL perfect rewriting of Q under P.

• The only purpose of the version presented here is to show that weakly

recursive TGDs are FOL-rewritable.

• The algorithm assumes that TGDs are single-head TGDs, i.e., TGDs
• f the form β1, . . . , βn → α, in which only one atom occurs in the

head of every TGD.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Query Rewriting for Weakly Recursive TGDs

• We present an algorithm that, given a UCQ Q and a set P of TGDs,

computes a FOL perfect rewriting of Q under P.

• The only purpose of the version presented here is to show that weakly

recursive TGDs are FOL-rewritable.

• The algorithm assumes that TGDs are single-head TGDs, i.e., TGDs
• f the form β1, . . . , βn → α, in which only one atom occurs in the

head of every TGD.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The algorithm WRQueryRewrite #1

Input: set of simple, single-head TGDs P, UCQ Q Output: UCQ Q′ begin P′ := P; Q′ := Normalize(Q); Qnew := Q′; repeat Qaux := Q′; QP := Qnew; Qnew := ∅; for each q ∈ QP do for each g1, g2 ∈ body(q) do if g1 and g2 unify and belong to the same join-conn. comp. of q then Qnew := Qnew ∪ {reduce(q, g1, g2)}; for each g ∈ body(q) do for each R ∈ P′ do if R is applicable to g then Qnew := Qnew ∪ {atom-rewrite(q, g, R)}; Qnew := Normalize(Qnew); for each q ∈ Qnew do if q is not equal to any query of Q′ up to variable renaming then Q′ := Q′ ∪ {q}; until Q′ = Qaux; return Q′; end

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The algorithm WRQueryRewrite #2

The three main steps of the algorithm are the following:

1 Query Normalization: redundant atoms are removed from each

query.

2 Reduction: unifiable atoms of each query are substituted with the

atom obtained by applying to them their MGU. Differently from previous techniques, the algorithm only considers pairs of atoms that belong to the same join-connected component of the CQ.

3 Atom Rewrite: if we find a rule R which is R-applicable to an atom

• f the query, we substitute such atom with the atoms obtained by

applying to them the MGU between the atom and the head of the rule.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The algorithm WRQueryRewrite #2

The three main steps of the algorithm are the following:

1 Query Normalization: redundant atoms are removed from each

query.

2 Reduction: unifiable atoms of each query are substituted with the

atom obtained by applying to them their MGU. Differently from previous techniques, the algorithm only considers pairs of atoms that belong to the same join-connected component of the CQ.

3 Atom Rewrite: if we find a rule R which is R-applicable to an atom

• f the query, we substitute such atom with the atoms obtained by

applying to them the MGU between the atom and the head of the rule.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The algorithm WRQueryRewrite #2

The three main steps of the algorithm are the following:

1 Query Normalization: redundant atoms are removed from each

query.

2 Reduction: unifiable atoms of each query are substituted with the

atom obtained by applying to them their MGU. Differently from previous techniques, the algorithm only considers pairs of atoms that belong to the same join-connected component of the CQ.

3 Atom Rewrite: if we find a rule R which is R-applicable to an atom

• f the query, we substitute such atom with the atoms obtained by

applying to them the MGU between the atom and the head of the rule.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The algorithm WRQueryRewrite #2

The three main steps of the algorithm are the following:

1 Query Normalization: redundant atoms are removed from each

query.

2 Reduction: unifiable atoms of each query are substituted with the

atom obtained by applying to them their MGU. Differently from previous techniques, the algorithm only considers pairs of atoms that belong to the same join-connected component of the CQ.

3 Atom Rewrite: if we find a rule R which is R-applicable to an atom

• f the query, we substitute such atom with the atoms obtained by

applying to them the MGU between the atom and the head of the rule.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The algorithm WRQueryRewrite #4

The WRQueryRewrite algorithm enjoys the folloqing important property:

Theorem

Let P be a set of single-head TGDs and let Q be a UCQ such that WRQueryRewrite(Q, P) terminates. Let Q′ be the UCQ returned by WRQueryRewrite(Q, P). Then, Q′ is a perfect rewriting of Q with respect to P.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

The algorithm WRQueryRewrite #4

The WRQueryRewrite algorithm enjoys the folloqing important property:

Theorem

Let P be a set of single-head TGDs and let Q be a UCQ such that WRQueryRewrite(Q, P) terminates. Let Q′ be the UCQ returned by WRQueryRewrite(Q, P). Then, Q′ is a perfect rewriting of Q with respect to P.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

FOL-rewritability of weakly recursive TGDs #1

1 We prove that the class of weakly recursive TGDs is FOL-rewritable

by showing that the algorithm WRQueryRewrite(q, P) always terminates if P is a weakly recursive set of single-head TGDs.

Lemma

Let P be a set of simple TGDs and let Q be a UCQ. If WRQueryRewrite(Q, P) does not terminate, then for every integer n there exists a CQ q returned by WRQueryRewrite(Q, P) such that q has at least

• ne join-connected component with more than n ebj-variables.

2 We prove that, if P is a weakly recursive set of TGDs, then for every

UCQ Q the number of ebj-variables in every join-connected component of a CQ returned by WRQueryRewrite(Q, P) is actually bounded, and therefore, by the above lemma, the algorithm terminates.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

FOL-rewritability of weakly recursive TGDs #1

1 We prove that the class of weakly recursive TGDs is FOL-rewritable

by showing that the algorithm WRQueryRewrite(q, P) always terminates if P is a weakly recursive set of single-head TGDs.

Lemma

Let P be a set of simple TGDs and let Q be a UCQ. If WRQueryRewrite(Q, P) does not terminate, then for every integer n there exists a CQ q returned by WRQueryRewrite(Q, P) such that q has at least

• ne join-connected component with more than n ebj-variables.

2 We prove that, if P is a weakly recursive set of TGDs, then for every

UCQ Q the number of ebj-variables in every join-connected component of a CQ returned by WRQueryRewrite(Q, P) is actually bounded, and therefore, by the above lemma, the algorithm terminates.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

FOL-rewritability of weakly recursive TGDs #1

1 We prove that the class of weakly recursive TGDs is FOL-rewritable

by showing that the algorithm WRQueryRewrite(q, P) always terminates if P is a weakly recursive set of single-head TGDs.

Lemma

Let P be a set of simple TGDs and let Q be a UCQ. If WRQueryRewrite(Q, P) does not terminate, then for every integer n there exists a CQ q returned by WRQueryRewrite(Q, P) such that q has at least

• ne join-connected component with more than n ebj-variables.

2 We prove that, if P is a weakly recursive set of TGDs, then for every

UCQ Q the number of ebj-variables in every join-connected component of a CQ returned by WRQueryRewrite(Q, P) is actually bounded, and therefore, by the above lemma, the algorithm terminates.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

FOL-rewritability of weakly recursive TGDs #2

3 This in turn implies, by the previous theorem, that weakly recursive

TGDs are a FOL-rewritable class of TGDs.

Theorem

Let P be a set of TGDs and let Q be a UCQ. If the execution of WRQueryRewrite(Q, P) does not terminate, then there exists a cycle in PG(P) containing both an m-edge and an s-edge.

4 As a corollary, we get that the execution of WRQueryRewrite(Q, P)

always terminates over weakly recursive TGDs. Therefore, we obtain the following theorem.

Theorem

Every weakly recursive set of TGDs is FOL-rewritable.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

FOL-rewritability of weakly recursive TGDs #2

3 This in turn implies, by the previous theorem, that weakly recursive

TGDs are a FOL-rewritable class of TGDs.

Theorem

Let P be a set of TGDs and let Q be a UCQ. If the execution of WRQueryRewrite(Q, P) does not terminate, then there exists a cycle in PG(P) containing both an m-edge and an s-edge.

4 As a corollary, we get that the execution of WRQueryRewrite(Q, P)

always terminates over weakly recursive TGDs. Therefore, we obtain the following theorem.

Theorem

Every weakly recursive set of TGDs is FOL-rewritable.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

FOL-rewritability of weakly recursive TGDs #2

3 This in turn implies, by the previous theorem, that weakly recursive

TGDs are a FOL-rewritable class of TGDs.

Theorem

Let P be a set of TGDs and let Q be a UCQ. If the execution of WRQueryRewrite(Q, P) does not terminate, then there exists a cycle in PG(P) containing both an m-edge and an s-edge.

4 As a corollary, we get that the execution of WRQueryRewrite(Q, P)

always terminates over weakly recursive TGDs. Therefore, we obtain the following theorem.

Theorem

Every weakly recursive set of TGDs is FOL-rewritable.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

FOL-rewritability of weakly recursive TGDs #2

3 This in turn implies, by the previous theorem, that weakly recursive

TGDs are a FOL-rewritable class of TGDs.

Theorem

Let P be a set of TGDs and let Q be a UCQ. If the execution of WRQueryRewrite(Q, P) does not terminate, then there exists a cycle in PG(P) containing both an m-edge and an s-edge.

4 As a corollary, we get that the execution of WRQueryRewrite(Q, P)

always terminates over weakly recursive TGDs. Therefore, we obtain the following theorem.

Theorem

Every weakly recursive set of TGDs is FOL-rewritable.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Outline

1 Introduction 2 Preliminaries 3 Weakly Recursive simple TGDs 4 Query Rewriting 5 Conclusions

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Comparison

• We show that the weakly recursive class comprises and generalizes

every previously known FOL-rewritable class of TGDs.

Theorem

The class of weakly recursive simple TGDs strictly contains the class of multi-linear simple TGDs.

Theorem

The class of weakly recursive simple TGDs strictly contains the class of sticky-join simple TGDs.

• Moreover, acyclic TGDs are trivially FOL-rewritable

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Comparison

• We show that the weakly recursive class comprises and generalizes

every previously known FOL-rewritable class of TGDs.

Theorem

The class of weakly recursive simple TGDs strictly contains the class of multi-linear simple TGDs.

Theorem

The class of weakly recursive simple TGDs strictly contains the class of sticky-join simple TGDs.

• Moreover, acyclic TGDs are trivially FOL-rewritable

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Comparison

• We show that the weakly recursive class comprises and generalizes

every previously known FOL-rewritable class of TGDs.

Theorem

The class of weakly recursive simple TGDs strictly contains the class of multi-linear simple TGDs.

Theorem

The class of weakly recursive simple TGDs strictly contains the class of sticky-join simple TGDs.

• Moreover, acyclic TGDs are trivially FOL-rewritable

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Comparison

• We show that the weakly recursive class comprises and generalizes

every previously known FOL-rewritable class of TGDs.

Theorem

The class of weakly recursive simple TGDs strictly contains the class of multi-linear simple TGDs.

Theorem

The class of weakly recursive simple TGDs strictly contains the class of sticky-join simple TGDs.

• Moreover, acyclic TGDs are trivially FOL-rewritable

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Comparison

This is true under the restriction to simple TGDs.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Future Work

This work is a further step towards the definition of a maximal class of TGDs supporting efficient query answering. Open challenges:

1 extending these results to non-simple TGDs, i.e., TGDs with repeated

variables within the same atom and with constants;

2 generalizing the class of weakly recursive TGDs to other decidable,

and possibly tractable, classes;

3 identifying new classes of TGDs for which query answering is in

PTIME with respect to data complexity;

4 optimizing the WRQueryRewrite algorithm for the usage of weakly

recursive TGDs in real applications.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Future Work

This work is a further step towards the definition of a maximal class of TGDs supporting efficient query answering. Open challenges:

1 extending these results to non-simple TGDs, i.e., TGDs with repeated

variables within the same atom and with constants;

2 generalizing the class of weakly recursive TGDs to other decidable,

and possibly tractable, classes;

3 identifying new classes of TGDs for which query answering is in

PTIME with respect to data complexity;

4 optimizing the WRQueryRewrite algorithm for the usage of weakly

recursive TGDs in real applications.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Future Work

This work is a further step towards the definition of a maximal class of TGDs supporting efficient query answering. Open challenges:

1 extending these results to non-simple TGDs, i.e., TGDs with repeated

variables within the same atom and with constants;

2 generalizing the class of weakly recursive TGDs to other decidable,

and possibly tractable, classes;

3 identifying new classes of TGDs for which query answering is in

PTIME with respect to data complexity;

4 optimizing the WRQueryRewrite algorithm for the usage of weakly

recursive TGDs in real applications.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati

Introduction Preliminaries Weakly Recursive simple TGDs Query Rewriting Conclusions

Future Work

This work is a further step towards the definition of a maximal class of TGDs supporting efficient query answering. Open challenges:

1 extending these results to non-simple TGDs, i.e., TGDs with repeated

variables within the same atom and with constants;

2 generalizing the class of weakly recursive TGDs to other decidable,

and possibly tractable, classes;

3 identifying new classes of TGDs for which query answering is in

PTIME with respect to data complexity;

4 optimizing the WRQueryRewrite algorithm for the usage of weakly

recursive TGDs in real applications.

A Broad Class of First-Order Rewritable Tuple-Generating Dependencies

• C. Civili and R. Rosati
