SLIDE 1

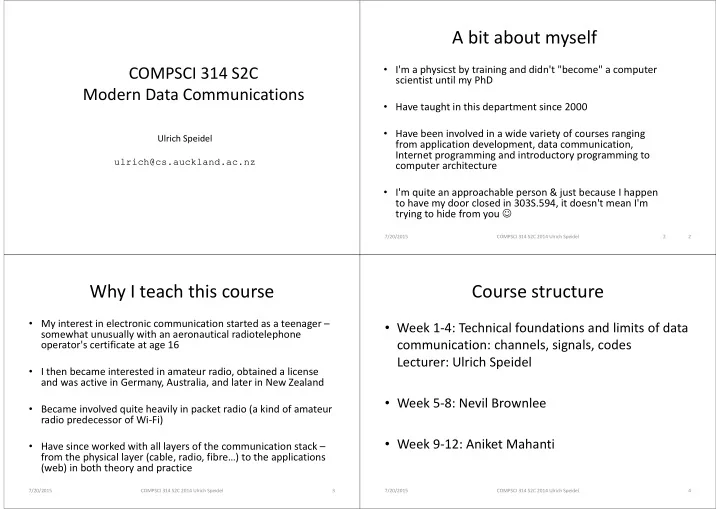

COMPSCI 314 S2C Modern Data Communications

Ulrich Speidel ulrich@cs.auckland.ac.nz

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 2

A bit about myself

• I'm a physicst by training and didn't "become" a computer

scientist until my PhD

• Have taught in this department since 2000
• Have been involved in a wide variety of courses ranging

from application development, data communication, Internet programming and introductory programming to computer architecture

• I'm quite an approachable person & just because I happen

to have my door closed in 303S.594, it doesn't mean I'm trying to hide from you 

2

Why I teach this course

• My interest in electronic communication started as a teenager –

somewhat unusually with an aeronautical radiotelephone

• perator's certificate at age 16
• I then became interested in amateur radio, obtained a license

and was active in Germany, Australia, and later in New Zealand

• Became involved quite heavily in packet radio (a kind of amateur

radio predecessor of Wi‐Fi)

• Have since worked with all layers of the communication stack –

from the physical layer (cable, radio, fibre…) to the applications (web) in both theory and practice

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 3

Course structure

• Week 1‐4: Technical foundations and limits of data

communication: channels, signals, codes Lecturer: Ulrich Speidel

• Week 5‐8: Nevil Brownlee
• Week 9‐12: Aniket Mahanti

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 4

SLIDE 2

Office hours

• Open door policy in 303S.594
• If you want an appointment, contact me on

ulrich@cs.auckland.ac.nz

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 5 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 6

Assignments and Test

• I will set one assignment, due at 12:00 noon,

Monday 10 August 2015

• Nevil and Aniket will also set one assignment each
• The mid‐semester test will be held during lecture

time on September 18, 2015

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 7

Communication with me

• Don't be shy to approach me! Here's how to get a meaningful answer quickly…
• Put "COMPSCI314" in the subject of your e‐mail on a question that relates to COMPSCI314

– or risk being mistaken for a 280 student!

• Try to be as concise as possible in your question. It doesn't need to be as short as a text
• message. It helps if you refer to slide numbers, assignment questions, etc.
• I may anonymise your question and cc the rest of the class into my answer if I think it's of

interest to others. Check and keep your class e‐mail – it'll often already contain the answer you're looking for.

• Note that around assignment due dates, tests and exams, I often get lots of questions by

e‐mail. Checking your past class e‐mail is often a faster way to get an answer!

• Get in early and don't wait to the last minute if you need help.

7 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 8

Other things

• I expect you to read your Computer Science e‐mail

regularly (i.e., at least once a day)

• Announcements made via e‐mail are expected to

be known to you 24 hours after they have been made

• Please see our tutor first if you have questions

SLIDE 3

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 9

Our textbook

• “Computer Networking: A Top‐Down Approach”,

5th or 6th edition, by J.F. Kurose and K.W. Ross, Pearson Education

• Won't use this textbook in my part, but you might

want to get it now for Nevil's & Aniket's parts

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 10

What I'll cover – what you'll learn

• Theme 1: Physical foundations of data

communications

• Data can travel across many media: cables, radio links – and each medium has its
• wn special properties
• You'll learn about signals and the way we can express them in the physical world:

electrical, optical, radio, …

• You'll develop an understanding of concepts such as latency, bandwidth, noise,

bit rates, baud rates, and bit error rates, and how they relate to each other

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 11

What I'll cover – what you'll learn

• Theme 2: Channels and codes
• In this theme, we'll learn about the characteristics of different

channels and how we can package data for transport, so it gets to the receiver with as few errors and as little resource use as possible

• You'll develop an understanding of different channel types, where

you'll likely to encounter them, and how information is coded and handled to deal with the requirements of each channel

Week 1

• Lecture 1: What's a signal? Electrical and optical

signals

• Lecture 2: Radio signals, signal propagation,

decibels

• Lecture 3: Satellite communication,

communication channels and Fourier analysis, the concept of bandwidth

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 12

SLIDE 4

Lecture 1

• What is a signal?
• Electrical signals
• Optical signals

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 13 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 14

Signals ‐ generally

“Potential”: …could be the brightness of the light in an optical fibre …could be the voltage in an electric conductor …or, the level of water in a tank!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 15

Potential

difference in potential

Can define this difference as “positive”(left tank has higher water level than right tank, i.e., water will flow to the right)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 16

Potential

difference in potential

Difference now “negative (“right tank has higher water level than left tank, i.e., water will flow to the left)

SLIDE 5

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 17

Potential

no difference in potential

No difference (“equipotential state” or “equilibrium”) means no water will flow. Note that this state is possible for arbitrary fill levels

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 18

Potential and electrical signals

• Think about electrical conductors as water tanks with

water in them, with the water molecules being electrons

• Introducing signals means changing the water levels

in one or more of the tanks – pressure on valves or flow into other tanks results

• The water pressure (potential) is the voltage
• The water flow (litres per second) is the current

Power

• Water that flows through a device such as a turbine can do work for us, e.g., generate
• energy. In physics, (the ability to perform) work and energy are the same.
• To perform work, we need both water pressure (voltage) and water flow (current).
• Current across a load such as a turbine can only perform work if it is driven by pressure.
• The amount of energy that can be created in a given amount of time is therefore

proportional to the square of the water pressure (or square of the voltage)

• The amount of energy that can be transferred between systems per second is known as

power and is measured in watts.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 19 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 20

Types of (electrical) signals

Analog signals: potential changes continuously with time

• In communication, we often use analog signals that are

limited in amplitude (certain minimal and maximal voltages and/or currents are not exceeded) and that alternate between positive and negative voltages/currents

• Such signals may be thought of as the superposition of a

amplitudes, frequencies, and phases of sinusoidal signals (Fourier theorem)

• we’ll come back to that in a moment!

SLIDE 6

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 21

Analog signal parameters

We’ll soon learn that sinusoidal signals can be used to compose any other signal!

Amplitude

Phase

DC Offset

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 22

Digital signals

• Digital signals are a special case of analog signals
• Ideally, they only have two discrete states, 0 and 1
• These may be expressed, e.g., as two different voltage levels or light

intensities

• Transitions between 0 and 1 and vice versa are in theory
• instantaneous. That is, a digital system should never be in an

“inbetween” state

• In practice, this is not possible. This fact causes a lot of problems!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 23

Digital vs. analog signals

• Both digital and analog signals can be used to convey

information

• Analog signals are used for: conventional telephone,

some older mobile phones, conventional radio and TV, as auxiliary carriers for some digital communication

• Digital signals are used for: data communication,

including most mobile phones and digital radio/TV

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 24

Digital vs. analog signals (II)

• Analog signal communication does not necessarily

require a computer or digital logic!

• Analog signal communication cannot separate

signal from noise

• Digital signal communication requires some sort of

digital processor (more effort)

• Digital signal communication can separate signal

from noise

SLIDE 7

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 25

Transmission media

Both analog and digital signals can be communicated via the following media

• electrical conductors (coax, twinax, twisted pair, powerline, etc.)
• optical fibre
• air (i.e., radio, laser, smoke signals,…)

Let’s look closer at these three categories

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 26

Electrical conductors (cable)

• Generally made from copper
• Traditional cable form for data communication is

coaxial cable (coax)

• Present‐day standard for Ethernet is “twisted pair”
• Other cable forms are used (powerline, parallel

cable, RS‐232 cable, etc.)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 27

Coax cables

• Inner conductor made of

copper

• Plastic or foam

insulation between inner core and shield

• Shield is copper mesh

and/or tinfoil

• Outside insulation

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 28

Coax cables (II)

• Ratio of diameters is important (impedance)
• Overall diameter is important: the larger, the lower the

losses (signal degradation over distance)

• Signal travels on inside conductor – outer conductor is

grounded

• Cable does not radiate because the shield shields the

inner conductor. Similarly, coax cables don’t pick up interfering signals for that reason.

SLIDE 8

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 29

Twisted pair cables

• Cable comes with one or more

“pairs” of simple insulated copper wires

• Each pair is “twisted”
• Each wire in a pair carries

complementary signal – radiates little as signals cancel each other

• May be shielded (e.g., STP) or

just insulated with plastic (e.g., UTP)

• Immunity to external signals

low, even lower with shield.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 30

Optical fibre

• Made from glass or plastic
• Cheap
• Can be run for several km without amplifiers
• More difficult to connect than copper wiring
• Still an emerging technology!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 31

Optical fibre (II)

Optical fibres have an inner core (white), an outer core (yellow) and insulation (black)

The outer core has a lower refractive index (i.e., light moves faster there) than the inner core. This means that light in the inner core is “trapped” by reflection/refraction. Refraction is the means of transport when the inner/outer core are replaced by a “graded refractive index”, i.e., when the glass gets “faster” as the light moves away from the center.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 32

Optical fibre (III) ‐ multimode

We can send more than one light ray down a fibre by choosing different angles of incidence at the start

A fibre used in this way is called a “multimode fibre”. Multimode fibres are usually often for short distances only because it gets a bit difficult to keep the rays apart. Graded‐index fibre is best for this job. Another way to put more information through a fibre is to send light in different colours (wavelength multiplexing).

SLIDE 9

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 33

Optical fibre (IV)

• Used in most undersea cables and long distance overland cables

because it’s so cheap

• When cables are laid, they usually contain several pairs of fibres

(fibres come in pairs – one fibre for each direction of communication)

• Distances up to 40 km can be bridged without the need for

repeaters

• Fibre repeaters are very expensive
• Fascinating read from Wired Magazine on submarine cables:

http://www.wired.com/wired/archive/4.12/ffglass.html

Lecture 2

• Radio signals
• Signal propagation
• Decibels

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 34 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 35

Wireless (aka “radio”)

• Big topic!
• Traditionally used for overland phone circuits

(analog)

• Now increasingly used in digital low power/short

range applications: cellphones, Bluetooth, 802.11 WiFi, WiMax, 3G/4G/LTE, etc.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 36

Wireless (II)

Signal propagates spherically Received signal power drops to a quarter when the distance doubles Received signal voltage (power is proportional to square of the voltage) drops to half when the distance doubles Obstacles cause extra signal loss

SLIDE 10

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 37

Wireless (III)

• Typical radio systems can live with a received

signal power that is 1011 times smaller than the transmitted signal’s power

• Often this is not enough. Good antennas can help

(e.g., dish for satellite communication)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 38

Wireless (IV) – how does it work?

• Think about an antenna as a conductor that has electrons pumped

into and out of it at one end, with no connection at the other

• This means the conductor gets charged and discharged in rapid
• cycles. Thus we have an electric field that gets built up and

collapses in cycles all the time.

• The electrons flowing in and out cause a magnetic field

(electromagnet!). Thus we have a magnetic field that gets built up and collapses in cycles all the time.

• The collapsing electric field away from the antenna causes a

magnetic field there, and vice versa.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 39

Wireless (V) ‐ Propagation

• Radio signals propagate with the speed of light c

(approx. 300,000,000 m/s in free space)

• If the cycle time is T, then a radio wave travels the

distance λ = cT in the time that it completes one

• cycle. λ is called the “wavelength” of the wave
• f = 1/ T is called the “frequency” of the signal

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 40

Decibels

• Used to compare voltage and power ratios
• Two formulas
• For two voltages V1 and V2 :

r (dB) = 20 log10 (V1/V2)

• For two powers P1 and P2 :

r (dB) = 10 log10 (P1/P2)

• A voltage ratio of 2:1 is approx. 6 dB
• A power ratio of 2:1 is approx. 3 dB
• You add ratios in dB – simpler that multiplying!
• Remember that signal power is proportional to the square of the

voltages (hence the 20 and the 10 in the formulae above)

SLIDE 11

Decibels

• Why decibels? They make large numbers (ratios) numbers that we can handle

easily

• Example: A transmitter sends a signal whose power is 10 watts. A distant receiver

receives 1/1,000,000,000,000 of this power.

• An amplifier in the receiver then amplifies the signal power by a factor of 100
• Is that 0.0000000001 watts or 0.0000000001 watts, or even 0.000000000001

watts, or just 0.0000001 watts?

• If you’re hesitating, let’s use dB instead

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 41

Decibels (continued)

• Ratio between received and transmitted power:

1/1,000,000,000,000

• Log to base 10 of that: ‐12
• ‐12 times 10: ‐120 dB
• Ratio between amplified and unamplified signal:

100

• Log to base 10 of that: 2
• 2 times 10: 20
• Add the dB figures (=multiply the ratios): ‐120 + 20 = ‐100
• Convert back to a ratio: 10‐100/10=10‐10
• So, 10 watts * 10‐10 = 10‐9 watts = 0.000000001 watts

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 42

Lost? Hopelessly log‐jammed?

• Scared of logarithms?
• Never seen them?
• Mentioned at school but seemed too hard?

Fear not – they’re actually quite easy once you’ve mastered a few very simple rules…

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 43

Logarithm rule number 1

• Logarithms are the inverse of exponentials
• So, if x = yz, then logy x = z
• y is called the “base” of the logarithm (or, of the exponential

function yz, for that matter)

• Examples:
• x = 256, y=2, z=8
• x = 81, y = 3, z =4

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 44

SLIDE 12

Logarithm rule number 2

• Got the wrong base?
• E.g. you need log to base 10 but all your calculator can do is a log to base e (e=

2.7182818284590452353602874…). A log to base e is often also just written as “ln”

• No problem. Just use the logarithm function you have and then divide by the

logarithm of the base you want:

• This works for any base, not just 10, and for any logarithm function you have at

hand (as long as you use the same function for x and the base, of course)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 45

10 ln ln log10 x x 

Logarithm rule number 3

• Products turn into sums under logarithm functions
• Remember that yayb = ya+b?
• Write A=ya and B=yb. Then AB=yayb.
• Then the following shouldn’t surprise you:

logy(AB) = logyA + logyB

• We use this rule a lot when working with decibels. It allows us to add rather than

multiply.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 46

Logarithm rule number 3b

• Ratios (quotients) turn into differences under

logarithm functions

• This is natural extension of rule number 3
• So:

logy(A/B) = logyA ‐ logyB

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 47

Logarithm rule 3c

• Powers (exponents) turn into factors under logarithm functions
• This is also a logical consequence of rule 3
• So:

logy (ab) = b logya

• Note: This rule lets us switch between the “power” formula and the “voltage”

formula for decibels. Remember that power is proportional to the square of the voltage, hence we get a factor of 2… This turns the 10 into a 20.

• So: X decibels in power ratio are X decibels in voltage ratio. Always! But: The

power ratio (when not quoted in dB) is always the square of its corresponding voltage ratio

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 48

SLIDE 13

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 49

Decibels: Examples

• The signal from a radio transmitter in free space

drops by ?? dB when the distance to the transmitter doubles

• A signal amplifier with a gain of 40 dB produces a

signal with an output amplitude that is ??? times higher than that of the input signal.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 50

Decibels: Examples

• The signal from a radio transmitter in free

space drops by –6 dB when the distance to the transmitter doubles

• A signal amplifier with a gain of 40 dB

produces a signal with an output amplitude that is ??? times higher than that of the input signal.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 51

Decibels: Examples

 The signal from a radio transmitter in free

space drops by –6 dB when the distance to the transmitter doubles

 A signal amplifier with a gain of 40 dB

produces a signal with an output amplitude that is 100 times higher than that of the input signal.

Using decibels to quote powers

• In communications, signal strength (power) is often

quoted in decibels compared to either 1 watt (W) or 1 milliwatt (mW)

• This is denoted as dBW or dBm, respectively
• Examples:
• 30 dBm = 30 dB + 1 mW = 1000 * 1 mW = 1 W
• ‐90 dBW = ‐90 dB + 1 W = 10‐9 W

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 52

SLIDE 14

Smart working with decibels

• Made possible by the fact that log10 2= 0.3010…
• That’s approximately 0.3
• So a factor of 2 in a power ratio contributes approximately 3 dB
• Also, a factor of 10 in a power ratio contributes exactly 10 dB
• Similarly, a factor of 0.5 subtracts 3 dB and a factor of 0.1 subtracts 10 dB
• In voltage ratios, these factors correspond to 6 dB and 20 dB, respectively

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 53

Smart working with decibels

• Remember: log functions turn big numbers into small
• nes
• This means we can round ratios rather liberally: a large

rounding error in the ratio becomes a small error in the equivalent dB figure

• E.g., a factor of 1.1 in a power ratio causes an error of less

than half a dB

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 54

Smart working with decibels

• Converting from power ratios to dB:

– Try to approximate the power ratio as a product of the factors 2, 10, 0.5 and 0.1. E.g. 1/24500 is approximately: 1/25000 = 2 * 2 * 0.1 * 0.1 * 0.1 *0.1 * 0.1 – Convert “*” to + and substitute 3 dB for 2, 10 dB for 10, ‐ 3 dB for 0.5 and ‐10 dB for 0.1: 3 dB + 3 dB – 10 dB – 10 dB – 10 dB – 10 dB – 10 dB – Then add the dB figures up: ‐ 44 dB. Done.

• To convert voltage ratios to dB: substitute 6 dB for 2, 20 dB for 10,

‐6 dB for 0.5 and ‐20 dB for 0.1 instead.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 55

Smart working with decibels

• To convert a dB figure into a power ratio:

– Try to express the dB figure as a sum of 3 dB, 10 dB, ‐3 dB and – 10 dB. E.g., 35 dB = 10 dB + 10 dB + 3 dB + 3 dB + 3 dB + 3 dB + 3 dB – Substitute 3 dB by a factor of 2, 10 dB by a factor of 10, ‐ 3 dB by a factor of 0.5, and ‐10 dB by a factor of 0.1: 10 * 10 * 2 * 2 * 2 * 2 * 2 – Multiply them all together: 320

• For voltage ratios, use summands of 6 dB and 20 dB respectively.

For added precision, allow yourself a single 3 dB or – 3dB term and multiply or divide by 1.4 (or 1.5 if you’re not too fussed)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 56

SLIDE 15

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 57

Propagation in wire and fibre

• Similar concepts apply to signals propagating in wires and
• fibres. Light in particular is actually a radio wave, albeit with an

extremely high frequency.

• λ is always quoted as the “vacuum” wavelength – this applies in

particular to fibre optics!

• Signals in wire or fibre propagate at typically about 2/3rds of c,

i.e., at about 200,000,000 m/s.

• Exact speed varies a bit depending on the actual media,

typically 0.6...0.7 c.

• In fibre, the factor is 1/a where a is the refractive index of the

fibre core.

• Losses in wire and fibre are not due to spreading, but due to

attenuation in the material (light or electrical power is converted into heat).

Lecture 3

• Satellite communication
• Communication channels
• Fourier analysis
• Signals in the time domain and frequency domain

(power spectra)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 58 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 59

Geostationary satellites

• Also called “geosynchronous”
• High circular orbit in the equatorial plane (35,786 km

above the equator)

• Orbit the earth exactly once every siderial day (= the time

the earth takes to rotate around its axis, this is slightly less than 24 hrs because the earth’s orbiting around the sun needs to be subtracted)

• Appear to be in the same spot in the sky 24hrs a day if

viewed from the earth – easy to point a dish antenna at!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 60

Geostationary satellites

Not to scale! Equatorial plane

SLIDE 16

Geostationary orbits

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 61

Wikimedia/Wikimedia Commons has the following two animations:

http://weelookang.blogspot.com/2010/07/ejs‐open‐source‐geostationary‐satellite.html

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 62

Low/Medium‐Earth‐Orbit (LEO/MEO) satellites

• Orbital altitude less than that of geostationary satellites
• Don’t appear to be in the same spot
• Can be used to “cover” more territory
• Have an “inclination” (angle between orbital plane and equatorial plane)
• Inclination determines highest/lowest latitude that the satellite can “cover”

(=not a good communication solution for polar regions such as Antarctica)

• Need to track the satellite with steerable antenna to achieve large bandwidths,

but antennas tend to be smaller

• Examples: GPS, Iridium (LEO), O3b (MEO)

GEO & MEO ground station

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 63

GEO antenna (fixed) MEO antennas (steerable)

One MEO antenna (red arrow) tracks current satellite, other antenna (green arrow) awaits rise of next satellite

• ver horizon

to take over tracking

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 64

LEO/MEO orbit

“Footprint” In the footprint area, the satellite is above the horizon Equatorial plane Inclination

SLIDE 17

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 65

Satellite communication issues

• Latency can be much higher than for cable or fibre
• Renting a transponder (satellite channel) can be much cheaper than

running a cable over hundreds or thousands of km

• Most communication satellites used to be geostationary, but in

recent times LEO’s/MEO's (e.g., Iridium, GPS, O3b, etc.) have been used successfully (at least from a technical point of view)

• Satellites don’t require landowner approval but can be jammed

easily unless spread‐spectrum technology is used

• Antennas can be used to “shape” footprints – deliver all your power

into the area you want to cover

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 66

Shaped footprints (GEO)

Directional antennas (dishes) are used to spotlight a particular region of interest

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 67

Types of communication channel (I)

One‐to‐one, simplex

• No need to worry about receiver having to

communicate back to transmitter

• Example: TV remote control

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 68

Types of communication channel (II)

One‐to‐one, full‐duplex

• Both parties can transmit and receive

simultaneously

• Example: phone line, natural conversation

SLIDE 18

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 69

Types of communication channel (III)

One‐to‐one, half‐duplex

• Only one party can transmit at any one time
• Parties must negotiate handover of channel control, stick

to a time slot regime, or manage collisions

• Example: "walkie talkie" radios

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 70

Types of communication channel (IV)

One‐to‐many, simplex (broadcast channel)

• One transmitter, many receivers
• Example: TV, radio

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 71

Types of communication channel (V)

One‐to‐one, shared channel

• One party communicating with several others, one at a time
• Example: GSM cellphones (base station & handsets)
• Special case ‐> wiretap channel (other party/parties listen

in)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 72

Types of communication channel (VI)

Many‐to‐many, shared channel

SLIDE 19

Notes on many‐to‐many channels

• Participants act as both transmitters and receivers
• Only one transmitter can access the channel at a time

– participants must negotiate channel access, manage collisions,

• r stick to a timing scheme
• Not every receiver may be able to hear every transmitter
• Example: 802.11 WiFi

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 73 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 74

Channel type summary

• Each type of channel has its own characteristic
• Need to make adequate provisions for privacy/security, equal access, etc.
• There is no “one‐size‐fits‐all” solution that works for every type of

channel/scenario

• You must judge what works best where
• Will return to channel types a little later once we've discussed modulation and

noise

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 75

Channel division methods

• If we have a resource (fibre, radio spectrum block, cable),

we can split it into several simplex or duplex channels:

• Lay separate cables or fibres
• Separate by mode or color (fibre)
• Separate by frequency (radio and electrical cable)
• Separate by frequency hopping or code spread (spread‐spectrum radio)
• Separate geographically (radio)
• Separate by polarisation (radio)
• Separate by time slot (all media)

Signals and information

• So far, we’ve talked about signals but have concentrated on how

they can be sent between two physical locations

• We haven’t looked at what signal actually are, how we can describe

them, and how we can get them to carry information for us.

• This is what we’ll do next. We start with looking at what makes up a

signal.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 76

SLIDE 20

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 77

Quick glossary to remember

• The frequency is the number of oscillation cycles

per second, measured in hertz (Hz)

• The amplitude is the “height” of the signal

(voltage), typically measured in volts (V)

• The power is always proportional to the square of

a voltage. It’s measured in watts (W)

• The phase of a sine wave is a measure for how

much the waveform is shifted to the left or right (i.e., along the time axis). It’s an angle, so it’s typically measured in degrees or radians.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 78

This Windows application is available for download from the course website

Fourier transforms / series

• Fourier analysis lets us describe any continuous real‐valued

function as a sum / integral of sine and cosine functions of different frequency, amplitude or phase

• For example, a square wave signal s(t) with f cycles per second and

amplitude 1 (meaning it alternates between +1 and ‐1) can be written as:

• This is called the “Fourier series” of the square wave.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 79

... 7 ) 14 sin( 5 ) 10 sin( 3 ) 6 sin( ) 2 sin( ) (      ft ft ft ft t s    

Implications of Fourier analysis

• As a CS student, you'll know what a bit is: 0 or 1. A 0 is for low voltage level and 1 is for high voltage level (or vice

versa)

• Now think of the bit sequence ….1010101010101…
• That's a square wave
• Fourier analysis tells us that to make a perfect square wave, we need an infinite number of sine functions with

(ultimately) infinitely high frequencies

• That isn't very practical. So any "real" square wave in a real computer is only an approximation. A 0 bit is "more or

less low voltage" and a 1 bit is "more or less high voltage".

• So, real 0 and 1 bits don't actually exist. Yes, they did lie to you in stage 1 and 2. Sorry.
• Moreover, transitions between such approximated 0 and 1 bits are not instantaneous. The higher the frequencies

we can include, the faster the transitions become.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 80

SLIDE 21

Fourier analysis and bandwidth

• The transition time between bits limits the number of different bits

we can transmit per time unit (i.e., per second)

– The faster we can transition between different bits, the more bits per second we can transmit – The more frequencies we can include, the more bits per second we can transmit

• The bandwidth of a communication channel is the difference

between the highest and the lowest frequency it can carry – the width of the frequency band in which the communication takes place

• bandwidth ~= (potential) bit rate

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 81

Fourier notes I

• Real bit streams we want to communicate aren't perfect square

waves but look "more realistic" (limited in time and with 0's and 1's lumping together)

• The Fourier analysis in such cases becomes a little bit more complex
• But the principle remains: Transition edges between different bits

get sharper with increasing bandwidth!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 82

Fourier notes II

• If the lowest frequency in our band is 0 Hz, we call the signal in the band the

baseband signal.

– A simple bit stream with low/high voltage levels for 0/1 bits is always a baseband signal

• Modulation (see next lecture) allows us to shift a baseband signal into a

frequency band whose lowest frequency is (usually much) larger than 0 Hz

• You may have heard of "radio spectrum auctions" where mobile phone

companies get to buy bands in the radio spectrum

– As the spectrum is limited, these bands are valuable: The more bandwidth a company can win, the more customers it can serve and the better the service it can offer

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 83

Power spectrum

• We can look at a signal not just in the time domain (horizontal axis

is time), but also in the frequency domain

– In the frequency domain, the horizontal axis is frequency, vertical axis is power, i.e., the squares of the amplitudes of the sinewaves in the signal – This is called the power spectrum of the signal

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 84

1 2 3 4 5 6 7 8 Frequency (Hz) Power (W) Power spectrum of a 1 Hz square wave

Note: The 7th harmonic power is too low to plot on a linear power axis (the power is just 1/49th of the fundamental frequency). "Real" spectra are often shown on a logarithmic vertical axis for this reason!

SLIDE 22

Bandwidth and power spectrum of a signal

• The difference between the highest and lowest (significant)

frequency component in a signal’s power spectrum represents the signal’s bandwidth

• In communications, the term bandwidth is used to describe both

the width of the frequency band available for a signal and the width

• f the signal’s actual power spectrum. Which bandwidth we mean

should generally be apparent from the context.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 85

Week 2

• Lecture 4: Modulation
• Lecture 5: Constellation diagrams
• Lecture 6: Noise and the Shannon‐Hartley capacity

theorem

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 86

Lecture 4

• Modulation
• Amplitude modulation
• Frequency modulation
• Phase modulation

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 87 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 88

Modulation

• Modulation is the term for shaping an analog

signal waveform in order to transmit analog or digital information

• Modulation is used in radio communication and

also for modem communication

• The basic three types of modulation are amplitude

modulation, frequency modulation, and phase modulation

SLIDE 23

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 89

Amplitude Modulation (AM)

• Vary the amplitude of a carrier signal depending on the

amplitude of the modulating signal that carries the information to be transmitted

• Crude example: for a binary (on or off) modulating signal,

turn carrier on or off (Morse code on radio works that way)

• Can vary all or just part of the amplitude of the carrier
• Called ASK (amplitude shift keying) in the discrete case

(discrete case means that we vary in steps)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 90

AM in the time domain

Modulation of a 64 Hz sine wave with a pure sine wave of a Hz

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 91

AM in the frequency domain

Carrier Upper sideband Lower sideband

8 Hz 8 Hz

Modulation with a pure sine wave

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 92

Square waves revisited

DC component fundamental 3rd harmonic Can think about a square wave as a “DC carrier” modulated with a bunch of sine functions… Note we get a DC component (frequency = 0 Hz) here because the square wave has no negative voltages (= like adding a constant voltage to a square wave that alternates between +0.5 and ‐0.5)

Time domain Frequency domain

SLIDE 24

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 93

AM with a square wave in the time domain (Amplitude Shift Keying)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 94

ASK in the frequency domain

Carrier Sidebands for fundamental

Sidebands for 3rd harmonic

5th 7th

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 95

AM/ASK conclusions

• Amplitude modulation causes sidebands on either

side of the carrier

• The sidebands are at fc‐fm and fc+fm, where fc is the

carrier frequency and fm the modulating signal’s frequency

• Total bandwidth occupied by the signal is 2fm
• AM is not robust against fading

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 96

Frequency modulation (FM)

• Vary the frequency of a sinusoidal carrier signal

with the amplitude of the modulating signal

• More robust modulation scheme if used on its
• wn – we always transmit the carrier at full power
• Usually takes more bandwidth than AM
• Called FSK (frequency shift keying) in the discrete

case

SLIDE 25

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 97

FM in the time domain

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 98

FM in the frequency domain

FM tends to have lots of sidebands

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 99

FM conclusions

• FM also has sidebands – rather more so than AM
• Bandwidth depends on “deviation” (frequency shift for maximal

amplitude) and the frequency of the modulating signal

• Example: think of a binary signal frequency modulating a carrier –

it’s the same as two independent carriers being turned on and off in an alternating fashion. That’s two AM spectra shifted by the FM deviation. f

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 100

FSK in the frequency domain…

Told you so!

SLIDE 26

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 101

Phase modulation (PM)

• Vary phase of carrier signal to follow the amplitude of the

modulating signal

• Looks very similar to FM in many respects. In the analog case, FM

receivers can generally be used to receive PM transmissions and vice versa

• Called PSK (phase shift keying) in the discrete case

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 102

PM conclusions

• Sidebands depend on amount of phase shift (think
• f the “sharpness” of the phase jump in a digital

transmission) and the frequency of the modulating signal

• In the PSK case, we get discrete sidebands

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 103

Combining AM and PM

• Can modulate both amplitude and phase of a carrier signal by

generating a linear combination of a sine and a cosine wave of the carrier frequency: s(t)=I sin(2πfct) + Q cos(2πfct)

• By choosing I and Q, we have states in a two‐dimensional state
• space. The frequency (carrier) does not change with time.
• A set of such states is called a constellation. A constellation can be

depicted graphically as a constellation diagram.

Lecture 5

• Constellation diagrams
• BPSK
• QPSK
• 16‐QAM

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 104

SLIDE 27

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 105

Constellation diagram: Standard binary PSK

Q I

The distance between the two states determines the robustness

• f the scheme (but also the power

that is needed for transmission!)

• Two states with same

amplitude (distance from origin)

• 180 degrees apart

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 106

Constellation diagram: Quarternary PSK (QPSK)

Q I

One state can represent a combination

• f two bits
• Four states with same

amplitude (distance from origin)

• 90 degrees apart

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 107

Constellation diagram: Quarternary PSK (QPSK)

Q I

One state can represent a combination

• f two bits
• Four states with same

amplitude (distance from origin)

• 90 degrees apart

00 01 11 10

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 108

16‐QAM (Quadrature AM)

Q I

Four amplitudes each for sine and cosine component: One state can represent a combination of four bits

0000 0001 0011 0010 0100 0101 0111 0110 1100 1101 1111 1110 1000 1001 1011 1010

SLIDE 28

Gray coding

• Look at the neighbouring constellation points in the 16‐

QAM scheme.

• They all differ be exactly one bit. This is known as a Gray

code.

• Using a Gray code means that if we end up decoding a

neighbouring constellation point, we only get one incorrect bit.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 109

Things worth knowing

• 16QAM is not the limit – there are schemes with more constellation points (up to 256x256

constellation points in 65536‐QAM)

• Used in DSL/ADSL (where multiple high‐frequency tones – much like the keys on a piano ‐

are each QAM modulated in parallel)

• Also used in radio communication and in optical communication
• The number of symbols (constellation points) we transmit per second is known as the

Baud rate. It is not normally the same as the bit rate, except when there are only two constellation points (e.g., BPSK).

• In 16QAM, there are four bits per symbol, so we get a bit rate that is four times the Baud

rate.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 110 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 111

Constellation diagram summary

• Can modulate an audio signal or radio signal in

both phase and amplitude

• Can do this in a number of different constellations

(see signal constellation diagrams)

• Distance between adjacent constellation points

determines robustness

Lecture 6

• Noise
• Noise in constellation diagrams
• The Shannon‐Hartley capacity theorem

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 112

SLIDE 29

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 113

Signal degradation

• A signal sent by a transmitter does not normally arrive at the receiver without

having been degraded in some way

• A signal may lose amplitude through spreading
• A signal may lose amplitude through attenuation in the medium it propagates in

(e.g., light in a fibre is absorbed by the glass)

• A signal may get distorted because some of its constituting frequency

components (‐>Fourier analysis) get attenuated by different amounts or propagate at different speeds or on different paths. This can sometimes be reversed by appropriate filtering.

• A signal may get corrupted by additive noise on the channel it propagates

through

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 114

Noise

• Noise is a random signal that is added to a signal to be transmitted by the

medium/channel that the signal is traveling through

• The power spectrum of noise may be flat or have some shape
• Noise with a flat power spectrum is called “white noise”. It often has a thermal origin

(electrons bouncing around electronic components).

• In Fourier analysis, we can think of white noise as having components for all frequencies,

such that the phases are random. Its amplitude distribution is often assumed to be Gaussian (i.e., the probability of a component having a certain amplitude A decreases as A increases).

• Noise is present in all practical communication channels. We can measure noise power

across a given bandwidth in watts per hertz (W/Hz).

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 115

The effect of signal degradation

I Q

State transmitted State received Decision boundary (no error)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 116

The effect of signal degradation

I Q

State transmitted State received Decision boundary (error)

SLIDE 30

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 117

Additive White Gaussian Noise (AWGN)

• Probability of an instantaneous noise amplitude falls off as amplitude grows
• Actual received states looks like a “fuzzy cloud” around the true signal

constellation point under AWGN (a bit like throwing darts at a target)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 118

Actual effects of noise

• How much effect noise has depends on two factors:

– The noise level (average noise power) = “diameter of the cloud” – The signal level = distance to the nearest neighbour in the constellation

• Signal‐to‐noise ratio (SNR) defines how close the detected signal

constellation points come to the sector(s) of constellation points

• ther than that of the transmitted signal
• The SNR is the ratio between the size of the non‐overlapping

circular area around each constellation point and the area occupied by the “noise cloud” (determined by the noise power)

• Detecting an incorrect constellation point constitutes a symbol

error

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 119

Actual effects of noise

• Depending on the number of states in the constellation, a

wrongly detected state may lead to one or more bit errors

• Can use Gray code to minimize number of bit errors –

choose bit assignment to constellation points such that adjacent states differ in as few bits as possible

• Can use signal‐to‐noise ratio (SNR) to estimate bit error

rate: the higher the SNR, the fewer bit errors you get

Observations (I)

• The area in which we can accommodate our constellation points is determined by the

square of the maximum sine and cosine amplitude we can transmit with (area of circle around the origin going through the furthest constellation point away from the origin).

• This area corresponds to a square of a voltage, so represents a power. Divide this power

by the number of constellation points (symbols) and we get the power per symbol.

• If the noise power exceeds the power per symbol, we’ll routinely get symbol errors. So, if

we have a choice of constellation, the size of the noise cloud (noise power) that the channel adds to the constellation points determines the maximum number of constellation points we can accommodate within a given radius (amplitude) around the

• rigin.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 120

SLIDE 31

Observations (II)

• Let S be the signal power and N the noise power in our given band. Then S/N is

the signal‐to‐noise ratio (SNR) and the number of feasible constellation points is S/N.

• The number of bits per symbol is thus log2(S/N).
• All this happens within a bandwidth that we may assume supports our chosen

symbol rate (i.e., we spend sufficient time in the vicinity of each constellation point in order for it to be detected => Fourier analysis).

• If we had n times the bandwidth, we could replicate the scheme and gain n times

the symbol rate. Conclusion: symbol rate converts to bit rate proportional to bandwidth!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 121

Shannon‐Hartley capacity theorem

• The Shannon‐Hartley capacity theorem bundles these observations into a single

formula:

• Note: This is the formula for S much larger than N. If N is significant compared to

S, we need to take into account that we always receive signal power plus the noise power and never just the signal by itself. So, more accurately:

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 122

       N S B C

2

log                 1 log log

2 2

N S B N N S B C

C = channel capacity (in bits/s) B = bandwidth in Hz S = signal power, in W N = noise power in B, in W

Shannon‐Hartley interpreted

• The more bandwidth we have, the higher the rate at which we can communicate.
• The more transmit power we use, the higher the possible bit rate.
• The lower the noise, the higher the bit rate we’ll be able to sustain in a given

bandwidth with a given transmit power.

• Note: S is actually the signal power available at the receiver (i.e., whatever is left
• ver from the power with which the signal was transmitted). This can be many
• rders of magnitude less than the actual transmit power, but it scales with the

transmit power!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 123

Shannon‐Hartley notes

• The Shannon‐Hartley capacity theorem places a fundamental limit on the bit rate

we can theoretically achieve in a given bandwidth under given channel conditions.

• It means we can’t simply “transmit faster” without either spilling over into

adjacent frequency bands and/or introducing an increasing number of bit errors.

• In practice, it can be quite difficult to achieve the bit rate that the Shannon‐

Hartley capacity theorem promises. This is a very active area of research in information theory, and a pressing one, too!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 124

SLIDE 32

Week 3

• Lecture 7: Symbol errors and error

detection/correction

• Lecture 8: Hamming codes, LDPC codes, network

coding

• Lecture 9: Clocking and synchronisation

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 125

Lecture 7

• Symbol errors
• Parity error detection / correction
• Cyclic redundancy checks (Checksums)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 126

Symbol errors revisited

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 127

I Q

State transmitted State received Decision boundary (error)

Symbol errors revisited

• A symbol error happens when noise or distortion added
• n the channel cause the received signal to fall outside

the intended constellation state’s discriminator region

• As each symbol maps to one or more bits, this means that
• ne or more bits will be in error
• When symbol / bit errors happen, there are a number of

ways in which this may be dealt with

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 128

SLIDE 33

Error handling strategies

• Do nothing:

– In this case, the receiver will use / output incorrect data – This may be acceptable under certain circumstances (e.g., real‐time streaming audio)

• Error detection:

– Receiver may substitute incorrect data by defaults or may re‐request correct version from transmitter (automatic repeat request – ARQ) – Requires encoding to enable errors to be detected

• Error correction:

– Use remaining data to reconstruct the original transmission – Requires encoding to enable errors to be detected and corrected

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 129

Error detection

• Error detection is used in two contexts

– If we are able to substitute the data (e.g., in an image, replace a pixel value by an interpolation of neighbouring pixel values) – If we are able to re‐request the correct data from the transmitter. This requires a bi‐directional channel (e.g., duplex, semi‐duplex, many‐to‐many,

• r one‐to‐one shared). This is called ARQ (Automatic Repeat Request)
• Error detection requires additional information (redundancy) to be

transmitted along with the data. Examples:

– Parity bits – Checksums (CRC, hashes)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 130

Error correction

• Error correction may be used when:

– We are not able to substitute or re‐request data, or – when re‐requesting data is not feasible due to the turnaround time, or not economical

• Error correction also requires the transmission of redundant

information – as a rule more than for mere error detection. Examples:

– Hamming codes – Reed‐Solomon codes (as used on CDs) – advanced codes such as convolutional codes, turbo codes, Low Density Parity Check codes (LDPC codes), and others

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 131

Brute force approach to error correction

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 132

• Punish the evil receiver for not

listening carefully enough

• Not known to work overly

well, but applied widely.

• Often combined with another

common error correction strategy called “shooting the messenger” – replace received data with data you would have liked to receive.

SLIDE 34

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 133

Parity bits

• The data we wish to transmit is called the payload data
• Add an additional bit (the parity bit) to each byte of

payload data

• Two types of parity (we may choose either):

– Even parity: the parity bit is set such that the total number of 1‐ bits including the parity bit itself is even – Odd parity: the parity bit is set such that the total number of 1‐ bits including the parity bit itself is odd

Parity bit examples

• The underlined bit is the parity bit
• Example: odd parity. Data: 01111011. Parity bit: 1.

– Bits sent: 011110111

• Example: odd parity. Data: 01110011. Parity bit: 0.

– Bits sent: 011100110

• Example: even parity. Data: 01111011. Parity bit: 0.

– Bits sent: 011110110

• Example: even parity. Data: 01110011. Parity bit: 1.

– Bits sent: 011100111

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 134

Parity checks

• Assume a single bit inversion error (bit in italics) in the

third bit odd parity example from the previous slide:

– That is, 011110111 turns into 010110111

• The receiver tests of odd parity but only finds six 1 bits

(including the parity bit) ‐> error detected

– Can’t determine which bit(s) are inverted? – What happens if two or more bits are in error? – What happens if only the parity bit is inverted? What is the probability of this happening?

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 135 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 136

Checksums and digests

• Checksums in data communication are often implemented as CRCs

(cyclic redundancy checksums)

• Digests are like checksums, except that we presume that we want

to guard the data against “intelligent interference” (i.e., when someone is deliberately trying to modify our data in transit). The algorithms for digests are generally more complex from a computational point of view

• Think of both checksums and digests as hash functions – except

that we make no attempt to resolve any collisions of hash values

SLIDE 35

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 137

CRC Checksums

• Based on modulo‐2 division of polynomials
• In practice, either 16 bit or 32 bit CRCs are used in many data

communication applications, e.g., Ethernet frame protection

• Need to understand polynomial division and modulo‐2 arithmetic

for this

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 138

Modulo‐2 arithmetic

• Uses numbers 0 and 1 only (how convenient!)
• Addition and subtraction are the same
• Any number added to/subtracted from itself is 0. That is:

1 + 1 = 0 and 0 + 0 = 0, and 0 + 1 = 1 and 1 + 0 = 1

• Same as exclusive‐OR (XOR) operation

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 139

Polynomial division in modulo‐2

• Coefficients of polynomials under modulo‐2 …. are just bits, one bit per

coefficient!

• Look at payload as a polynomial ‐ its bits are the coefficients
• E.g., 10011011 is equivalent to:

x7+x4+x3+x+1 = 1 x7+ 0 x6 + 0 x5 + 1 x4 + 1 x3+ 0 x2+ 1 x1 + 1 x0

• Division works like long division of decimal numbers – but the rules of modulo 2

make it a little easier

• Example: Divide 100110110000 by 11001 modulo‐2

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 140

Example: polynomial division modulo‐2

100110110000 : 11001 = 11100110

• 11001

=10100

• 11001

=11011

• 11001

=00101

• 00000

=01010

• 00000

=10100

• 11001

=11010

• 11001

=00110

• 00000

=0110

remainder (interesting) result (not interesting) Easily done in hardware and software!

SLIDE 36

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 141

Example: polynomial division modulo‐2

100110110000 : 11001 = 11100110

• 11001

=10100

• 11001

=11011

• 11001

=00101

• 00000

=01010

• 00000

=10100

• 11001

=11010

• 11001

=00110

• 00000

=0110

remainder (interesting) result (not interesting) Easily done in hardware and software!

Question: What determines whether we subtract 11001 or 00000 here?

Answer: the bit after the “=” at each step!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 142

CRC with polynomial modulo‐2 division

• Pick a generator polynomial G according to requirements.

– This is a non‐trivial exercise and goes beyond the scope of 314 – Selection needs to balance length of payload with collision probability, and resources available to perform the computations

• Say your generator polynomial is of degree n (i.e., has n+1 bits)
• Take your message (polynomial) M which should be longer than n+1 and multiply

by 2n, i.e., add n zeros to the right

• Do the division as on the previous slide with G as the divisor
• The remainder R is your CRC checksum. Sends this checksum together with M, in

place of the n zero bits on the right, i.e., transmit M * 2n + R.

• Note: The transmitted combination is in itself a polynomial (trivially – any bit

string is!)

CRC at the receiver

• Receiver receives message M’ including checksum R’ as M’ * 2n + R’. Ideally, M’=M and

R’=R in an error‐free transmission.

• Divide the received message M’ * 2n + R’ by G.
• If there are no errors, M’ * 2n + R’ = M * 2n + R, and this polynomial division will result in a

remainder of all zero bits: (M * 2n + R)/G = (M * 2n)/G + R/G = R + R = 0.

• If the remainder contains non‐zero bits, the received message must contain errors
• Note: The conclusion that all zero bits in the remainders means no errors is highly

probable but by no means certain!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 143

100110110000 : 11001 = 11100110

• 11001

=10100

• 11001

=11011

• 11001

=00101

• 00000

=01010

• 00000

=10100

• 11001

=11010

• 11001

=00110

• 00000

=0110

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 144

Example: Computation of CRC

remainder (CRC) result (not that interesting)

last n=4 bits (blue) reserved for CRC

G Transmitter side

Bits sent: 100110110110

M * 2n M * 2n + R

SLIDE 37

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 145

100110110110 : 11001 = 11100110

• 11001

=10100

• 11001

=11011

• 11001

=00101

• 00000

=01010

• 00000

=10101

• 11001

=11001

• 11001

=00000

• 00000

=0000

Example: Checking the CRC (no errors)

remainder all zeros = (probably) no error result (not that interesting)

last n=4 bits (blue) = CRC

G Receiver side

Bits received: 100110110110

M * 2n M * 2n + R

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 146

100110010110 : 11001 = 11100110

• 11001

=10100

• 11001

=11010

• 11001

=00111

• 00000

=01110

• 00000

=11101

• 11001

=01001

• 00000

=10010

• 11001

=1011

Example: Checking the CRC (with one error)

non‐zero remainder = errors! result (not that interesting)

last n=4 bits (blue) = CRC

G Receiver side

Bits received: 100110010110

M’ * 2n

bit error

Lecture 8

• Error correction with Hamming codes
• LDPC codes
• Network coding

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 147 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 148

Error correction with Hamming codes

• Error detection is best used when the receiver has a way of coping with the data

loss (e.g., the ability to ask the transmitter for a fresh copy of a packet)

• This is often either not possible or not practical, e.g., because of high latency in

cases where data is needed immediately (streaming audio / video or VoIP)

• If we cannot re‐request data, we may need to attempt error correction based on

what we have received

• Hamming Codes are perhaps the simplest example for error correction
• In Hamming codes, we protect a bit string with several parity bits. The

combination of parity bits that are in error lets us work out which bit is in error

SLIDE 38

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 149

How do Hamming codes work?

• Want to protect, say, an 8‐bit message m1m2m3m4m5m6m7m8
• Send 12 bits instead of 8:

p1p2m1p3m2m3m4p4m5m6m7m8 where

– p1 is even parity for positions 1, 3, 5, 7, 9, 11, i.e., p1, m1, m2,m4,m5,m7 p2 is even parity for positions 2, 3, 6, 7, 10, 11, i.e., p2, m1, m3,m4,m6,m7 p3 is even parity for positions 4, 5, 6, 7, 12, i.e., p3, m2, m3,m4,m8 p4 is even parity for positions 8, 9, 10, 11, 12, i.e., p4, m5, m6,m7,m8 p1 p2 m1 p3 m2 m3 m4 p4 m5 m6 m7 m8

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 150

How do Hamming codes work?

• Want to protect, say, an 8‐bit message m1m2m3m4m5m6m7m8. E.g., 11001010
• Send 12 bits instead of 8:

p1p2m1p3m2m3m4p4m5m6m7m8 where

– p1 is even parity for positions 1, 3, 5, 7, 9, 11, i.e., p1, m1, m2,m4,m5,m7 p2 is even parity for positions 2, 3, 6, 7, 10, 11, i.e., p2, m1, m3,m4,m6,m7 p3 is even parity for positions 4, 5, 6, 7, 12, i.e., p3, m2, m3,m4,m8 p4 is even parity for positions 8, 9, 10, 11, 12, i.e., p4, m5, m6,m7,m8 1 1 1 1 1

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 151

How do Hamming codes work?

• Can now pinpoint where an error occurred: each data bit is protected by at least

two parity bits, each parity bit only protects itself.

• Receiver re‐computes its own parity bits from data bits received and compares

them with the parity bits received

• If parity bits are the same, then we have no error (probably)
• If only one parity bit does not compute to the same value at the receiver, the

error is (probably) in the parity bit itself (note: for this type of Hamming code)

• If two parity bits fail to compute to the same value, then we can look at which

data bits share both of these two parity bits. If they are shared by more than one bit, the remaining two (correct) parity bits will help us determine which data bit is in error.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 152

How do Hamming codes work?

• Want to protect, say, an 8‐bit message m1m2m3m4m5m6m7m8. E.g., 11001010
• Send 12 bits instead of 8:

p1p2m1p3m2m3m4p4m5m6m7m8 where

– p1 is even parity for positions 1, 3, 5, 7, 9, 11, i.e., p1, m1, m2,m4,m5,m7 p2 is even parity for positions 2, 3, 6, 7, 10, 11, i.e., p2, m1, m3,m4,m6,m7 p3 is even parity for positions 4, 5, 6, 7, 12, i.e., p3, m2, m3,m4,m8 p4 is even parity for positions 8, 9, 10, 11, 12, i.e., p4, m5, m6,m7,m8 1 1 1 1 1 1

• Example: Bit m6 in error
• Parity bits p2 and p4

do not match at the receiver

• These bits are shared

by m6 and m7

• But: m7 is protected

by p1 as well

• p1 matches, so m7

cannot be in error

• Conclusion: error is in
• m6. Correct to: m6=0

SLIDE 39

Limits of Hamming codes

• The number of parity bits in a Hamming code determines how many errors we can correct
• E.g., the code with 8 data bits and 4 parity bits presented here can correct one error
• If there are additional errors, we may be able to detect them with Hamming code
• Example: Consider a situation in which parity bits p2, p3, and p4 don’t match
• As a general rule, the number of parity bits needed to correct a single data bit error is

log2(number of data bits)+1

• Think of this conceptually as “number of bits needed to identify (address) the erroneous

bit plus one parity bit to protect the parity bits”

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 153

Parity check matrices

• Hamming codes can be represented by a parity check matrix
• Each column represents a data bit. Each row represents a parity bit
• Non‐zero entries indicate which data bit is protected by which parity bit

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 154

p1 p2 m1 p3 m2 m3 m4 p4 m5 m6 m7 m8

m1 m2 m3 m4 m5 m6 m7 m8 p1 1 1 1 1 1 p2 1 1 1 1 1 p3 1 1 1 1 p4 1 1 1 1

Beyond Hamming Codes (and out of this world)

• Classical Hamming codes assume that errors are evil and will occur only occasionally
• Assume that you’ll work with a high error rate (low SNR). Now imagine a Hamming code

with:

– A large number of data bits – A parity check matrix that contains only a small number of non‐zero entries – Capability to correct multiple errors

• This lets us communicate at low SNR => many symbol errors, but as long as we can correct

these, we’re fine. This lets us utilise the constellation diagram space more efficiently.

• Such codes are known as Low Density Parity Check (LDPC) codes and are used in:

802.11n WiFi, deep space communications, and digital TV broadcasting

• By the way: LDPC codes were invented by Robert Gallager in 1963 but forgotten until

1996! They are now a very active research area in information theory

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 155

CAUTION: ROCKET SCIENCE!

Error correction with network coding

• Network coding is a big research topic, too
• Basic idea: Don’t transmit original set of messages if messages

could get lost / corrupted

• Instead: Form linear combinations of multiple messages from the

set & transmit these.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 156

2 1 1 , 2 3 2 , 2 2 1 , 2 1 , 2 1 1 1 , 1 2 2 , 1 1 1 , 1 , 1 1 1 , 2 2 , 1 1 , ,

... ... ... ...

                         

              

n w k w n k n k n k n n w k w n k n k n k n n w k w n k n k n k n

r p c p c p c p c r p c p c p c p c r p c p c p c p c

SLIDE 40

Forming network coded packets for transmission

• Assume receiver has correctly decoded the first k-1 data packets from the first n-1 coded packets we

sent

• Treat data packets no. k and its w-1 successors as (binary) numbers pk to pk+w-1. These will be the

“unknowns” for the receiver to find.

• At the transmitter: Pick w random binary coefficients cn,0 to cn,w-1. Multiply each coefficient with one
• f the packets: cn,ipi. Add the products up to obtain a sum rn
• Transmit the coded packet as (k, cn,0, cn,1, …, cn,w-1, rn) etc. (this is the “equation”)
• Once the receiver has confirmed decoding of k packets,

drop pk from the next combination and include pk+w instead:

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 157

1 1 1 , 1 2 2 , 1 1 1 , 1 , 1 1 1 , 2 2 , 1 1 , ,

... ...

              

         

n w k w n k n k n k n n w k w n k n k n k n

r p c p c p c p c r p c p c p c p c

2 1 1 , 2 3 2 , 2 2 1 , 2 1 , 2

...

          

    

n w k w n k n k n k n

r p c p c p c p c

n’th equation n+1th equation

Decoding network coded packets

• Receiver recovers the original packets by solving the system of linear equations (you may remember

doing this in maths at some point or other)

• This is always possible once the receiver receives a sufficient number of equations containing the

packet (“degrees of freedom”)

• Note: number of combinations (equations) matter, not the specific set of coefficients
• Transmitter keeps sending combinations of the same packets until it has confirmation of degrees of

freedom at the receiver

• Lost combination packets don’t need to be retransmitted – the packet that follows can do the same

job as a retransmission

• More info: See: Sundararajan, Shah, Médard, Mitzenmacher and Barros: “Network coding meets

TCP”, http://arxiv.org/pdf/0809.5022.pdf

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 158

Lecture 9

• Coding
• Clocking and synchronisation
• Bit stuffing and framing

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 159 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 160

Coding ‐ overview

• We encode information to facilitate its

communication

• Encoding is not the same as encryption!

SLIDE 41

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 161

Coding ‐ issues

• Adapt information to channel alphabet – not everything comes in bits
• Clocking and synchronisation – making sure the receiver knows what we’re at
• Error detection and correction (see previous lectures)
• Separating between messages
• Efficiency: Transmitting information with minimum unnecessary repetition

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 162

Examples for codes

• Adapt information to channel alphabet: Morse code, ASCII
• Clocking and synchronization: Morse code, ASCII, Manchester, T‐codes, start/stop

bits

• Error detection and correction (see previous lectures): Hamming codes, LDPC

codes, parity, T‐codes

• Separating between messages: framing with bit stuffing (not actually a code in

the classical sense), start/stop bits

• Efficiency: Transmitting information with minimum unnecessary repetition:

Huffman codes, T‐codes

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 163

Channel alphabet

• In electronic communications, we often have a channel alphabet with two letters

which we can map to the bit values 0 and 1

– E.g., high/low voltage, light in fibre on/off, BPSK constellation points

• Sometimes, a higher number of states are available and used

– E.g., 4 in QPSK, 16 in 16QAM, 3 states (voltage positive/zero/negative), for example – Many of these can be mapped back to binary through bit combinations (e.g., 2 bits in QPSK, 4 bits in 16QAM), but this is not always easy (e.g., for 3 states)

• The alphabet we might need to communicate in could be quite different: English,

Chinese, German, Arabic

• Map higher order alphabets to binary using a code such as ASCII, Unicode, Morse

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 164

Clocking

• Receiver needs to know when symbols (typically bits) on the channel begin and

when they end

– Receiver ideally tries to sample the signal state in the middle of the bit period – If receiver knows the bit rate, the receiver’s clock will determine when to take the next sample

• But: Most real time bases (clocks) are a little bit inaccurate – transmitter and

receiver clocks drift apart

– Typical quartz clock: a few seconds per day – Insertion errors: If the clock is too fast, we’ll sample “extra bits” by inadvertently sampling the same bits twice – at 1 Mbps that’s several million bits a day! – Deletion errors: If the clock is too slow, we’ll skip bits instead – “Lattice fence effect” – A far more serious problem in the 1970’s where the predominant modem clocks were based on resistors and capacitors – time constants could vary by as much as 20%

SLIDE 42

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 165

Clocking – the problem

Transmitter clock ticks

Example: We want to transmit the bit sequence 00100000010 in simple NRZ (non‐return‐to‐zero) code: 0=low level, 1= high level, transmitter clock ticks mark the middle of a bit

Time low level high level Receiver clock ticks ‐ mark sampling time, ideally in the middle of a bit bits missed Case: Receiver clock too slow

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 166

Clocking – the problem

Transmitter clock ticks

Example: We want to transmit the bit sequence 00100000010 in simple NRZ (non‐return‐to‐zero) code: 0=low level, 1= high level, transmitter clock ticks mark the middle of a bit

Time low level high level Receiver clock ticks ‐ mark sampling time, ideally in the middle of a bit Bit received twice

1 1

Case: Receiver clock too fast

1

Additional 0 bit received

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 167

Clocking – possible solutions

• Oversample and detect edges

– may not work if bits are not well defined “around the edges” in a severely band‐limited channel (=> Fourier)

• Supply clocking information via separate channel

– E.g., provide a transition from high to low or vice versa every so often to allow receiver clock to synchronize

• Add clocking information to main signal

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 168

Adding clocking information to a signal

• Methods in this category are generally known as “differential

encoding” – baseband symbols are expressed as transitions between channel states

• Example 1: NRZI (non‐return to zero inverted) with bit stuffing
• Example 2: Manchester coding

SLIDE 43

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 169

NRZI

Code a 1 as “no change in level” and a 0 as a transition from the current level to the opposite level, e.g.,

1 1 1 1 1 1 1

Problem: If the data has too many 1’s in a row, we may still have clocking problems Solution: use bit stuffing! low level high level

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 170

Bit stuffing

• Insert a 0 into the raw data after, e.g., every 5th consecutive 1 on the transmitter side
• This way, we have a guaranteed edge on which the receiver can synchronize itself
• On the receiver side, remove the 0‐bit that comes after every 5th consecutive 1
• Problems: Symbol rate varies with data, need to use queue buffers if signaling rate is to be
• constant. Receiver still needs own clock to predict next bit sampling time.
• Advantage: on average, few extra bits are inserted, bit stuffing is rather bandwidth‐

friendly as a result

• Used in HDLC which is used in X.25, PPP (used, e.g., in (A)DSL), etc.
• Can also be used with NRZ (in which case we need to detect transitions as the beginning
• f bits)

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 171

Bit stuffing ‐ Example

• Raw data: 01101111111111011
• Bit stuffed data 0110111110111110011
• At the receiver, remove the underlined bits
• Very easy to implement in hardware!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 172

Manchester coding

Code 0 and 1 as transitions from high to low and low to high, respectively, e.g.,

1 1 1 1

low level high level Good: no need for bit stuffing, easy clocking Bad: signaling rate is twice the raw data rate, not very bandwidth‐friendly!

SLIDE 44

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 173

Differential Manchester coding

Code 0 as transition opposite level to current level and 1 as transition from current level to opposite level, e.g.,

1 1 1 1 1 1 1

low level high level Good: same as for Manchester coding, but also no danger of switching wires by mistake Bad: same as for Manchester coding – not bandwidth‐friendly!

…and to help those who get their wires crossed occasionally:

Framing

• It is pretty common for communication channels to be idle –

periods of time when nothing is transmitted

• When transmissions happen, they typically happen in the form of

messages containing a certain number of bits or bytes. These messages are called frames

– Depending on the context, they may also be called packets or datagrams etc.

• How do we know that nothing is transmitted (rather than just a

long series of 0’s), and how do we recognise the start of a frame?

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 174

Framing with bit stuffing and CRCs

• A common approach (e.g., Ethernet) is to use bit stuffing
• Remember that in bit stuffing, the maximum number of consecutive 1‐bits we can get is 5
• Basic idea of framing: Mark the start and end of each frame by a byte 01111110 (six 1‐bits

in series)

• Problem: Consider noise received between the end of a frame and the start of another.

How does a receiver that has started listening during the last frame detect that the noise is not frame content?

– Note: The noise is preceded and followed by 01111110, too – the frame markers of the last and the next frame!

• Answer: protect each frame by including a CRC checksum and use the frame only if the

CRC check is correct. Noise produces a random CRC checksum which is almost guaranteed to be wrong.

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 175

Framing with bit stuffing and CRCs

• Structure of a frame (e.g., Ethernet):
• Note that while it is very unlikely that noise bits between two 01111110 bytes

will work out as a “payload plus CRC checksum”, this does happen

• Probability goes down as frame length and CRC width increase
• CRC also protects against “normal” bit errors in the frame

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 176

Frame payload (bitstuffed) 01111110 01111110 4 byte CRC

SLIDE 45

Week 4

• Lecture 10: Data compression
• Lecture 11: Analog signals over digital channels

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 177

Lecture 10

• Coding for efficiency: Data compression
• Huffman codes
• The Lempel‐Ziv 1978 algorithm (LZ78)
• Lossy compression

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 178 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 179

Coding again – under a Shannon‐ Hartley perspective!

• Coding can help us to make the best of our bandwidth
• Hamming codes make us more robust against noise – at the

expense of the payload bit rate!

• Shannon‐Hartley capacity really specifies a rate in “bits of

information”, not necessarily binary digits

– How many NRZ zero bits can you send per second? Infinitely many as long as you don’t send any ones! On the other hand, do you send any information?

• Can use data compression to squeeze more real bits into our bits

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 180

Data Compression with Variable‐ Length Codes

• E.g., say we want to send messages composed from characters in the English

alphabet, using a binary channel

• That is, we want to encode each letter in the English alphabet as a unique string
• f bits
• We also want this code to be uniquely decipherable, that is, no codeword must

be a prefix of another! (e.g., A=101, B=1010 is not permitted!)

• Finally, we want the code to be efficient. In other words, we want a “typical”

message to be as short as possible

• Can use a variable‐length code (VLC). E.g., assign short codewords to letters that

appear frequently, and long codewords to letters that appear less often

SLIDE 46

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 181

The ideal VLC

• If a letter x has the probability of occurrence P(x) and the encoding e(x) with

length |e(x)|, then the ideal codeword length is |e(x)| = -log2(P(x))

• A typical message (where each letter occurs with its probability) is

ΣxP(x)|e(x)| = -Σx P(x) log2(P(x)) bits long

• Problem: in most practical cases, -log2(P(x)) is not an integer – so codewords of

that length can’t exist!

• Also, we would like our code to be self‐synchronizing, i.e., if a bit is inverted, we

would like to re‐establish decoding at the correct codeword boundaries as soon as possible!

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 182

Practical VLCs

• Practical VLCs have some inefficiency in their coding – this is called

the code’s redundancy: r = ΣxP(x)|e(x)| + Σx P(x) log2(P(x)) where |e(x)| is the length of the actual encoding of x.

• Efficient coding means we need to try and minimize r.

Huffman codes

• Huffman codes are one of the oldest data compression schemes – they’re from 1952.

They are built… using Huffman’s algorithm, which builds a Huffman tree

• Huffman’s algorithm assumes a source that emits symbols with a given probability, e.g.,

letters from the English alphabet, or certain measurement data values in a (long) series of measurements

• The probabilities of the source symbols / data values must be known (at least as

estimates)

• Huffman codes are used, among other places, in some image and video formats (JPEG,

MPEG‐2, MP3, …)

• Huffman codes are lossless, meaning we can recover the original data after decoding

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 183 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 184

Huffman’s Algorithm

• Huffman’s algorithm can be used to construct codes with minimum redundancy:

1. Sort all probabilities for the letters you wish to encode 2. Combine the two lowest probabilities. Sort again. Repeat step 2 until only one probability (=1) is left 3. This gives you a tree 4. Assign codewords by going into the tree, level by level, starting from the root with an empty bit string. 5. At each branching node (combined probability), add a 0 to the bit string for the left branch, and a 1 for the right branch 6. The strings assigned to the nodes at the bottom are the codewords

• Note: Huffman codes are not unique

SLIDE 47

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 185

Huffman Codes

0.28 0.2 0.17 0.15 0.09 0.06 0.05 A B C E D F G

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 186

0.28 0.2 0.17 0.15 0.09 0.06 0.05 0.11 0.09 0.15 0.28 0.2 0.17 sort +

Huffman Codes

A B C E D F G

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 187

0.28 0.2 0.17 0.15 0.09 0.06 0.05 0.11 0.09 0.15 0.28 0.2 0.17 sort + + 0.28 0.2 0.2 0.15 0.17 sort

Huffman Codes

A B C E D F G

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 188

0.28 0.2 0.17 0.15 0.09 0.06 0.05 0.11 0.09 0.15 0.28 0.2 0.17 sort + + 0.28 0.2 0.2 0.15 0.17 sort + 0.32 0.28 0.2 0.2 sort

Huffman Codes

A B C E D F G

SLIDE 48

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 189

0.28 0.2 0.17 0.15 0.09 0.06 0.05 0.11 0.09 0.15 0.28 0.2 0.17 sort + + 0.28 0.2 0.2 0.15 0.17 sort + 0.32 0.28 0.2 0.2 sort + 0.4 0.32 0.28 sort

Huffman Codes

A B C E D F G

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 190

0.28 0.2 0.17 0.15 0.09 0.06 0.05 0.11 0.09 0.15 0.28 0.2 0.17 sort + + 0.28 0.2 0.2 0.15 0.17 sort + 0.32 0.28 0.2 0.2 sort + 0.4 0.32 0.28 sort + 0.6 0.4 sort

Huffman Codes

A B C E D F G

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 191

0.28 0.2 0.17 0.15 0.09 0.06 0.05 0.11 0.09 0.15 0.28 0.2 0.17 sort + + 0.28 0.2 0.2 0.15 0.17 sort + 0.32 0.28 0.2 0.2 sort + 0.4 0.32 0.28 sort + 0.6 0.4 sort 1

Huffman Codes

+ A B C E D F G

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 192

0.28 0.2 0.17 0.15 0.09 0.06 0.05 0.11 0.09 0.15 0.28 0.2 0.17 sort + + 0.28 0.2 0.2 0.15 0.17 sort + 0.32 0.28 0.2 0.2 sort + 0.4 0.32 0.28 sort + 0.6 0.4 sort root

Huffman Codes

+ A B C E D F G

SLIDE 49

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 193

0.28 0.2 0.17 0.15 0.09 0.06 0.05 0.11 0.09 0.15 0.28 0.2 0.17 sort + + 0.28 0.2 0.2 0.15 0.17 sort + 0.32 0.28 0.2 0.2 sort + 0.4 0.32 0.28 sort + 1 sort root

Huffman Codes

+ A B C E D F G

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 194

0.28 0.2 0.17 0.15 0.09 0.06 0.05 0.11 0.09 0.15 0.28 0.2 0.17 sort + + 0.28 0.2 0.2 0.15 0.17 sort + 0.32 0.28 0.2 0.2 sort + 1 00 01 sort + 1 sort root

Huffman Codes

+ A B C E D F G

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 195

0.28 0.2 0.17 0.15 0.09 0.06 0.05 0.11 0.09 0.15 0.28 0.2 0.17 sort + + 0.28 0.2 0.2 0.15 0.17 sort + 00 01 10 11 sort + 1 00 01 sort + 1 sort root

Huffman Codes

+ A B C E D F G

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 196

0.28 0.2 0.17 0.15 0.09 0.06 0.05 0.11 0.09 0.15 0.28 0.2 0.17 sort + + 01 10 11 001 000 sort + 00 01 10 11 sort + 1 00 01 sort + 1 sort root

Huffman Codes

A B C E D F G +

SLIDE 50

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 197

0.28 0.2 0.17 0.15 0.09 0.06 0.05 110 111 001 01 10 000 sort + + 01 10 11 001 000 sort + 00 01 10 11 sort + 1 00 01 sort + 1 sort root

Huffman Codes

+ A B C E D F G

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 198

01 10 000 001 111 1100 1101 110 111 001 01 10 000 sort + + 01 10 11 001 000 sort + 00 01 10 11 sort + 1 00 01 sort + 1 sort root

Huffman Codes

+ A B C E D F G

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 199

01 10 000 001 111 1100 1101 110 111 001 01 10 000 sort + + 01 10 11 001 000 sort + 00 01 10 11 sort + 1 00 01 sort + 1 sort root

Huffman Codes

+ A B C E D F G

Example: Encode “BABAFBADACAEB” as: 10.01.10.01.1100.10.01.001.01.000.01.111.10

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 200

Adaptive Huffman Coding

• Problem: we may know the number of different symbols that an information

source may emit, but often don’t know their respective probabilities of

• ccurrence
• E.g., may know that a source sends text but do not know how frequently certain

letters (symbols) occur

• Can use adaptive Huffman coding:

1. Start with using a block code (all symbols have equal probability) 2. Send a symbol & compute source statistics for all symbols sent so far, both at the sender and at the receiver 3. Generate Huffman code for the new source probabilities at both ends. Use this Huffman code for the next symbol 4. Recompute statistics etc.

• Makes the assumption that upcoming symbols will be governed by the same

probabilities as the previous ones

SLIDE 51

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 201

Lempel‐Ziv compression (LZ78)

• One of a family of popular universal compression algorithms, developed by

Abraham Lempel and Jacob Ziv

• Input: a string of bits. Output: an encoded tree (the vocabulary)
• Basic idea:

– describe a bit string in a series of parsing steps – each step describes a substring as:

• a reference to an earlier substring, and
• a one‐bit innovation
• The vocabulary is built as a tree, initially empty, with one node added at each

step

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 202

LZ78 ‐ parsing

• Example: 1001101001110010111001

Tree root 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 203

LZ78 ‐ parsing

• Example: 1001101001110010111001

Tree root

innovation

1

#1: 1 #n = node number n 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 204

LZ78 ‐ parsing

• Example: 1001101001110010111001

Tree root

innovation

1

#1: 1 #2: 0 #n = node number n

SLIDE 52

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 205

LZ78 ‐ parsing

• Example: 1001101001110010111001

Tree root

Same as node #2

1

#1: 1 #2: 0

innovation

1

#3: 01 #n = node number n 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 206

LZ78 ‐ parsing

• Example: 1001101001110010111001

Tree root

Same as node #1

1

#1: 1 #2: 0

innovation

1

#3: 01 #n = node number n #4: 10 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 207

LZ78 ‐ parsing

• Example: 1001101001110010111001

Tree root

Same as node #4

1

#1: 1 #2: 0

innovation

1

#3: 01 #n = node number n #4: 10 #5: 100 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 208

LZ78 ‐ parsing

• Example: 1001101001110010111001

Tree root

Same as node #1

1

#1: 1 #2: 0

innovation

1

#3: 01 #n = node number n #4: 10 #5: 100

1

#6: 11

SLIDE 53

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 209

LZ78 ‐ parsing

• Example: 1001101001110010111001

Tree root

Same as node #5

1

#1: 1 #2: 0

innovation

1

#3: 01 #n = node number n #4: 10 #5: 100

1

#6: 11

1

#7: 1001 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 210

LZ78 ‐ parsing

• Example: 1001101001110010111001

Tree root

Same as node #3

1

#1: 1 #2: 0

innovation

1

#3: 01 #n = node number n #4: 10 #5: 100

1

#6: 11

1

#7: 1001

1

#8: 011 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 211

LZ78 ‐ parsing

• Example: 1001101001110010111001

Tree root

Same as node #7

1

#1: 1 #2: 0

1

#3: 01 #n = node number n #4: 10 #5: 100

1

#6: 11

1

#7: 1001

1

#8: 011

Note: string runs out of bits before an innovation is encountered – a common case for LZ78

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 212

LZ78 ‐ encoding

• Example: 1001101001110010111001

Tree root

1

#1: 1 #2: 0

1

#3: 01 #n = node number n #4: 10 #5: 100

1

#6: 11

1

#7: 1001

1

#8: 011

Encode each step as (node number, innovation) in bits:

Step [substring] Back reference node Back reference: encode as bits Inno‐ vation Encode step as 1 [1] None (#0) ‐ 1 1 2 [0] None (#0) 00 3 [01] 2 10 1 101 4 [10] 1 01 010 5 [100] 4 100 1000 6 [11] 1 001 1 0011 7 [1001] 5 101 1 1011 8 [011] 3 011 1 0111 9 [1001‐] 7 111 ‐ 111

Result: 1 00 101 010 1000 0011 1011 0111 111

Note: longer than original! => not all strings are compressible!

SLIDE 54

LZ‐78 comments

• LZ‐78 cannot compress all strings. It is best at compressing long

strings which contain many repetitions of long substrings

– our example did not, although you may have observed that the strings we referenced got progressively a little longer

• Compression algorithms of the Lempel‐Ziv family (LZ‐78, LZ‐77, LZW

etc.) are very widely used:

– ZIP files (e.g., WinZip, Windows Compressed Folder, etc.) – .gz files (Linux gzip) – Frequently used to compress web pages on web servers before they are transmitted to the browser – …plus many, many more applications

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 213

Lecture 11

• Analog signals over digital channels
• Analog‐to‐digital conversion

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 214 7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 215

Analog signals over digital channels

• E.g., telephony, video, but also remote measurement

(telemetry)

• Need to convert analog values (voltages) to digital signals
• May not need all information in our analog signal

Digital voltage generator (D‐to‐A converter) ‐ converts a number to a voltage

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 216

Analog‐to‐Digital Conversion

Measuring device looks whether voltage at output is zero Unknown voltage (e.g., from microphone) Comparator (subtracts voltages)

Logic

Counter

Simple “ramp” ADC

SLIDE 55

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 217

Analog‐to‐Digital Conversion (II)

Unknown voltage

Voltage Time

Voltage ramps generated by DAC Measurement values

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 218

ADC Problems

• Need to guarantee regular sampling intervals (can overcome this using “sample‐

and‐hold” circuits)

• In the Fourier makeup of the analog voltage, the maximum frequency that we

can sample reliable is the Nyquist frequency. Its period is twice that of the sampling period, i.e, the Nyquist frequency is half the sampling frequency

• Frequencies above the Nyquist frequency get “aliased” down to lower

frequencies (lattice fence effect) – need to remove them by filters before we sample

• Sampling takes time – technological effort increases with the sampling
• frequency. Ramps don’t work for more than a few bits

– 16 bit ADCs would need to ramp through 65536 voltage values – takes too long – Practical ADCs use iterative methods instead of counters (halving of interval that take only 16 steps instead)

• Quantization error – DAC generator can only produce voltages in discrete steps

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 219

Other ADC issues

• Sometimes, e.g., in audio and video applications, the intended

“receiver” at the far end is a human being

• The human ear/eye usually cannot process all the information we

can sample

• By leaving insignificant information out, we can still get the

message across, but with far fewer bits (JPEG, MPEG, MP3, …)

– This is called lossy compression

Lecture 12

• Revision/Overflow

7/20/2015 COMPSCI 314 S2C 2014 Ulrich Speidel 220
