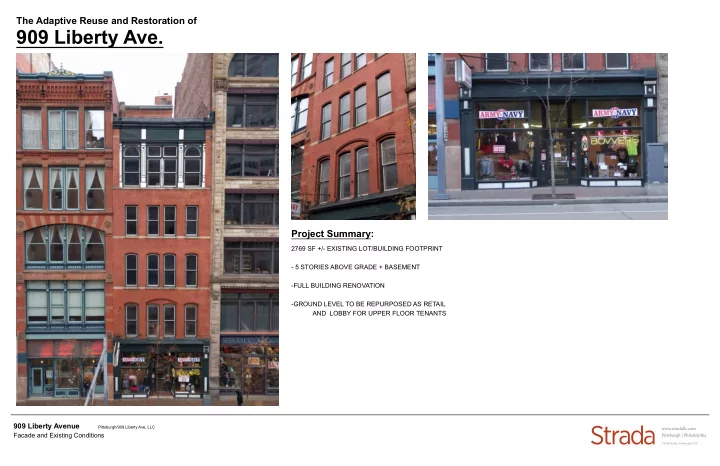

The Adaptive Reuse and Restoration of 909 Liberty Ave. Project Summary: 2769 SF +/- EXISTING LOT/BUILDING FOOTPRINT - 5 STORIES ABOVE GRADE + BASEMENT -FULL BUILDING RENOVATION -GROUND LEVEL TO BE REPURPOSED AS RETAIL AND LOBBY FOR UPPER

SLIDE 1

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

Facade and Existing Conditions

The Adaptive Reuse and Restoration of

909 Liberty Ave.

Project Summary:

2769 SF +/- EXISTING LOT/BUILDING FOOTPRINT

5 STORIES ABOVE GRADE + BASEMENT
FULL BUILDING RENOVATION
GROUND LEVEL TO BE REPURPOSED AS RETAIL

AND LOBBY FOR UPPER FLOOR TENANTS

SLIDE 2

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

Historical Photograph and Information

Historical Photos: Exterior Restoration Summary:

This building was originally "Western Auto Supply Co.
Existing brick and wood trim were repainted with funding

from the "Paris to Pittsburgh" program Western Auto Supply - 1924 Broadway Outdoor Army & Navy Store - 2009 Western Auto Supply - 1936 Western Auto Supply - 1929 Army & Navy Store - 2018

SLIDE 3

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

Facade Elevation

Existing Conditions Liberty Ave. Elevation 1/8" = 1'-0" Proposed Conditions Liberty Ave. Elevation 1/8" = 1'-0"

Exterior Restoration Summary:

Replacement of existing windows on upper floors to

meet historical guidelines.

Facade recently painted and restored in 2015.
Modification of storefront for double entrance to

accommodate proposed, mixed use program.

SLIDE 4

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

Rear Facade Photo Street Name Exchange Way Current Tenant: Army & Navy - Retail Access: Owner, Loading Area

SLIDE 5

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

Rear Elevation Modify existing window

pening to accommodate

new egress door New service door in existing opening Dashed line indicates existing fire escape to be removed. Painted brick

Proposed Conditions Exchange Way Elevation 1/8" = 1'-0"

Exterior Restoration Summary:

Existing windows to be replaced with new windows

that meet historic guidelines and sight lines.

Facade cleaning
Removal of fire escape
New service and egress doors

Existing Conditions Exchange Way Elevation 1/8" = 1'-0"

SLIDE 6

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

Existing Conditions

Typical Interior View, Floors 2-5 Typical Existing Exit Stair, Typical

February 19, 2019

SLIDE 7

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

First Floor Plan

DOWN UP

2-hour rated GWB column wrap, typ. at all columns. New aluminum storefront and entry doors 8" CMU stair and elevator shaft enclosures - continuous to Basement level. New door in extended masonry opening Wood floor infill to match existing at former elevator Wood floor infill to match existing at former stairwell 2-hour rated GWB construction at exit passageway Non-rated GWB construction at entry corridor Retail Tenant 100 A: 1,736 sq ft Exit Passageway 102 A: 259 sq ft Exit Stair ST-1 A: 179 sq ft Elevator 4000# A: 68 sq ft Entry Corridor 101 A: 232 sq ft

SCALE: 1/8" = 1'-0"

First Plan - Core & Shell

SLIDE 8

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

Second & Third Floor Plan

DOWN UP

2-hour rated GWB column wrap, typ. at all columns. (4) new aluminum double-hung windows at south elevation 8" CMU stair and elevator shaft enclosures - continuous to Basement level. (4) new aluminum double-hung windows at north elevation GWB shaft - size to be coordinated w/ MEP engineer GWB shaft - size to be coordinated w/ MEP engineer Exit Stair ST-1 A: 179 sq ft Elevator 4000# A: 68 sq ft

SCALE: 1/8" = 1'-0"

Second & Third Floor Plan - Core & Shell

SLIDE 9

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

Roof Plan

DOWN UP

(4) new aluminum double-hung windows at south elevation 8" CMU stair and elevator shaft enclosures - continuous to Basement level. (4) new aluminum double-hung windows at north elevation Wood floor infill to match existing at former elevator Wood floor infill to match existing at former stairwell GWB shaft - size to be coordinated w/ MEP engineer GWB shaft - size to be coordinated w/ MEP engineer Exit Stair ST-1 A: 179 sq ft Elevator 4000# A: 68 sq ft

SCALE: 1/8" = 1'-0"

Fourth & Fifth Floor Plan - Core & Shell

SLIDE 10

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

Fourth & Fifth Floor Plan

DOWN

Existing elevator

verrun to remain

Wood roof structure infill to match existing at former skylight New skylight - 3'-0" x 12'-0" New skylight - 3'-0" x 12'-0" 8" CMU stair enclosures - continuous to Basement level.

SCALE: 1/8" = 1'-0"

Fourth & Fifth Floor Plan - Core & Shell

Roof Plan - Core & Shell

SLIDE 11

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

Historic Precedent for Storefront

Minuteman Press

905 Liberty Ave.

Apartments and Office Space

945 Liberty Ave.

Arcade Comedy Theater

943 Liberty Ave.

Pittsburgh Cultural Trust

803 Liberty Ave.

Proposed Storefront Entryway 909 Liberty Ave. Proposed Storefront Entryway

SLIDE 12

909 Liberty Avenue

Pittsburgh/909 Liberty Ave, LLC

Enlarged Proposed Elevation 3'-6" 1'-8" 1'-8" 2'-11 3/4" 1'-7" 2'-0" 9'-1 3/4" 2'-0" 1'-7" 3'-5" Base detail to replicate original facade Exterior detail to be preserved New door and opening Exterior detail to be preserved Exterior detail to be preserved and replicated Exterior detail to be preserved Exterior detail to replicate existing edge details 1'-3" 7'-0" 7 '

" 1'-4" 4" 3'-6" Window glass to be replaced New door and opening New storefront windows to align with existing

Enlarged Elevation Liberty Ave. Elevation 1/2" = 1'-0"
