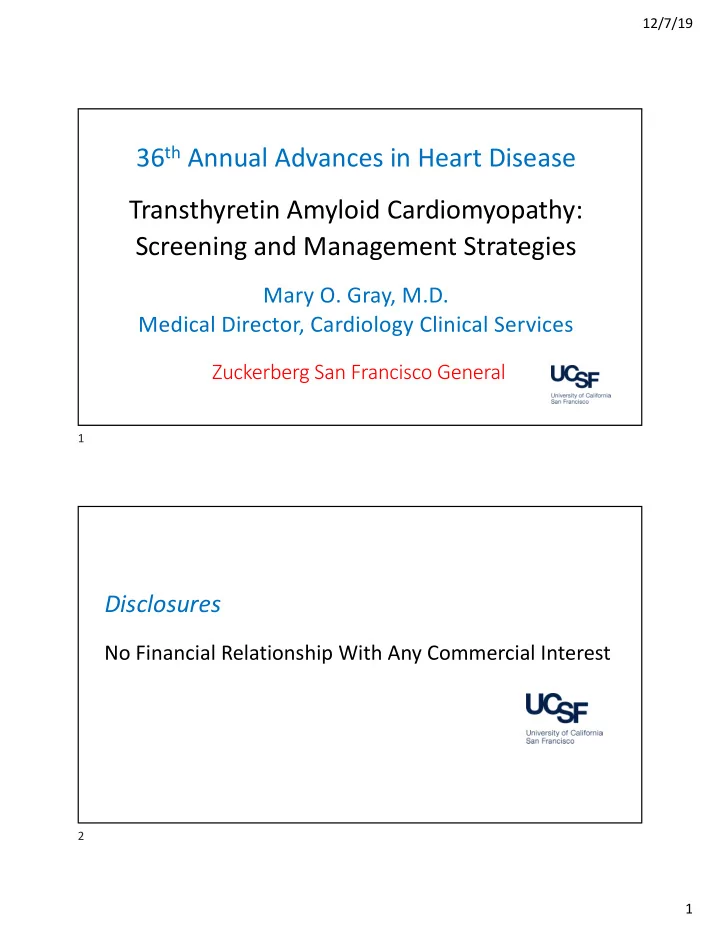

12/7/19 36 th Annual Advances in Heart Disease Transthyretin Amyloid Cardiomyopathy: Screening and Management Strategies Mary O. Gray, M.D. Medical Director, Cardiology Clinical Services Zuckerberg San Francisco General 1 Disclosures No

slide-1
SLIDE 1

12/7/19 1

36th Annual Advances in Heart Disease Transthyretin Amyloid Cardiomyopathy: Screening and Management Strategies

Mary O. Gray, M.D. Medical Director, Cardiology Clinical Services

Zuckerberg San Francisco General

1

Disclosures

No Financial Relationship With Any Commercial Interest

2

slide-2
SLIDE 2

12/7/19 2

Objectives

> Recognize clinical manifestations and natural history of cardiac transthyretin amyloidosis, a disabling and life-threatening disease. > Develop more effective screening and diagnostic strategies for transthyretin amyloid cardiomyopathy within everyday practice. > Implement standard therapy for heart failure with preserved EF and consider new treatments for this protein misfolding disorder.

3

Heart Failure with Preserved LVEF: Evidence-Based Diagnosis

Circulation 2018;138:861-870

4

slide-3
SLIDE 3

12/7/19 3

Transthyretin: TTR TTR wild-type or mutant: TTRwt or TTRm Transthyretin Amyloidosis: ATTRwt or ATTRm Transthyretin Amyloid Cardiomyopathy: ATTR-CM

5

Genotype & Phenotype: Mutant Transthyretin Amyloidosis

Akcea Therapeutics

6

slide-4
SLIDE 4

12/7/19 4

Screening for Transthyretin Amyloid Cardiomyopathy in Everyday Practice

J Am Coll Cardiol HF 2019;7(8):709-716

7

Screening for Transthyretin Amyloid Cardiomyopathy

J Am Coll Cardiol HF 2019;7(8):709-716

8

slide-5
SLIDE 5

12/7/19 5

Screening for Transthyretin Amyloid Cardiomyopathy

J Am Coll Cardiol HF 2019;7(8):709-716

9 10

slide-6
SLIDE 6

12/7/19 6

Screening for Transthyretin Amyloid Cardiomyopathy

J Am Coll Cardiol HF 2019;7(8):709-716

11

Transthyretin Cardiac Amyloidosis: AR Consortium

Circ Heart Fail 2019;12:e006075

12

slide-7
SLIDE 7

12/7/19 7

Transthyretin Cardiac Amyloidosis: AR Consortium

Circ Heart Fail 2019;12:e006075

13

Transthyretin Cardiac Amyloidosis: AR Consortium

Circ Heart Fail 2019;12:e006075

14

slide-8
SLIDE 8

12/7/19 8

15

Circ Heart Fail 2019;12:e006075

16

slide-9
SLIDE 9

12/7/19 9

Ø 89 yo man with HTN. Referred due to shortness of breath. Ø Atrial fibrillation. Ventricular pacemaker implanted in 2005. Ø NM pharmacologic stress: No infarction. No inducible ischemia. Ø Apixaban 5, benazepril 20, furosemide 40, metoprolol 50.

Case Presentation

17

Ø Chronic heart failure with preserved LV ejection fraction Ø ACC/AHA Stage C. NYHA Class III. Musculoskeletal conditions. Ø Normal volume status on loop diuretic and sodium restriction. Ø BP and HR management with medications and pacemaker.

Case Presentation

18

slide-10
SLIDE 10

12/7/19 10

Case Presentation

Echocardiogram

Normal LV cavity Mild concentric LVH LVEF 50 to 55% Dilated IVC collapses Severe tricuspid regurgitation. RA enlargement. Normal PA pressure.

19

Case Presentation

20

slide-11
SLIDE 11

12/7/19 11

Case Presentation

21

Case Presentation

22

slide-12
SLIDE 12

12/7/19 12

Ø IV administration of 13.9 mCi Tc-99m Pyrophosphate (PYP). Ø Planar imaging & SPECT-CT at 1-hour and 3-hour time points. Ø Semi-quantitative and quantitative analysis per ASNC 2016.

Case Presentation

23

Case: Cardiac Sodium Pyrophosphate Scan

Anterior Chest 1 Hour Anterior Chest 3 Hours Visual Score 3

24

slide-13
SLIDE 13

12/7/19 13

Case: Cardiac Sodium Pyrophosphate Scan

Region of Interest @ 1 Hour Region of Interest @ 3 Hours

H/CL ratio 1.5

25

Cardiac Sodium Pyrophosphate Scan

Fusion Coronal SPECT-CT Image

26

slide-14
SLIDE 14

12/7/19 14

Circ Heart Fail 2019;12:e006075

27

ATTR-CM: Considerations for Heart Failure Therapy

> Loop diuretics are the mainstay of heart failure management. > Individuals may not tolerate beta blockers and ACE inhibitors. > Calcium channel blockers and digoxin are contraindicated. > Atrial fibrillation: Rate control, anticoagulation, rhythm control.

Ventricular Assist Device, Liver Transplant, Heart Transplant

28

slide-15
SLIDE 15

12/7/19 15

29

Transthyretin: TTR TTR wild-type or mutant: TTRwt or TTRm Transthyretin Amyloidosis: ATTRwt or ATTRm Transthyretin Amyloid Cardiomyopathy: ATTR-CM

30

slide-16
SLIDE 16

12/7/19 16

Transthyretin Amyloidosis Cardiomyopathy Trial (ATTR-ACT)

N Engl J Med 2018;379:1007-1016

31

Transthyretin Amyloidosis Cardiomyopathy Trial (ATTR-ACT)

N Engl J Med 2018;379:1007-1016

32

slide-17
SLIDE 17

12/7/19 17

Transthyretin Amyloidosis Cardiomyopathy Trial (ATTR-ACT)

N Engl J Med 2018;379:1007-1016

33

Transthyretin Amyloidosis Cardiomyopathy Trial (ATTR-ACT)

N Engl J Med 2018;379:1007-1016

34

slide-18
SLIDE 18

12/7/19 18

Transthyretin Amyloidosis Cardiomyopathy Trial (ATTR-ACT)

N Engl J Med 2018;379:1007-1016

35

Transthyretin Amyloidosis Cardiomyopathy Trial (ATTR-ACT)

N Engl J Med 2018;379:1007-1016

36

slide-19
SLIDE 19

12/7/19 19

Transthyretin Amyloidosis Cardiomyopathy Trial (ATTR-ACT)

N Engl J Med 2018;379:1007-1016

37

Objectives

> Recognize clinical manifestations and natural history of cardiac transthyretin amyloidosis, a disabling and life-threatening disease. > Develop more effective screening and diagnostic strategies for transthyretin amyloid cardiomyopathy within everyday practice. > Implement standard therapy for heart failure with preserved EF and consider new treatments for this protein misfolding disorder.

38
