May 19 th , 2020 Name of Landmark Building Type of Presentation Month xx, year Public Hearing The current proposal is: Preservation Department Item 6, LPC-20-09545 117 West 79 th Street, Borough of Manhattan How to Testify Via Zoom:

SLIDE 1

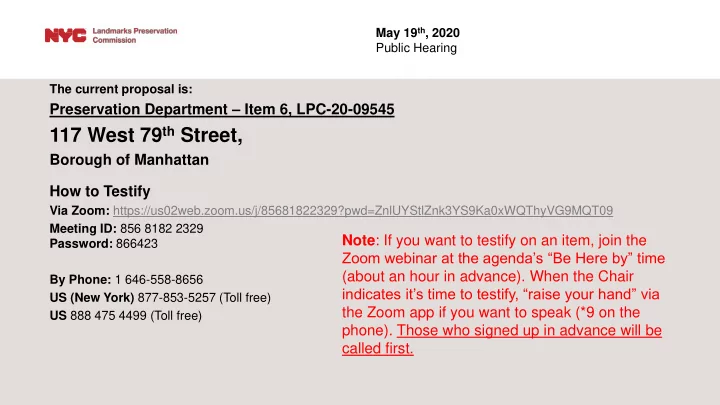

Name of Landmark Building Type of Presentation Month xx, year

May 19th, 2020 Public Hearing The current proposal is:

Preservation Department – Item 6, LPC-20-09545

117 West 79th Street,

Borough of Manhattan How to Testify

Via Zoom: https://us02web.zoom.us/j/85681822329?pwd=ZnlUYStlZnk3YS9Ka0xWQThyVG9MQT09 Meeting ID: 856 8182 2329 Password: 866423 By Phone: 1 646-558-8656 US (New York) 877-853-5257 (Toll free) US 888 475 4499 (Toll free)

Note: If you want to testify on an item, join the Zoom webinar at the agenda’s “Be Here by” time (about an hour in advance). When the Chair indicates it’s time to testify, “raise your hand” via the Zoom app if you want to speak (*9 on the phone). Those who signed up in advance will be called first.

SLIDE 2

EXTERIOR WHEELCHAIR LIFT

Project Address:

18435

CTA ARCHITECTS P.C.

Tel: 212.243.7404 info@ctaarchitects.com 151 West 26th Street - 8th Floor New York, New York 10001-6810

LPC PRESENTATION 1

SK-01

05/12/2020

117 WEST 79TH STREET, NEW YORK, NEW YORK 10024

SCOPE OF WORK:

INTERIOR RENOVATION OF AN 1890'S ELEVATOR BUILDING IN THE UPPER WEST SIDE/ CENTRAL PARK WEST HISTORIC DISTRICT. THE

BUILDING IS A RESIDENTIAL, SINGLE ROOM OCCUPANCY CLASSIFICATION UNDER THE HOUSING PRESERVATION AND DEVELOPMENT PROGRAM TO BE REUSED AS LOW-INCOME SENIOR HOUSING.

TO MAINTAIN THE MAJORITY OF THE EXISTING SOUTH ELEVATION AND TO ALLOW FOR FHA ACCESSIBILITY, A NEW EXTERIOR WHEELCHAIR

LIFT IS PROPOSED TO BE INSTALLED AT THE EAST SIDE OF THE SOUTH ELEVATION.

THE EXISTING WINDOW AT THE NEW WHEELCHAIR LIFT WILL BE REMOVED AND THE EXISTING MASONRY OPENING WILL BE ENLARGED TO

ACCOMMODATE FOR A NEW EXTERIOR DOOR.

A NEW METAL STAIR LEADING FROM THE CELLAR WILL BE INSTALLED AT THE WEST SIDE OF THE MAIN ENTRANCE REUSING THE EXISTING

METAL GATE FROM THE EXISTING METAL STAIR. REFER TO PLANS FOR LOCATIONS.

VIEW FROM EAST ON WEST 79TH STREET

VIEW FROM WEST ON WEST 79TH STREET

DATE REVISION NO. KEY PLAN

SEAL & SIGNATURE: PROJECT: DRAWING TITLE:

BUILDING REHABILITATION

117 WEST 79TH STREET NEW YORK, NEW YORK 10024

PROJECT No: DRAWING BY: CHECKED BY: DWG No: CADD FILE No: DATE: 17.JANUARY.2020 18435

T-005.00

SITE PLAN/ PHOTOS

AS SM 6 OF 38

CTA ARCHITECTS P.C.

Tel: 212.243.7404 info@ctaarchitects.com 151 West 26th Street - 8th Floor New York, New York 10001-6810

18435-02-25-20-117W 79TH- DOB PROGRESS SET.vwx WEST 79TH STREET COLUMBUS AVENUE WEST 80TH STREET

PROPOSED BUILDING LOCATION PLAN

Scale: 1/16" = 1'-0" 1

102'-0" 57'-3" PLANTER PLANTER PLANTER PLANTER 1 STORY 14 STORIES 33 STORIES ADJACENT BUILDIUNG ADJACENT BUILDIUNG ADJACENT BUILDIUNG ADJACENT BUILDIUNG ADJACENT BUILDIUNG ADJACENT BUILDIUNG ADJACENT BUILDIUNG ADJACENT BUILDIUNG ADJACENT BUILDIUNG ADJACENT BUILDIUNG 4 STORIES 5 STORIES 4 STORIES 4 STORIES 4 STORIES 4 STORIES 4 STORIES 8 STORIES 11 STORIES BULKHEAD BULKHEAD BULKHEAD CORNICE ABOVE. +/- 119'-0" COLUMBUS AVENUE W E S T 117TH S T R E E T 60' W I D E W E S T 118TH S T R E E T THEODORE ROOSEVELT P A R K EXTERIOR METAL STAIR AT ELEVATOR BULKHEAD. EXTERIOR METAL STAIR AT STREET LEVEL. EXTERIOR LIFT AT STREET LEVEL. MAIN ENTRANCE REAR YARD WEST SIDE YARD EAST SIDE YARD BALCONY AT 2ND FLOOR. +/- 19'-2" SIDEWALK 7 STORIES

CONC. COLUMN. TYP.

METAL GATE AND METAL FENCE AT STREET LEVEL. TYP.

CONC. STAIR AT STREET LEVEL.

BLOCK WALL LOWER BLOCK WALL 54'-1"

SITE PLAN

1 B A

WEST 79TH STREET

SLIDE 3

EXISTING GROUND FLOOR PLAN Scale: 1/8" = 1'-0"

WEST 79TH STREET DN DN EXISTING EXTERIOR METAL STAIR. TO BE REMOVED. EXISTING EXTERIOR METAL GATE. TO BE REMOVED AND RELOCATED. +/- 4'-9" V.I.F. +/- 17'-4" V.I.F. +/- 22'-3" V.I.F. +/- 57'-4" V.I.F. +/- 17'-6" V.I.F. AREA FOR NEW EXTERIOR WHEELCHAIR LIFT. LOCATION OF RELOCATED METAL GATE.

EXTERIOR WHEELCHAIR LIFT

Project Address:

18435

CTA ARCHITECTS P.C.

Tel: 212.243.7404 info@ctaarchitects.com 151 West 26th Street - 8th Floor New York, New York 10001-6810

LPC PRESENTATION 1

SK-02

05/12/2020

117 WEST 79TH STREET, NEW YORK, NEW YORK 10024

AREA FOR NEW EXTERIOR WHEELCHAIR LIFT. PROPOSED LOCATION OF RELOCATED EXISTING METAL GATE LEADING TO A NEW METAL STAIR. NEW METAL STAIR TO MATCH EXISTING METAL STAIR AT EAST OF THE MAIN ENTRANCE. EXISTING METAL GATE TO BE REMOVED AND PROTECTED DURING CONSTRUCTION AND REINSTALLED AT NEW METAL STAIR AT WEST SIDE OF THE MAIN ENTRANCE. EXISTING METAL STAIR TO BE REMOVED.

VIEW FROM WEST ON WEST 79TH STREET

VIEW FROM EAST ON WEST 79TH STREET

VIEW FROM EXTERIOR CELLAR AREAWAY.

VIEW INTO EXTERIOR CELLAR AREAWAY.

D A C D B

EXISTING CONDITIONS

SLIDE 4

EXTERIOR WHEELCHAIR LIFT

Project Address:

18435

CTA ARCHITECTS P.C.

Tel: 212.243.7404 info@ctaarchitects.com 151 West 26th Street - 8th Floor New York, New York 10001-6810

LPC PRESENTATION 1

SK-03

05/12/2020

117 WEST 79TH STREET, NEW YORK, NEW YORK 10024

PROPOSED GROUND FLOOR PLAN EXTERIOR RAMP AND STAIR LIFT Scale: 3/16" = 1'-0" 2

3'-0" 3'-0" 1'-0" 5'-0" 5'-0" 3'-0" 6'-9" 19'- 2" 2'-0" 6'-3" 12'-1" 2'-2" 2'-2" PL SLOPE SLOPE SLOPE 12'-3"

PARTIAL SOUTH ELEVATION- RAMP AND STAIR LIFT Scale: 3/16" = 1'-0" 1

5'-0 1/8"

UNSUCCESSFUL FHA ENTRANCE

RAMP OPTION. CHAIR LIFT OPTION. RAMP OPTION. CHAIR LIFT OPTION.

SLIDE 5

EXTERIOR WHEELCHAIR LIFT

Project Address:

18435

CTA ARCHITECTS P.C.

Tel: 212.243.7404 info@ctaarchitects.com 151 West 26th Street - 8th Floor New York, New York 10001-6810

LPC PRESENTATION 1

SK-04

05/12/2020

117 WEST 79TH STREET, NEW YORK, NEW YORK 10024 EXISTING GROUND FLOOR PLAN Scale: 1/8" = 1'-0"

1ST FLOOR 1ST FLOOR

E E G G G E A F E A B E G C

PROPOSED GROUND FLOOR PLAN Scale: 1/8" = 1'-0"

WEST 79TH STREET +/- 7'-7" +/- 9'-7" DN DN

RECEPTION LOUNGE CORRIDOR 01 CORRIDOR 02

+/- 8'-4"

STAIR C

NEW EXTERIOR WHEELCHAIR LIFT. NEW EXTERIOR METAL STAIR. 4'-9" EXISTING METAL GATE RELOCATED FROM EAST SIDE OF MAIN ENTRANCE. +/- 4'-9" V.I.F. 2'-8" +/- 5'-9" +/- 10'-4" +/- 22'-3" +/- 10'-7" +/- 2'-9" +/- 57'-4" V.I.F. +/- 4'-2" NEW ADA COMPLIANT ELEVATOR. PROVIDES HANDICAP ACCESS TO CELLAR AND UPPER FLOORS.

PROPOSED FHA ENTRANCE

SLIDE 6

EXTERIOR WHEELCHAIR LIFT

Project Address:

18435

CTA ARCHITECTS P.C.

Tel: 212.243.7404 info@ctaarchitects.com 151 West 26th Street - 8th Floor New York, New York 10001-6810

LPC PRESENTATION 1

SK-05

05/12/2020

117 WEST 79TH STREET, NEW YORK, NEW YORK 10024

PARTIAL EXISTING SOUTH ELEVATION Scale: 1:100 1

+/- 57'-4" V.I.F. +/-20'-1" V.I.F. +/-7'-7" V.I.F. +/-7'-7" V.I.F. EXISTING EXTERIOR METAL GATE. +/- 4'-1" V.I.F. +/- 6'-2" V.I.F. EXISTING WINDOW WITH ORNAMENTAL STONE SURROUNDS AT MASONRY

OPENING. (TYP.)

EXISTING EXTERIOR METAL STAIR TO BE REMOVED. 2ND FLOOR GROUND FLOOR CELLAR +/- 11'-10" V.I.F. +/- 10'-8" V.I.F. ADJACENT BUILDING ADJACENT BUILDING AREA FOR NEW EXTERIOR WHEELCHAIR LIFT.

PROPOSED PARTIAL SOUTH ELEVATION Scale: 1:100 2

3 SK-05 ENLARGED MASONRY OPENING FOR NEW DOOR. EXISTING ORNAMENTAL STONE SURROUNDS AT MASONRY OPENING, PROTECT DURING WORK. (TYP.) NEW EXTERIOR METAL AND GLASS DOOR. PREPARE, PRIME, AND PAINT TO MATCH EXISTING WINDOWS AND DOORS AT STREET ELEVATION. NEW STONE SILL SET IN FULL BED OF MORTAR. 8'8" 4'0" 2ND FLOOR GROUND FLOOR CELLAR +/- 11'-10" V.I.F. +/- 10'-8" V.I.F. NEW EXTERIOR WHEELCHAIR LIFT. COLOR TO MATCH EXISTING METAL WORK PER APPROVED SAMPLE. SEE SHEET SK-06 FOR ADDITIONAL INFORMATION. ADJACENT BUILDING RE-INSTALL EXISTING GATE AT NEW EXTERIOR METAL STAIR. ADJACENT BUILDING LIFT DASHED FOR CLARITY.

PITCH 1" MIN. NEW EXTERIOR DOOR. PREPARE, PRIME AND PAINT TO MATCH EXISTING. NEW FLOOR AND

SUBFLOOR. REFER

TO FLOOR DETAILS FOR NOTES AND CONFIGURATIONS. NOTE: ALIGN TRAFFIC SURFACES OF FINISHED FLOOR AND DOOR SILL. 1/2" MIN. RUNNING CLEARANCE NOTE: RESTORE INTERIOR FINISHES AT DOOR PERIMETER TO SANDED AND PRIMED CONDITION SUITABLE FOR PAINTING. NEW STONE SILL SET IN FULL BED OF MORTAR. PITCH TO EXTERIOR. EXISTING MASONRY. VERIFY CONFIGURATION IN FIELD (TYP.) EXISTING STONE AT

FACADE. PROTECT DURING

WORK. NEW FHA COMPLIANT, STAINLESS STEEL FRAME, AND TEMPERED GLASS PANEL LIFT. PREPARE, PRIME, AND PAINT PER APPROVED PAINT WORK. REMOVE EXISTING SEALANT AT ENTIRE DOOR PERIMETER, BACK AND RESEAL. NEW WOOD TRIM AT PERIMETER DOOR TO MATCH EXISTING. SEE ELEVATIONS FOR EXTENTS.

DETAIL AT NEW DOORSILL AT WHEELCHAIR LIFT Scale: 3/16" = 1'-0"

PROPOSED FHA ENTRANCE

SLIDE 7

EXTERIOR WHEELCHAIR LIFT

Project Address:

18435

CTA ARCHITECTS P.C.

Tel: 212.243.7404 info@ctaarchitects.com 151 West 26th Street - 8th Floor New York, New York 10001-6810

LPC PRESENTATION 1

SK-06

05/12/2020

117 WEST 79TH STREET, NEW YORK, NEW YORK 10024

2'-8" 4'-9" 5'-1"

CALL POINT, POST

MOUNTED. TO BE

LOCATED AT GROUND FLOOR LEVEL AT STREET ENTRANCE. COLLAPSIBLE METAL SHIELD.

PLAN ELEVATION AXON

CONTROLS AT WHEELCHAIR LIFT. GLASS PANEL AT SIDES OF WHEELCHAIR LIFT. GLASS DOOR AT STREET FRONT.

TO STREET

METAL WHEELCHAIR LIFT FINISH, BLACK TO MATCH EXISTING METAL WORK.

WHEELCHAIR LIFT- PLAN- ELEVATION- AXON Scale: 1:50 1 NEW EXTERIOR WHEEL CHAIR LIFT FRONT VIEW. FINISH MATERIAL- BLACK TO MATCH EXISTING METAL WORK 2

PROPOSED FHA ENTRANCE

CONTROL WALL OF WHEELCHAIR LIFT WITH GLASS PANEL. NEW EXTERIOR WHEEL CHAIR LIFT SIDE VIEW. FINISH MATERIAL- BLACK TO MATCH EXISTING METAL WORK 3 NEW METAL AND GLASS DOOR TO MATCH FRONT ENTRANCE. NEW EXTERIOR WHEELCHAIR LIFT. COLOR TO MATCH EXISTING METAL WORK PER APPROVED SAMPLE. EXISTING ORNAMENTAL STONE SURROUNDS AT MASONRY OPENING, PROTECT DURING WORK.
