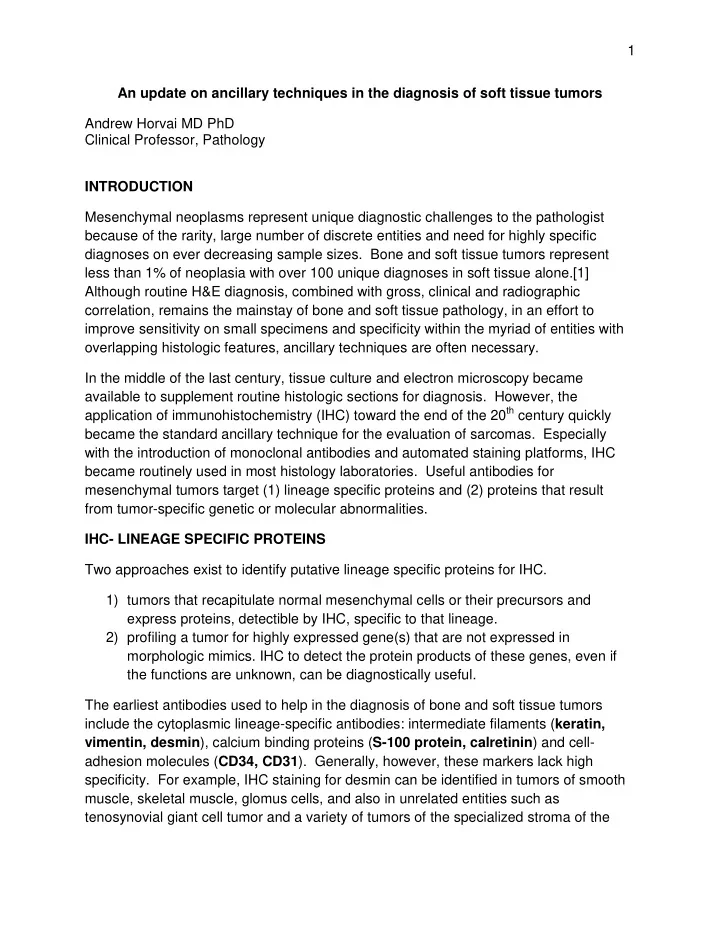

1 An update on ancillary techniques in the diagnosis of soft tissue - - PDF document

1 An update on ancillary techniques in the diagnosis of soft tissue tumors Andrew Horvai MD PhD Clinical Professor, Pathology INTRODUCTION Mesenchymal neoplasms represent unique diagnostic challenges to the pathologist because of the rarity, large number of discrete entities and need for highly specific diagnoses on ever decreasing sample sizes. Bone and soft tissue tumors represent less than 1% of neoplasia with over 100 unique diagnoses in soft tissue alone.[1] Although routine H&E diagnosis, combined with gross, clinical and radiographic correlation, remains the mainstay of bone and soft tissue pathology, in an effort to improve sensitivity on small specimens and specificity within the myriad of entities with

• verlapping histologic features, ancillary techniques are often necessary.

In the middle of the last century, tissue culture and electron microscopy became available to supplement routine histologic sections for diagnosis. However, the application of immunohistochemistry (IHC) toward the end of the 20th century quickly became the standard ancillary technique for the evaluation of sarcomas. Especially with the introduction of monoclonal antibodies and automated staining platforms, IHC became routinely used in most histology laboratories. Useful antibodies for mesenchymal tumors target (1) lineage specific proteins and (2) proteins that result from tumor-specific genetic or molecular abnormalities. IHC- LINEAGE SPECIFIC PROTEINS Two approaches exist to identify putative lineage specific proteins for IHC. 1) tumors that recapitulate normal mesenchymal cells or their precursors and express proteins, detectible by IHC, specific to that lineage. 2) profiling a tumor for highly expressed gene(s) that are not expressed in morphologic mimics. IHC to detect the protein products of these genes, even if the functions are unknown, can be diagnostically useful. The earliest antibodies used to help in the diagnosis of bone and soft tissue tumors include the cytoplasmic lineage-specific antibodies: intermediate filaments (keratin, vimentin, desmin), calcium binding proteins (S-100 protein, calretinin) and cell- adhesion molecules (CD34, CD31). Generally, however, these markers lack high

• specificity. For example, IHC staining for desmin can be identified in tumors of smooth

muscle, skeletal muscle, glomus cells, and also in unrelated entities such as tenosynovial giant cell tumor and a variety of tumors of the specialized stroma of the

2 vulvovaginal region. Furthermore, many sarcomas do not recapitulate any normal mesenchymal lineage so they are negative for lineage-specific cytoplasmic proteins. The more recent discovery of nuclear proteins, predominantly transcription factors, that control the differentiation of mesenchyme offer advantages over cytoplasmic proteins. Often, nuclear proteins are expressed early in differentiation of a cell lineage when a differentiated phenotype (e.g. cross striations in skeletal muscle precursors) is not evident on H&E slides. Also, the microscopic interpretation of a nuclear stain is sometimes less ambiguous than a cytoplasmic stain. The prototypical example of a lineage-specific transcription factor is myogenin (myf4 is the most commonly used monoclonal antibody). Myogenin is expressed in all subtypes

• f rhabdomyosarcoma[2] and in tumors with heterologous rhabdomyoblastic

differentiation.[3-5] Not only is it one of the most specific IHC markers in soft tissue pathology, but the pattern of staining can also distinguish between alveolar and embryonal rhabdomyosarcoma, which show diffuse and patchy positivity, respectively. [6] Other lineage-specific transcription factors, while not achieving the specificity of myogenin, nonetheless provide useful diagnostic clues to diverse tumor types. The most common category are the homeobox genes, which control specific stages of embryonic development. Of these, two SOX (SRY-related HMG-box) proteins, SOX9 and SOX10, are useful in cartilage and neural crest tumors, respectively.[7, 8] SOX10 stains benign and malignant melanocytic and nerve sheath tumors. Although SOX10 is positive in only ~50% of malignant peripheral nerve sheath tumors, it is virtually always negative in the most common morphologic mimic, synovial sarcoma.[9] Transcription factors that highlight endothelial cells (ERG) and osteoblasts (SATB2) are recently described and hold promise diagnostically.[10, 11] The alternative approach, that is identifying candidate tumor specific proteins by gene expression profiling, assumes nothing about histogenesis. Proteins such as MUC4, DOG1 and TLE1 were identified this way and can be targeted by IHC. MUC4 is a transmembrane glycoprotein present on normal glandular epithelium. Though the mechanism is unknown, it is highly expressed in tumors harboring a FUS-CREB3L2 fusion including low-grade fibromyxoid sarcoma (LGFMS), hyalinizing spindle cell tumor with giant rosettes (likely just a variant of LFGMS) and a subset of sclerosing epithelioid fibrosarcoma but is negative in perineureoma, MPNST, desmoid fibromatosis and myxofibrosarcoma.[12, 13] DOG1 is a nuclear protein that is very sensitive and specific for gastrointestinal stromal tumors (GIST), including GISTs that have PDGFR rather than KIT mutations.[14] TLE1 is sensitive for synovial sarcoma but its specificity is controversial.[15, 16]

3 IHC - INDICATORS OF GENETIC CHANGES Lineage-specific markers, though useful, are limited in several respects. As mentioned above, many sarcomas are poorly differentiated and therefore express no such

• markers. Conversely, the diagnostic challenge in some tumors may not be lineage but

the distinction between benign or malignant (e.g. lipoma versus liposarcoma). Many mesenchymal tumors harbor reproducible large scale (chromosome or gene-level) or smaller (nucleotide level) genetic changes that can be detected by direct genetic methods (described later below) or indirectly by IHC methods. Amplification of a region in the long arm of chromosome 12 (12q13-15) is a reproducible change seen in most well-differentiated and dedifferentiated liposarcomas, but not in

• ther liposarcoma types nor in benign lipomas. The 12q13-15 region occupies some 10

million bases with dozens of genes. However, overexpression of two gene products, MDM2 and CDK4, is readily detected by IHC. The immunophenotype of combined strong, diffuse MDM2 and CDK4 nuclear expression is useful to discriminate well- differentiated liposarcoma from lipoma and dedifferentiated liposarcoma from other sarcomas, respectively. Interestingly, low-grade osteosarcomas both of the intramedullary and parosteal variety also show amplification of 12q13-15 and nuclear expression of MDM2 and CDK4. However, staining is not completely specific, especially when only one of the two markers is present, and can be seen in other sarcoma types.[17, 18] Reciprocal translocations of genes that regulate cell-cycle and signal transduction characterize a large subset of bone and soft tissue tumors. If the resulting fusion proteins are abnormally expressed, they can, at least in theory, be detected by IHC. For example, the most common gene fusion in Ewing sarcoma, EWSR1-FLI1 causes expression of FLI1 protein in the primitive round cells of this tumor.[19] Similarly, the ASPSCR1-TFE3 fusion results in expression of TFE3 protein in alveolar soft parts sarcoma.[20] Since both FLI1 and TFE3 are expressed in the nucleus of a variety of non-neoplastic cells, the specificity is not very high and a positive result must be interpreted with caution. By contrast, IHC detection of STAT6 expression in solitary fibrous tumor with NAB2-STAT6 gene fusion is more specific. This is because STAT6, although also expressed in various cell types, remains in the cytoplasm unless

• activated. The NAB2-STAT6 fusion protein, however, accumulates in the nucleus.

Therefore, strong nuclear expression of STAT6 appears to be highly sensitive and specific.[21] Since the STAT6 gene maps in close proximity to CDK4, STAT6 is sometimes amplified along with MDM2 and CDK4 in dedifferentiated liposarcoma

4 resulting in positive IHC staining for STAT6, including nuclear staining in some cases.[22] INI1, also known as SNF5/SMARCB1 is a component of a chromatin remodeling complex that plays a critical role in transcription.[23] Deletion of both copies of INI1 is found in epithelioid sarcoma, but not carcinomas or other sarcomas with epithelioid cytomorphology.[24] Interestingly, a variety of tumors with “rhabdoid” cytomorphology, in addition to proximal type epithelioid sarcoma, such as atypical teratoid/rhabdoid tumor of the CNS, renal and extrarenal rhabdoid tumor in infants also lack INI1

• expression. The list of tumors with INI1 loss continues to grow and now includes poorly

differentiated chordoma.[25] The Rb protein, a product of the retinoblastoma gene is a tumor suppressor that has long been studied for its role in cell-cycle regulation and senescence. Whereas loss of Rb function definitely plays a role in retinoblastoma, osteosarcoma and some carcinomas, its loss is less common in sarcomas as a whole. However, recent evidence indicates that complete loss of Rb expression, for example from gene deletion, is detected in spindle cell lipoma and pleomorphic lipoma.[26] IHC for Rb is useful to confirm these diagnosis as nuclear expression is retained in other benign and malignant lipomatous tumors and solitary fibrous tumor which are important morphologic mimics. Intriguingly, mammary type myofibroblastoma and cellular angiofibroma of the perineal region, two lesions with striking morphologic similarity to spindle cell lipoma, also lack nuclear expression of Rb suggesting that all of these lesion may belong to the same family of neoplasms.[27] Point mutations and short nucleotide insertions or deletions are also tumorigenic in mesenchymal neoplasms. β-catenin is the protein product of the CTNNB1 gene and is involved in the Wnt signaling pathway. Point mutations in the CTNNB1 or APC genes are present in sporadic and familial (i.e. Gardner syndrome) forms of desmoid fibromatosis, respectively. These mutations produce an abnormally activated β-catenin protein resulting in translocation of β-catenin from the plasma membrane to the nucleus. IHC detection of nuclear β-catenin is, thus, a sensitive and, compared to other intra- abdominal spindle cell lesions, specific confirmatory test for desmoid tumor.[28-30] Isocitrate dehydrogenases (IDH1 and IDH2) are enzymes of the Krebs cycle. Mutations

• f these genes are thought to produce oncogenic metabolites. More specifically, a

substitution of Arginine132 to Histidine in IDH1 is found in glioblastomas and leukemias.[31, 32] Monoclonal antibodies for Histidine132 containing IDH1 area available and detect the mutant protein by IHC.[33] Benign and malignant cartilage tumors also demonstrate a substitution at Arginine132. However, the resulting amino acid substitution is more often Arginine  Cysteine than ArginineHistidine so the most widely used monoclonal antibody is still of limited use. However, a new antibody that

5 recognizes a variety of mutations was recently reported to work in ELISA and may be useful in the diagnosis of cartilage tumors.[34] Activating mutations of the BRAF gene, specifically a missense substitution of valine by glutamic acid (V600E) can be detected by a monoclonal antibody. In addition to prognostic and therapeutic implications in colorectal carcinoma, papillary thyroid carcinoma and melanoma, [35, 36] IHC may be diagnostically useful in bone biopsies for Langerhans histiocytosis especially if tissue decalcification precludes molecular

• studies. [37]

GENETIC AND MOLECULAR TESTING Genetic and molecular techniques may not be available at all pathology laboratories, but all practicing pathologists should be familiar with the genetic abnormalities in bone and soft tissue tumors and the benefits and limitations of specific techniques of cytogenetics and molecular pathology. At the coarsest level, mesenchymal tumors can be divided into those with complex genomic abnormalities and those with relatively few

• abnormalities. The former category includes most of the high-grade adult sarcomas

such as pleomorphic undifferentiated sarcoma (PUS), pleomorphic rhabdomyosarcoma, leiomyosarcoma etc. The confirmation of a complex genotype, therefore, even if not revealing a specific, reproducible genetic event, can at least categorize a sarcoma into this broad category. Tumors with more simple genetic events are often reproducible between tumors within a category and, as such, are diagnostically useful. Table 1 lists the current list of such genetic events. It should be noted that the table is current as of the writing of this handout but the catalog is ever-expanding. The current list of commercially available tests at reference labs can be found at: http://www.amptestdirectory.org/directory/st_test_list.php Genetic and molecular characterization of a tumor provides prognostic and predictive

• information. For example, alveolar rhabdomyosarcoma has a significantly worse

prognosis than embryonal rhabdomyosarcoma so confirming the presence of PAX3 or PAX7 gene rearrangement is vital to correct management.[38] The approaches commonly used to study the chromosomal and gene-level changes in the laboratory can be divided into cytogenetic and molecular methods.[39, 40] Cytogenetics includes conventional karyotyping and fluorescence in-situ hybridization (FISH). Both of these techniques offer the advantage that a direct correlation can be made between histomorphology and genetic changes. Karyotyping is time consuming (1-2 weeks to obtain a result), requires specially trained technical experts to interpret and the sample must contain viable, dividing cells. This means the pathologist has to make the decision to obtain a karyotype at the time of surgery,

6 usually based on a combination of clinical suspicion and intraoperative frozen section. The advantage of karyotyping is that any chromosomal abnormality, provided it is sufficiently large, will be detected without any specific target in mind. Thus karyotyping is most useful in cases where the differential diagnosis is very broad. FISH, on the other hand, is performed on paraffin embedded tissue. Cytologic smears with a monolayer of cells are especially good samples for FISH. However, unlike karyotyping, the test is directed at a specific abnormality. Therefore, the pathologist must have already narrowed the differential so that a positive result yields diagnostically useful information. FISH is also limited in that most commercially available probe sets detect only the presence of a rearrangement or copy-number at a single locus. In most cases, the presence of a rearrangement in the suspected gene (e.g. SS18) is sufficient to confirm the suspected diagnosis (e.g. synovial sarcoma), but this is not always true. The most obvious exception is the EWSR1 gene, which, while fused to FLI1 in the majority of Ewing sarcomas, can be fused to other genes (Table 1) in a variety of other bone and soft tissue tumors.[41]. FISH probes can be designed to detect both partners in a translocation to offer more specificity,[42] but even this approach does not avoid examples where two distinct clinicopathologic entities (e.g. clear cell sarcoma and angiomatoid fibrous histiocytoma) have identical gene fusions (e.g. EWSR1-ATF1). Molecular approaches rely on purification of nucleic acids from tissue followed by PCR amplification and detection using sequencing or other sequence-specific methods. As such, there is no direct correlation between the molecular result and histomorphology. Therefore, the pathologist must exercise great care in selecting appropriate material for testing to ensure it is representative of the tumor. The tissue does not need to be viable, but in general, flash frozen tissue is preferred to paraffin embedded tissue. Acid decalcification is especially problematic for molecular testing because it quickly fragments nucleic acids, especially RNA.[43] If possible, some tissue should be set aside without decalcification if there is a possibility of downstream molecular testing. The advantage to most molecular methods is the high resolution and, therefore, high

• specificity. Molecular methods can reveal not only that the suspected genes are

involved in a translocation but even which exons are involved. Other methods can detect single nucleotide substitutions (e.g. BRAF V600E).[44] Most tests are also rapid and inexpensive. The latest approaches employ array or “high-throughput” molecular methods, sometimes referred to as “-omics”. Instead of targeting a specific gene or exon, new technology can examine the entire genome of a tumor in parallel.[45] The data

• btained from these arrays is highly complex and requires specialized bioinformatics

software to interpret. Array based methods are not yet in routine clinical use for bone and soft tissue tumors, but these methods are leading to the discovery of diagnostically useful genetic abnormalities at a geometric rate.

7 Table 1. Chromosomal and genetic events in bone and soft tissue tumors. Tumor Chromosoma l changes Genes involved SMALL ROUND BLUE CELL TUMORS Ewing sarcoma / PNET t(11;22) EWS-FLI1 t(21;22) EWS-ERG t(7;22) EWS-ETV1 t(2;22) EWS-FEV t(17;22) EWS-E1AF inv(22) EWS-ZSG Ewing-like sarcoma Xp11 BCOR-CCNB3 t(4;19) CIC-DUX4 Desmoplastic small round cell tumor t(11;22) EWS-WT1 Mesenchymal chondrosarcoma inv(8q) HE1:NCOA2 SKELETAL MUSCLE Alveolar rhabdomyosarcoma t(2;13) PAX3-FKHR t(1;13) PAX7-FKHR VASCULAR Pseudomyogenic hemangioendothelioma t(7;19) ? Epithelioid hemangioendothelioma t(1;3) WWTR1-CAMTA1 ADIPOCYTIC Lipoma 6p21 HMGA1 12q15 HMGA2 Spindle cell/pleomorphic lipoma del 13q Rb loss Hibernoma 11q13-21 MEN1, AIP Lipoblastoma 8q11-13 PLAG1 Well-differentiated liposarcoma Ring 12, 12q+ MDM2, CDK4 Dedifferentiated liposarcoma Ring 12, 12q+ MDM2, CDK4 Myxoid liposarcoma t(12;16) FUS-DDIT3 t(12;16) EWS-DDIT3 Spindle cell/pleomorphic lipoma del 13q Rb loss Hibernoma 11q13-21 MEN1, AIP FIBROBLASTIC and MYOFIBROBLASTIC Nodular fasciitis t(22;17) MYH9-USP6 Inflammatory myofibroblastic tumor t(var;2) various-ALK1 Myxoinflammatory fibroblastic t(1p22;10q24) ?

8 sarcoma Low-grade fibromyxoid sarcoma t(7;16) FUS-CREB3L1/2 Dermatofibrosarcoma protuberans t(17;22) COLA1-PDGFB Giant cell fibroblastoma t(17;22) COLA1-PDGFB Infantile fibrosarcoma t(12;15) ETV6-NTRK3 Mammary type myofibroblastoma del 13q Rb Cellular angiofibroma del 13q Rb Angiofibroma of soft tissue t(5;8) AHRR-NCOA2 UNCERTAIN DIFFERENTIATION Extrarenal rhabdoid tumor del 22q INI1 Angiomatoid fibrous histiocytoma t(12;16) FUS-ATF1 t(12;22) EWS-ATF1 Mixed tumor, myoepithelial tumor t(12;8) etc EWS-POU5F1 Hemosiderotic fibrolipomatous tumor t(1p22;10q24) ? Tenosynovial giant cell tumor t(1;2) CSF-COL6A3 Aneurysmal bone cyst t(var;17p13) various-USP6 Ossifying fibromyxoid tumor 6p21 PHF1 Synovial sarcoma t(X;18) SYT-SSX Clear cell sarcoma t(12;22) EWS-ATF1 Extraskeletal myxoid chondrosarcoma t(9;22) EWS-NR4A3 t(9;17) RBP56-NR4A3 Alveolar soft part sarcoma t(X;17) ASPL-TFE3 PEComa del 16p TSC2 Solitary fibrous tumor /hemangiopericytoma 12q13 NAB2-STAT6 OTHER Endometrial stromal sarcoma t(7;17) JAZF1-JJAZ1 Mesoblastic nephroma t(12;15) ETV6-NTRK3 Poorly differentiated chordoma dell 22q INI1

9

References

• 1. Fletcher CD, Bridge JA, Hogendoorn PC, Mertens F. WHO Classification of Tumours of Soft Tissue

and Bone. 4th ed. Lyon: IARC Press; 2013.

• 2. Folpe AL. MyoD1 and myogenin expression in human neoplasia: a review and update. Adv Anat
• Pathol. 2002;9(3):198-203.
• 3. Shetty PK, Baliga SV, Balaiah K. Malignant triton tumor: a rare case. Indian J Surg. 2013;75(Suppl

1):362-5.

• 4. Folpe AL, Patterson K, Gown AM. Antibodies to desmin identify the blastemal component of
• nephroblastoma. Mod Pathol. 1997;10(9):895-900.
• 5. Govender D, Pillay P, editors. Primary myxoid liposarcoma with rhabdomyoblastic differentiation. Arch

Pathol Lab Med, vol 81998.

• 6. Dias P, Chen B, Dilday B, Palmer H, Hosoi H, Singh S et al. Strong immunostaining for myogenin in

rhabdomyosarcoma is significantly associated with tumors of the alveolar subclass. Am J Pathol. 2000;156(2):399-408.

• 7. Horvai AE, Roy R, Borys D, O'Donnell RJ. Regulators of skeletal development: a cluster analysis of

206 bone tumors reveals diagnostically useful markers. Mod Pathol. 2012;25(11):1452-61.

• 8. Nonaka D, Chiriboga L, Rubin BP. Sox10: a pan-schwannian and melanocytic marker. Am J Surg
• Pathol. 2008;32(9):1291-8.
• 9. Kang Y, Pekmezci M, Folpe AL, Ersen A, Horvai AE. Diagnostic utility of SOX10 to distinguish

malignant peripheral nerve sheath tumor from synovial sarcoma, including intraneural synovial

• sarcoma. Mod Pathol. 2014;27(1):55-61.
• 10. Miettinen M, Wang ZF, Paetau A, Tan SH, Dobi A, Srivastava S et al. ERG transcription factor as an

immunohistochemical marker for vascular endothelial tumors and prostatic carcinoma. Am J Surg

• Pathol. 2011;35(3):432-41.
• 11. Conner JR, Hornick JL. SATB2 is a novel marker of osteoblastic differentiation in bone and soft tissue
• tumours. Histopathology. 2013;63(1):36-49.
• 12. Doyle LA, Wang WL, Dal Cin P, Lopez-Terrada D, Mertens F, Lazar AJ et al. MUC4 is a sensitive and

extremely useful marker for sclerosing epithelioid fibrosarcoma: association with FUS gene

• rearrangement. Am J Surg Pathol. 2012;36(10):1444-51.
• 13. Doyle LA, Moller E, Dal Cin P, Fletcher CD, Mertens F, Hornick JL. MUC4 is a highly sensitive and

specific marker for low-grade fibromyxoid sarcoma. Am J Surg Pathol. 2011;35(5):733-41.

• 14. Miettinen M, Wang ZF, Lasota J. DOG1 antibody in the differential diagnosis of gastrointestinal

stromal tumors: a study of 1840 cases. Am J Surg Pathol. 2009;33(9):1401-8.

• 15. Knosel T, Heretsch S, Altendorf-Hofmann A, Richter P, Katenkamp K, Katenkamp D et al. TLE1 is a

robust diagnostic biomarker for synovial sarcomas and correlates with t(X;18): analysis of 319

• cases. Eur J Cancer. 2010;46(6):1170-6.
• 16. Kosemehmetoglu K, Vrana JA, Folpe AL. TLE1 expression is not specific for synovial sarcoma: a

whole section study of 163 soft tissue and bone neoplasms. Mod Pathol. 2009;22(7):872-8.

• 17. Binh MB, Sastre-Garau X, Guillou L, de Pinieux G, Terrier P, Lagace R et al. MDM2 and CDK4

immunostainings are useful adjuncts in diagnosing well-differentiated and dedifferentiated liposarcoma subtypes: a comparative analysis of 559 soft tissue neoplasms with genetic data. Am J Surg Pathol. 2005;29(10):1340-7.

• 18. Binh MB, Garau XS, Guillou L, Aurias A, Coindre JM. Reproducibility of MDM2 and CDK4 staining in

soft tissue tumors. Am J Clin Pathol. 2006;125(5):693-7.

• 19. Folpe AL, Hill CE, Parham DM, O'Shea PA, Weiss SW. Immunohistochemical detection of FLI-1

protein expression: a study of 132 round cell tumors with emphasis on CD99-positive mimics of Ewing's sarcoma/primitive neuroectodermal tumor. Am J Surg Pathol. 2000;24(12):1657-62.

• 20. Argani P, Lal P, Hutchinson B, Lui MY, Reuter VE, Ladanyi M. Aberrant nuclear immunoreactivity for

TFE3 in neoplasms with TFE3 gene fusions: a sensitive and specific immunohistochemical

• assay. Am J Surg Pathol. 2003;27(6):750-61.
• 21. Doyle LA, Vivero M, Fletcher CD, Mertens F, Hornick JL. Nuclear expression of STAT6 distinguishes

solitary fibrous tumor from histologic mimics. Mod Pathol. 2014;27(3):390-5.

• 22. Doyle LA, Tao D, Marino-Enriquez A. STAT6 is amplified in a subset of dedifferentiated liposarcoma.

Mod Pathol. 2013.

• 23. Hornick JL, Dal Cin P, Fletcher CD. Loss of INI1 expression is characteristic of both conventional and

proximal-type epithelioid sarcoma. Am J Surg Pathol. 2009;33(4):542-50.

10

• 24. Hollmann TJ, Hornick JL. INI1-deficient tumors: diagnostic features and molecular genetics. Am J

Surg Pathol. 2011;35(10):e47-63.

• 25. Mobley BC, McKenney JK, Bangs CD, Callahan K, Yeom KW, Schneppenheim R et al. Loss of

SMARCB1/INI1 expression in poorly differentiated chordomas. Acta Neuropathol. 2011;120(6):745-53.

• 26. Maggiani F, Debiec-Rychter M, Vanbockrijck M, Sciot R. Cellular angiofibroma: another mesenchymal

tumour with 13q14 involvement, suggesting a link with spindle cell lipoma and (extra)-mammary

• myofibroblastoma. Histopathology. 2007;51(3):410-2.
• 27. Chen BJ, Marino-Enriquez A, Fletcher CD, Hornick JL. Loss of retinoblastoma protein expression in

spindle cell/pleomorphic lipomas and cytogenetically related tumors: an immunohistochemical study with diagnostic implications. Am J Surg Pathol. 2012;36(8):1119-28.

• 28. Ng TL, Gown AM, Barry TS, Cheang MC, Chan AK, Turbin DA et al. Nuclear beta-catenin in

mesenchymal tumors. Mod Pathol. 2005;18(1):68-74.

• 29. Bhattacharya B, Dilworth HP, Iacobuzio-Donahue C, Ricci F, Weber K, Furlong MA et al. Nuclear

beta-catenin expression distinguishes deep fibromatosis from other benign and malignant fibroblastic and myofibroblastic lesions. Am J Surg Pathol. 2005;29(5):653-9.

• 30. Carlson JW, Fletcher CD. Immunohistochemistry for beta-catenin in the differential diagnosis of

spindle cell lesions: analysis of a series and review of the literature. Histopathology. 2007;51(4):509-14.

• 31. Balss J, Meyer J, Mueller W, Korshunov A, Hartmann C, von Deimling A. Analysis of the IDH1 codon

132 mutation in brain tumors. Acta Neuropathol. 2008;116(6):597-602.

• 32. Ward PS, Patel J, Wise DR, Abdel-Wahab O, Bennett BD, Coller HA et al. The common feature of

leukemia-associated IDH1 and IDH2 mutations is a neomorphic enzyme activity converting alpha- ketoglutarate to 2-hydroxyglutarate. Cancer Cell. 2011;17(3):225-34.

• 33. Kato Y, Jin G, Kuan CT, McLendon RE, Yan H, Bigner DD. A monoclonal antibody IMab-1 specifically

recognizes IDH1R132H, the most common glioma-derived mutation. Biochem Biophys Res

• Commun. 2009;390(3):547-51.
• 34. Kato Kaneko M, Ogasawara S, Kato Y. Establishment of a multi-specific monoclonal antibody

MsMab-1 recognizing both IDH1 and IDH2 mutations. Tohoku J Exp Med. 2013;230(2):103-9.

• 35. Chen Q, Xia C, Deng Y, Wang M, Luo P, Wu C et al. Immunohistochemistry as a quick screening

method for clinical detection of BRAF(V600E) mutation in melanoma patients. Tumour Biol. 2014.

• 36. Affolter K, Samowitz W, Tripp S, Bronner MP. BRAF V600E mutation detection by

immunohistochemistry in colorectal carcinoma. Genes Chromosomes Cancer. 2013;52(8):748- 52.

• 37. Roden AC, Hu X, Kip S, Parrilla Castellar ER, Rumilla KM, Vrana JA et al. BRAF V600E Expression

in Langerhans Cell Histiocytosis: Clinical and Immunohistochemical Study on 25 Pulmonary and 54 Extrapulmonary Cases. Am J Surg Pathol. 2014;38(4):548-51.

• 38. Sorensen PH, Lynch JC, Qualman SJ, Tirabosco R, Lim JF, Maurer HM et al. PAX3-FKHR and

PAX7-FKHR gene fusions are prognostic indicators in alveolar rhabdomyosarcoma: a report from the children's oncology group. J Clin Oncol. 2002;20(11):2672-9.

• 39. Ladanyi M, Bridge JA. Contribution of molecular genetic data to the classification of sarcomas. Hum
• Pathol. 2000;31(5):532-8.
• 40. Bridge JA, Cushman-Vokoun AM. Molecular diagnostics of soft tissue tumors. Arch Pathol Lab Med.

2011;135(5):588-601.

• 41. Antonescu CR. The role of genetic testing in soft tissue sarcoma. Histopathology. 2006;48(1):13-21.
• 42. Horvai AE, Kramer MJ, O'Donnell R. Beta-catenin nuclear expression correlates with cyclin D1

expression in primary and metastatic synovial sarcoma: a tissue microarray study. Arch Pathol Lab Med. 2006;130(6):792-8.

• 43. Singh VM, Salunga RC, Huang VJ, Tran Y, Erlander M, Plumlee P et al. Analysis of the effect of

various decalcification agents on the quantity and quality of nucleic acid (DNA and RNA) recovered from bone biopsies. Ann Diagn Pathol. 2013;17(4):322-6.

• 44. Spittle C, Ward MR, Nathanson KL, Gimotty PA, Rappaport E, Brose MS et al. Application of a BRAF

pyrosequencing assay for mutation detection and copy number analysis in malignant melanoma. J Mol Diagn. 2007;9(4):464-71.

• 45. Tuna M, Amos CI. Genomic sequencing in cancer. Cancer Lett. 2012;340(2):161-70.

5/12/2014 1

An update on ancillary techniques in the diagnosis

• f soft tissue tumors.

Andrew Horvai, MD, PhD Clinical Professor, Pathology

Disclosures

I have nothing to disclose.

Introduction

 Bone and soft tissue tumors are rare (<1 % of

neoplasms)

 >100 unique soft tissue diagnoses in WHO

2013

 Goal of diagnosis: reproducible classification of

lesions with differing clinical behavior and prognosis

 H&E might not be enough

 Sensitivity: smaller biopsies  Specificity: overlapping histologic features

Ancillary techniques



Immunohistochemistry

 Lineage “specific”  Indicators of genetic and molecular

abnormalities



Molecular and Genetic testing

 Available techniques  Advantages and Limitations  Selected examples

5/12/2014 2

Immunohistochemistry (IHC)

• 1. Lineage specific proteins
• 2. Indicators of genetic and m olecular

abnormalities (amplifications, deletions, translocations, point mutations)

IHC: Lineage “specific” proteins

 Classic approach

 Cytoplasmic: Desmin, keratin, actins, S-100,

CD34, CD31

 Nuclear transcription factors

 Skeletal muscle: Myogenin  Neural crest: SOX10  Others: SOX9, ERG, SATB2

 Gene expression profiling

 MUC4  Others: DOG1, TLE1

Myogenin



Master regulator of skeletal muscle differentiation



~100% specific (myf4 monoclonal) for rhabdomyoblastic differentiation

 Rhabdomyosarcoma (all types)  Heterologous rhabdomyoblastic differentiation

 Triton tumor, dedifferentiated liposarcoma, myxoid

liposarcoma, Wilms tumor



Can help distinguish subtypes of rhabdomyosarcoma

Alveolar RMS Embryonal RMS Myogenin Myogenin

Myogenin

5/12/2014 3

SOX10



SRY-related HMG box transcription factor



Sensitive for neural crest-derived tumors

 Melanoma (%)  Schwannoma, neurofibroma (>99%)  Malignant peripheral nerve sheath tumor (50%,

focal)



Specificity

 Negative in synovial sarcoma, GIST, smooth muscle  Positive in astrocytomas, myoepitheliomas, breast

carcinoma (10%)

SOX10

MPNST SOX10 Synovial sarcoma SOX10

IHC: Lineage specific proteins, gene expression profiling

 MUC4  Glycoprotein on glandular epithelium  Highly expressed in

 Low-grade fibromyxoid sarcoma  Hyalanizing spindle cell tumor with giant

rosettes

 Sclerosing epithelioid fibrosarcoma t(7;16)

positive

 Negative

 Perineurioma, MPNST, desmoid,

myxofibrosarcoma

MUC4

Low-grade fibromyxoid sarcoma MUC4

5/12/2014 4 IHC: Indicators of genetic changes

 Amplification

 MDM2, CDK4

 Chromosomal translocations

 STAT6  Others: FLI1, TFE3

 Deletion

 INI1  Rb

 Point mutation

 β-Catenin  Others: IDH1, BRAF



Liposarcoma

 Well-differentiated  Dedifferentiated



Osteosarcoma

 Parosteal  Central low-grade

IHC: Amplification

MDM2 / CDK4

Well-differentiated liposarcoma De-differentiated liposarcoma MDM2, CDK4 MDM2, CDK4

MDM2 / CDK4

Parosteal osteosarcoma MDM2, CDK4

5/12/2014 5

IHC: Chromosomal translocation

 STAT6  Transcription factor, moves to nucleus

when activated (phosphorylated)

 Fusion NAB2-STAT6 in solitary fibrous

tumor abnormal nuclear localization of STAT6

Sensitivity 98% Specificity >90%

Dedifferentiated liposarcoma

STAT6

Solitary fibrous tumor STAT6

STAT6



Dedifferentiated liposarcoma

STAT6

Doyle LA et al. Mod Pathol 2014; 1-7.

Dedifferentiated liposarcoma STAT6

5/12/2014 6

 INI1 (SNF5/SMARCB1)  Chromatin remodeling, tumor

suppressor, constitutively expressed

 Loss of expression

Epithelioid sarcoma (gene deletion) Atypical teratoid rhabdoid tumor

(inactivation)

Rhabdoid tumor (inactivation) Poorly differentiated chordoma (?)

IHC: Gene deletion

INI1 (loss)

Epithelioid sarcoma INI 1

INI1 (loss)

Extrarenal rhabdoid tumor INI 1

 Rb  Retinoblastoma gene 13q14  Tumor suppressor  Deleted or mutated

 Spindle cell lipoma  Pleomorphic lipoma  Mammary type myofibroblastoma  Cellular angiofibroma

 Retained in

 Other benign and malignant lipomatous tumors  Solitary fibrous tumor

IHC: Gene deletion or mutation

5/12/2014 7

Rb (complete loss)

Spindle cell lipoma

Rb

IHC: Point mutation

 β-catenin  Encoded by CTNNB1 gene, Wnt

signaling pathway

 Mutations in CTNNB1 (sporadic) or APC

(Gardner syndrome)  abnormal localization

 Normal cells: membrane  Scar, GIST, smooth muscle: membrane  Desmoid fibromatosis: nuclear (+

cytoplasm) (70-90%)

Nuclear β-catenin

Desmoid fibromatosis

Genetic and molecular testing

 Purpose

 Classification:

 Separation of tumors into clinically meaningful

categories based on reproducible changes

 Prognostic:

 Alveolar versus embryonal rhabdomyosarcoma  Myxoid versus well-differentiated liposarcoma

 Predictive:

 Therapeutic target from fusion gene product  Techniques

 Cytogenetic: Karyotype, FISH  Molecular: RT-PCR, Sanger sequencing, MLPA, array

5/12/2014 8

Cytogenetics

Karyotype FI SH Tissue source Fresh, dividing cells FFPE, cyto smears, frozen Turnaround >1 wk ~ 1 wk Specificity Shotgun approach Directed approach Advantages Direct correlation between morphology and genetics Disadvantages Low resolution

Cytogenetics: 33 year old woman, knee mass

Karyotyping: Synovial sarcoma

t(X;18)

Cytogenetics: FISH

Source: National human genome research institute

5/12/2014 9

77 year old man, left femur mass, cough

Small cell carcinoma Ewing/PNET Lymphoma (DLBCL)

FISH: Ewing sarcoma

EWSR1 rearrangement

5/12/2014 10

EWSR1 rearrangements

Partner Diagnosis FLI1, ERG, ETV1, EIAF, FEV, others Ewing sarcoma family of tumors ATF1, CREB1 Clear cell sarcoma Angiomatoid fibrous histiocytoma NR4A3 Extraskeletal myxoid chondrosracoma WT1 Desmoplastic small round cell tumor DDIT3 Myxoid liposarcoma POU5F1 Myoepithelial tumors

Molecular genetics

RT-PCR Next gen sequencing Tissue source Frozen > FFPE Frozen, + normal control Turnaround < 1-2 days > 1 wk Specificity Highly directed Shotgun approach Advantages High specificity Disadvantages No correlation between morphology and genetics

43 year old woman, thigh mass

Synovial sarcoma

Extraskeletal myxoid chondrosarcoma

5/12/2014 11

PCR: translocation

Vergara-Lui M, et al. ……

25 year old with multiple lytic lesions

• f bone

Gaucher Fat atrophy Xanthoma Erdheim-Chester

PCR: BRAF V600E mutation



Erdheim-Chester disease



Langerhans histiocytosis



Melanoma



Papillary thyroid carcinoma



Others

Spittle et al. J Mol Diagn 2007; 9:464.

5/12/2014 12

“High throughput” assays

Pavlopoulos GA, et al.. BioData Min. 2013 25;6(1):13.

• Array based sequencing

New markers identified by high throughput methods

Genetics Diagnosis MYH9-USP6 Nodular fasciitis NAB2-STAT6 Solitary fibrous tumor t(1;10)(p22;q24) Myxoinflammatory fibroblastic sarcoma Hemosiderotic fibrolipomatous tumor HEY1-NCOA2 Mesenchymal chondrosarcoma CIC-DUX4 Ewing-like sarcoma BCOR-CCNB3 Ewing-like sarcoma 10 20 30 40 50 60 70 80 90 1960 1970 1980 1990 2000 2010 2020 # of tumors characterized # of genetic /molecular aberrations

Molecular genetics of sarcoma

Time

Solid Tumors Test Directory

http://www.amptestdirectory.org/directory/st_test_list.php

5/12/2014 13

Take-home messages



Lineage-specific is a relative term



IHC for nuclear transcription factors offer advantages over older cytoplasmic proteins



IHC can indirectly detect tumor-specific genetic and molecular abnormalities



Gene and molecular abnormalities can be detected directly by more specialized methods



High throughput methods can rapidly screen an entire tumor genome and may allow personalized medicine
