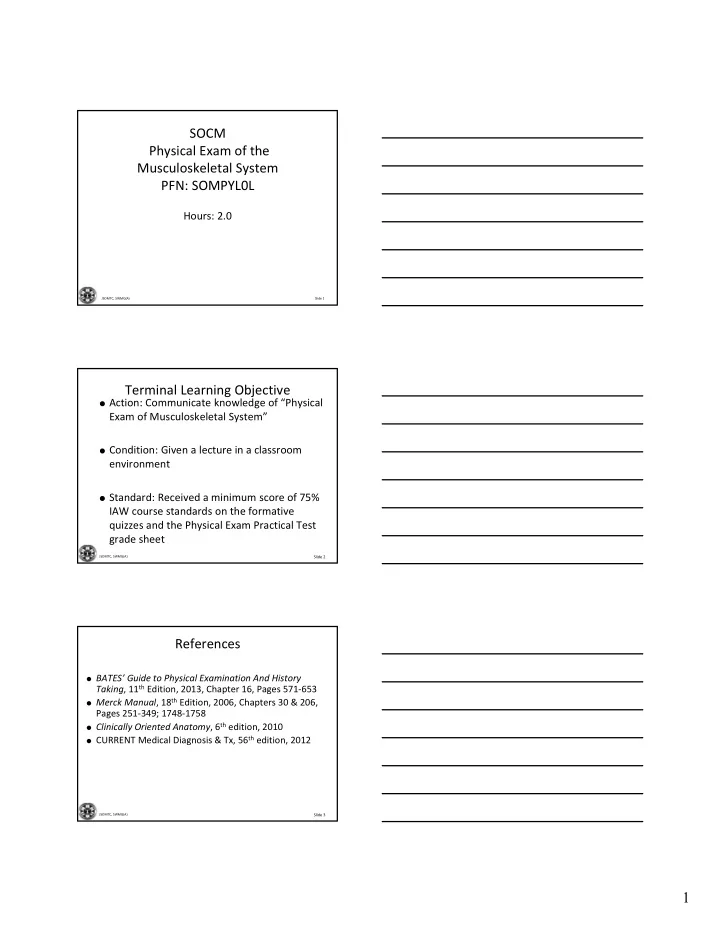

SLIDE 1

1

Slide 1 JSOMTC, SWMG(A)

SOCM Physical Exam of the Musculoskeletal System PFN: SOMPYL0L

Hours: 2.0

Slide 2

JSOMTC, SWMG(A)

Terminal Learning Objective

 Action: Communicate knowledge of “Physical

Exam of Musculoskeletal System”

 Condition: Given a lecture in a classroom

environment

 Standard: Received a minimum score of 75%

IAW course standards on the formative quizzes and the Physical Exam Practical Test grade sheet

Slide 3

JSOMTC, SWMG(A)

References

 BATES’ Guide to Physical Examination And History

Taking, 11th Edition, 2013, Chapter 16, Pages 571‐653

 Merck Manual, 18th Edition, 2006, Chapters 30 & 206,

Pages 251‐349; 1748‐1758

 Clinically Oriented Anatomy, 6th edition, 2010  CURRENT Medical Diagnosis & Tx, 56th edition, 2012

SLIDE 2

2

Slide 4

JSOMTC, SWMG(A)

Agenda

 Define the medical vocabulary components

related to the physical exam of the musculoskeletal (MSK) system

 Identify common or concerning symptoms

f the musculoskeletal system

 Communicate the important topics for

health promotion and counseling for the musculoskeletal system

Slide 5

JSOMTC, SWMG(A)

Agenda

 Communicate the important areas of

examination for each of the major joints of the musculoskeletal system

 Communicate the inspection, palpation,

range of motion, and maneuvers of the shoulder

 Communicate the inspection, palpation,

range of motion, associated structures, and maneuvers of the elbow

Slide 6

JSOMTC, SWMG(A)

Agenda

 Communicate the inspection, palpation,

range of motion, and maneuvers of the wrist and hands

 Communicate the inspection, palpation,

range of motion, and maneuvers of the spine

 Communicate the inspection, palpation,

range of motion, and maneuvers of the hip

SLIDE 3

3

Slide 7

JSOMTC, SWMG(A)

Agenda

 Communicate the inspection, palpation,

range of motion, and maneuvers of the knee

 Communicate the inspection, palpation,

range of motion, and maneuvers of the ankle and foot

 Communicate the limitation in motion of a

joint and how to record your findings relating to the musculoskeletal system

Slide 8

JSOMTC, SWMG(A)

Reason

As a SOF medic/corpsman, your ability to conduct a correct physical exam of the musculoskeletal system will be crucial as these patients will represent the bulk of your patient population.

Slide 9 JSOMTC, SWMG(A)

Medical Vocabulary Components Related to the Physical Exam of the Musculoskeletal (MSK) System

SLIDE 4

4

Slide 10

JSOMTC, SWMG(A)

Vocabulary

 Ligament – ropelike bundles of collagen

fibrils that connect bone‐to‐bone

 Tendon – collagen fibers connecting

muscle‐to‐bone

 Bursae – pouches of synovial fluid that

cushion the movement of tendons & muscles over bone or other structures

 Idiopathic –condition that arises

spontaneously or from an obscure or unknown cause

Slide 11

JSOMTC, SWMG(A)

Vocabulary

 Monoarticular – pertaining to or affecting a

single joint

 Polyarticular – affecting many joints  Myalgia – "aches & pains" in the muscles  Arthralgia – pain but no evidence of arthritis  Scoliosis – lateral & rotatory curvature of the

spine

Slide 12

JSOMTC, SWMG(A)

Vocabulary

 Osteoporosis – bone density loss of greater

than 25%

 Crepitus – a grating or crackling sound or

sensation (as the produced by the fractured ends of a bone moving against each other; foreign bodies in the joint (tear); subcutaneous emphysema)

 Kyphosis – exaggerated thoracic curvature

SLIDE 5

5

Slide 13

JSOMTC, SWMG(A)

Vocabulary

 Lordosis – exaggerated lumbar curvature  Subluxation – partial dislocation  Genu varum – “bowlegs” (genu = knee)  Genu valgum – “knock‐knees”  Valgus – angulation of the part away from

the midline of the body

 Varus – angulation of the part towards the

midline of the body

Slide 14 JSOMTC, SWMG(A)

Common or Concerning Symptoms

f the Musculoskeletal System

Slide 15

JSOMTC, SWMG(A)

Common/Concerning Symptoms

 Low back pain (LBP)  Neck pain  Monoarticular or polyarticular joint pain  Inflammatory or infectious joint pain  Joint pain with systemic features  Joint pain with symptoms from other organ

systems

SLIDE 6

6

Slide 16

JSOMTC, SWMG(A)

Common/Concerning Symptoms

 Low back pain

2nd most common reason for office

visits

Midline?
Radiating into the legs?
Bladder or bowel dysfunction?
Red Flags – systemic disease
> 50 y/o
History of cancer
Unexplained weight loss
Pain lasting > 1 month
Pain at night or

rest (>6weeks)

Infection
Hx IV drug use

Slide 17

JSOMTC, SWMG(A)

Common/Concerning Symptoms

 Neck pain

Trauma
Radiation
Arm/leg weakness
Change in bladder/bowel

function

Degenerative
Note: red flags from LBP

Slide 18

JSOMTC, SWMG(A)

SLIDE 7

7

Slide 19 JSOMTC, SWMG(A)

The Important Topics for Health Promotion and Counseling for the Musculoskeletal System

Slide 20

JSOMTC, SWMG(A)

Health Promotion & Counseling

 Nutrition, exercise, and weight

Balanced diet
Nutritional supplements
Regular exercise
Increases and maintains bone mass
Prevents obesity, diabetes, hypertension, PAD
Decreases stress
30 min a day walking
Weight management
Reduces wear and tear on joints

Slide 21

JSOMTC, SWMG(A)

Health Promotion & Counseling

 Low back

60‐80% experience 1x / lifetime
30‐60% experience recurrences ‐ work related
Correct lifting techniques
Correct posture
Exercise

 Falls – increase in the elderly

Exercise helps mitigate these risk factors

 Osteoporosis

Any age

SLIDE 8

8

Slide 22 JSOMTC, SWMG(A)

The Important Areas of Examination for Each of the Major Joints of the Musculoskeletal System

Slide 23

JSOMTC, SWMG(A)

Common/Concerning Symptoms: Subjective Exam

 Subjective Exam – What the Pt tells you  Joint pain

History (Hx)
OPQRST
Previous treatments
Do you have any pain in your joints?
Localized – monoarticular
Diffused – polyarticular

 Pattern of involvement  Symmetric  Migrating / spreading? – “Does the pain move?”

Slide 24

JSOMTC, SWMG(A)

Common/Concerning Symptoms: Subjective Exam

Extra‐articular – tendons, bursae, ligaments

 Myalgias  Arthralgia's

Timing – onset
Rapidly – “How long has this been going on?”
Insidiously over a length of time
Periods of improvement/worsening
Over the course of the day

SLIDE 9

9

Slide 25

JSOMTC, SWMG(A)

Common/Concerning Symptoms: Objective Exam

 Objective Exam – physical exam findings

(Exam, Observation, Inspection, Palpation, ROM, Strength)

Inflammation
Tenderness, warmth, or redness
Swelling
Stiffness – resistance to movement
Decreased range of motion
Changes in level of activity

Slide 26

JSOMTC, SWMG(A)

General Techniques of Examination: Objective Exam

 Observe general appearance

Body proportions
Gait

 Inspection

Joint symmetry of involvement
Alignment
Bony deformities
Skin changes
Facial expressions
Posture
Nodules
Atrophy
Swelling

Slide 27

JSOMTC, SWMG(A)

General Techniques of Examination

 Palpation

Tenderness
Swelling
Temperature
Texture ‐ nodules
Pulse
ROM – limitations
Maneuvers ‐ laxity
Muscle strength
Active – by the Pt
Passive – by the examiner

SLIDE 10

10

Slide 28 JSOMTC, SWMG(A)

The Inspection, Palpation, Range of Motion, and Maneuvers of the Shoulder

Slide 29

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Functional anatomy ‐ overview

Glenohumeral (synovial) – ball & socket joint
Flexion, extension, abduction, adduction,

medial & lateral rotation, circumduction

Dynamic stabilizers – SITS muscles
Static stabilizers –
Bony shoulder girdle
Glenoid labrum
Articular capsule
Glenohumeral ligament

Superior glenohumeral ligament Transverse humeral ligament

Slide 30

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Bony anatomy

Humerus
Greater & lesser tubercle
Clavicle – pectoral girdle/axial skeleton
Articulations: AC & SC joints
Scapula
Acromion
Coracoid process

SLIDE 11

11

Slide 31

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Joints and articulations

Glenohumeral joint
Sternoclavicular (SC) joint
Acromioclavicular (AC) joint

Slide 32

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Muscle groups (3)

Scapulohumeral group – SITS
Supraspinatus

Slide 33

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Muscle groups (3)

Scapulohumeral group – SITS
Infraspinatus

SLIDE 12

12

Slide 34

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Muscle groups (3)

Scapulohumeral group – SITS
Teres minor

Slide 35

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Muscle groups (3)

Scapulohumeral group – SITS
Subscapularis

Slide 36

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Muscle groups

Axioscapular group
Trapezium

SLIDE 13

13

Slide 37

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Muscle groups

Axioscapular group
Serratus anterior

Slide 38

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Muscle groups

Axioscapular group
Rhomboids

Slide 39

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Muscle groups

Axioscapular group
Levator scapulae

SLIDE 14

14

Slide 40

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Muscle groups

Axiohumeral group
Pectoralis major

Slide 41

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Muscle groups

Axiohumeral group
Pectoralis minor

Slide 42

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Muscle groups

Axiohumeral group
Latissimus dorsi

SLIDE 15

15

Slide 43

JSOMTC, SWMG(A)

Anatomy Overview ‐ Shoulder

 Additional structures

Articular capsule
Bursae
Superior acromial

bursa1

Subacromial bursa2
Subscapular bursa3
Synovial membrane
Glenohumeral joint4
Synovial sheath (long

head BB)5 1 2 3 4 5

Transverse humeral ligament Coracobrachialis Slide 44

JSOMTC, SWMG(A)

Techniques of Examination

 Inspect

Anterior
Posterior
Swelling
Deformities1,4
Muscle atrophy

1

Fasciculations
Abnormal positioning
Color change3
Skin alteration2

2 3 4

Slide 45

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation

SC‐Joint / clavicle
AC‐joint / acromion
Corocoid process
Greater tubercle – SITS

insert

Intertubercular groove

AC joint SC joint biceps

TIP: Start medially at the SC joint, proceed laterally, end posteriorly. Develop your own "Race Track"

SLIDE 16

16

Slide 46

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation

Subacrominal bursa
Subdeltoid bursae
SITS muscles
Articular capsule

Slide 47

JSOMTC, SWMG(A)

Techniques of Examination

 ROM

Flexion
Extension

Slide 48

JSOMTC, SWMG(A)

Techniques of Examination

 ROM

Abduction (180°)
Glenohumeral motion

 90°, palm down

Scapulothoracic motion

 Palm up, additional 60°

Final 30°, both motions

Supraspinatus, middle deltoid, serratus anterior

SLIDE 17

17

Slide 49

JSOMTC, SWMG(A)

Techniques of Examination

 ROM

Adduction (45°)
Pectoralis major
Coracobrachialis
latissimus dorsi
teres major
subscapularis

Slide 50

JSOMTC, SWMG(A)

Techniques of Examination

 ROM

Internal rotation (60° ‐ 90°)
Or the Apley scratch test

 Each side  Mark

Subscapularis, anterior deltoid, pectoralis major, teres major, latissimus dorsi

Slide 51

JSOMTC, SWMG(A)

Techniques of Examination

 ROM

External rotation (80° ‐ 90°)
Or the Apley scratch test

 Each side  Mark

Infraspinatus, teres minor, posterior deltoid

SLIDE 18

18

Slide 52

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

AC‐joint: Crossover test
Overall shoulder rotation: Apley scratch test
Rotator cuff
Neer’s impingement sign
Hawkins impingement sign
Supraspinatus strength
Infraspinatus strength
Subscapularis strength: lift off / belly press
O’Brian Test: AC / Labral
Drop‐arm sign

Slide 53

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

AC‐joint – crossover test
Horiz. adduct Pt Arm across chest w/ overpressure

(pain = positive)

Slide 54

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Overall shoulder rotation – Apley Scratch Test
Difficulty suggest rotator cuff disorder

External rotation and abduction Reach for upper scapula Internal rotation and adduction Reach for lower scapula Compare bilaterally – note level reached

SLIDE 19

19

Slide 55

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Rotator cuff – Neer’s impingement sign
Arm pronated
Scapula stabilized
Flex shoulder

maximally

Passive mnvr
Pain

 Positive test Slide 56

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Rotator cuff – Hawkins impingement sign
Shoulder & elbow flexed to 90°
Maximally internally rotating arm
Pain = positive test

Slide 57

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Rotator cuff – supraspinatus strength
Elevate arms to 90°
Internally rotate arms
Thumbs pointed down
Pt resist downward pressure
Weakness

 Positive test

Most commonly torn tendon

Empty Can Test or Jobe Test

SLIDE 20

20

Slide 58

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Rotator cuff – infraspinatus strength
Arms at side with elbows flexed to 90°
Thumbs pointed up
Pt resist internal rotation
Weakness

 Positive test Slide 59

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Rotator cuff – subscapularis strength
Internally rotation shoulder
Pt – push hand away from back; elbows forward while

applying pressure towards belly

Weakness

 Positive test Slide 60

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Labral, A/C ‐ O’Brian Test
Arm adducted 10° to chest
Shoulder flexed to 90°
Internal and external rotation

Internal rotation External rotation

SLIDE 21

21

Slide 61

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Rotator cuff – drop arm sign
Abduct arm to 90°
Lower slowly
Cannot hold arm abducted

 Positive test

Slide 62 JSOMTC, SWMG(A)

The Inspection, Palpation, Range of Motion, Associated Structures, and Maneuvers of the Elbow

Slide 63

JSOMTC, SWMG(A)

Anatomy Overview ‐ Elbow

 Overview

Hinge joint – synovial – diarthrosis
ROM: flexion, extension, supination, pronation
3 bones: humerus, ulna, radius

 Joints

Three articulations
Humeroulnar joint
Radiohumeral joint
Radioulnar joint

SLIDE 22

22

Slide 64

JSOMTC, SWMG(A)

Anatomy Overview ‐ Elbow

 Bony structures and features

Slide 65

JSOMTC, SWMG(A)

Anatomy Overview ‐ Elbow

 Muscle groups

Flexors
Biceps brachii
Brachioradialis
Brachialis
Extensors
Triceps brachii
Anconeus

Posterior R‐Arm Anterior R‐Arm

Slide 66

JSOMTC, SWMG(A)

Anatomy Overview ‐ Elbow

 Muscle groups

Pronators/supinators
Pronator teres
Pronator quadratus
Biceps brachii
Supinator

Anterior R‐Arm Anterior R‐Arm

SLIDE 23

23

Slide 67

JSOMTC, SWMG(A)

Anatomy Overview ‐ Elbow

 Additional structures

Olecranon bursa
Ulnar nerve
Median nerve (not shown)

Left Posterior Elbow

Slide 68

JSOMTC, SWMG(A)

Techniques of Examination

 Inspection

Medial & lateral epicondyles
Olecranon
Contours
Swelling
Discoloration
Nodules
Dislocation

Slide 69

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation

Olecranon
Epicondyles
Grooves – between
lecranon &

epicondyles

Ulnar n. (sensitivity)
Dislocation
Fx

SLIDE 24

24

Slide 70

JSOMTC, SWMG(A)

Techniques of Examination

 ROM

Flexion
Extension
Supination
Pronation

Slide 71

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Triangle of points
Tennis elbow

Slide 72

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Tinel sign
DTRs

Biceps

Triceps

Brachioradialis

SLIDE 25

25

Slide 73 JSOMTC, SWMG(A)

The Inspection, Palpation, Range of Motion, and Maneuvers of the Wrist and Hand

Slide 74

JSOMTC, SWMG(A)

Anatomy Overview – Wrist & Hand

 OVERVIEW

8 carpals – 2 rows
Proximal articulates with radius
Distal articulates with metacarpals
Thumb lacks middle phalanx
2‐5 phalanges have distal, middle & proximal

Slide 75

JSOMTC, SWMG(A)

Anatomy Overview – Wrist & Hand

 Bony structures

POSTERIOR

SLIDE 26

26

Slide 76

JSOMTC, SWMG(A)

Anatomy Overview – Wrist & Hand

 Joints

Wrist joints
Radiocarpal joint
Intercarpal joint
Hand joints
DIP
PIP
MCP (knuckle)

IP

Slide 77

JSOMTC, SWMG(A)

Anatomy Overview – Wrist & Hand

 Intrinsic muscle groups

Wrist
Fingers
Thumb
Thenar eminence
Thumb/fingers

Slide 78

JSOMTC, SWMG(A)

Anatomy Overview – Wrist & Hand

 Additional structures

Tendons
Tendon sheaths
Carpal tunnel
Transverse carpal

ligament

SLIDE 27

27

Slide 79

JSOMTC, SWMG(A)

Techniques of Examination

 Inspection

Normal position1
Swelling2
Deformities3
Contours (see previous slide)
Thickening4

4 1 2 3

Slide 80

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation

Radialcarpal joint
Radial styloid b.
Carpals
Scaphoid b.1
Metacarpals (MCP)2
Phalanges (DIP, PIP)3
Abnormalities

(swelling, inflammation, etc.) 1 3 2

Most common injury

Slide 81

JSOMTC, SWMG(A)

Techniques of Examination

 ROM – wrists

Flexion
Extension
Abduction (radial dev.)
Adduction (ulnar dev.)

SLIDE 28

28

Slide 82

JSOMTC, SWMG(A)

Slide 83

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers ‐ wrist

Sensation

1 2 3 Radial n. Ulnar n. Median n.

1 1 3 2 2 3 3 3 3

Slide 84

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers ‐ wrist

Hand grip strength1
Phalen’s sign2 – median n.
Tinel’s sign3 – median n.

1 2 3

SLIDE 29

29

Slide 85 JSOMTC, SWMG(A)

The Inspection, Palpation, Range of Motion, and Maneuvers of the Spine

Slide 86

JSOMTC, SWMG(A)

Anatomy Overview ‐ Spine

 Overview

Alignment of body weight
Primary curves
Secondary curves
7 cervical, 12 thoracic, 5 lumbar
5 sacral, 3‐5 coccyxal

Slide 87

JSOMTC, SWMG(A)

Anatomy Overview ‐ Spine

 Bony structures

Vertebral body
Vertebral arch
Transverse process
Spinous process
Pedicle, lamina
Vertebral foramen
Articular processes
Articular facets
Transverse costal facets (T1 – T10)
Intervertebral discs

T12

SLIDE 30

30

Slide 88

JSOMTC, SWMG(A)

Anatomy Overview ‐ Spine

 Joints

Intervertebral discs ‐ load
Annulus fibrosis
Nucleus pulposus
Articular facets ‐ flexibility
Superior
Inferior

Slide 89

JSOMTC, SWMG(A)

Anatomy Overview ‐ Spine

 Muscle groups

Outer
Deep
Intrinsic
Other

Slide 90

JSOMTC, SWMG(A)

Techniques of Examination

 Inspection – posterior aspect

Posture
Alignment
Symmetry

1 2 3 4

SLIDE 31

31

Slide 91

JSOMTC, SWMG(A)

Techniques of Examination

 Inspection – lateral aspect

Spinal curvatures
Cervical
Thoracic
Lumbar
Skin abnormalities
Port‐wine stains1
Café‐au‐lait spots2
Hairy patches

1 2

Slide 92

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation

Spinous processes (all)
Cervical facet joints
Step‐off (lumbar)
SI‐joint (drop‐off)
Sciatic nerve tenderness

Slide 93

JSOMTC, SWMG(A)

Techniques of Examination

 ROM & maneuvers – neck

Flexion – “Chin to chest”
Extension – “Look up”
Rotation – “Look left/right”
Lateral bending – “Ear to shoulder”

SLIDE 32

32

Slide 94

JSOMTC, SWMG(A)

Techniques of Examination

 ROM & maneuvers – spinal column

Flexion – “touch your toes” ‐ careful
Measure flexion

 Mark the lumbosacral junction  Mark 10cm above and 5cm below (standing)  Pt to max flexion (4cm ↑ norm, < 4cm not‐norm)

Slide 95

JSOMTC, SWMG(A)

Techniques of Examination

 ROM & maneuvers – spinal column

Extension1
Rotational2
Lateral Bending3

1 2 3

Slide 96 JSOMTC, SWMG(A)

The Inspection, Palpation, Range of Motion, and Maneuvers of the Hip

SLIDE 33

33

Slide 97

JSOMTC, SWMG(A)

Slide 98

JSOMTC, SWMG(A)

Anatomy Overview ‐ Hip

 Muscle groups

Flexor group
Extensor group
Adductor group
Abductor group – gluteus medius & minimus

Slide 99

JSOMTC, SWMG(A)

Anatomy Overview ‐ Hip

 Additional structures

Bursae
Trochanteric bursa
Ischial (ishiogluteal) bursa
Psoas (iliopectineal or iliopsoas) bursa

SLIDE 34

34

Slide 100

JSOMTC, SWMG(A)

Techniques of Examination

 Inspection

Gait – stance & swing
Width of the base
Pelvic shift
Knee flexion
Lordosis?
Leg length discrepancies?
Atrophy
Bruising

Slide 101

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation – bony landmarks

Anterior
Iliac crest
ASIS
Greater trochanter
Pubic symphysis
Posterior
PSIS
Greater trochanter
Sacroiliac joint

Slide 102

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation – inguinal structures/bursae

Inguinal
Supine, figure 4
Bulges
Lymph nodes
Tenderness
Bursae
Psoas
Trochanteric ‐ side
Ischiogluteal ‐ side

Pubic tubercle ASIS

SLIDE 35

35

Slide 103

JSOMTC, SWMG(A)

Techniques of Examination

 ROM/maneuvers

Flexion
Lumbar flattening1
Opposite knee flex2
Extension
Supine
Leg on or off table
Abduction3

1 2 3

Slide 104

JSOMTC, SWMG(A)

Techniques of Examination

 ROM/maneuvers

Adduction4
External Rotation
Medially5
Internal Rotation
Laterally

4 5

Slide 105 JSOMTC, SWMG(A)

The Inspection, Palpation, Range of Motion, and Maneuvers of the Knee

SLIDE 36

36

Slide 106

JSOMTC, SWMG(A)

Anatomy Overview ‐ Knee

 Overview

Largest joint & joint cavity
Three articular surfaces
Ligament dependent for stability

 Bony structures

Medial
Adductor tubercle
Medial epicondyle
Medial condyle

Slide 107

JSOMTC, SWMG(A)

Anatomy Overview ‐ Knee

 Bony structures

Anterior
Patella
Patellar ligament/tendon
Tibial tuberosity
Lateral
Lateral epicondyle
Lateral condyle

Slide 108

JSOMTC, SWMG(A)

Anatomy Overview ‐ Knee

 Joint – complex hinge joint

Three separate articulations
Lateral tibiofemoral joint
Medial tibiofemoral joint
Patellofemoral joint

SLIDE 37

37

Slide 109

JSOMTC, SWMG(A)

Anatomy Overview ‐ Knee

 Muscle groups ‐ knee

Extensors
Flexors

Vastus intermedius (not shown) Biceps femoris & popliteus (not shown)

Slide 110

JSOMTC, SWMG(A)

Anatomy Overview ‐ Knee

 Additional structures

Medial/lateral menisci
Collateral ligaments
Cruciate ligaments
Suprapatellar pouch
Bursae
Prepatellar
Anserine
Semimembranosus

Slide 111

JSOMTC, SWMG(A)

Techniques of Examination

 Inspection

Gait – smooth, rhythmic
Stumbling
Alignment/contours
Genu varum (previous slide)
Genu valgum
Flexion contracture
Atrophy
Swelling – intra1, extra‐articular2
Angular deformity
Bruising

1 2

SLIDE 38

38

Slide 112

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation – Pt on edge of exam table, flexed

Tibiofemoral joint
Depressions on either side of patellar tendon
Tibiofemoral joint
Tibial plateau
Converging femur/tibia
Femoral articulating surface
Medial meniscus
Lateral meniscus
Note pain

Slide 113

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation

Medial joint compartment
Medial femoral condyle
Adductor tubercle
Medial tibial plateau
MCL
Lateral joint compartment
Lateral femoral condyle
Lateral tibial plateau
LCL
Patella – patellar tendon – tibial tuberosity
Patellofemoral grinding test (knee extended)

Slide 114

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation

Suprapatellar pouch
6 cm above patella, palpate down
Tenderness, warmth, bogginess
Prepatellar bursa
“Housemaid’s knee”
Anserine bursa
Gastrocnemius Semimembranosus bursa
Popliteal (Baker) cyst

SLIDE 39

39

Slide 115

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation

Bulge sign1 – minor effusions
Milk the suprapatellar pouch down
Tap medially/laterally – fluid wave
Balloon sign – major effusions
Palpate each side of the patella
Compress the suprapatellar pouch
Feel for fluid entering
Balloting the patella2 – large

effusions

Compress the suprapatellar pouch
Push on the patella

2 1

Slide 116

JSOMTC, SWMG(A)

Techniques of Examination

 ROM – knee

Flexion – “flex your knee”
Extension – “straighten your leg”

Slide 117

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

McMurray test – clicking/lock during flex/extension

 Medial meniscus

– Palpate medial/lateral joint line – From heel, rotate externally – Apply varus stress

SLIDE 40

40

Slide 118

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

McMurray test – clicking/lock during flex/extension

 Lateral meniscus

– Palpate medial/lateral joint line – From heel, rotate internally – Apply valgus stress

Slide 119

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Abduction (valgus) stress test – MCL tears

 One hand – lateral knee  Other hand ‐ medial ankle  Ligamentous laxity or pain

Straight Flexed

Slide 120

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Adduction (varus) stress test – LCL

 One hand – medial knee  Other hand ‐ lateral ankle  Ligamentous laxity or pain

Straight Flexed

SLIDE 41

41

Slide 121

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Anterior drawer sign – ACL
Knee flexed
Pull anteriorly
Greater than a few degrees of movement indicates

ACL tear Hamstrings RELAXED!

Slide 122

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Posterior drawer sign – PCL
Knee flexed
Push posteriorly
Greater than a few degrees of movement indicates

PCL tear & compare to other knee

Slide 123 JSOMTC, SWMG(A)

The Inspection, Palpation, Range of Motion, and Maneuvers of the Ankle and Foot

SLIDE 42

42

Slide 124

JSOMTC, SWMG(A)

Anatomy Overview – Ankle & Foot

 Bony structures & joints

Malleolus (medial/lateral)
Calcaneus
Tarsals, metatarsals,

phalanges

Tibiotalar joint
Subtalar joint
Proximal, distal

interphalangeal joints

Slide 125

JSOMTC, SWMG(A)

Anatomy Overview – Ankle & Foot

 Muscle groups & additional structures

Plantar flexors – gastrocnemius, posterior tibial

muscles & toe extensors

Dorsiflexors – anterior tibial muscle & toe extensors
Deltoid (medial) ligament complex

Slide 126

JSOMTC, SWMG(A)

Anatomy Overview – Ankle & Foot

 Muscle groups & additional structures

Lateral (fibular collateral) ligament complex
Anterior talofibular ligament (ATFL) ‐ weakest
Calcaneofibular ligament (CFL)
Posterior talofibular ligament (PTFL) ‐ strongest

SLIDE 43

43

Slide 127

JSOMTC, SWMG(A)

Techniques of Examination

 History

ID area of tenderness
Twisting, plantarflexion‐inversion injury

 Inspection

Deformities
Nodules
Swelling
Effusion
Calluses
Corns
“Pop?”
Ecchymosis
Circulatory impairment
Shoes

Slide 128

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation

Joints ‐ tenderness
Tibiotalar, subtalar, transverse tarsal
Bones ‐ tibia, fibula (proximal), malleoli,

posterior/inferior calcaneus, metatarsals

Ligaments – weakest to strongest
ATFL, CFL, PTFL, & deltoid complex
Tendons – achilles, peroneal
Swelling/effusion

Slide 129

JSOMTC, SWMG(A)

Techniques of Examination

 ROM

Plantar flexion – “point foot toward the floor”
Dorsiflexion – “point foot toward the ceiling”
Inversion – “bend heel inward”
Eversion – “bend heel outward”

SLIDE 44

44

Slide 130

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Anterior drawer test
Anterior talofibular ligament (ATFL) ‐ weakest

Slide 131

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Inversion stress test (Talar tilt test)
Calcaneofibular ligament (CFL)

Slide 132

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Lisfranc’s Fracture
Proximal 2nd metatarsal
Midfoot swelling
Inability to bear weight
Potentially career ending

SLIDE 45

45

Slide 133

JSOMTC, SWMG(A)

Techniques of Examination

 Maneuvers

Morton’s test
Interdigital neuroma
3rd & 4th toes

Slide 134

JSOMTC, SWMG(A)

Techniques of Examination

 Palpation

Gastrocnemius & soleus muscles
Test integrity of the Achilles tendon

 Pt prone, knee & ankle flexed 90°  Squeeze calf  Watch for plantar flexion

Slide 135 JSOMTC, SWMG(A)

The Limitation in Motions of a Joint and How to Record Your Findings Relating to the Musculoskeletal System

SLIDE 46

46

Slide 136

JSOMTC, SWMG(A)

Joint Limitation

 Limited motion of a joint – diminished mobility

Compare with other “good side” – estimate

ROM angles

“Elbow flexes 45° to 90°"
“Elbow flexion deformity of 45° to 90°”

160° 0° 90° 45° 30° 45°

goniometer

Slide 137

JSOMTC, SWMG(A)

Ortho Consult

 As with radiographs, good idea to compare

injured side with good side (e.g., check laxity

f knee ligaments in “good” knee first, to see

what’s “normal”)

 Once you discover laxity or a complete tear,

there’s no reason to do that test over and

ver, or with more force (causing greater

damage)

 Ortho.consult@us.army.mil – interpret x‐rays

Short turnover for down range

Slide 138

JSOMTC, SWMG(A)

Questions?

SLIDE 47

47

Slide 139

JSOMTC, SWMG(A)

Terminal Learning Objective

 Action: Communicate knowledge of “Physical

Exam of Musculoskeletal System”

 Condition: Given a lecture in a classroom

environment

 Standard: Received a minimum score of 75%

n the written exam IAW course standards

Slide 140

JSOMTC, SWMG(A)

Agenda

 Define the medical vocabulary components

related to the physical exam of the musculoskeletal (MSK) system

 Identify common or concerning symptoms

f the musculoskeletal system

 Communicate the important topics for

health promotion and counseling for the musculoskeletal system

Slide 141

JSOMTC, SWMG(A)

Agenda

 Communicate the important areas of

examination for each of the major joints of the musculoskeletal system

 Communicate the inspection, palpation,

range of motion, and maneuvers of the shoulder

 Communicate the inspection, palpation,

range of motion, associated structures, and maneuvers of the elbow

SLIDE 48

48

Slide 142

JSOMTC, SWMG(A)

Agenda

 Communicate the inspection, palpation,

range of motion, and maneuvers of the wrist and hands

 Communicate the inspection, palpation,

range of motion, and maneuvers of the spine

 Communicate the inspection, palpation,

range of motion, and maneuvers of the hip

Slide 143

JSOMTC, SWMG(A)

Agenda

 Communicate the inspection, palpation,

range of motion, and maneuvers of the knee

 Communicate the inspection, palpation,

range of motion, and maneuvers of the ankle and foot

 Communicate the limitation in motion of a

joint and how to record your findings relating to the musculoskeletal system

Slide 144

JSOMTC, SWMG(A)

Reason

As a SOF medic/corpsman, your ability to conduct a correct physical exam of the musculoskeletal system will be crucial as these patients will represent the bulk of your patient population.
