Designer
The Danish designer Mads Odgård (1960 to present) is a leading figure in a new generation
- f international designers.
1 Designer The Danish designer Mads Odgrd (1960 to present) is a - - PowerPoint PPT Presentation
1 Designer The Danish designer Mads Odgrd (1960 to present) is a - - PowerPoint PPT Presentation
1 Designer The Danish designer Mads Odgrd (1960 to present) is a leading figure in a new generation of international designers. He is a minimalist with a 'less is more mentality, a man who would rather deduct than add. More than
SLIDE 2
SLIDE 3
3
3
Designed by experience
SLIDE 4
4
4
Key features
- adjustable reflector
- replaceable LED
- minimal glare
- good color rendition
- ptimal light control
- good light distribution
- ideal for repetitive installations
- timeless design
- dimmable
- indirect light technology
- architectural versatility
SLIDE 5
5
5
P: Kaslov, Albertslund
SLIDE 6
6
6
P: Kaslov, Albertslund
SLIDE 7
7
7
inner beauty
Power cable Powder coated surface Driver Reflector: metallized, high pressure molded polycarbonate ¾” BSPP threads Heat pipes Die cast aluminum High pressure molded acrylic LED Reflector adjustment button Clear acrylic Hole for adjustment of reflector covered by goretex membrane
SLIDE 8
8
8
Product
Copper tube with thin wall Inside surface with capillar effect Inside the tube, there is a small amount of water that will vapor at a low tem- perature because of low pressure. When the water evaporates, the heat will be moved from the hot end of the tube to the cold end in the top. In the cold end of the tube, the water condensates and runs down
- n the inside of the tupe to the
hot end.
SLIDE 9
9
function comfort atmosphere
Product Bi-symmetrical Asymmetrical
SLIDE 10
10
function comfort atmosphere
Light Pos 1 Pos 6
Ligh ight dis distrib ibutio ions: Bi-symmetrical matt reflector 54W – 69lm/W(3000K), 76lm/W(4000K). Asymmetrical polished/matt adjustable reflector 54W – 60-79lm/W(3000K) 64-85lm/W(4000K)
SLIDE 11
11
11
Product
Adjustment of light distribution for asymmetrical version
A gore-tex membrane is used to close the hole. The membrane allows the fixture to breathe, but the IP 66 remains. Two pieces are supplied with each fixture.
SLIDE 12
12
12
Product
SLIDE 13
13
13
Mounting Top mounted – pole arm Top mounted - wire
Note: this is the EU pole and arm
SLIDE 14
14
14
Before
SLIDE 15
15
15
After
Top mounted - Wire
SLIDE 16
16
16

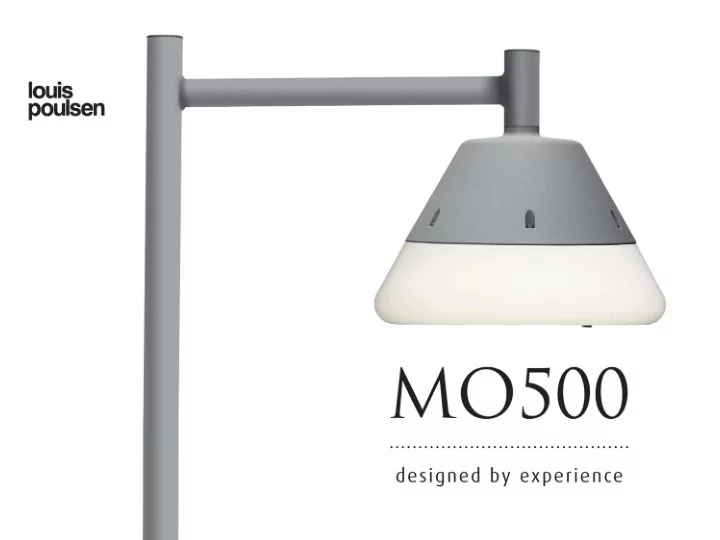

MO500 Post
Design: Mads Odgård Concept: The fixture emits light directed primarily downwards. The opal shade is faintly illuminated, to mark the route and make the fixture distinct against the night sky. The downward light pattern is determined by the reflector type. Finish: Aluminum colored with textured surface, powder coated. Material: Shade: Opal, high pressure molded acrylic. Reflector: High pressure molded polycarbonate. Housing: Die cast aluminum. Diffuser: Clear, high pressure molded acrylic. Weight: Max 19 lbs. Label: cULus, wet location. IBEW
Product Code Light Source Voltage Finish Dist/Trim Reflector Electric Shock Protection Transition to Pole Feature
MO-500-PT 54W LED 3000K 54W LED 4000K 120-277V NAT PAINT ALU T2 T3 POLISHED MATT SURGE PROTECTOR NOT APPLICABLE DRA-DAV-TE RSA-SRA-TE DIM 0-10V
Specification notes: The LED driver is integrated in the fixture head. All LED efficiency information is measured as system power. BI-SYM version is with matt reflector. Info notes: The asymmetrical version is adjustable. The innovation of the LED technology is constant. The specifications mentioned are based on present technology. Please find updated information about products on our website www.louispoulsen.com.
