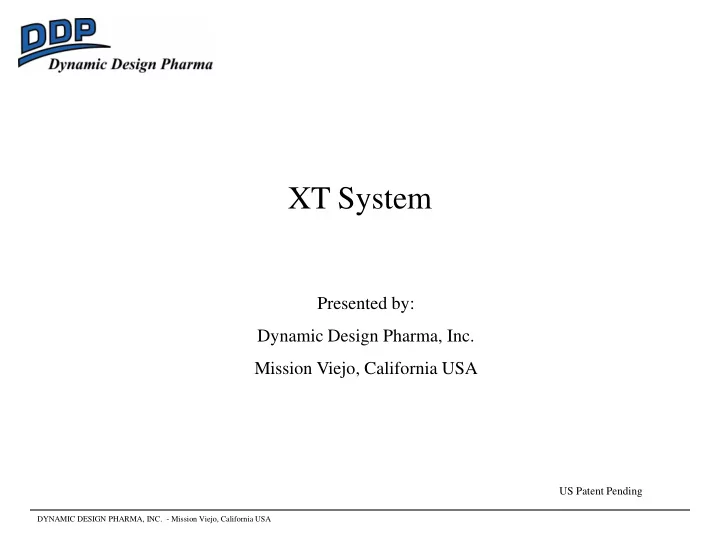

XT System Presented by: Dynamic Design Pharma, Inc. Mission Viejo, California USA US Patent Pending DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA Summary XT System 1. Description 2. Alpha XT 3. NR-HP Flange DYNAMIC DESIGN

slide-1
SLIDE 1

XT System

US Patent Pending

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Presented by: Dynamic Design Pharma, Inc. Mission Viejo, California USA

slide-2
SLIDE 2

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Summary – XT System

  • 1. Description
  • 2. Alpha XT
  • 3. NR-HP Flange
slide-3
SLIDE 3

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Summary – XT System

  • 1. Description
  • 2. Alpha XT
  • 3. NR-HP Flange
slide-4
SLIDE 4

XT System Components - Docked

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Alpha XT Beta NR-HP

slide-5
SLIDE 5

XT System Description

The XT System is composed of two systems, the Alpha XT and the Beta NR-HP, both manufactured by Dynamic Design Pharma. The Alpha XT is the alpha side of the XT System. This alpha port is operated solely from the outside of the isolator rendering unnecessary the gloved entry into the isolator by the operator to open or close the RTP door. The Beta NR-HP is the beta side of the XT System. It is based on Dynamic Design Pharma’s proprietary NR Technology that permits rotation of the beta flange relative to its mount. The Beta NR-HP flange permits docking of a stationary system, for example a tank filled of sterile stoppers, to the alpha port without rotation. The XT System is built on the Getinge-La Calhene’s DPTE platform but it can be adapted to any RTP port product of the type that requires rotation of the beta flange relative to the alpha flange to perform the docking process.

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

slide-6
SLIDE 6

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Summary – XT System

  • 1. Description
  • 2. Alpha XT
  • 3. NR-HP Flange
slide-7
SLIDE 7

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Alpha XT Description

The Alpha XT is the alpha side of the XT System. It is built on La Calhene’s DPTE alpha port platform and includes a number of mechanisms and features that permit unlocking, opening , closing and locking of the alpha door from outside the isolator. The functionality of the standard alpha port, such as the interlock features and the alpha/beta seal and locking system are unaffected by the integration of the flange into the Alpha XT. In one of its configurations, the Alpha XT includes a funnel that, similarly to the door actuator, is moved into the operating position from outside the isolator chamber

slide-8
SLIDE 8

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

190 Alpha XT – Non-Sterile Side

Door Opening Actuator Funnel IN/OUT Actuator Door Locking Actuator

slide-9
SLIDE 9

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

190 Alpha XT – Sterile Side

Door Opening Actuator Funnel IN/OUT Actuator Door Locking Actuator  Funnel 

slide-10
SLIDE 10

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Actuator details - Alpha XT

slide-11
SLIDE 11

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Sterile side actuator details - 190 Alpha XT

slide-12
SLIDE 12

Alpha XT Features

  • Operation solely from the non-sterile (operator) side
  • Optional funnel actuator to engage/disengage a funnel into component delivery position
  • Built on La Calhene's 190 alpha port but adaptable to any other alpha port manufacturer
  • Minor modifications to the alpha port with no impact on the port's door interlock

functionality

  • Separate actuators for the door locking, door opening and funnel positioning functions
  • Positive position lock of the alpha door in the open position
  • Positive position lock of the funnel in the engaged and the disengaged positions
  • Clean aseptic zone design compatible with wash down operations and VHP

decontamination

  • Leak tight construction
  • Modular design is easily incorporated in new isolator systems or retrofitted into existing

installations

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

slide-13
SLIDE 13

Alpha XT Specification

  • Nominal port size: 190mm, 270mm, 350mm, 460mm
  • Adaptable to La Calhene and CRL alpha ports
  • Alpha/Beta door interlock functionality: unaffected
  • Alpha door positive lock in the open position
  • Alpha door rotation: 90 degrees
  • Funnel rotation: 90 degrees maximum (as required by the application)
  • Configurable for right hand and left hand operation
  • Orientation: Operable from vertical to 45 degree inclination
  • Compatible with wash down operations
  • Compatible with VHP decontamination
  • Leak tight: Ammonia leak test at 250 pascal internal pressure.
  • Funnel configuration: As required by the application
  • Guide rollers on the beta flange engage guides on the alpha flange during the

docking process

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

slide-14
SLIDE 14

Alpha XT Advantages and Applications

Alpha XT Advantages

  • All docking operation a are conducted from the operator side of the isolator
  • Manipulation of the delivery funnel is conducted from the operator side of the isolator
  • Funnel is precisely positioned concentric to the alpha port inside diameter

Alpha XT Applications

  • Transfer of sterile components from a BetaBag directly into the vibratory bowl of the

filling line without the operator entering the isolator chamber.

  • Transfer of sterile components from a tank directly into the vibratory bowl of the filling

line without the operator entering the isolator chamber. See Beta NR-HP system for details.

  • Transfer of sterile components through the bulkhead of a class 100 suite.

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

slide-15
SLIDE 15

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Alpha XT can be mounted up to 45degrees and any orientation

Beta flange undocked Beta flange docked Custom funnel disengaged Guide rollers position the beta flange during docking process

slide-16
SLIDE 16

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Funnel customized to the application

Custom funnel engaged Custom funnel disengaged

slide-17
SLIDE 17

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Stopper Flow into Isolator

Beta bag stopper loading Vertical Alpha XT application Beta bag stopper loading Angled Alpha XT application Stopper loading from sterilizing tank Angled Alpha XT application

slide-18
SLIDE 18

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Summary – XT System

  • 1. Description
  • 2. Alpha XT
  • 3. Beta NR-HP Flange
slide-19
SLIDE 19

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

190 NR-HP Beta Flange Description

The 190 NR-HP beta flange is standard La Calhene DPTE beta flange connected to Dynamic Design Pharma’s proprietary NR flange that functions as the interface between the beta flange and the system or device to be connected. The NR flange, by means of a custom bearing system and seal, permits rotation of the beta flange during the docking process without the rotation of the system being docked. An additional static seal system actuated by an external clamping system permits sealing the NR-HP flange system during internal steam sterilization processes.

slide-20
SLIDE 20

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

190 NR-HP Beta Flange

slide-21
SLIDE 21

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

190 NR-HP Beta Flange – tank connection

slide-22
SLIDE 22

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

190 NR-HP Beta Flange with steam sterilization clamp installed

slide-23
SLIDE 23

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

190 NR-HP Beta Flange with custom turning handle and guide rollers

slide-24
SLIDE 24

190 NR-HP Beta Flange Features

  • Bearing and dynamic seal system that permit rotation of beta flange in relation to

the canister/tank body

  • Custom turning handles with low turning force
  • Sealing interface to La Calhene’s standard beta flange
  • 6 inch triclamp interface to the system to be docked
  • High pressure sealing system for steam sterilization processes

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

slide-25
SLIDE 25

190 NR-HP Beta Flange Specification

  • Nominal beta flange size: 190mm
  • Material: 316L stainless steel
  • Leak tightness (during operation): Capable of passing ammonia leak test when

pressurized to 250 pascal internal pressure

  • Leak tightness (during steam sterilization): Capable of withstanding 30 psi internal

pressure.

  • Interface with standard La Calhene DPTE Rapid Transfer Port

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

slide-26
SLIDE 26

190 NR-HP Beta Flange Application

  • Sterile stoppers transfer into the isolator system from the sterilizing tank.

Typically, the sterilization tanks are too bulky to be rotated. The beta flange is rotated during docking while the tank remains stationary.

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

slide-27
SLIDE 27

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

190 NR-HP Beta Flange Cross Section

190 NR-HP flange 190 DPTE Flange Triclamp connection to the tank

slide-28
SLIDE 28

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Summary – XT System

  • 1. Improves the aseptic and operational conditions of small

components introduction into the filling line

  • 2. The Beta NR-HP flange permits docking of bulky

components, such as a tank, without rotation

slide-29
SLIDE 29

Thank You

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA
