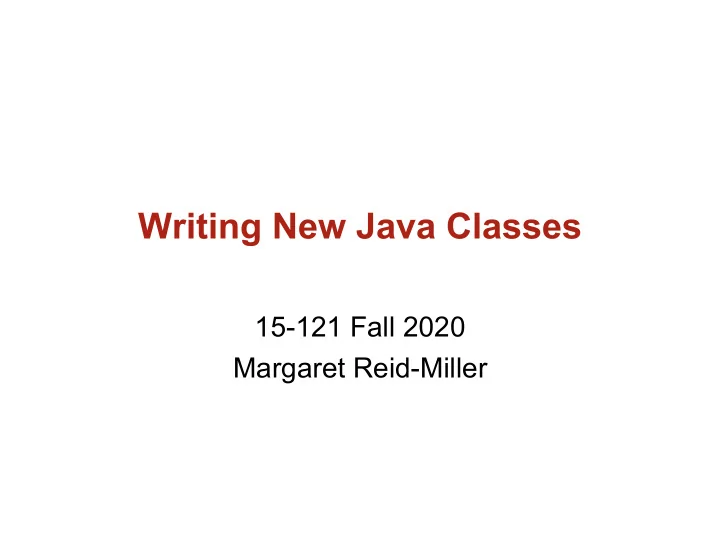

Writing New Java Classes

15-121 Fall 2020 Margaret Reid-Miller

Comments

• How was the Lab?
• Homework2: questions? install in Eclipse?
• Quiz will be available tomorrow and due on
• Sunday. I will send email and post on Piazza.
• Next Monday, Margaret's office hours will be

from 12:00pm-2:00pm

Fall 2020 15-121 (Reid-Miller) 2

Today

• OOP terminology: classes and objects
• GiftCard class
• Alternator class exercises

Fall 2020 15-121 (Reid-Miller) 3

• How do we call a static method?

. ( ) method-name parameters

• How do we call a non-static method?

__ . ___ ( __ )

method-name parameters

• How do we call a constructor?

( ) parameters

Fall 2020 15-121 (Reid-Miller) 4

class name

• bject expression

new class-name

Can we write a method that returns multiple values?

• We can bundle together data of the same type in an

array and return the array.

• But even better, we can bundle together data of

different types in an object and return the object.

• Objects allows us to group related data and define

new data types.

Fall 2020 15-121 (Reid-Miller) 5

Object-Oriented Programming

• The idea is to divide an application into small

reusable objects.

• Think of them as the nouns that describe the

application.

• Then build the application from reusable

components.

• e.g., we build a car from various components

(wheels, doors, engine…)

Fall 2020 15-121 (Reid-Miller) 6

We define new object types by defining classes.

A class definition is like a blueprint for objects.

• We can create many instances of a class (objects)

from a class.

• The differences among these objects are values of its

attributes.

• For example, a class Student would define

attributes common to students:

• name, andrewId, courses enrolled….

but each object would have its own values for these attributes.

Fall 2020 15-121 (Reid-Miller) 8

Fall 2020 15-121 (Reid-Miller) 9

A Java class definition contains fields, constructors, and methods.

• fields store data. Often we cannot access

them directly outside the class.

• constructor(s) initialize all the fields.
• methods interact with the fields, either to

supply or modify them.

Fall 2020 15-121 (Reid-Miller) 10

Fields (instance variables) define an

• bject’s properties.

Example: An object from an GiftCard class might have the following fields:

• the name of the store
• the dollar value of the card.
• Once an object is created, each field has some value.
• These values define the current state of the object

and describe the current condition of the object.

Fall 2020 15-121 (Reid-Miller) 11

Fields

public class GiftCard { // Fields: The object state private String store; // Name of the store private double balance; // The current dollar value // Methods: The object behaviors }

Fields are usually private:

• visible to methods in the same class and
• hidden to methods in other classes.

By being private, we don't allow other classes to modify the fields directly or expose how the data is maintained.

initial capital

GiftCard class

Fall 2020 15-121 (Reid-Miller) 12

An Shopping application (client) can create Giftcard objects.

Use the new operator to instantiate (create) the object, followed by a call to the class constructor. The new operator returns a reference to the new

• bject.

For example in the main method we might write:

GiftCard macys = new GiftCard("Macy's", 100);

store balance

GiftCard

100

macys

String

Macy's

Shopping class

Fall 2020 15-121 (Reid-Miller) 13

Constructors initializes all the fields

• f the object.

public GiftCard(String storeName, double dollars) { store = storeName; balance = dollars; // Initial balance }

NOTE: For each parameter, we often use a name different from the field name to distinguish the two.

GiftCard class

Fall 2020 15-121 (Reid-Miller) 14

Constructors are like methods with two differences:

• 1. There is no return type.
• The object reference returned always has the

type of the class.

• 2. The name of the constructor is always the name of

the class.

• Like methods, any Java statement can be in the body
• f the constructor. For example, it might check that

the parameter dollars is positive.

Fall 2020 15-121 (Reid-Miller) 15

You can have more than

• ne constructor.
• Constructors can be overloaded:

Each constructor has a different parameter list.

• For example, some may supply default values for

fields that have no corresponding parameter.

public GiftCard(String storeName) { store = storeName; balance = 25.0; // Default balance }

GiftCard class

Fall 2020 15-121 (Reid-Miller) 16

The behaviors of an object are defined by its (instance) methods

• The methods that define the interface to an object

are usually public. These are the methods given in the Application Programmer Interface (API).

• The program code that creates and uses these
• bjects, called the client code, is now more

expressive and concise.

• The client simply asks the objects to perform their

behaviors (i.e., the objects provide a service).

Fall 2020 15-121 (Reid-Miller) 17

Accessors

• Accessors are methods that access an
• bject’s state without changing the state.

Examples:

public String getStoreName() { return store; } public double getBalance() { return balance; }

Accessors should be defined as public (visible by methods in every class).

Names often begin with “get”

GiftCard class

No static keyword

Fall 2020 15-121 (Reid-Miller) 20

Mutators

• Mutators are methods that can change an object’s

state.

public void buyGoods(double cost) { if (cost <= balance) { balance -= cost; } }

Mutators should be defined as public (visible to methods of every class).

GiftCard class

Fall 2020 15-121 (Reid-Miller) 21

Mutators should maintain class invariants

• Mutators should ensure that the object’s state stays

consistent with what the object is modeling, e.g., the gift card balance never goes negative. In another class: macys.buyGoods(10.0); updates the balance but macys.buyGoods(100000.0); doesn't.

Shopping class

Fall 2020 15-121 (Reid-Miller) 22

Sample Client Program

public class Shopping { public static void main(String[] args){ GiftCard macys = new GiftCard("Macy's", 100.0); GiftCard target = new GiftCard("Target", 50.0);

Shopping class

Each object has its own copy of the fields.

100.0 name balance GiftCard String Macy's macys String Target target 50.0 name balance GiftCard

Sample Client Program (cont'd)

Fall 2020 15-121 (Reid-Miller) 23

if (macys.getBalance() >= 42) { macys.buyGoods(42); } else { System.out.print("can't purchase, " + "insufficient funds"); } if (target.getBalance() < 10){ System.out.println("target card getting low"); } } // end main } // Shopping class

Shopping class

Fall 2020 15-121 (Reid-Miller) 24

Exercise: Write a Class Based on Its Use

Example: Using an alternator object

An Alternator object alternates between two integer values.

public static void main (String[] args) { Alternator alt3 = new Alternator(3, 6); System.out.println(alt3.alternate()); // prints 3 System.out.println(alt3.alternate()); // prints 6 // Method both changes state and accesses state! System.out.println(alt3.alternate()); // prints 3 System.out.println(alt3.alternate()); // prints 6 }

Fall 2020 15-121 (Reid-Miller) 25

AlternatorTester class

An Alternator object alternates between two integer values.

To write the Alternator class start by determining the fields and ask:

• What does an object need to remember?
• What are its attributes/properties?

How should we declare a fields? _________ _____ ________; type name

Fall 2020 15-121 (Reid-Miller) 26

private

Alternator class

Alternator class

• What is the main purpose of the constructor?
• How do you declare a constructor?

public ______________( . . . ) { //What should usually go here?

Fall 2020 15-121 (Reid-Miller) 27

initialize the fields class name field1 = …; field2 = …;

More on writing classes

Fall 2020 15-121 (Reid-Miller) 28

Fall 2020 15-121 (Reid-Miller) 29

Every class should have toString()method.

• A toString() method returns a string that

represents the current state of the object

public String toString() { return "store = " + store + " balance = " + balance; } Required signature

GiftCard class

Fall 2020 15-121 (Reid-Miller) 30

Often toString() is used for debugging.

public class Shopping { public static void main(String[] args){ target = new GiftCard("Target"); target.buyGoods(10.50); System.out.println("target: " + target); Java invokes toString() on objects in

• print statements and
• string concatenation expressions.

Shopping class

Fall 2020 15-121 (Reid-Miller) 31

Every class should have an equals()method.

An equals() method compares two objects and returns true if they have the same state and false

• therwise.

public boolean equals(GiftCard other) { if (other == null) return false; return store.equals(other.store) && balance == other.balance; }

In another class, call this method with two objects

target.equals(macys)

GiftCard class

Use dot to access an object’s fields.

Fall 2020 15-121 (Reid-Miller) 32

The this Reference

• The reserved word this allows an object to refer to

itself within its class. (It is sometimes called the implicit parameter.)

public GiftCard(String name, float dollars) { this.name = name; … }

shadows the field field

public boolean equals(GiftCard other) { return this.name.equals(other.name) && … } Usage: if (target.equals(macys)) …

GiftCard class

Encapsulation hides object data and method implementations.

Who knows how to use a radio? Who knows how to build a radio from low-level electronic parts?

• A client (user) only needs to know what the object

does (its interface).

• A server (implementor) decides how the object does

it. To maintain object data dependencies and maximize reusability the server should

• not allow the client direct manipulation of the data
• nor expose the details of the implementation.

Fall 2020 15-121 (Reid-Miller) 33

Encapsulation reduces data dependency and maximize reusability.

• Advantages:
• Reduces complexity for the client.
• If you change the object’s underlying data

structure or algorithms, the client works as before.

• Since there is no direct access to fields, you can

ensure internal data dependencies (class invariants) are maintained.

Fall 2020 15-121 (Reid-Miller) 34

Classes (and their parts) have visibility modifiers:

• public: accessible to everyone
• protected: inside package, inside class,

inside subclass

• package-private (default, no modifier

used): inside package, inside class

• private: accessible only within the class

Fall 2020 15-121 (Reid-Miller) 35

Data fields are usually private

Data (fields):

• Whatever the object needs to store
• Available to clients via “getter” and “setter”

methods.

• Are private to encapsulate the object data

from clients and to ensure class invariants.

Fall 2020 15-121 (Reid-Miller) 36

Public vs Private Methods

public: Only those methods that are part of the interface (the methods the client can call).

• They can’t assume the client will supply correct

arguments.

• These methods must ensure that the pre- and post-

conditions are met and post-conditions maintain the class invariants. private: “helper” methods inside the class

• Since clients cannot call these methods, and the

server calls meet the pre-conditions, these methods need not check the pre-conditions.

Fall 2020 15-121 (Reid-Miller) 37
