Write a Foreign Data Wrapper in 15 minutes Error: Reference source not found Table des matires Write a Foreign Data Wrapper in 15 minutes.......................................................................................1 1 About

slide-1
SLIDE 1

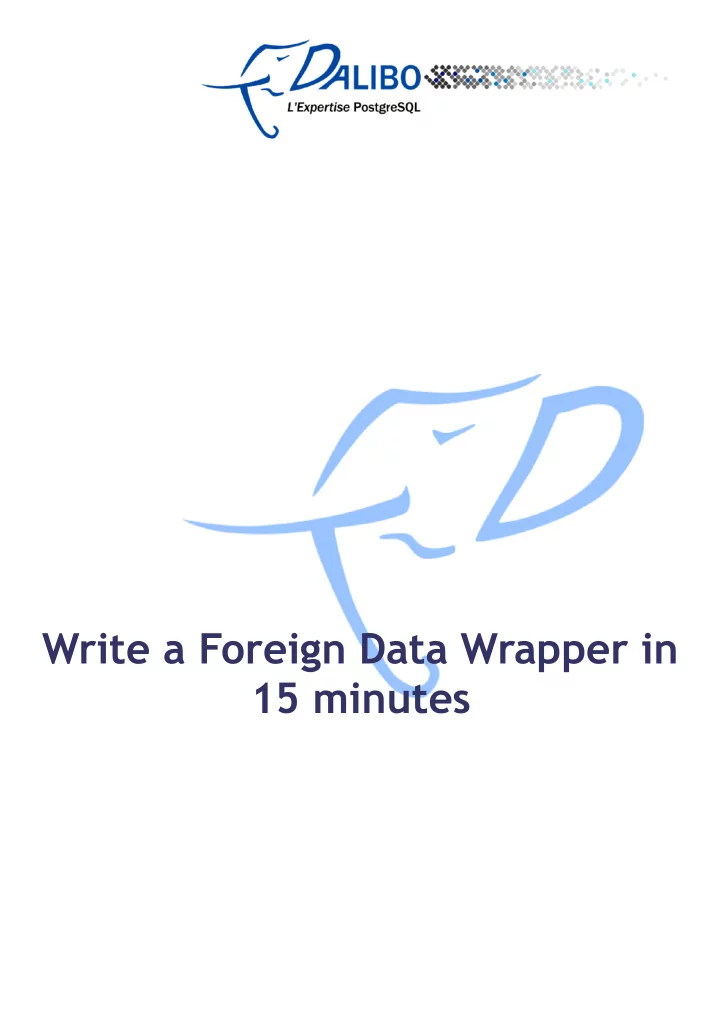

Write a Foreign Data Wrapper in 15 minutes

slide-2
SLIDE 2

Error: Reference source not found

Table des matières

Write a Foreign Data Wrapper in 15 minutes.......................................................................................1 1 About me......................................................................................................................................4 2 Foreign Data Wrappers ?.............................................................................................................5 3 Goals............................................................................................................................................5 4 Agenda.........................................................................................................................................5 5 Part 1 - SQL/MED.......................................................................................................................6 6 MED ?..........................................................................................................................................6 7 DBLink and DBI-Link.................................................................................................................6 8 In other RDBMS..........................................................................................................................7 9 Overview......................................................................................................................................7 10 Part 2 - How To .........................................................................................................................8 11 Install..........................................................................................................................................8 12 Create server..............................................................................................................................8 13 Create Foreign Table..................................................................................................................8 14 Select..........................................................................................................................................9 15 Errors.........................................................................................................................................9 16 Beware.....................................................................................................................................10 17 Uninstall...................................................................................................................................10 18 Part 3 : Current List (feb. 2012)...............................................................................................10 19 RDBMS fdw............................................................................................................................11 20 NoSQL fdw..............................................................................................................................11 21 Text fdw...................................................................................................................................11 22 Web fdw...................................................................................................................................12 22.1 ldap_fdw...........................................................................................................................12 22.2 s3_fdw..............................................................................................................................12 22.3 www_fdw.........................................................................................................................13 23 Others.......................................................................................................................................14 24 What about pgsql_fdw ?..........................................................................................................14 25 Full list.....................................................................................................................................14 26 Ideas.........................................................................................................................................15 27 Part 4 : Write a fdw..................................................................................................................15 28 Write a FDW in C : the basics.................................................................................................15 29 Problems with that...................................................................................................................16 30 Multicorn.................................................................................................................................16 31 Multicorn is your friend !.........................................................................................................16 32 Install multicorn.......................................................................................................................17 33 ical_fdw.py...............................................................................................................................17 34 make install..............................................................................................................................18 35 Plug - 1.....................................................................................................................................18 36 Plug - 2.....................................................................................................................................18 37 Play - 1.....................................................................................................................................18 38 Play - 2.....................................................................................................................................19 39 There's more : Optimize...........................................................................................................19 40 There's more : Log...................................................................................................................20

2 / 23

slide-3
SLIDE 3

Error: Reference source not found

41 Conclusions..............................................................................................................................20 42 In a nutshell..............................................................................................................................20 43 Limitations...............................................................................................................................21 44 ETL No More...........................................................................................................................21 45 Release on pgxn.......................................................................................................................21 46 Links........................................................................................................................................22 47 Contact.....................................................................................................................................22 48 KTHXBYE..............................................................................................................................23

3 / 23

slide-4
SLIDE 4

Error: Reference source not found

1 About me

  • Damien Clochard
  • COO of DALIBO, French PostgreSQL Company
  • Admin of www.postgresql.fr

4 / 23

slide-5
SLIDE 5

Error: Reference source not found

2 Foreign Data Wrappers ?

« One Database to Rule Them All »

3 Goals

  • Know more about SQL/MED
  • Use the existing data wrappers
  • Write your own in 15 minutes

4 Agenda

  • 1. SQL/MED ?
  • 2. How to use a FDW
  • 3. Current list
  • 4. How to write a FDW

5 / 23

slide-6
SLIDE 6

Error: Reference source not found

5 Part 1 - SQL/MED

  • MED ?
  • DBLink & DBI-LINK
  • In other RDBMS
  • Overview
  • Why SQL/MED is cool

6 MED ?

  • Management of External Data
  • Appeared in SQL:2003
  • implemented in PostgreSQL 9.1
  • Also present in IBM DB2

http://www.ibm.com/developerworks/data/library/techarticle/0203haas/0203haas.html

7 DBLink and DBI-Link

  • DBLink
  • Connect to other PostgreSQL databases
  • Contrib module since 8.3
  • Will be replaced by pgsql_fdw
  • DBI-Link
  • Partial implementation written in PL/PerlU
  • Started in 2004
  • Now obsolete

6 / 23

slide-7
SLIDE 7

Error: Reference source not found

More information :

  • http://www.postgresql.org/docs/9.1/static/dblink.html
  • https://github.com/davidfetter/DBI-Link

8 In other RDBMS

  • Informix: External Tables (flat files)
  • Oracle: External Tables + DATABASE LINK (odbc)
  • MySQL: FEDERATED Storage Engine (mysql only)
  • MSSQL: Text File Driver (cvs only)
  • Firebird: External Table (cvs only)
  • DB2: Complete SQL/MED implementation

9 Overview

7 / 23

slide-8
SLIDE 8

Error: Reference source not found

10 Part 2 - How To ...

  • Install
  • Create server
  • Create foreign table
  • Select
  • Uninstall

11 Install

CREATE EXTENSION file_fdw;

12 Create server

CREATE SERVER fileserver FOREIGN DATA WRAPPER file_fdw;

13 Create Foreign Table

CREATE FOREIGN TABLE meminfo ( stat text, value text ) SERVER fileserver OPTIONS ( filename '/proc/meminfo', format 'csv', delimiter ':' );

8 / 23

slide-9
SLIDE 9

Error: Reference source not found

14 Select

SELECT value FROM meminfo WHERE stat = 'MemFree'; value

  • 55024 kB

(1 line)

15 Errors

  • CREATE FOREIGN TABLE
  • won't check if the data storage exists/
  • won't check if the data can be read
  • won't check if the data format is ok
  • But SELECT will return an error

9 / 23

slide-10
SLIDE 10

Error: Reference source not found

16 Beware

  • There's no cache
  • SELECT will scan the whole file every time
  • To avoid this :

CREATE TABLE localtable AS SELECT * FROM foreigntable

  • Which is more or less equal to :

COPY localtable FROM '/your/file';

17 Uninstall

  • DROP FOREIGN TABLE meminfo;
  • DROP SERVER fileserver CASCADE;
  • DROP EXTENSION file_fdw CASCADE;

18 Part 3 : Current List (feb. 2012)

  • SQL Databases Wrappers
  • NoSQL Databases Wrappers
  • File Wrappers
  • Web Wrappers
  • Others

10 / 23

slide-11
SLIDE 11

Error: Reference source not found

In a nutshell, you can now use various Foreign Data Wrappers (FDW) to connect a PostgreSQL Server to remote data stores. This page is an incomplete list of the Wrappers available right now. Another fdw list can be found at the PGXN website. Please keep in mind that most of these wrappers are not officially supported by the PostgreSQL Global Development Group (PGDG) and that some of these projects are still in Beta version. Use carefully!

19 RDBMS fdw

  • oracle_fdw
  • mysql_fdw
  • sql_lite
  • odbc_fdw

20 NoSQL fdw

  • couchdb_fdw
  • redis_fdw

21 Text fdw

  • file_fdw (delivered with PG 9.1)
  • file_text_array_fdw

11 / 23

slide-12
SLIDE 12

Error: Reference source not found

22 Web fdw

  • www_fdw
  • twitter_fdw
  • google_fdw
  • rss_fdw
  • imap_fdw
  • s3_fdw

22.1 ldap_fdw

Allows PostgreSQL to query an LDAP server and retrieve data from some pre-configured Organizational Unit.

CREATE EXTENSION ldap_fdw; CREATE SERVER ldap_my_server_service FOREIGN DATA WRAPPER ldap_fdw OPTIONS ( address 'my_ldap_server', port '389'); CREATE USER MAPPING FOR current_user SERVER ldap_my_server_service OPTIONS (user_dn 'cn=the_ldap_user,dc=example,dc=com', password 'the_ldap_user_password'); CREATE FOREIGN TABLE ldap_people ( uid text, displayname text, mail text ) SERVER ldap_my_server_service OPTIONS (base_dn 'OU=people,DC=example,DC=com'); SELECT * FROM ldap_people WHERE mail = 'user@mail.com';

22.2 s3_fdw

s3_fdw reads files located in Amazon S3

db1=# CREATE EXTENSION s3_fdw; CREATE EXTENSION db1=# CREATE SERVER amazon_s3 FOREIGN DATA WRAPPER s3_fdw; CREATE SERVER db1=# CREATE USER MAPPING FOR CURRENT_USER SERVER amazon_s3 OPTIONS ( accesskey 'your-access-key-id', secretkey 'your-secret-access-key'

12 / 23

slide-13
SLIDE 13

Error: Reference source not found

); CREATE USER MAPPING db1=# CREATE FOREIGN TABLE log20110901( atime timestamp, method text, elapse int, session text ) SERVER amazon_s3 OPTIONS ( hostname 's3-ap-northeast-1.amazonaws.com', bucketname 'umitanuki-dbtest', filename 'log20110901.txt', delimiter E'\t' ); CREATE FOREIGN TABLE

22.3 www_fdw

www_fdw allows to query different web services:Here is example for google search usage:

DROP EXTENSION IF EXISTS www_fdw CASCADE; CREATE EXTENSION www_fdw; CREATE SERVER www_fdw_server_google_search FOREIGN DATA WRAPPER www_fdw OPTIONS (uri 'https://ajax.googleapis.com/ajax/services/search/web?v=1.0'); CREATE USER MAPPING FOR current_user SERVER www_fdw_server_google_search; CREATE FOREIGN TABLE www_fdw_google_search ( /* parameters used in request */ q text, /* fields in response */ GsearchResultClass text, unescapedUrl text, url text, visibleUrl text, cacheUrl text, title text, titleNoFormatting text, content text ) SERVER www_fdw_server_google_search; postgres=# SELECT url,substring(title,1,25)||'...',substring(content,1,25)||'...' FROM www_fdw_google_search WHERE q='postgres'; url | ?COLUMN? | ?COLUMN?

  • ----------------------------------------+------------------------------

+------------------------------ http://www.postgresql.org/ | <b>PostgreSQL</b>: The wo... | Sophisticated open- source... http://www.postgresql.org/download/ | <b>PostgreSQL</b>: Downlo... | The core of the <b>Postgr... http://www.postgresql.org/docs/ | <b>PostgreSQL</b>: Docume... | There IS a wealth of <b>P... http://en.wikipedia.org/wiki/PostgreSQL | <b>PostgreSQL</b> - Wikip... | <b>PostgreSQL</b>, often ... (4 rows)

13 / 23

slide-14
SLIDE 14

Error: Reference source not found

23 Others

  • git_fdw
  • ldap_fdw
  • process_fdw
  • pgStorm

24 What about pgsql_fdw ?

  • Will be an “official” extension (like file_fdw)
  • Currently under development
  • Probably in 9.2
  • Until then keep using dblink

25 Full list

  • http://wiki.postgresql.org/wiki/Foreign_data_wrappers
  • http://pgxn.org/tag/fdw/
  • 1 new wrapper every month

14 / 23

slide-15
SLIDE 15

Error: Reference source not found

26 Ideas

  • XML
  • Excel / OpenDocument Spreadsheet
  • GIS file formats (KML,WKT

,… )

  • Images
  • open data websites
  • RRD

27 Part 4 : Write a fdw

  • How to implement in C
  • Multicorn

Let's write a wrapper for ICalendar files !

28 Write a FDW in C : the basics

  • 2 functions :
  • handler
  • validator (optionnal)
  • 6 callback routines (called by planner and executor)
  • PlanForeignScan / ExplainForeignScan
  • BeginForeignScan / EndForeignScan
  • IterateForeignScan / ReScanForeignScan

15 / 23

slide-16
SLIDE 16

Error: Reference source not found

29 Problems with that...

  • This is complex
  • This is not well documented
  • The code is generic
  • What if i don't know C?

30 Multicorn 31 Multicorn is your friend !

  • A simple python interface to write FDW
  • “A wrapper over a wrapper”
  • Handles all the dirty C code for you
  • You can focus on the extraction
  • … and use python's librairies

16 / 23

slide-17
SLIDE 17

Error: Reference source not found

32 Install multicorn

  • You need postgresql-server-dev and python-dev
  • pgxn install multicorn --testing
  • Sources at github.com/Kozea/Multicorn.git

apt-get install python-software-properties add-apt-repository ppa:pitti/postgresql apt-get update apt-get install postgresql-9.1 postgresql-server-dev-9.1 libpq-dev python python-dev python- setuptools easy_install importlib easy_install pgxnclient

then

pgxn install multicorn --testing

  • r

git clone git://github.com/Kozea/Multicorn.git cd Multicorn make && make install

33 ical_fdw.py

from multicorn import ForeignDataWrapper import urllib from icalendar import Calendar, Event class ICalFdw(ForeignDataWrapper): def __init__(self, options, columns): super(ICalFdw, self).__init__(options, columns) self.url = options.get('url', None) self.columns = columns def execute(self, quals, columns): ical_file = urllib.urlopen(self.url).read() cal = Calendar.from_string(ical_file) for v in cal.walk('vevent'): e = Event(v) line = {} for column_name in self.columns:

17 / 23

slide-18
SLIDE 18

Error: Reference source not found

line[column_name] = e.decoded(column_name) yield line

34 make install

cd Multicorn cp icalfdw.py python/multicorn make & make install

35 Plug - 1

CREATE EXTENSION multicorn; CREATE SERVER multicorn_ical FOREIGN DATA WRAPPER multicorn

  • ptions (wrapper 'multicorn.icalfdw.ICalFdw');

36 Plug - 2

CREATE FOREIGN TABLE fosdem_events ( dtstart TIMESTAMP, dtend TIMESTAMP, summary TEXT ) server multicorn_ical options ( url 'http://fosdem.org/schedule/ical' );

37 Play - 1

SELECT count(*)

18 / 23

slide-19
SLIDE 19

Error: Reference source not found

FROM fosdem_events; count

  • 437

(1 line)

38 Play - 2

SELECT to_char(e.dtend,'HH24:MI') AS end_of_this_talk FROM fosdem_events e WHERE e.summary ILIKE '%foreign data wrapper%'; end_of_this_talk

  • 12:50

(1 line)

39 There's more : Optimize

Reduce the amount of data fetched over the network :

  • handle the “quals” argument
  • a Qual object defines :
  • a field_name
  • an operator
  • a value

19 / 23

slide-20
SLIDE 20

Error: Reference source not found

40 There's more : Log

  • multicorn.utils has a log_to_postgres function
  • 3 parameters
  • message
  • level
  • hint (optional)

log_to_postgres('You MUST set the url', ERROR)

41 Conclusions

  • In a Nutshell
  • Limitations
  • ETL No More
  • Release on pgxn
  • The future
  • Links / Contact

42 In a nutshell

Useful for :

  • Easier migrations
  • Data Warehouse
  • Reporting
  • Avoid useless data replication

20 / 23

slide-21
SLIDE 21

Error: Reference source not found

43 Limitations

  • Read Only
  • Most wrappers are beta or alpha
  • Most are not supported by PGDG
  • Forget about performance
  • Forget about data integrity

44 ETL No More

  • Instead of : EXTRACT - TRANSFORM - LOAD
  • Just : CREATE FOREIGN TABLE - SELECT
  • Use SQL or PL/SQL to manipulate data
  • Transformation code stays in the DB

45 Release on pgxn

If you write your own FDW:

  • publish it on PGXN
  • update the wiki page

21 / 23

slide-22
SLIDE 22

Error: Reference source not found

46 Links

  • This talk : http://dalibo.org/conferences
  • Multicorn : http://multicorn.org
  • Ical FDW : http://moourl.com/icalfdw

47 Contact

  • me : damien@dalibo.info
  • Multicorn creator : Ronan Dunklau rdunklau@gmail.com

22 / 23

slide-23
SLIDE 23

Error: Reference source not found

48 KTHXBYE

23 / 23
