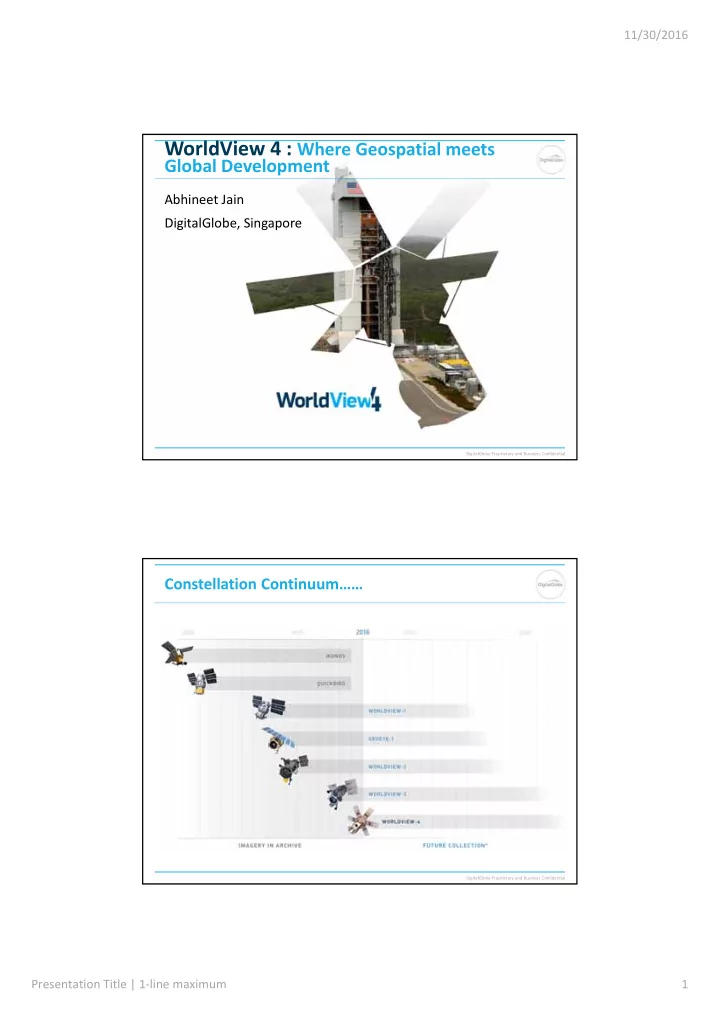

WorldView 4 : Where Geospatial meets

Global Development

Abhineet Jain DigitalGlobe, Singapore

DigitalGlobe Proprietary and Business Confidential

Constellation Continuum……

11/30/2016 Presentation Title | 1‐line maximum 2

DigitalGlobe Proprietary and Business Confidential 3

WorldView‐4

Space Launch Complex 3 ‐ Vandenberg AFB United Launch Alliance Atlas V Launcher

WorldView‐4

DigitalGlobe Proprietary and Business Confidential

WorldView‐4 – Initial Launch of September 16 Delayed Due to Wildfire

11/30/2016 Presentation Title | 1‐line maximum 3

DigitalGlobe Proprietary and Business Confidential

WorldView‐4 – Successfully Launched on November 11, 2016

https://www.youtube.com/watch?v=4Kt9ppJ0Sw4

DigitalGlobe Proprietary and Business Confidential

Meet WorldView‐4

Orbit: 617 km, 10:30 am sun sync Resolution / 0.31 m / Panchromatic Spectral bands: 1.24 m / 4 Multispectral Nadir swath: 13.1 km Line rates: 12k/3k lps 20k/5K lps 24k w/MS aggregated in‐track Global capacity: 640,000 sq km/day Geolocation spec: 5.0 m CE90 (w/o GCPs) Design life: 7 years Expected life: 10‐12 years Propellant life: 15‐50 years for 770‐500 km Reliability: Ps ≥ 0.72 @7 years Mass: 2510 kg (454 kg propellant) Array / battery: 3.75 kW / 312 Ahr Image storage: 3.2 Tbits Image downlink: 800 Mbps (695 + EDAC) Simultaneous w/imaging

LM Heritage Bus High agility platform Exelis Instrument High resolution panchromatic + 4 Multispectral bands

11/30/2016 Presentation Title | 1‐line maximum 4

DigitalGlobe Proprietary and Business Confidential 7 DigitalGlobe Proprietary and Business Confidential

30m GSD of Rakaia River, New Zealand (a la Landsat MS)

43 47 47S, 172 8 13E 23 Feb 2011

8

1 hectare

• Pixels are heavily mixed with

crop and non‐crop

• 30m x 30m sites are too big for

management

11/30/2016 Presentation Title | 1‐line maximum 5

DigitalGlobe Proprietary and Business Confidential

6m GSD of Rakaia River, New Zealand (MR‐HR)

43 47 47S, 172 8 13E 23 Feb 2011

9

1 hectare

• Scouts need to travel to fields to

get insights

Dark Spot? Why so much variability in the fields?

DigitalGlobe Proprietary and Business Confidential

50cm GSD of Rakaia River, New Zealand (VHR, pan sharpened)

43 47 47S, 172 8 13E 23 Feb 2011

10

1 hectare

Manmade Object Crops have been harvested.

11/30/2016 Presentation Title | 1‐line maximum 6

DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential

11/30/2016 Presentation Title | 1‐line maximum 7

DigitalGlobe Proprietary and Business Confidential

Nouméa, New Caledonia

Noumea|30cm|May 2016

DigitalGlobe Proprietary and Business Confidential

Enhancing the 30 cm capacity

11/30/2016 To update the footer with the presentation title, find Header & Footer in the Insert tab and Apply to All 14

11/30/2016 Presentation Title | 1‐line maximum 8

DigitalGlobe Proprietary and Business Confidential

Key technologies enable us to use this imagery to create and exploit Geospatial Big Data

Spectral Diversity Surface Reflectance Elevation extraction Country‐scale

• rthorectification

Land use / land cover High‐res Urban Globe Object & feature extraction Crowdsourcing Terrain analytics Predictive analytics Content based search Image Processing Image Mining Analysis

15 DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential16

Beijing (China) ‐ August 12, 2012

0.250 1.250 0.750 1.000 0.500

Example: Measurement and removal of atmospheric effects over Beijing

11/30/2016 Presentation Title | 1‐line maximum 9

DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential17

What color is this roof?

DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential

DigitalGlobe Basemap 18

11/30/2016 Presentation Title | 1‐line maximum 10

DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential

DigitalGlobe Basemap 19

DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential

• Using multiple mono images to produce 3D terrain data
• Unclassified 3m LE90 ‘Global Elevation’ data @ 50 cm GSD

Our constellation enables us to extract high‐ quality 3‐D terrain

Estádio Mario Filho Maracanã Rio de Janeiro, Brazil

With multiple mono collection, DigitalGlobe generates 50 cm posting and 3m LE90 3D terrain data

Viewshed Analysis Retrieve Precision 3D coordinate

11/30/2016 Presentation Title | 1‐line maximum 11

DigitalGlobe Proprietary and Business Confidential

SRTM 90 meter resolution SRTM 90 meter resolution

DigitalGlobe Proprietary and Business Confidential

DG DTM 2 meter resolution DG DTM 2 meter resolution

11/30/2016 Presentation Title | 1‐line maximum 12

DigitalGlobe Proprietary and Business Confidential

DG DSM 2 meter resolution DG DSM 2 meter resolution

DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential

» An independent study compared WorldView‐3 stereo imagery to a highly accurate LiDAR grid to show the vertical accuracy of the WorldView‐3‐derived elevations as better than 15 cm RMSE.

» With global coverage, the satellite industry can now provide LiDAR‐quality elevation models at a scale and speed that is unmatched by other elevation processing technologies

Di Digi gitalGlobe’ lobe’s 30 30 cm cm Im Imagery al also so deliv livers indus ndustry try‐le leadin ing accur accuracy cy

30 cm | Accuracy

http://www.photosat.ca/pdf/garlock‐30cm‐ wv3‐elevation‐accuracy‐report‐mar2015.pdf

11/30/2016 Presentation Title | 1‐line maximum 13

DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential

Highlights from 30cm WV‐3 Stereo Images Data Accuracy Report by Beijing Institute of Surveying and Mapping Aerial Survey and Remote Sensing Institute

DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential DigitalGlobe Proprietary and Business Confidential26

Global Development

Imagery, machine learning‐based algorithms, & crowdsourcing to derive population maps

ENVIRONMENTAL SUSTAINABILITY FO O D & NUTRITION SEC URITY H U M A N R I G H T S INFRASTRUC TURE DE VE LO PME NT LIVE LIHOODS

11/30/2016 Presentation Title | 1‐line maximum 14

DigitalGlobe Proprietary and Business Confidential

Cyclone Winston‐ Damage Assessment

11/30/2016 To update the footer with the presentation title, find Header & Footer in the Insert tab and Apply to All 27 DigitalGlobe Proprietary and Business Confidential

11/30/2016 Presentation Title | 1‐line maximum 15

DigitalGlobe Proprietary and Business Confidential 11/30/2016 To update the footer with the presentation title, find Header & Footer in the Insert tab and Apply to All 29
