Workshop D Al Bustan Rotana Hotel, Rashidiya Ballroom A & B Regional Perspective PTI in Different Regions of the World Chaired by Ferose Oaten Chairperson, CITA Regional Advisory Group - Africa Workshop D Presentation 2 V EHICLE T

slide-1
SLIDE 1

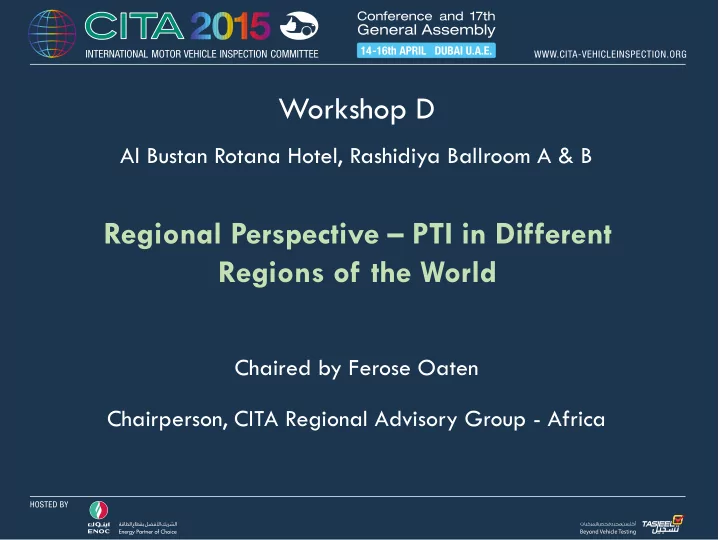

Regional Perspective – PTI in Different Regions of the World

Chairperson, CITA Regional Advisory Group - Africa Chaired by Ferose Oaten

Workshop D

Al Bustan Rotana Hotel, Rashidiya Ballroom A & B

slide-2
SLIDE 2

Workshop D Presentation 2

VEHICLE TESTING IN TASJEEL - DUBAI

Technical Trainer, Tasjeel, Dubai, UAE

Carlos Ison

slide-3
SLIDE 3

2015 CITA CONFERENCE

April 14,15,16 2015

PRESENTATION

slide-4
SLIDE 4

THEME

CITA 2015 theme:Enhancing the value of Vehicle Inspection Organization name : ENOC Tasjeel Name : Carlos Lirio Ison Title : Site Manager

slide-5
SLIDE 5
slide-6
SLIDE 6

THE COMPANY ENOC TASJEEL is the pioneer in vehicle

testing and registration services in Dubai in joint venture with Roads & Transport Authority (RTA) and in Sharjah with Sharjah

  • Police. We have the biggest market share in

Dubai and Sharjah and most trusted entities in our line of business.

slide-7
SLIDE 7

MISSION

To become the leading vehicle testing registration and other related services provider in our chosen markets and to retain our top position in this region.

Building Our Future Together

slide-8
SLIDE 8

VISION

  • To provide efficient services that we offer to our valued

customers through convenience, innovation, technology and competence.

  • To maximize shareholders value by growing the existing

businesses, pursuing and developing new profitable business opportunities.

  • To become the employer of choice by providing a healthy,

challenging and professional work environment.

  • To conduct our business in a socially and environmentally

responsible manner in the community that we operate in.

slide-9
SLIDE 9
  • Tasjeel first Al Ghusais site for light Vehicles

(opened in November 1999)

  • Tasjeel Al Aweer for light vehicles
  • Tasjeel Al Barsha for light vehicles
  • Tasjeel Warsan for heavy & light vehicles
  • Tasjeel JAFZA for light & heavy vehicles
  • Tasjeel Auto Village for light vehicles in Sharjah opened in April

2006

  • Tasjeel Khorfakkan for light vehicles
  • Tasjeel Hatta for light vehicles
  • Tasjeel MVIS for vehicle test at customer premises

TASJEEL SITES LOCATION

slide-10
SLIDE 10

THE SITES

TASJEEL VILLAGE SHARJAH

slide-11
SLIDE 11

THE SITES

TASJEEL AL GHUSSAIS

slide-12
SLIDE 12

SERVICES

  • Vehicle Testing and Registration
  • Chassis Checking & Measurement at Ghusais , Barsha & Sharjah.
  • Comprehensive Testing of Used Vehicles at Aweer, Barsha,

Twar and Sharjah & Khorfakan.

  • Mobile Vehicle Inspection Service based at Warsan that conducts tests at

customers’ premises. The unit is taken by well-equipped van to any locations.

  • Drive-thru’ service’ at Barsha & Sharjah and Ghussais
  • Issuance of International Driving License at all sites.
  • Car Valuation Certificate
  • OBD Test – in Barsha , Ghussais , Al Twar , Al Aweer and Sharjah (NEW)
slide-13
SLIDE 13

CHASSIS MEASUREMENTS

CHASSIS MEASUREMENTS

slide-14
SLIDE 14

COMPREHENSIVE TEST

slide-15
SLIDE 15

REGISTRATION TEST

slide-16
SLIDE 16

FLEET SERVICE

slide-17
SLIDE 17

CAR VALUATION SERVICE

slide-18
SLIDE 18

TRAILER TEST

slide-19
SLIDE 19

FOOD TRANSPORT VEHICLES

slide-20
SLIDE 20

CIVIL DEFENCE

slide-21
SLIDE 21

MVIS TEST

MOBILE VEHICLE INSPECTION

slide-22
SLIDE 22

DRIVE THRU

slide-23
SLIDE 23

TRAININGS

Employees Learning & Development

ENOC/EPPCO has a fully equipped LEARNING & DEVELOPMENT department conducting various courses for its own employees as well as for external

  • rganization as and when requested. Some of the courses include:
  • English communication skills
  • Global English learning – on line course
  • Customer Care Training
  • Telephone Handling Skills
  • Supervisory Skills
  • Handling Meeting Effectively
  • Effective Business Writing Skills

Tasjeel also arranges refresher courses for its vehicles inspectors with leading automobile & tire dealers from time to time, to acquaint themselves with the new technology and vehicle models.

slide-24
SLIDE 24

TRAININGS

Tasjeel Vehicle Inspectors and Site Managers at a training course from Porsche Dealer in Dubai.

slide-25
SLIDE 25

TRAININGS

Vehicle Inspectors / Site Managers and RTA Supervisors at in-house training course from Tasjeel Training department.

slide-26
SLIDE 26

FINALE

slide-27
SLIDE 27

Workshop D Presentation 3

HEAVY VEHICLE CONDITION STUDY

Director, United Arab Emirates TRL Ltd., UAE

Simon Labbett

slide-28
SLIDE 28

Insert the title of your presentation here

Presented by Name Here Job Title - Date

CITA Conference, 14-16th April 2015, Dubai, UAE

Heavy Vehicle Condition Study

Presented by: Simon Labbett, Director TRL UAE

Transport Research Laboratory

slide-29
SLIDE 29

Page  50

Background to study

  • 1. High levels of Truck involvement

in collisions

  • 2. High profile collisions
  • 3. Observational information but

lack of data

  • 4. To provide an industry health

check

  • 5. Benchmark to EU vehicle safety

standards and regulations

slide-30
SLIDE 30

Page  51

Truck Safety Inspection Findings

slide-31
SLIDE 31

Page  52

Random Vehicle Sample: 517

slide-32
SLIDE 32

Page  53

Vehicles without brake defects: 198

slide-33
SLIDE 33

Page  54

Vehicles without tyre defects: 92

slide-34
SLIDE 34

Page  55

Vehicles without other safety defects: 24

slide-35
SLIDE 35

Page  56

Vehicles without being overweight: 10

slide-36
SLIDE 36

Page  57

Vehicles without Driver hours work/rest conflicts: 1

slide-37
SLIDE 37

Page  58

Vehicles without Driver hours work/rest conflicts: 1

slide-38
SLIDE 38

Page  59

Bonus payment for the number of loads in a day

slide-39
SLIDE 39

Page  60

Out of a sample of 517 NO vehicles complied with benchmarked vehicle safety

slide-40
SLIDE 40

Page  61

  • Overview vehicle condition
  • Weight
  • Brakes
  • Lights
  • Tyres/wheels etc.
  • Driver hours
  • Environmental controls

Detailed Results

slide-41
SLIDE 41

Page  62

  • 97% of all drivers reported that their vehicle had been serviced

less than 3 months ago

  • 3% reported that the last service had taken place 3-6 months ago
  • Given, that the majority of vehicles have been serviced less than 3

months ago this may lead us to expect that these vehicles were reasonably well-maintained.

BUT…

Vehicle Maintenance

slide-42
SLIDE 42

Page  63

Vehicle Condition - Brakes

  • 60% of vehicles had defective brakes
  • By comparison - UK 0.65% of trucks

with dangerous brakes

  • Evidence of operators knowingly

sending out highly dangerous vehicles with defective brakes

  • Excessive truck weights will impact on

effective braking force (60% defects will therefore be a significant under representation of braking issues)

slide-43
SLIDE 43

Page  64

Vehicle Condition - Brakes

slide-44
SLIDE 44

Page  65

Vehicle Condition – Wheels and Tyres

  • 62% of vehicle with defective wheels and

tyres

  • Poor industry practice
  • Dangerous repairs
  • Inadequate standards for re-treading
  • Cracked wheels (weight related)
  • Wheel nuts missing and incorrect studs

fitted

slide-45
SLIDE 45

Page  66

Vehicle Condition – Suspension and Chassis

  • 14% defective

suspension

  • 8% defective chassis
  • Cracked chassis
  • Broken springs
  • Distorted suspension
  • Dangerous condition
  • Weight related damage
slide-46
SLIDE 46

Page  67

  • 82% defective lighting
  • Lights not kept clean
  • Broken warning beacons
  • Poor maintenance
  • No evidence or requirement for

daily/weekly safety checks

Vehicle Condition - Lighting

slide-47
SLIDE 47

Page  68

Environmental and Parking Controls

  • Lack of restrictions on commercial

vehicle parking

  • At night 63% of trucks are not

parked in company compounds

  • Insufficient requirement for
  • perating centres
  • Significant health and safety

concerns for residential properties

  • Uncontrolled parking of fuel

tankers within 50m of large residential area

slide-48
SLIDE 48

Page  69 10 20 30 40 50 60 70 80 1-20% 20-40% 40-60% 60-80% 80-100% 100-120% 120-140% Number of vehicles Overweight as a percentage of the permitted vehicle weight

Overweight Trucks

  • 62% of vehicles overweight (but not just by a little bit)
slide-49
SLIDE 49

Page  70

Vehicle Standards

  • Driver’s can’t see!
  • Trailer lengths/widths
  • Lack of mirror

requirements

  • Inappropriate coloured

lighting

slide-50
SLIDE 50

Page  71

Drivers Hours of Work

  • 100% of drivers drive for 6 or more

days a week

  • 21% of drivers drive every day
  • 46% of drivers drive for more than

11 hours a day

  • 49% drivers report receiving a

bonus for extra journeys Note: All of the above, if they occur every week, are contrary to benchmarking – (EC 561/2006)

slide-51
SLIDE 51

Page  72

Condition description/defect % Lighting 82 Overweight 62 Brakes 60 Wheels and tyres 62 Windscreen wipers/washers 56 Fire extinguishers 29 Seat belt working 20 Suspension 14 Body/chassis condition 8 Vehicle horn 4

Vehicle Condition - Summary

slide-52
SLIDE 52

Page  73

And some just wanted to keep out of the way!

slide-53
SLIDE 53

Page  74

Benchmarked Control Measures

Effective Control Measures UK GCC Driver standards Vehicle standards Weight controls Load security guidelines Operator licensing Hazardous materials Drivers hours of work/rest Environmental controls

slide-54
SLIDE 54

Page  75

Summary

  • 1. We have a problem! But desire of

GCC States to improve road safety

  • 2. Trucks are significantly over

represented in injury collision risks

  • 2. Benchmarking highlighted that

100% of vehicles and drivers in sample fail safety controls

  • 3. Industry is out of control and is not

currently capable of self regulation

  • 4. Lack of effective enforcement and

education programmes

  • 5. Lack of effective operator controls
slide-55
SLIDE 55

Page  76

ً اركش

Simon Labbett Director TRL E mail: slabbett@trl.ae UAE +971 50 971 9423

slide-56
SLIDE 56

Workshop D Presentation 4

THE EFFECTS OF EMISSION TEST USING A CHASSIS DYNAMOMETER IN KOREA

Manager Vehicle Inspection Division, Korea Transportation Safety Authority, Korea

Jungsoo Park

slide-57
SLIDE 57

Korea Transportation Safety Authority

16th April 2015 WORKSHOP D SESSION ONE Presentation 4

The Effects of the Emission Test Using a Chassis Dynamo in Korea Jungsoo Park

Manager, Vehicle Inspection Division, Korea Transportation Safety Authority

78

slide-58
SLIDE 58

Contents

  • 1. Introduction
  • 2. Background
  • 3. Emission Test Using a Chassis Dynamo
  • 4. Assessment of the Emission Test Effects
  • 5. Ongoing Project

79

slide-59
SLIDE 59

Korea Transportation Safety Authority

  • 1. Introduction

History

(1962) Visual Check (1981) “Korea Transportation Safety Authority” Foundation * The number of vehicle: 0.6M (1997) Divided in Public and Private Sector * Due to Increasing the number of vehicle(’84: 0.9M → ’97: 9.8M) (2002) Emission Test Using a Chassis Dynamometer * The number of vehicle: 14M (2009) Combination of PTI and Advanced Emission Test (2011) KD-147 Mode Introduction for Diesel (2011) Pressure-Resistant Container Re-Inspection for CNG (2014) Motorcycle Emission Testing(more than 260cc) * The number of motor cycle: 2.1M, more than 260cc: 6 thousands

80

slide-60
SLIDE 60

Korea Transportation Safety Authority

  • 1. Introduction

81

Registered Vehicles in Korea

14,0 14,9 15,9 16,8 18,0 18,9 20,1 12,0 2002 2004 2006 2008 2010 2012 2014

M vehicles

Categories Petrol Diesel LPG Hybrid+EV 2000 yr 7.2 3.6 1.2 2005 yr 7.8 5.7 1.9 2010 yr 8.9 6.5 2.4 0.02 2014 yr 9.6 7.9 2.3 0.14

┗ Kinds of Fuels in Use

(M vehicles)

slide-61
SLIDE 61

Korea Transportation Safety Authority

Status Quo for Vehicle Inspection in Korea

1,790 Vehicle Inspection Center

  • by TS: 58+54, by Designated Garage: 1,678
  • Approx. 3,500 Inspectors
  • TS: approx. 500, Designated Garage: approx. 3,000

The Number of Vehicle Registered(’14): approx. 20M The Number of Vehicle Inspected(’14): approx. 10M

  • TS: approx. 3.1M, Designated Garage: approx. 6.9M
  • 1. Introduction

82

Fail Rate and Market Share in Korean Vehicle Inspection

Fail Rate : 19.4% Fail Rate : 12.1%

Total Fail Rate

14.3%

slide-62
SLIDE 62

Korea Transportation Safety Authority

  • 2. Background

∙ Half of population in Korea inhabit metropolitan area ∙ Increasing the number of diesel vehicles ∙ Deterioration of Air Quality

83 The Number of Vehicles and Prediction

(thousands)

Source : Ministry of Land and Transport

20 20 40 71

40 80 Paris London Tokyo Seoul

PM10(Dust) Density(2001)

Source : Ministry of Environment

slide-63
SLIDE 63

Korea Transportation Safety Authority

  • 3. Emission Test Using Chassis Dynamometer

84

Chassis Dynamo Emission Test Overview

Categories TS

(Korea Transportation Safety Authority)

Designated Garages

TS+Garages The Number of Inspection Lanes 165 771 936 ┗ Lanes only for Heavy Vehicle 20 212 232 The Number of Inspection Devices 188 771 959

  • Facilities status quo(’14)
  • The number of vehicles inspected using a chassis dynamo

84 1 468 2 484 3 660 4 008 4 171 4 459 5 000

2002 2004 2006 2008 2010 2012 2014

(Thousands Vehicles)

slide-64
SLIDE 64

Korea Transportation Safety Authority

  • 3. Emission Test Using Chassis Dynamometer

Emission Test System

Petrol, LPG, and CNG Diesel ASM2525 Mode (Load Test, Metropolitan) Free Acceleration Mode (Rural Area) Lug-down3 and KD-147 Mode

(Load Test, Metropolitan)

Free Acceleration Mode (Rural Area)

85 Classification Petrol Diesel Dynamo Methods ASM2525 mode Lug-down 3 mode KD147 mode Subjects The vehicle registered in more than 0.5M population city should be given a dynamo emission test (other than 4WD, AWD, and so on) All HGV Small, LGV Pollutants CO, HC, NOx, Lamda Smoke Density Smoke Density Type of Emission Test Using Chassis Dynamometer

slide-65
SLIDE 65

Korea Transportation Safety Authority

  • 3. Emission Test Using Chassis Dynamometer

ASM2525 Mode for Petrol

86 “Acceleration Simulation Mode Test”, means an emission test to analyze exhaust emissions of CO, NO, and HC performed at a steady state of 25mph and utilizing a dynamometer load set to simulate 25% of power.

Lug-Down3 Mode for Diesel

It consists of 3 modes, 1 mode is the max of the power, 2 mode is 90% of it, 3 mode is 80% of it while checking RPM, max HP, and smoke density following 5 seconds at the modes respectively.

slide-66
SLIDE 66

Korea Transportation Safety Authority

  • 3. Emission Test Using Chassis Dynamometer

KD-147 Mode for Diesel

87

  • TS developed Korean own test method using a dynamo, called KD147 benchmarking Canada version.
  • Compared to Lug-down 3, KD147 can reflect real driving and is more convenient to test.
slide-67
SLIDE 67

Korea Transportation Safety Authority

  • 3. Emission Test Using Chassis Dynamometer

Advantage of KD147 Mode

Measuring Area

Measuring Area

  • Reflecting the real driving situation
  • Convenience to test(Not need to attach RPM sensor, etc)

Revolutions per Min.(RPM) Vehicle Speed(km/h)

E/G Damage Fatal Gases Reducing dust & noise

88

slide-68
SLIDE 68

Korea Transportation Safety Authority

  • 3. Emission Test Using Chassis Dynamometer

Monitor Watching KD-147 Mode Inspector

Targeting Speed Limiting Speed Processing Speed

Speed(km/h)

Indicator Shift Timing Mode Overview Speed(km/h) Elapsed Time(Sec) Testing Distance 89

slide-69
SLIDE 69

Korea Transportation Safety Authority

Physical connector

Main Controller

RS-232 RS-232 RS-232

Electronic connector

LAN(전용선) RS-232 RS-232

System Overview

  • 3. Emission Test Using Chassis Dynamometer

KD-147

Recording Camera Device Opacity PM Measurer Noise Tester Chassis Dynamometer Cooling Fan Safety Device Soot Collecting Apparatus RPM Measurer Vehicle Inspection Management System(VIMS) Atmospheric Press & Temperature Sensor

90

slide-70
SLIDE 70

Korea Transportation Safety Authority

  • 4. Assessment of Emission Test Effects

71 59 58 47

44

20 60 2001 2004 2007 2010 2013 ㎍/㎥

The Change of PM Density Reduction in Seoul, Korea

91

Introduction of Emission Test Using a Dynamo for only Seoul Extension of the City Applying to a Dynamo Test Combination of the PTI and a Dynamo Test KD-147 Introduction

slide-71
SLIDE 71

Korea Transportation Safety Authority

  • 4. Assessment of Emission Test Effects

92 Air Pollutants The Amount of Reduction as fail vehicles NPV(Net Present Values) Petrol LPG CO 11,603 ton/yr. 32.9 M $ HC 439 ton/yr. 1.4 M $ NO x 1,615 ton/yr. 10.6 M $ Diesel PM10 1,526 ton/yr. 626.9 M $ Total 15,183 ton/yr. 671.8 M $

∙ The Results of Analysis (2014) ∙ Methods

Inspection Statistics

Formula of reduction amounts

(weight density conversion and statistics methods)

Estimating and Calibrating

Decreasing Amounts of CO, HC, NOx, PM

1$ = 1,000 KRW

slide-72
SLIDE 72

Korea Transportation Safety Authority

  • 5. Ongoing Project

Source : Ministry of Environment

∙ Developing for standard and methods

to Diesel NOx to Diesel PM2.5 preparing for Euro Ⅵ

93

slide-73
SLIDE 73

Korea Transportation Safety Authority

Thank you for your time Q & A

94

Presen esenter ter Information

  • rmation

Jungsoo Park, Manager, Korea Transportation Safety Authority

Email : ts7761@ts2020.kr / ts7761@naver.com Office : +82-54-459-7515 Phone : +82-10-7761-1092
