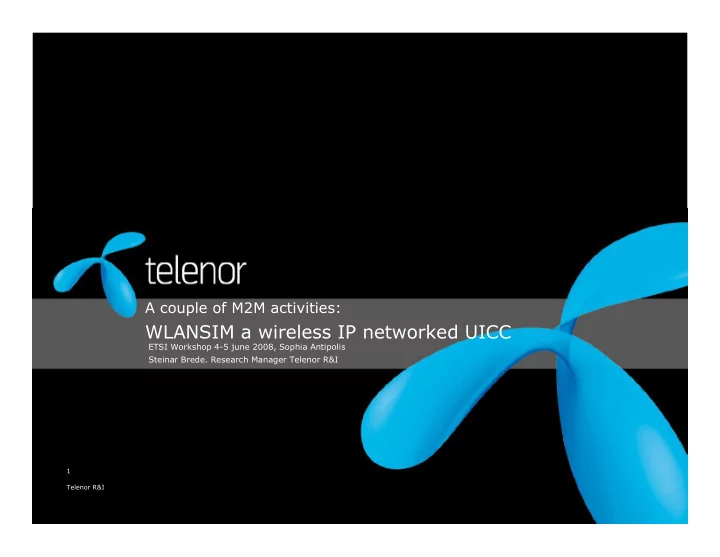

WLANSIM a wireless IP networked UICC ETSI Workshop 4-5 june 2008, - - PowerPoint PPT Presentation

Telenor R&I 1

A couple of M2M activities:

WLANSIM a wireless IP networked UICC

ETSI Workshop 4-5 june 2008, Sophia Antipolis Steinar Brede. Research Manager Telenor R&I

Telenor R&I 2

SIM card developments

GSM - SMS APDU

Proffnett V75 BankID

SIM toolkit user interaction

Limited memory Single Application

GSM – BIP (High speed) USB Browser user interaction

32-bit RISC Larger memory Multiple Applications Webserver IP stack

NFC

Telenor R&I 3

SIM card development - internals

Command dispatcher OTA Toolkit SIM Autentication Filesystem APDU SW TCP/IP Scheduler Java Card 3.x Virtual Machine Java API Web Server Servlet Engine Servlet File system OTA Toolkit Tread: Legacy App

Command dispatcher

Tread: SIM Auth

Command dispatcher

Servlet Servlet WLAN

Telenor R&I 4

WLANSIM

• Telenor R&I and Radionor have

developed the world’s first embedded WLAN radio on the SIM

• Embedded radio and adaptive

antenna on standard size GSM/UMTS SIM card

• 802.11b compliant
• Capable of supporting other radio

standards

• Min. 10 m range demonstrated with

card in any phone. (Max 80 m)

• Patented

Telenor R&I 5

• WLANSIM and NFC is not in competition
• Serve different needs, due to different operation ranges.
• Both technologies can be served and co-exist on a SIM
• Combining both technologies will generate a richer user

experience.

WLANSIM - NFC

Telenor R&I 6

WLANSIM demonstrations

• The first version has been tested in four

different demonstrators

• Nobel Centre in Oslo, Archbishop’s Palace in

Trondheim, Telenor Expo in Oslo and Telenor R&I site in Trondheim (2005 -2006)

• The technology originated from indoor WLAN

positioning and is also a key enabler in two commercial settings

• Track the actor to get perfect sound at theatres
• Track football player to get performance data

Telenor R&I 7

WLANSIM – in secure ticketing

Telenor R&I 8

WLANSIM - Advertisement and discounts

• Mobile Advertisement (e.g. via Branded Partnership Program)
• Discounted calls & SMS in branded areas
• Utilizing the 2nd channel

WLAN

Telenor R&I 9

• LBS on fine grained position
• Access control
• Home/Office zone products
• Secure data storage and

synchronization

• 3rd Party Applications

Example Services

Secure Business Applications

Telenor R&I 10

Wireless 802.11 802.15.4 Wireless 802.11 802.15.4 WLANSIM AMR terminal WLANSIM AMR terminal WLANSIM AMR terminal WLANSIM concentrator GSM/GPRS

• r other carriers

Data collection system

• IP based meter reading and control of

different sensors in the home

• Securely controlled by home controller

through WLAN and WLANSIM

• Exchange of meter data over GPRS
• Sensor access over WLAN

WLANSIM Automatic Meter Reading

Telenor R&I 11

WLANSIM status

• Experimenting with a rich SIM platform to generate new

revenue generating services

• 1. prototype tested (2005 – 2006)
• 2.prototype developed (2006 -2007)
• Further trials and research activities (2008 -2009)
• It is necessary to turn the SIM card from a cost device to a

revenue generating service platform

Telenor R&I 12

• The UICC is technologically becoming a rich service

platform

• The UICC is still a removable security module
• and with WLANSIM a possibly of creating a managed sensor

network.

• And with WLANSIM a fully TCP/IP based wireless sensor network

to create user friendly services.

• Is this platform suitable for M2M ?

WLANSIM a wireless IP networked UICC

Telenor R&I 13

Thank you!
