Federal Office of Bundeswehr Equipment, Information Technology and In-Service Support (BAAINBw) Wireless Innovation Forum's Digitization of land-based Operations (D-LBO) SDR Tactical Communications Workshop May 23 rd , 2018 Federal Office of

slide-1

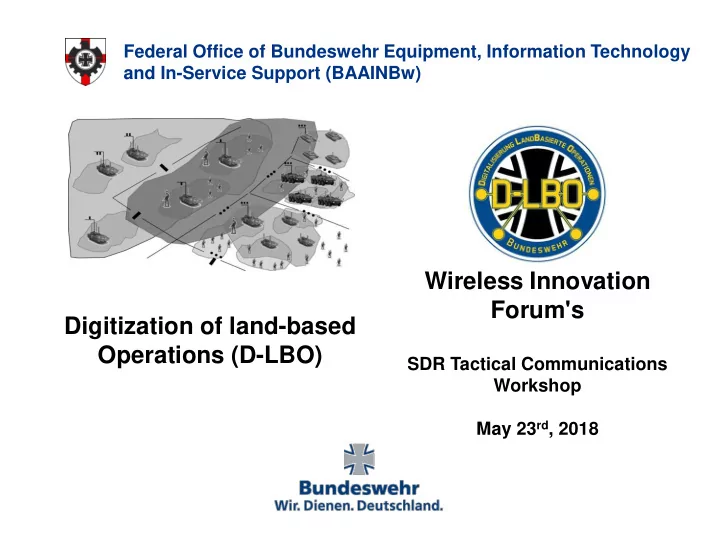

SLIDE 1

Federal Office of Bundeswehr Equipment, Information Technology and In-Service Support (BAAINBw)

Digitization of land-based Operations (D-LBO) Wireless Innovation Forum's

SDR Tactical Communications Workshop May 23rd, 2018

slide-2
SLIDE 2

Federal Office of Bundeswehr Equipment, Information Technology and In-Service Support (BAAINBw)

I6.4 Version: 05/2018 Slide 2

Shared Information Space

GMN ME

MoTaKo

„Sensor-to-Shooter“

D-LBO Programme = MoTaKo + MoTIV Land General Overview

Enabling Services

MoTIV Land

Core-Services

slide-3
SLIDE 3

Federal Office of Bundeswehr Equipment, Information Technology and In-Service Support (BAAINBw)

I6.4 Version: 05/2018 Slide 3

Digitization of Land-based Operations (D-LBO)

  • Integrated mobile communications and information network at tactical level

(dismounted infantry, vehicles, mobile and deployable command posts)

  • Enabling access to core and wide area networks
  • Transmission Components: tactical radios (HF, V/UHF), trunked radio

systems/cellular networks, SATCOM-on-the-move;

  • User Facing Components: end-user devices, battlefield management systems (BMS)
  • Core Component: tactical service provider (incl. „tactical routing“)
  • Overarching management systems (IP addresses, network configuration, radio

frequencies, crypto)

slide-4
SLIDE 4

Federal Office of Bundeswehr Equipment, Information Technology and In-Service Support (BAAINBw)

I6.4 Version: 05/2018 Slide 4

  • Enabling distributed and simultaneous operations of land forces

throughout the areas of strategic interest

  • Enabling joint and combined operations in complex asymmetric,

symmetric, and hybrid environments

  • Accelerating OODA (Observation – Orientation – Decision – Action)

loops for more effective target engagement and combat effectiveness

  • Incremental network enabled capability and system deployment by

defined sets of task forces and capability enabling releases

  • Inclusion of the warfighter in the system development process from

the beginning

  • Taking a overall system-of-systems approach, avoiding isolated

solutions, and building on existing COTS/MOTS solutions and standards

D-LBO Critical Points

slide-5
SLIDE 5

Federal Office of Bundeswehr Equipment, Information Technology and In-Service Support (BAAINBw)

I6.4 Version: 05/2018 Slide 5

SCOPE Procurement volume and required integration

  • 8 task forces (1 TF ~ 1 operational Brig)
  • approx. 90.000 radios (vehicular, manpack , handheld)
  • approx. 25.500 vehicles (350 types)

Development

  • Tactical Router / Core Component / Management Systems

SCHEDULE

2018 – 2035: Solution Architecture Framework & System / Service Design, Agile Requirements/Release/Change Management CD&E Incremental ceployment 2020 et sqq. : Deployment SVFuA Radios for C² BOXER / PUMA 2023 et sqq. : Deployment for first TF concluded

D-LBO General Overview

slide-6
SLIDE 6

Federal Office of Bundeswehr Equipment, Information Technology and In-Service Support (BAAINBw)

I6.4 Version: 05/2018 Slide 6

Mobile Takt. Informations- verarbeitung (MoTIV) SECRET Communication Cellular Networks (TETRA /LTE) SOTM HF Radio

TF 1 TF 2 TF 3 TF 4 TF 5 TF 6 TF 7 TF 8

Equipping in a set of forces oriented approach Equipping in a set of forces oriented approach Equipping in a set of forces oriented approach

Common control and display IT-Services for mobile elements

Equipping with mobile or deployable cellular networks in a set of forces oriented approach Equipping of further dismounted troops in a set

  • f forces oriented approach

Equipping of fighting and functional vehicles in a set of forces oriented approach

50 C2 Vehicles (23 AIFV PUMA 27 MRAV BOXER) AIFV PUMA MRAV BOXER Future Soldier System TETRA

TF & Capability oriented deployment

VHF/UHF Tactical Radio

Advanced measures due to Obsolescence

Equipping of 325 C2 vehicles (Enok, Dingo, Fuchs, Fennek, Leopard, BV206, Wiesel) Common Assets

slide-7
SLIDE 7

Bundesamt für Ausrüstung, Informationstechnik und Nutzung der Bundeswehr

I6.4 Stand: 04/2018 Folie 7

Functional Requirements Service Requirements System Requirements Operational Vignettes Operational Test Vignettes Technical Test Vignettes Test Vectors

D-LBO Development and Validation

Technical Requirements Product New Technologies System / Software Change …

Quality Specifications Test Procedures Products

General Conditions System Design Implementation

FFF MoTaKo / MoTIV IT-Strategy Security Policies

PFK MoTaKo PFK MoTIV Service Architecture Operational Architecture Test Vectors Test Vignettes

Programme Industries

System Support Center

slide-8
SLIDE 8

Federal Office of Bundeswehr Equipment, Information Technology and In-Service Support (BAAINBw)

I6.4 Version: 05/2018 Slide 8

D-LBO generic system requirements

MTN-A1 MTN-A2 MTN-A1 MTN-A1 MTN-A1

  • Service-orientation and centralization
  • Standardized equipment sets & configurations
  • Identical software functionalities
  • Scalable and modular features
  • Standardized installation, integration, and

infrastructure

  • Redundant, scalable, and robust networks
slide-9
SLIDE 9

Federal Office of Bundeswehr Equipment, Information Technology and In-Service Support (BAAINBw)

I6.4 Version: 05/2018 Slide 9

Questions?
