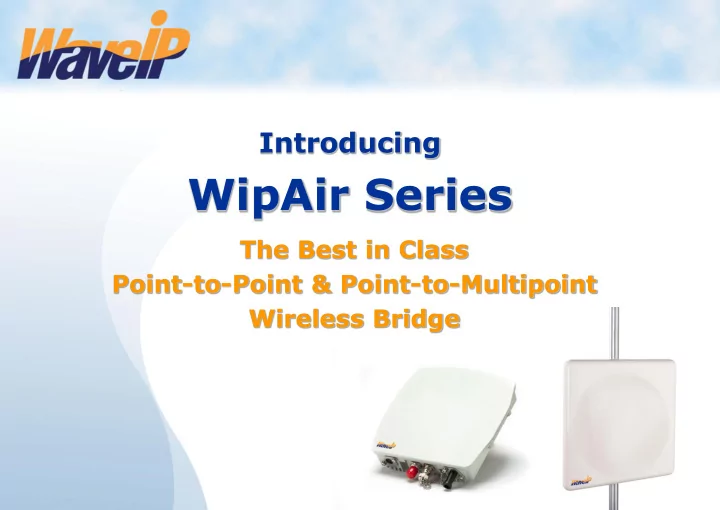

Introducing

WipAir Series

The Best in Class Point-to-Point & Point-to-Multipoint Wireless Bridge

WipAir series - the smart choice of sustainable backhaul solutions for multiple applications:

• IP data backhaul of:
• WiMAX operators
• Metro WiFi Networks
• Cellular and 3G
• Video surveillance
• Multiple Backhaul solutions
• High bandwidth campus solutions
• Temporary & Emergency systems

• WipAir 8000 – 270 Mbps net throughput (MIMO, Gigabit interface)
• WipAir 6000 – 200 Mbps net throughput (MIMO)
• WipAir 3000 – 135 Mbps net throughput
• WipAir 2000 – 40 Mbps net throughput
• WipAir 1000 – 20 Mbps net throughput

Build as you grow Software upgrades between WipAir models: WipAir 1000 WipAir 2000 WipAir 3000

• Advanced OFDM 2x2 MIMO - increases capacity, range

and reliability with superior 7.5 bit/Hz spectral efficiency.

• High capacity - 270 Mbps net throughput.
• Best latency - 1 msec typical. Ideal for backhaul, multi-hop

backhauls and voice, video & interactive applications.

• The only Hitless ACM – guarantees error-free operation.
• More than 100,000 PPS (Packets Per Second).
• Dynamic asymmetric capacity - up/downstream

throughput is optimized according to the actual traffic load.

• Non compromising security – AES 256 encryption.

WipAir introduces unmatched benchmark of features:

• The only stable solution with most advanced technologies

for handling interference.

• Long range - up to 130 Km.
• Versatile radio - increase Flexibility & Scalability:
• Configurable channel bandwidth (5/10/20/40 MHz)

maximize capacity and availability.

• Licensed and unlicensed frequencies: 700-900 MHz,

2.3-2.7 GHz, 3.3-3.8 GHz, 4.9-6.0 GHz, 6.0-7.0 GHz.

• Real time synchronization - by GPS or internal.
• Built in redundancy:
• Power redundancy via 2xRJ-45
• 1+1 solution

Utilizing superior Advanced OFDM 2x2 dual polarization MIMO (Multiple Input Multiple Output), WipAir 8000/6000 provides cutting edge advantages:

• Higher capacity and spectral efficiency - 270 Mbps net
• throughput. MIMO transmits 2 streams that doubles the

throughput on same channel bandwidth.

• Longer range and high reliability - MIMO can deliver same

throughput by transmitting 2 lower rate streams, achieving longer ranges and higher margins.

• Increase availability -

transmitting 2 redundant streams eliminates paths with poor quality since MIMO chooses the best stream (antenna diversity).

Best spectral efficiency of 7.5 bit/Hz !

• 2x2 dual polarization MIMO
• Advanced OFDM:
• Higher number of OFDM Subcarriers.
• Reduced guard interval.
• Forward Error Correction of 5/6 @ 64QAM

WipAir delivers 300 Mbps over 40 MHz channel:

• Automatic Interference Sensibility - proprietary solution

that increases RF robustness by eliminating false receptions

• f noise thus maintaining constant throughput and latency.
• Hitless ACM - Errorless Adaptive Modulation and Coding

algorithm (can be defined manually as well).

• Forward Error Correction (FEC) - K = 1/2, 2/3, 3/4, 5/6
• Fast Automatic Retransmit reQuest (ARQ)

WipAir introduces unique and robust interference mitigation mechanisms:

links on the same tower and on collocated towers while reusing frequencies, thus eliminating self interference between them. WipAir built in time synchronization technology allows collocation of multiple

• Internal synchronization:

via WipAir MU

• External synchronization:

via GPS

• Most competitive price
• Rugged & reliable weather proof design
• Compact and very simple to install:
• Fast installation by 1 technician.
• Built in RSSI buzzer for easy alignment.
• Built in RF sniffer - simplest site survey tool.
• Extremely low power consumption: < 6Watt.
• Flexible licensed and unlicensed radios
• Multiple frequency bands in one radio - ease of

maintenance and stocking.

• Over the air remote management

Empowering operators with extremely low CAPEX & OPEX:

WipAir 8000 WipAir 6000 WipAir 3000 WipAir 2000 WipAir 1000

270 Mbps 200 Mbps 120 Mbps 40 Mbps 20 Mbps Net Throughput 2.3-2.7, 4.9, 5.x GHz, 6.0-7.0 GHz 700–900 MHz, 2.3-2.7 GHz, 3.3-3.8 GHz, 4.9 GHz, 5.x GHz Radio Frequency 70,000 Packets Per Second 50,000 Packets Per Second PPS Advanced OFDM 2x2 dual polarization MIMO Advanced OFDM Waveform Configurable – 5 / 10 / 20 / 40 MHz Channel Size Up to 130 Km Range Configurable up to 26 dBm, 40 dB dynamic range Output Power AIS – Automatic Interference Sensibility Hitless ACM – Adaptive Coding & Modulation ACS – Automatic Channel Selection FEC – Forward Error Correction, k = 1/2, 2/3, 3/4, 5/6 Fast ARQ – Automatic Retransmit reQuest Handling Interference 256 & 128 AES & MAC level authentication 128 AES & MAC level authentication Encryption & Security 64QAM 16QAM QPSK BPSK Modulation 5/6 3/4 2/3 3/4 1/2 3/4 1/2 1/2 FEC 32.5 29.25 26 19.5 13 9.75 6.5 3.25 Data Rate* @ 5 MHz (Mbps) 65 58.5 52 39 26 19.5 13 6.5 Data Rate* @ 10 MHz (Mbps) 130 117 104 78 52 39 26 13 Data Rate* @ 20 MHz (Mbps) 300 270 240 180 120 90 60 30 Data Rate* @ 40 MHz (Mbps)

• 67
• 70
• 72
• 78
• 80
• 83
• 85
• 87

Sensitivity @ 20 MHz (dBm) * Air bit rate using MIMO technology (WipAir 8000/6000)

WipAir 8000 WipAir 6000 WipAir 3000 WipAir 2000 WipAir 1000 10/100/1000 Base-T (ODU) 2x 10/100 Base-T (ODU) Physical Interface RJ – 45 Connector Type 19 x 19 x 4 cm (external antenna port) Mechanical 100-240 VAC, 47-63 Hz 10 x 5 x 2.5 cm PoE Adapter:

• Input Power
• Mechanical

Wall or pole Mounting 6 Watt Power Consumption

• 30ºc to 55ºc

Operating Temperature 95% non condensing (Rainproof) Operating Humidity Power over Ethernet (PoE) - 48 VDC Power

Topology Point-to-Point (PTP), Point-to-Multipoint (PTMP) Access Technology Time Division Duplex (TDD) – Dynamic or Symmetric Data Latency 1ms typical Traffic Handling Layer 2 transparent bridging VLAN Transparent or tagging/stripping QoS Based on 802.1q & 802.1p Management WEB, EMS, SNMP , Telnet, Built in throughput tests and RF Analyzer tools Topology Point-to-Point (PTP), Point-to-Multipoint (PTMP)

• Throughput
• Latency
• Interference robustness
• Reliability

Any expert knows the important factors of wireless backhauls: WipAir excels in all of the above ! The Best Value and Future Proof Backhaul Solution !

• Availability
• Competitive price
• Flexibility and scalability
• Simple to install & maintain
