Presented by: David McAuliffe Field Technical Advisor CITATION JET PILOTS M2, CJ3+ WILLIAMS PROPRIETARY All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws

slide-1
SLIDE 1

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

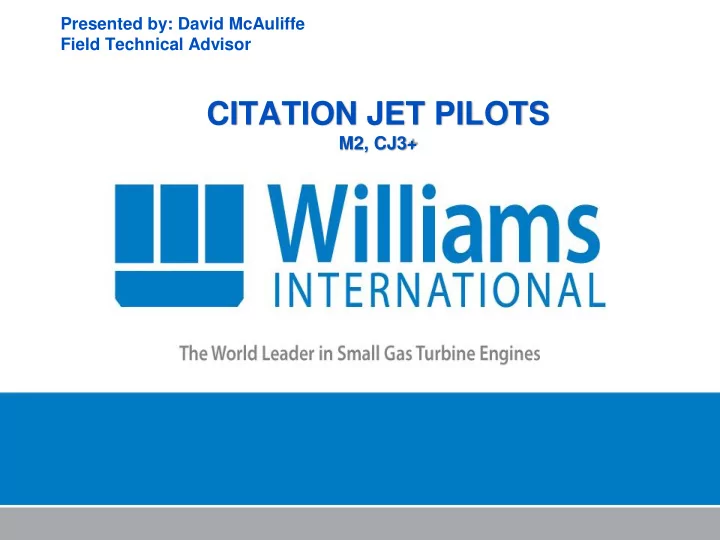

CITATION JET PILOTS

M2, CJ3+

Presented by: David McAuliffe Field Technical Advisor

slide-2
SLIDE 2

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

FJ44 Fleet Operations

  • Over 5900 FJ44 Engines Delivered
  • 14.0 Million Fleet Hours
slide-3
SLIDE 3

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

FJ44-1AP

  • 671 Engines Produced
  • 750,000 Fleet Hours
slide-4
SLIDE 4

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

FJ44-3A

  • 1164 Engines Produced
  • Over 2.6 Million Fleet Hours
slide-5
SLIDE 5

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

Scheduled Maintenance Overview

slide-6
SLIDE 6

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • Check 1 Inspection
  • Every 300 Engine Hours
  • Check 2 Inspection
  • Every 600 Engine Hours (No More Than 300 Hours After Check 1)
  • The RPI Interval is Not to be Exceeded by More Than 30

Hours

  • Service Center Level Maintenance Which Includes Basic

Items Such as Igniter Inspections and Filter Replacements

Routine Periodic Inspection (RPI)

slide-7
SLIDE 7

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

Routine Periodic Inspection (RPI) - Update

Models Effected: ALL MODELS

The following items are no longer required during the Check 1 Inspection (300 hour interval).

  • Fuel pump filter replacement.
  • Fuel filter bowl inspection.

These items will only be accomplished during the Check 2 Inspection (600 hours interval). We continue to strive to reduce maintenance requirements and minimize downtime. Additional efforts are being made in this regard and further improvements are expected in the future.

slide-8
SLIDE 8

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

Major Periodic Inspections (MPI)

slide-9
SLIDE 9

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • Alternate between Hot-Section Inspections (HSI)

and Compressor-Section Inspections (CSI)

  • Checks 3/5/7/9 (HSI)
  • 1750 Hour Interval*
  • 2500 Hour Interval* If Enrolled in TAP
  • Checks 4/6/8/10 (CSI)
  • 3500 Hour Interval
  • 5000 Hour Interval* If Enrolled in TAP
  • The MPI Interval is Not to be Exceeded by More Than 50 Hours

* Some Limitations Apply. See Chapter 5 of the Line Maintenance Manual to Determine the Interval for Your Engines

FJ44-1AP

slide-10
SLIDE 10

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • Alternate between Hot-Section Inspections (HSI)

and Compressor-Section Inspections (CSI)

  • Checks 3/5/7/9 (HSI)
  • 2000 Hour Interval
  • 3000 Hour Interval* If Enrolled in TAP
  • Checks 4/6/8/10 (CSI)
  • 4000 Hour Interval
  • 5000 Hour Interval* If Enrolled in TAP
  • The MPI Interval is Not to be Exceeded by More Than 50 Hours

* Some Limitations Apply. See Chapter 5 of the Line Maintenance Manual to Determine the Interval for Your Engines

FJ44-3A

slide-11
SLIDE 11

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • Hot Section Inspections (Check 3, 5, 7, 9) interval extended

to 3000 hours.

  • Engine configuration and program coverage limitations apply.
  • See Chapter 5 of the FJ44-3A LMM for details.
  • Compressor Section Inspection (Check 4, 6, 8, 10) remain at a

5000 hour interval.

  • Change released in the June, 2019 Line Maintenance Manual

revision.

Major Periodic Inspection (MPI)- Update

Models Effected: FJ44-3A

slide-12
SLIDE 12

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • Accessory overhauls are independent from Major

Periodic Inspections.

  • May come due between Major Periodic Inspections.
  • Intervals vary by component. See Chapter 5 of the Line

Maintenance Manual for your specific intervals.

  • Accessories Include:
  • Fuel Delivery Unit
  • Lube and Scavenge Pump

Accessory Overhauls

slide-13
SLIDE 13

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • LLC may reach their maximum approved service life before or

between a scheduled MPI.

  • Monitor your LLC to prevent operation past their maximum

approved service life.

  • Service life limit may vary by component. See Chapter 5 of the

Line Maintenance Manual for your specific intervals.

  • LLC Include:
  • Fan Rotor
  • Intermediate Pressure Compressor Rotor
  • High Pressure Compressor Rotor
  • High Pressure Turbine Disk
  • 1st Low Pressure Turbine Disk
  • 2nd Low Pressure Turbine Disk

Life-Limited Components (LLC)

slide-14
SLIDE 14

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

Key Service Documents

slide-15
SLIDE 15

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

A more resilient configuration of fuel tubes has been developed.

  • New Tubes are installed on all New Production Engines and Service

Document have been released to update the existing fleet.

  • Parts and Labor are covered on effected engines.
  • Key Fuel Tubes will be replaced at Check1 or Check 2 (RPI)
  • All other affected Tubes will be replaced at CSI.

RPI Upgrade Service Documents

  • WISB-73-1008 (Models Affected:FJ44-1AP, 3A/24, 3A)

CSI Upgrade Service Documents

  • WISB-73-1009 (Models Affected: FJ44-1AP, 3A/24, 3A)

Improved Fuel Tube Assemblies

Models Effected: All

slide-16
SLIDE 16

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

FJ44 General Topics

slide-17
SLIDE 17

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

New Configuration of FADEC system is now certified for new production engines.

  • Production cut in points:
  • 525M2-1019
  • 525B-0583
  • 525C-0297

Optional upgrade for the existing fleet planned in the future.

  • Key differences
  • Expanded self diagnostics capabilities.
  • Improved start protection logic.
  • Improved ECU thermal management (improves long term durability)
  • More durable FCU housing configuration.

FADEC Update

slide-18
SLIDE 18

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • Hardware Compatibility
  • The new FCU and ECU are interchangeable with the old configurations.
  • Both engines must have the same electronic control type (i.e. both new or

both old) with matching software NOTE: The new ECU cannot be used on CJ3 (only certified on CJ3+)

FADEC Update

slide-19
SLIDE 19

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

Williams International World Headquarters

  • Dawn of a New Era -
slide-20
SLIDE 20

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

Williams International World Headquarters - Dawn of a New Era

  • New state-of-the-art 150 acre World Headquarters in Pontiac, Michigan.
  • Expands our product support capabilities to better serve you
  • Modern training facility for hosting our highly-rated aircraft operator and technician training.
  • Open, integrated office area where we have room to expand as the fleet grows.
  • Larger, streamlined Repair Station.
  • Provides us with the ability to further accelerate our rapid pace of product

development & improvement in offerings made to our customers.

  • Our world class environment helps us attract the best in the business to better serve you.

Williams International World Headquarters

  • Dawn of a New Era -
slide-21
SLIDE 21

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • Having and EMT on board the aircraft can reduce AOG down time.
  • Allows for FADEC data to be sent to us upon landing.
  • This allows fault and other information to be reviewed
  • assists in troubleshooting and determining corrective action
  • Allows quicker dispatch of hardware or personnel if needed
  • Clearing of faults can be accomplished

Engine Maintenance Terminal (EMT)

slide-22
SLIDE 22

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • Used to program and interrogate the FADEC System.
  • Includes:
  • EMT Software
  • USB to Serial Converter
  • Communication Cables
  • Computer
  • Key Uses:
  • Routine Maintenance Downloads
  • Engine or ECU replacement programming
  • Engine Control Software programming
  • Trouble Shooting and Clearing of FADEC Faults and Exceedances
  • Downloading and submitting FADEC system data including Faults ,

Trends and exceedances

EMT Overview

slide-23
SLIDE 23

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • Two versions of EMT Software:
  • Basic EMT
  • Intended for use by operators.
  • Free download from our website.
  • Functions:
  • Download FADEC Data (.einfo file)
  • View and log engine parameters
  • View and clear FADEC faults
  • View Exceedances
  • View FADEC lifing values and control settings
  • Full EMT
  • Intended for use and purchase by trained maintenance providers.
  • Additional Functions:
  • FADEC control software programing
  • Updating FADEC lifing values and control settings

EMT Software

slide-24
SLIDE 24

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

EMT Hardware

Windows Based Computer Communication Cable TL301256 Serial to USB Converter TL301307

slide-25
SLIDE 25

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

EMT Communication Outlets

CJ4 M2 and CJ3+ CJ1+, CJ2+, CJ3

slide-26
SLIDE 26

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • All FADEC downloads should be sent to:

FADEC@Williams-int.com

  • The above email address is used for automated data collection. These

files are not actively reviewed. If assistance is needed with FADEC fault issues:

  • Submit a request for assistance at www.williams-int.com > Product

Support > Ask a Question

  • E-mail your request to WIProductSupport@williams-int.com

Instructional Videos on the use of EMT are available on our Website.

FADEC DOWNLOADS

slide-27
SLIDE 27

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

Product Support App

slide-28
SLIDE 28

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

  • Program Benefits include:
  • “Optional” Bulletin Coverage
  • Foreign Object Damage Coverage
  • Corrosion Coverage at MPI
  • Express Compressor Section Inspection
  • Unscheduled Engine Removal Credit
  • Minimum Hour Forgiveness
  • And More….
slide-29
SLIDE 29

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

Contacting Us

.

WIProductSupport@williams-int.com

1-(800)859-3544 (USA) 1-248-960-2929 (Outside USA)

slide-30
SLIDE 30

WILLIAMS PROPRIETARY

All information and technical data disclosed herein are the property of Williams International and may be subject to US export control laws and are not to be duplicated or disclosed to others for any purpose without the written consent of Williams International, Pontiac, Michigan USA

Enjoy the Remainder of Your Conference
