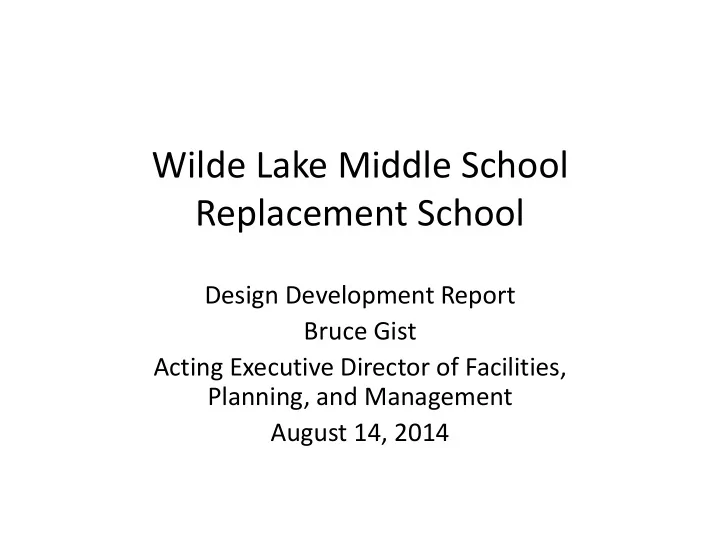

Wilde Lake Middle School Replacement School Design Development Report Bruce Gist Acting Executive Director of Facilities, Planning, and Management August 14, 2014 Project Updates Reconfigured the health suite for better handicap accessibility
CAR SPACE S = BUS SPACE S = 69 15 PA RKING T A BUL A T IO NS ZONI NG: NT (NE W T OWN) ACRE S: 14.9 ACRE S SIT E NO T ES
(I NCL UDI NG 3 HC SPACE S)
Existing Site Plan
50 1 00 25
CAR SPACE S = BUS SPACE S = 108 15 PA RKING T A BUL A T IO NS ZONI NG: NT (NE W T OWN) ACRE S: 14.9 ACRE S SIT E NO T ES
(I NCL UDI NG 5 HC SPACE S)
Final Site Plan
First Floor Plan
Second Floor Plan
E xisting Wilde L a ke Middle Sc ho o l Building 66 kBT U/ sf Ba se Building pe r ASHRAE 90.1-2007/ L E E D Minimum 51 kBT U/ sf Middle Sc ho o l No .20 38 kBT U/ sf Ne t Ze ro Go a l Wilde L a ke Middle Sc ho o l Re pla c e me nt Building 25 kBT U/ sf
Energy Use Index Comparison
Ba se Building pe r ASHRAE 90.1-2007/ L E E D Minimum 1.2 Wa tt/ sf Middle Sc ho o l No .20 0.76 Wa tt/ sf Ne t Ze ro Go a l Wilde L a ke Middle Sc ho o l 0.50 Wa tt/ sf
Light Power Density Comparison
Elevations
Elevations
Base Construction Estimate * $34,846,856 (includes 3% CD construction contingency $1,045,406) Architect/Engineering Fee $2,380,830 Construction Management Fee $2,100,000 Related Costs $1,582,808 Project Contingency $1,582,808 Equipment and Technology $2,200,000 Project Total Budget $44,693,302 Funding Projections FY14 $2,658,000 FY15 $8,200,000 FY16 $26,279,000 MEA Grant Contribution $2,773,000 *Prevailing wage requirements have been included in the cost
