SLIDE 1
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
Who, What, Where, Why, and How Synchron'08 Aussois Mouaiad ALRAS - - PowerPoint PPT Presentation
Who, What, Where, Why, and How Synchron'08 Aussois Mouaiad ALRAS - - PowerPoint PPT Presentation

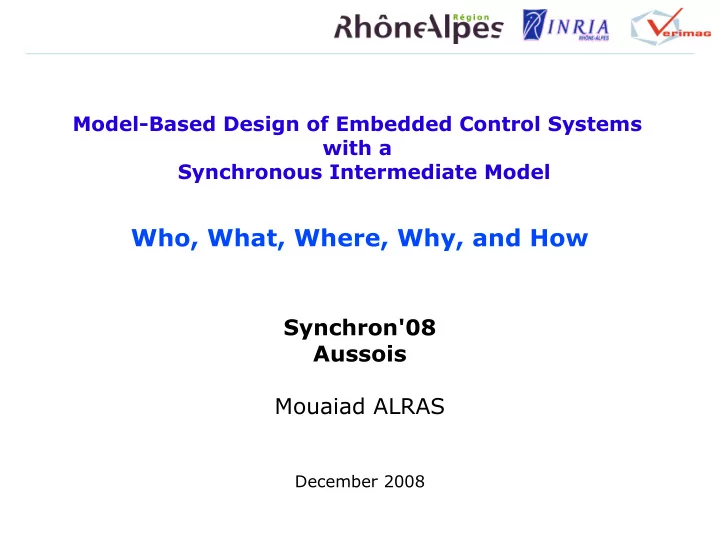

Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model Who, What, Where, Why, and How Synchron'08 Aussois Mouaiad ALRAS December 2008 Who LIG, POPART Where Alain GIRAULT What Why How Mouaiad ALRAS Whole
SLIDE 2
SLIDE 3
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
3
Where
A special-purpose computer system, Often designed with real-time computing constraints, and limited resources. Usually embedded as part of a complete device including hardware.
Embedded Systems
SLIDE 4
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
4
What
Simulink Synchronous Model Lustre RTOS Xenomai
What is the story ?
Model-based design (MBD) precisely attempts at replacing the manual coding phase by an automatic code generation one. The main issue raised by MBD is the faithfulness of the generated code with respect to the initial model, the latter being defined by the simulation semantics.
SLIDE 5
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
5
What
What is Simulink ?
An interactive graphical environment that let you design, simulate, implement, and test a variety of systems.
SLIDE 6
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
6
What
What is Lustre ?
Lustre is a formally defined, declarative, and synchronous dataflow programming language, for programming reactive systems.
SLIDE 7
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
7
What
What is Xenomai RTOS ?
Xenomai is a real-time development framework cooperating with the Linux kernel, in order to provide a pervasive, interface-agnostic, hard real-time support to user-space applications, seamlessly integrated into the GNU/Linux environment.
Categories of services :
➢ Ta s k m a n a g e m e n t.
C re a te a n e w re a l-tim e ta s k . S ta rt a re a l-tim e ta s k . M a k e a re a l-tim e ta s k p e rio d ic . S e n d a m e s s a g e to a ta s k . R e p ly to a ta s k . W a it
- n
th e te rm in a tio n
- f
a re a l-tim e ta s k . ....
➢ T im in g a n d A la rm s s e rv ic e s .
C re a te a n a la rm
- b je c t.
W a it fo r th e n e x t a la rm s h o t. C o n v e rt n a n o s e c o n d s to in te rn a l c lo c k tic k s . In q u ire a b o u t th e tim e r. S e t th e s ys te m c lo c k ra te . ....
➢ S y n c h ro n iz a tio n s u p p o rt.
C o u n tin g s e m a p h o re s , M u te x e s , C o n d itio n v a ria b le s , E v e n t fla g g ro u p s .
➢ M e s s a g in g a n d c o m m u n ic a tio n .
M e s s a g e q u e u e s , M e m o ry h e a p s , M e s s a g e p ip e s .
➢ D e v ic e I/ O h a n d lin g . ➢ R e g is try s u p p o rt.
SLIDE 8
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
8
Why
Why Model-based ?
In the domain of embedded systems, it offers the huge advantage of avoiding the time-consuming and error-prone final coding phase.
Why Simulink ?
One of the most popular design tool for automatic control application. Automatic control people love Simulink.
Why Lustre ?
Software people do not like Simulink. Lustre, as a synchronous language, has a clean mathematical semantics. Using Lustre as a intermediare model permet the use of Lustre tools for simulation and validation
SLIDE 9
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
9
Why
Why Model-based ?
In the domain of embedded systems, it offers the huge advantage of avoiding the time-consuming and error-prone final coding phase.
Why Simulink ?
One of the most popular design tool for automatic control application. Automatic control people love Simulink.
Why Lustre ?
Software people do not like Simulink. Lustre, as a synchronous language, has a clean mathematical semantics. Using Lustre as a intermediare model permet the use of Lustre tools for simulation and validation
SLIDE 10
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
10
Why
Why Model-based ?
In the domain of embedded systems, it offers the huge advantage of avoiding the time-consuming and error-prone final coding phase.
Why Simulink ?
One of the most popular design tool for automatic control application. Automatic control people love Simulink.
Why Lustre ?
Software people do not like Simulink. Lustre, as a synchronous language, has a clean mathematical semantics. Using Lustre as a intermediare model permet the use of Lustre tools for simulation and validation
SLIDE 11
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
11
Why
Objective
Our goal is to bridge the gap between the high-level model and the low-level implementation, and to develop a complete multi-tier MBD tool that goes from a Simulink model to a real-time implementation for the Xenomai RTOS.
Simulink Synchronous Model Lustre RTOS Xenomai
SLIDE 12
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
12
How
Restrictions, Confinements:
To prevent unsafe behaviors of Simulink.
User Guidelines:
in order to produce better code, we propose user guidelines in two directions: Grouping tasks to generate minimum number of RTOS threads, Using exclusive modes with data sharing to generate efficient and better structured code.
Meta-operators:
We extend Lustre with specific meta-operators, witch are used to subsume new features of simulink on one hand, and to incarnate on the other hand the real-time and system-level items of Xenomai library.
SLIDE 13
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
13
How
node main(in1: int, in3:bool) returns (out1,out2:int); var clk_20_0 : bool; let clk_20_0 = clock<<20,0>>();
- ut1 = condact<<G,clk_20_0,1>>(in1)
+ condact<<H,clk_20_0,2>>(in1);
- ut2 = condact<<F, in3,0>>(in2);
tel 1 in1 in1
- ut1
G T=20, Init=1 in1
- ut1
H T=20, Init=2 1
- ut1
+ in1
- ut1
F Init=0 2 in2 2
- ut2
The Clock & Condact Meta-operators
Lustre' code
SLIDE 14
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
14
How rt_task task_G; rt_alarm clk_20_0; rt_alarm_create(&clk_20_0,"clk_20_0"); rt_alram_start(&clk_20_0, 0, ns2ticks(20 * MILLE)); rt_task_create(&task_G, "task_G"); ctx->out1 = 1; //initial value rt_task_start(&task_G, &calc_G, ctx); void calc_G(void* ctx){ while(1){ rt_alarm_wait(&clk_20_0); ... call_step(ctx); ... } }
1 in1 in1
- ut1
G T=20, Init=1 in1
- ut1
H T=20, Init=2 1
- ut1
+ in1
- ut1
F Init=0 2 in2 2
- ut2
Xenomai code
SLIDE 15
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
15
How
1 in1 in1
- ut1
Atomic subsystem GH 1
- ut1
in1
- ut1
F Init=0 2 in2 2
- ut2
The Atomic subsystem guideline
SLIDE 16
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
16
How
The multi-modes guideline
SLIDE 17
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
17
How
node shift_control ( in_trig: bool, in_omega_t:real, in_omega_cr:real, in_T_t:real ) returns ( out_tc1:real, out_tc2:real, out_to_gear:int ) var tmp_mod: int; let (tmp_mod, tmp_gear) = condact<<mode_control,in_trig>>(in_omega_t, in_omega_cr); .... switch tmp_mod case mod_1: (out_tc2, out_tc1) = first_pressure(in_T_t) case mod_2: (out_tc2, out_tc1) = change_of_mind(in_T_t) case mod_3: (tmp_tc2, out_tc1) = second_pressure(in_T_t) ; .... tel
The switch-case meta-operator
SLIDE 18
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
18
How
node shift_control (in_trig: bool, in_omega_t:real, in_omega_cr:real, in_T_t:real ) returns ( out_tc1:real, out_tc2:real, out_to_gear:int ) var mem_tc2 : memory<<real,0>>; tmp_tc2 : real; tmp_mod: int; let (tmp_mod, out_to_gear) = condact<<mode_control,in_trig>>(in_omega_t, in_omega_cr); switch tmp_mod case mod_1: (out_tc2, out_tc1) = first_pressure(in_T_t) case mod_2: (out_tc2, out_tc1) = change_of_mind[mem_tc2](in_T_t) case mod_3: (tmp_tc2, out_tc1) = second_pressure[mem_tc2](in_T_t) ; void = memory_write<<mem_tc2>>(tmp_tc2);
- ut_tc2 = tmp_tc2;
tel
The memory meta-operator
SLIDE 19
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
19
How
The ford gear-shift study case
SLIDE 20
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
20
How
type modes_shift = enum {do_1, do_2, do_c, do_t, do_i}; node shift_control( i_do_control: bool, i_w_t: real, i_w_cr: real, i_to_gear: int, i_T_t: real) returns(o_tc1:real, o_tc2:real, o_gear) var t_mode: modes_shift, t_reset: bool last tc2 : real = 0; omega : real = 0; torque : real = 0; let (o_gear, t_mode, t_reset) = condact<<mode_control, in_do_control>>(i_omega_t, i_omega_cr, i_to_gear); switch mode case do_1: (o_tc1, o_tc2) = first(i_T_t) case do_2: (o_tc1, o_tc2) = second(in_T_t) case do_c: (o_tc1, o_tc2) = change_of_mind(i_T_t, last tc2) case do_t: (o_tc1, o_tc2, torque, omega) = torque_12(i_w_t, i_T_t, last tc2) case do_i: (o_tc1, o_tc2) = inertia_12(last torque, last omega, i_w_t, i_w_cr, i_reset, i_T_t) ; tc2 = o_tc_2; tel
SLIDE 21
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
21
Whole
Simulink Model Intermediary Model Lustre + Meta-operators Behavioral Model pure Lustre Executable code functional + OS Glue XML LUS2XEN MDL2XML XML2LUS parsing, filtering conformity analyzing, translation test, checking validation Modeling, simulation
SLIDE 22
Where Whole How Why What What Who
Model-Based Design of Embedded Control Systems with a Synchronous Intermediate Model
22
What
What next
Apply the method to a real and complete study case. Integrate the tools of filtering, simulation, validation, and code generation in on framework tool. Generalize our MBD method to a wider class of meta-operators to cover: more RTOS sevices. Code distribution annotations. ...
